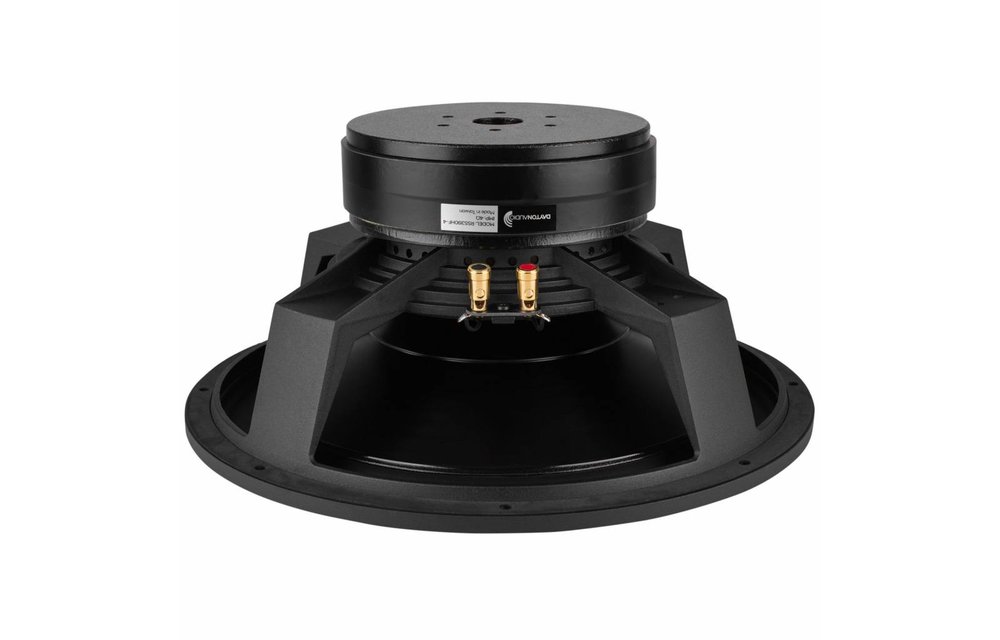

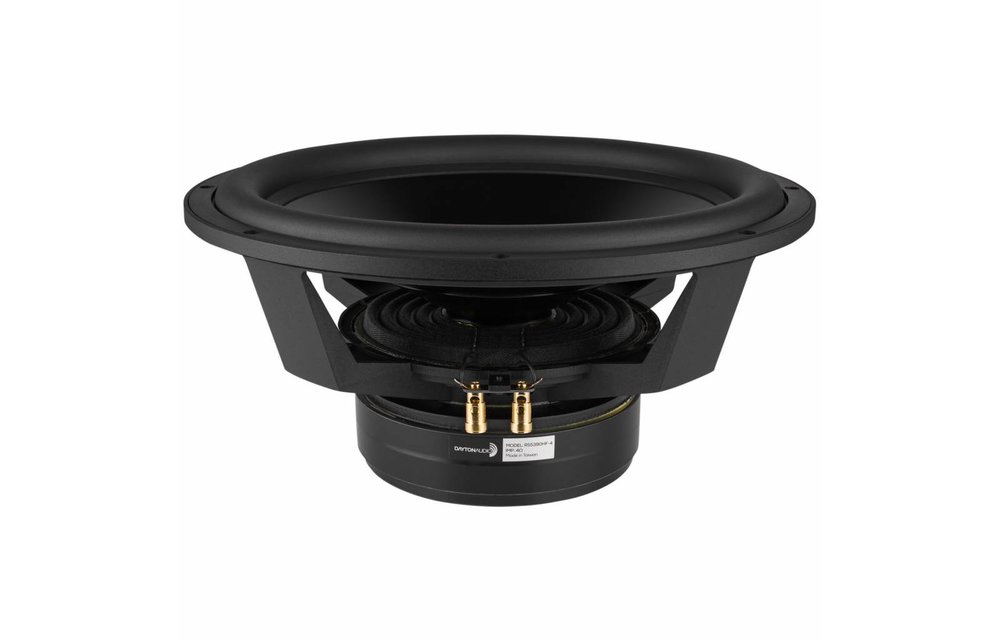

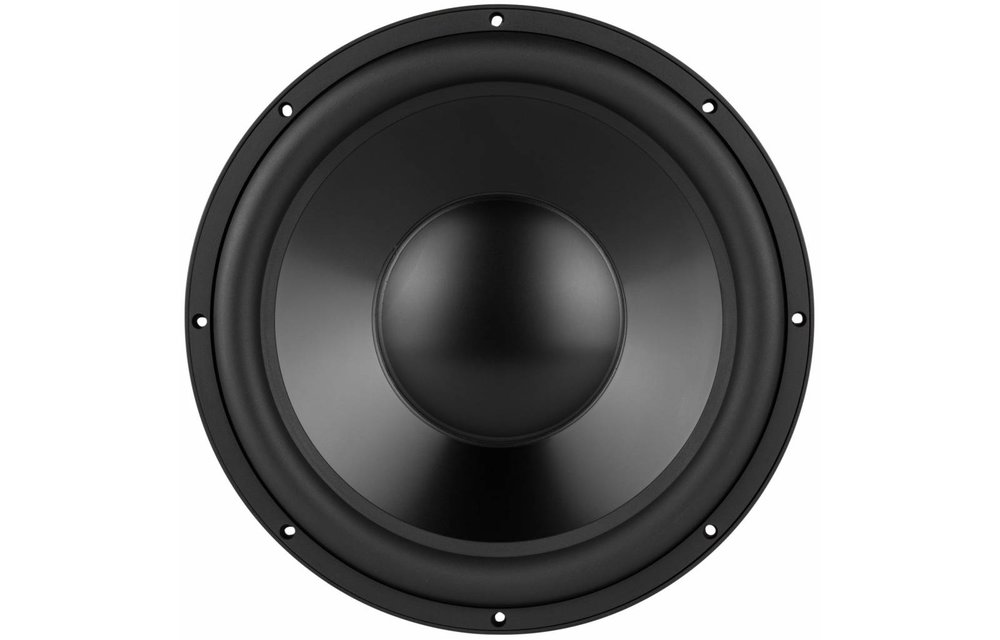

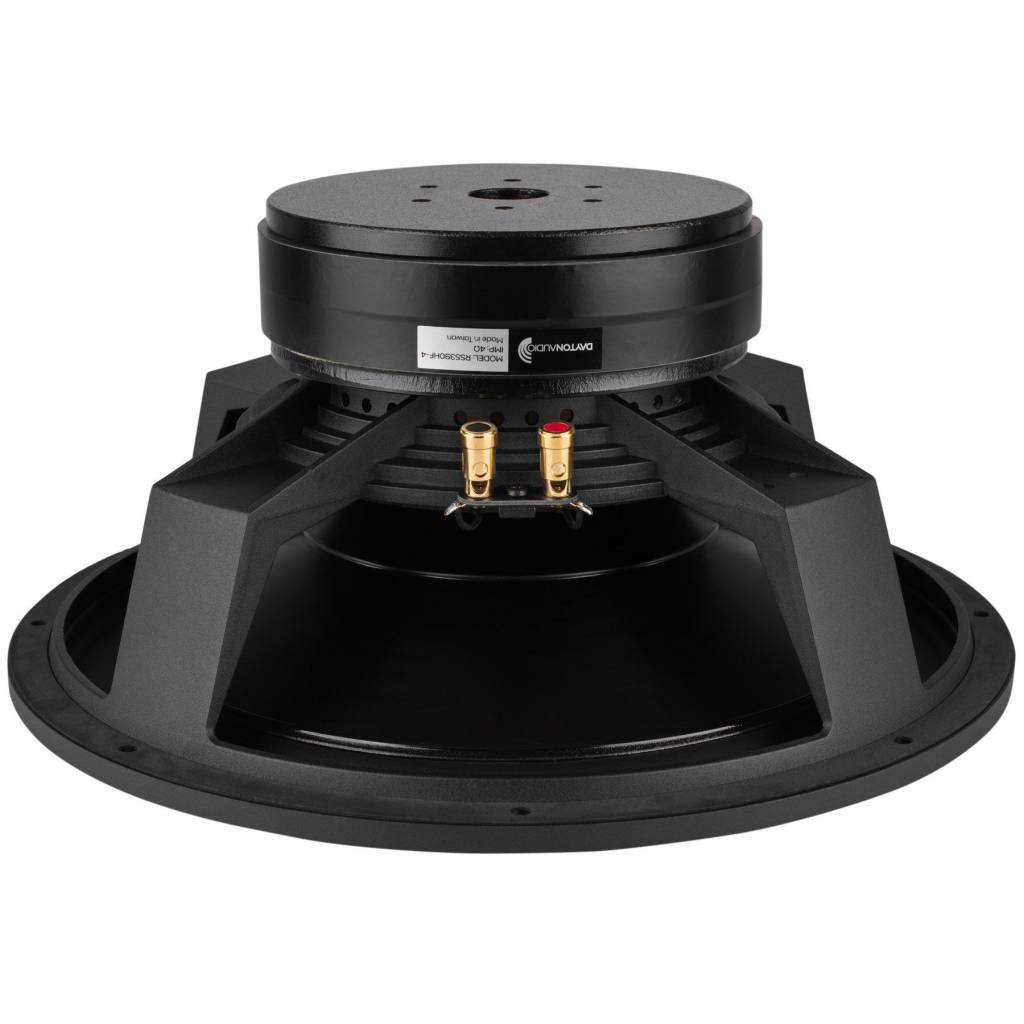

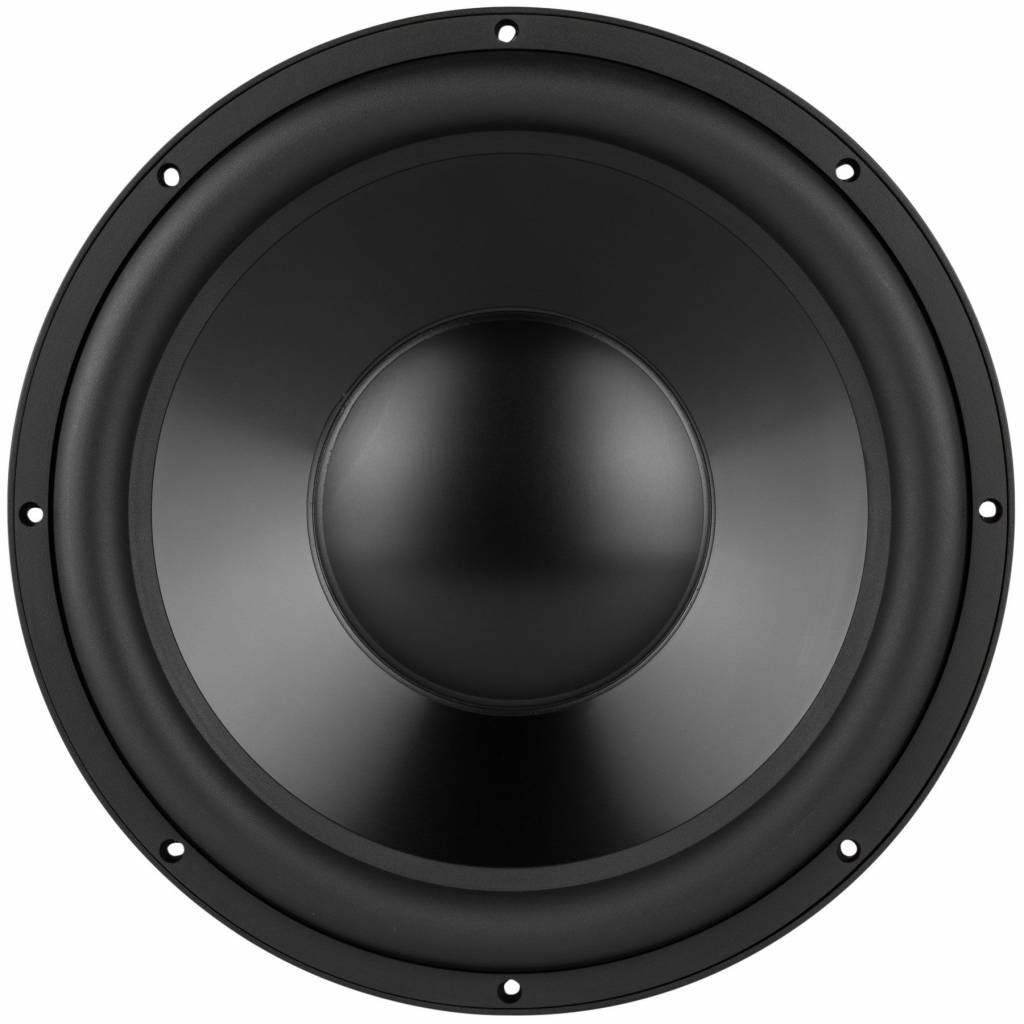

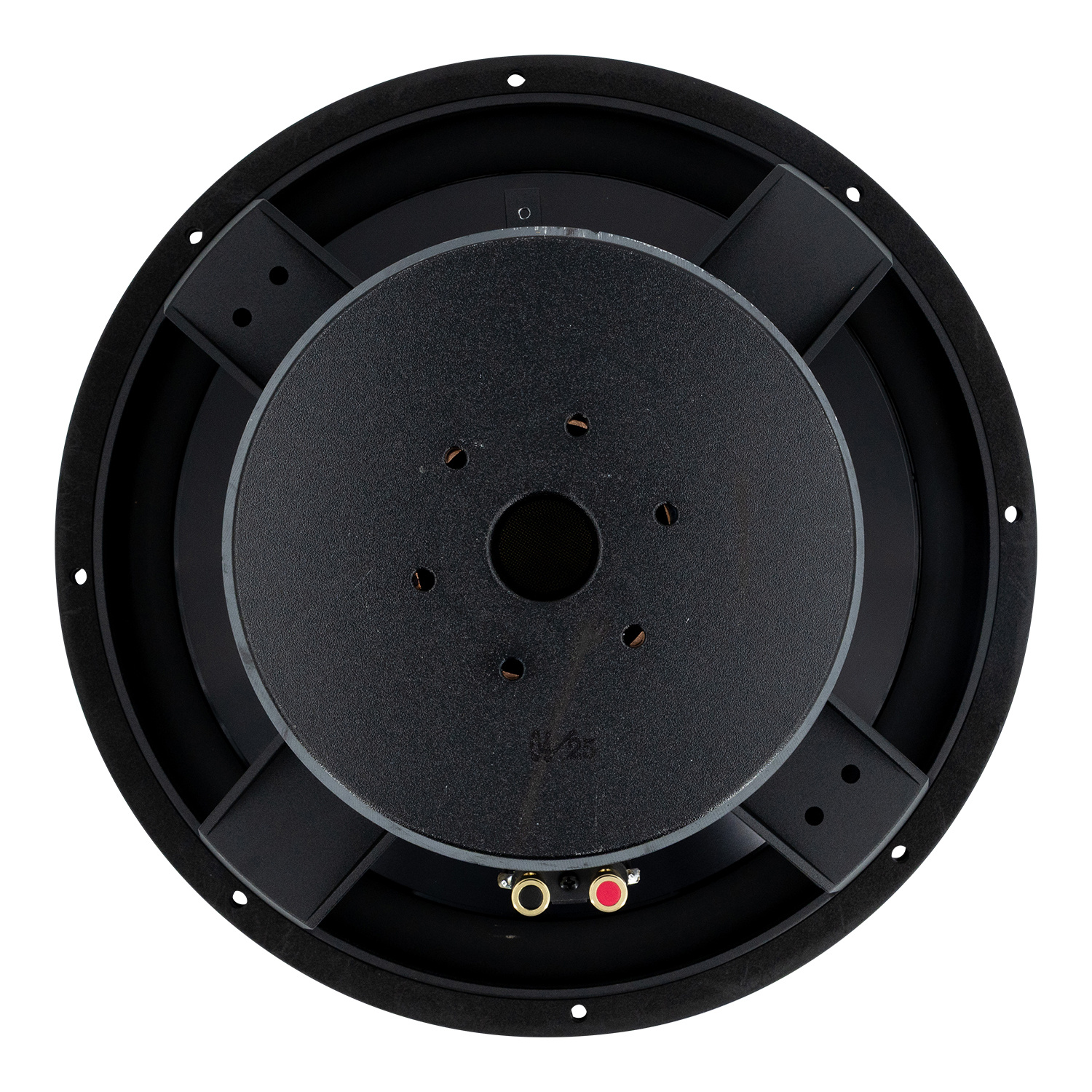

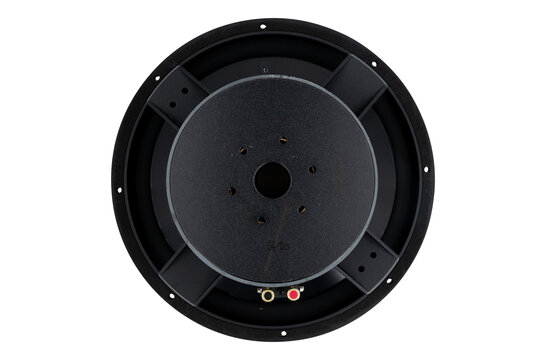

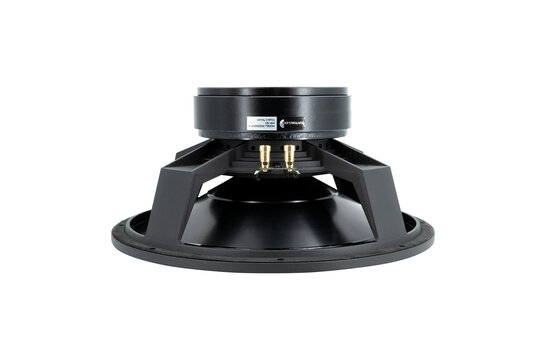

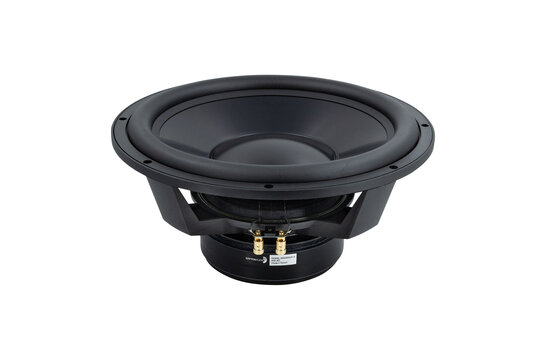

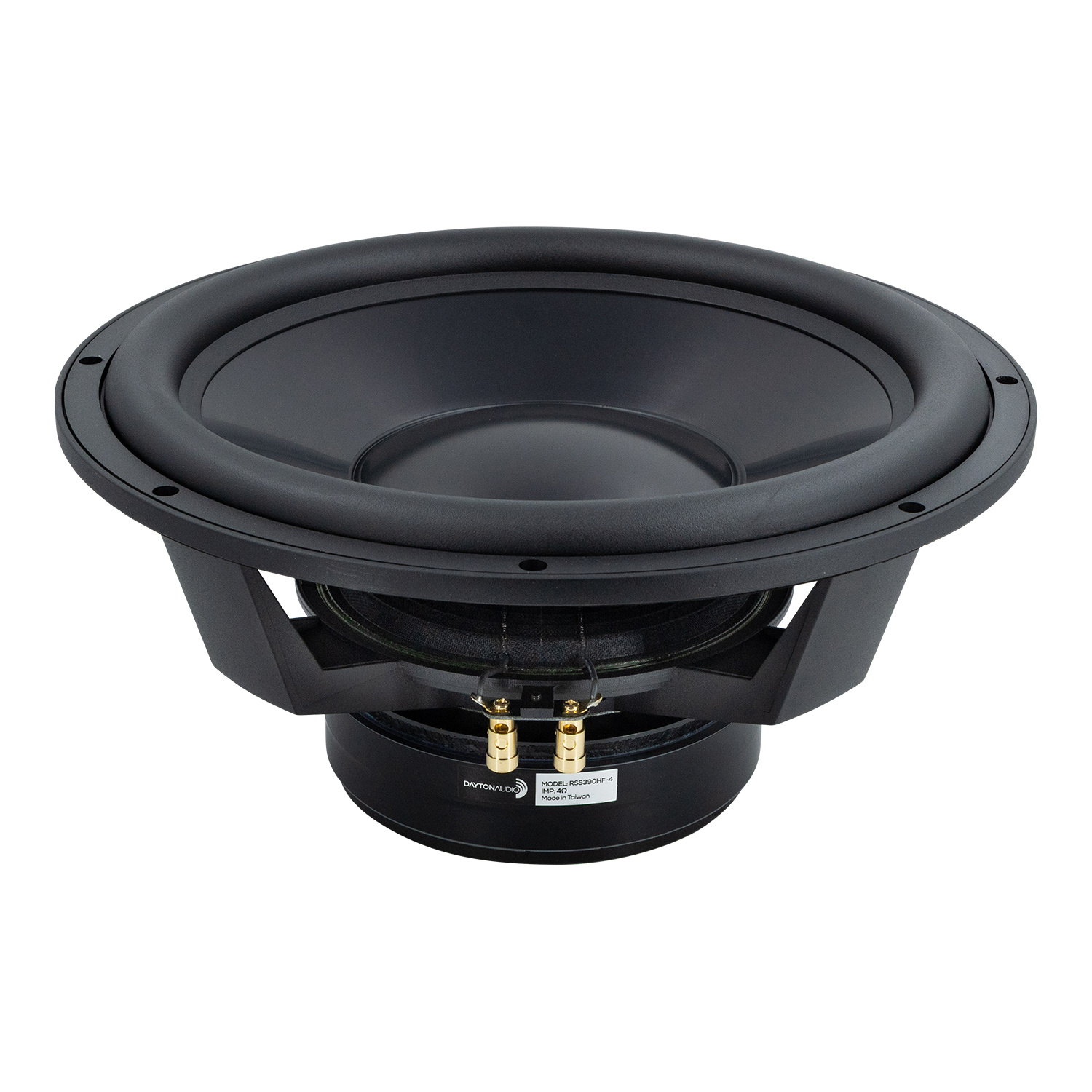

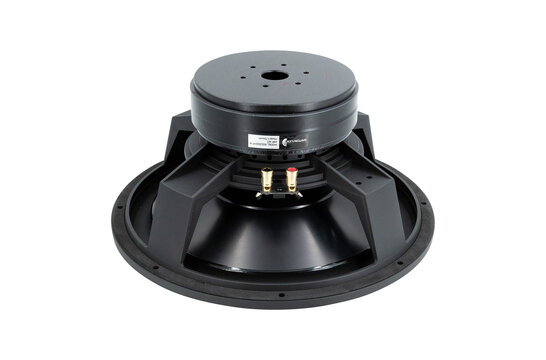

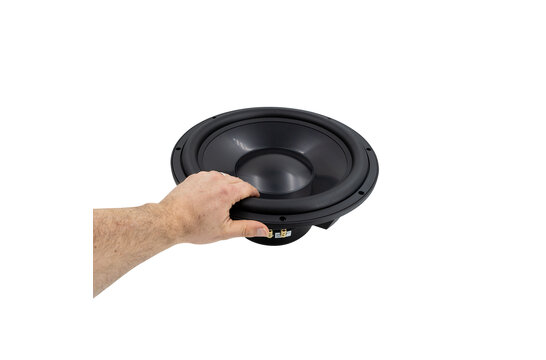

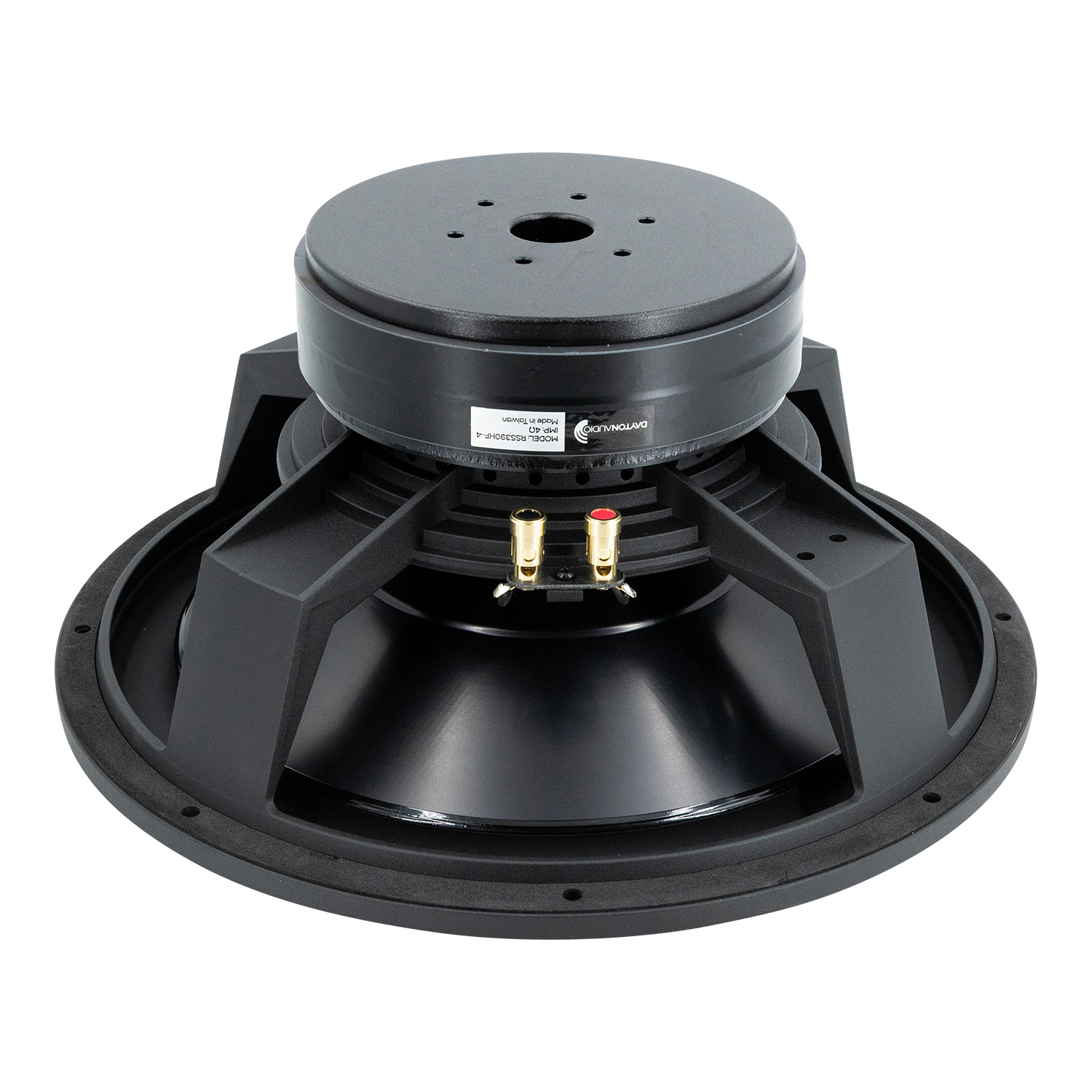

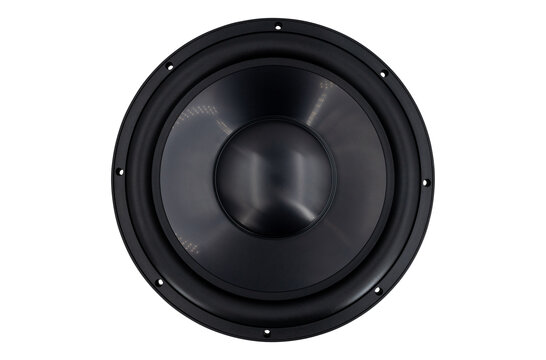

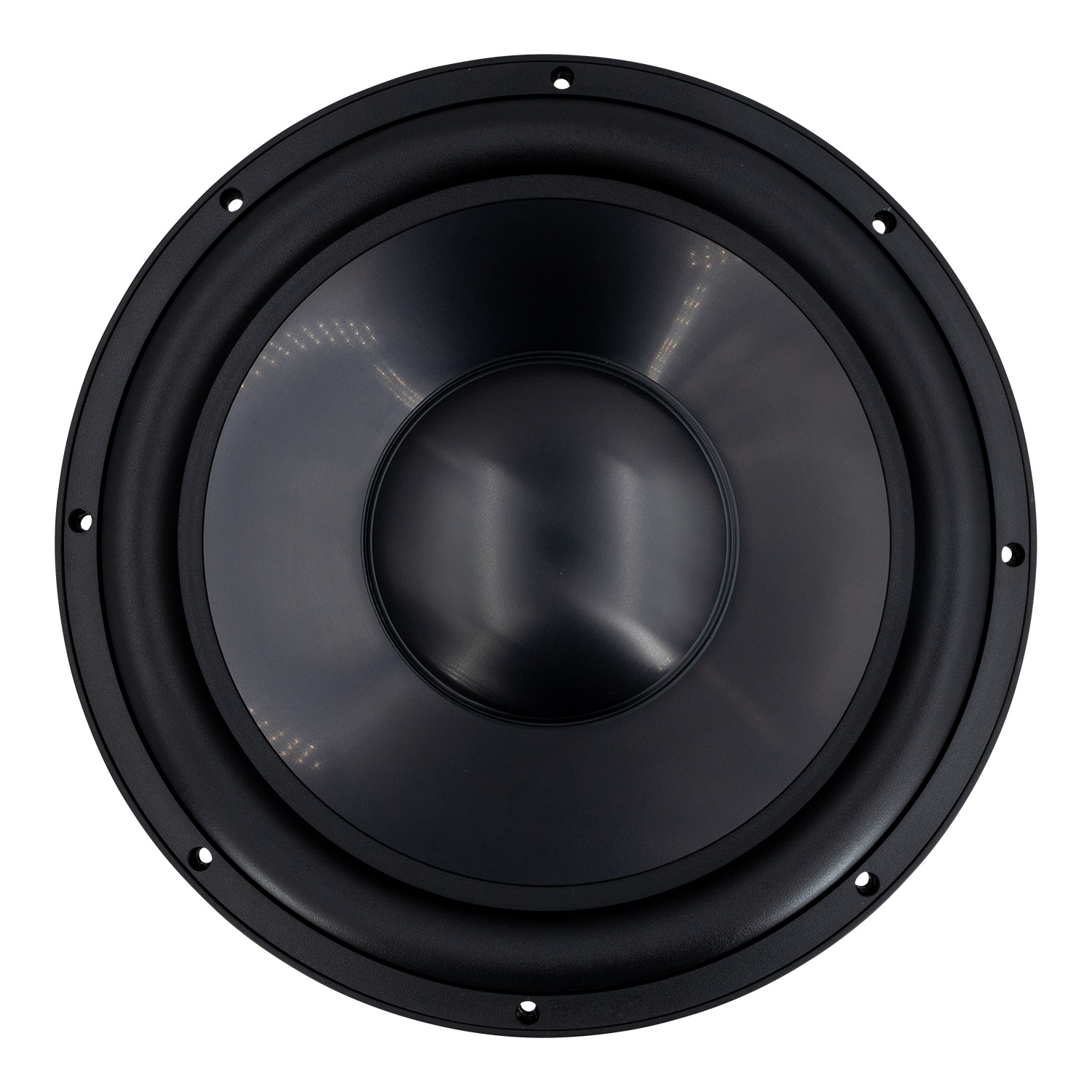

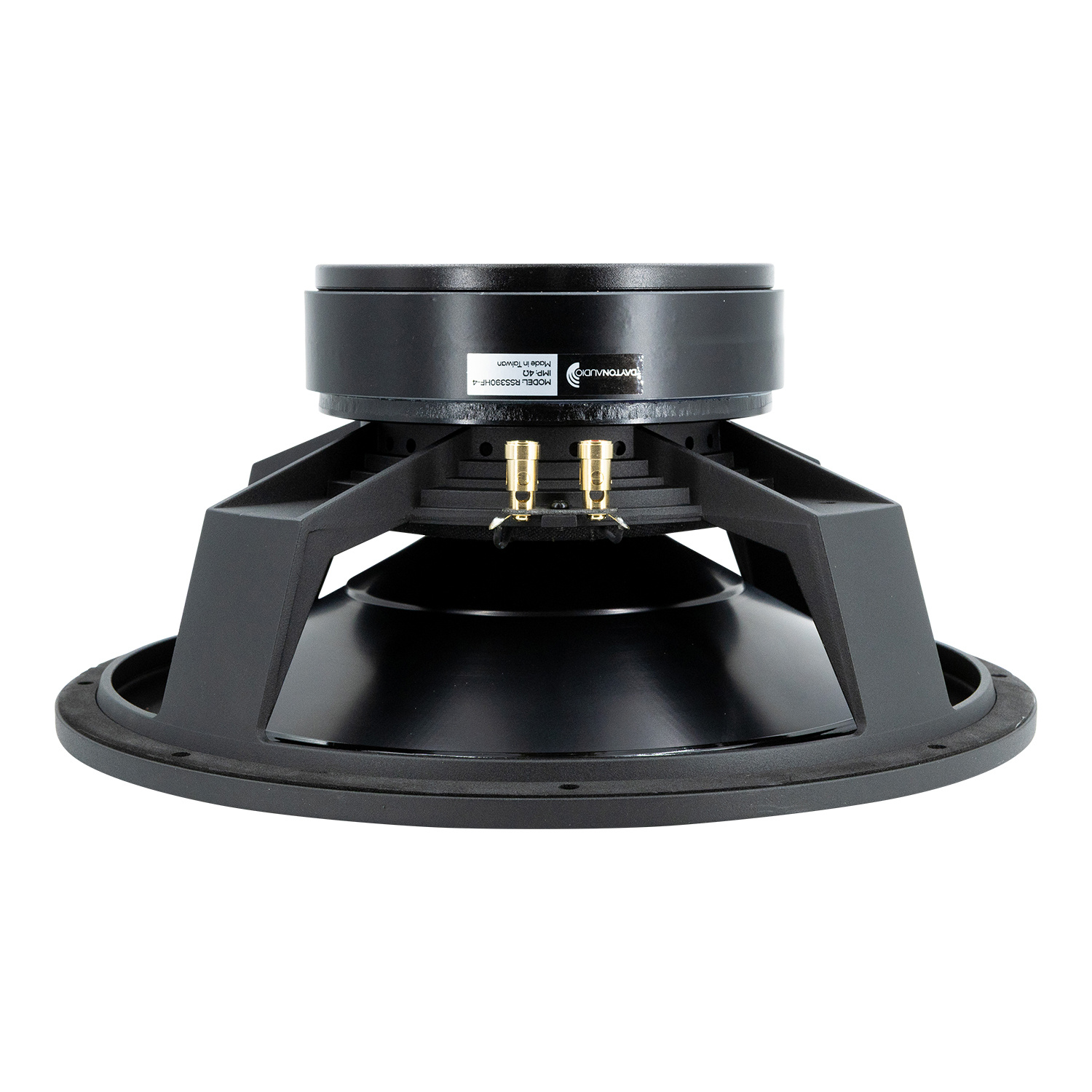

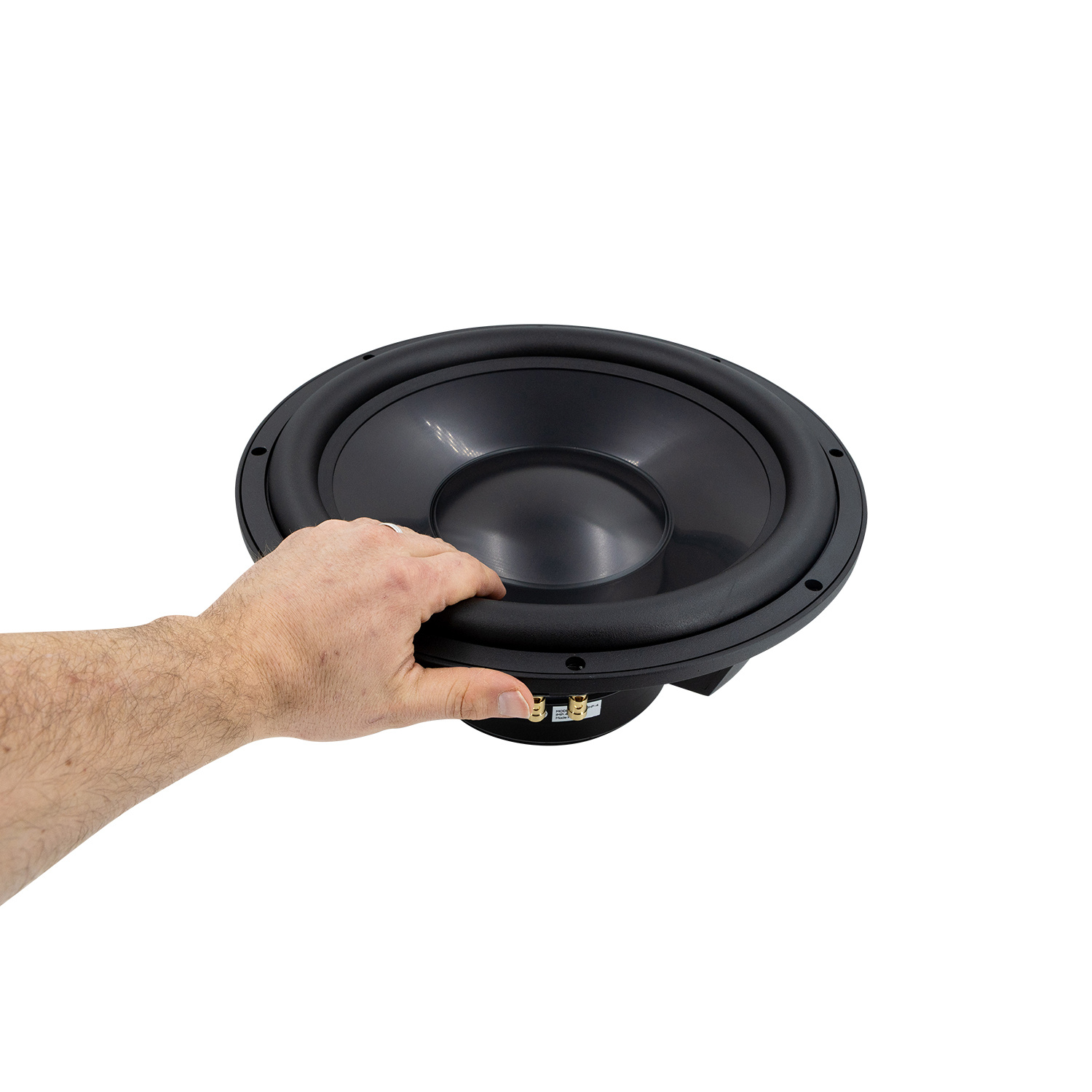

Dayton Audio RSS390HF-4 15" Reference HF Subwoofer 4 Ohm

€ 223,10€ 269,95 Nicht auf Lager: Lieferzeit beträgt 3 bis 6 Wochen
Engineered to provide high-volume, low-distortion bass in larger rooms and other highly demanding applications, the Dayton Audio RSS390HF-4 15" Reference Series subwoofer speaker offers the perfect combination of high definition sound quality and low freq... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €256,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Engineered to provide high-volume, low-distortion bass in larger rooms and other highly demanding applications, the Dayton Audio RSS390HF-4 15" Reference Series subwoofer speaker offers the perfect combination of high definition sound quality and low frequency impact.



Highlights

  • Extensively vented motor eliminates compression and allows quiet excursion
  • Lightweight black anodized aluminum cone for rigidity and lower moving mass
  • Triple shorting ring motor for ultra-low distortion
  • 2-layer coil for reduced back EMF
  • Suitable for sealed or vented enclosures
  • Highest quality materials throughout for long-lasting performance



Product details

Dayton Audio RSS390HF-4 15" Reference HF Subwoofer 4 Ohm



The Dayton Audio Reference Series RSS390HF-4 15" speakers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three magnetic short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.

Eigenschaften

Artikelnummer:
RSS390HF-4
Woofer Series
Reference Series
Woofer Type
Subwoofer
Nominal Diameter
15"
Power Handling (RMS)
500 watts
Power Handling (max)
1000 watts
Impedance
4 ohms
Sensitivity
91.2 dB @ 2.83V/1m
Frequency Response
18 - 800 Hz
Voice Coil Diameter
64 mm
Magnet Weight
150 oz.
DC Resistance (Re)
3 ohms
Voice Coil Inductance (Le)
0.92 mH @ 1 kHz
Resonant Frequency (Fs)
19.5 Hz
Mechanical Q (Qms)
3.02
Electromagnetic Q (Qes)
0.50
Total Q (Qts)
0.43
Diaphragm Mass Inc. Airload (Mms)
306g
Mechanical Compliance of Suspension (Cms)
0.22 mm/N
Surface Area of Cone (Sd)
829.6 cm²
Volume of Displacement (Vd)
1,161.4 cm³
BL Product (BL)
15 Tm
Compliance Equivalent Volume (Vas)
212 liters
Maximum Linear Excursion (Xmax)
14.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
388.4 mm
Overall Depth
178 mm
Baffle Cutout Diameter
355.8 mm
# Mounting Holes
8
Sealed Volume
2.88 ft.³
Sealed F3
37 Hz
Vented Volume
8.96 ft.³
Vented F3
21 Hz

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Excellent driver, well build, and sounds really good. Digs really deep in a closed box even without any eq. Recommended highly.
Durch PV Frederiksen on 8 November 2019
