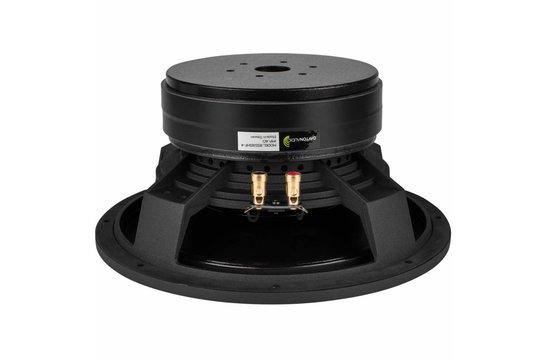

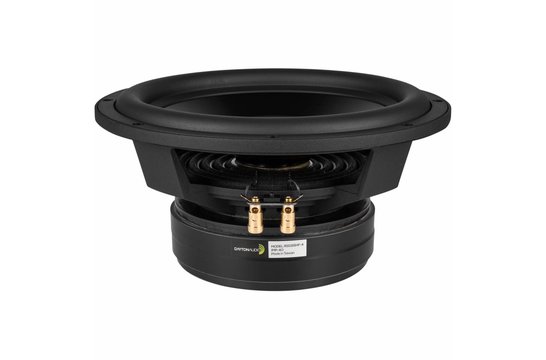

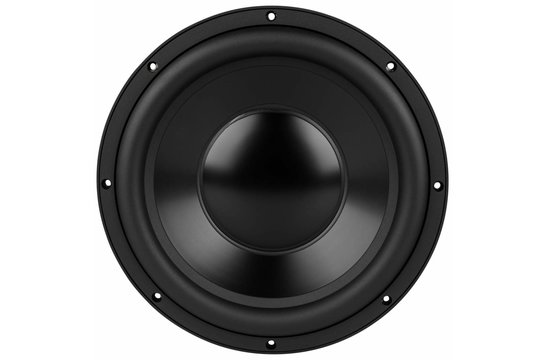

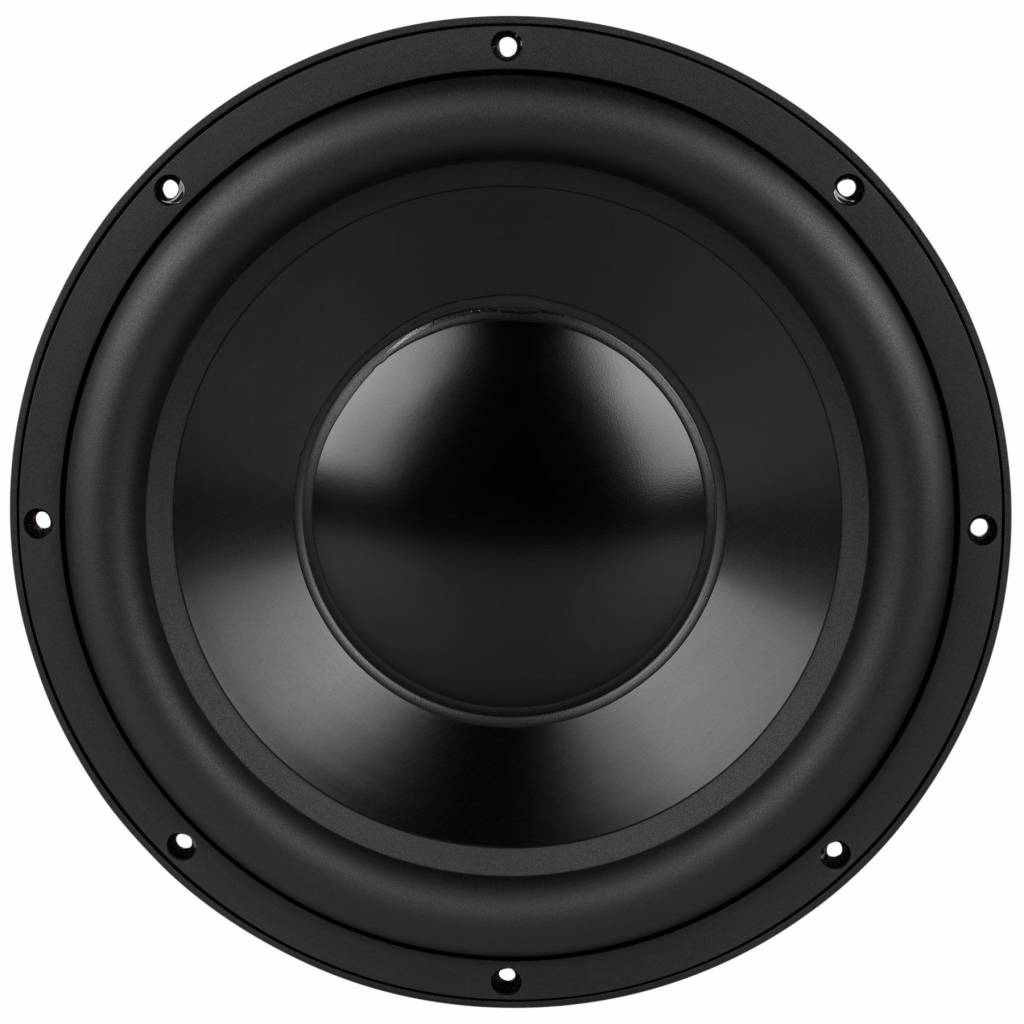

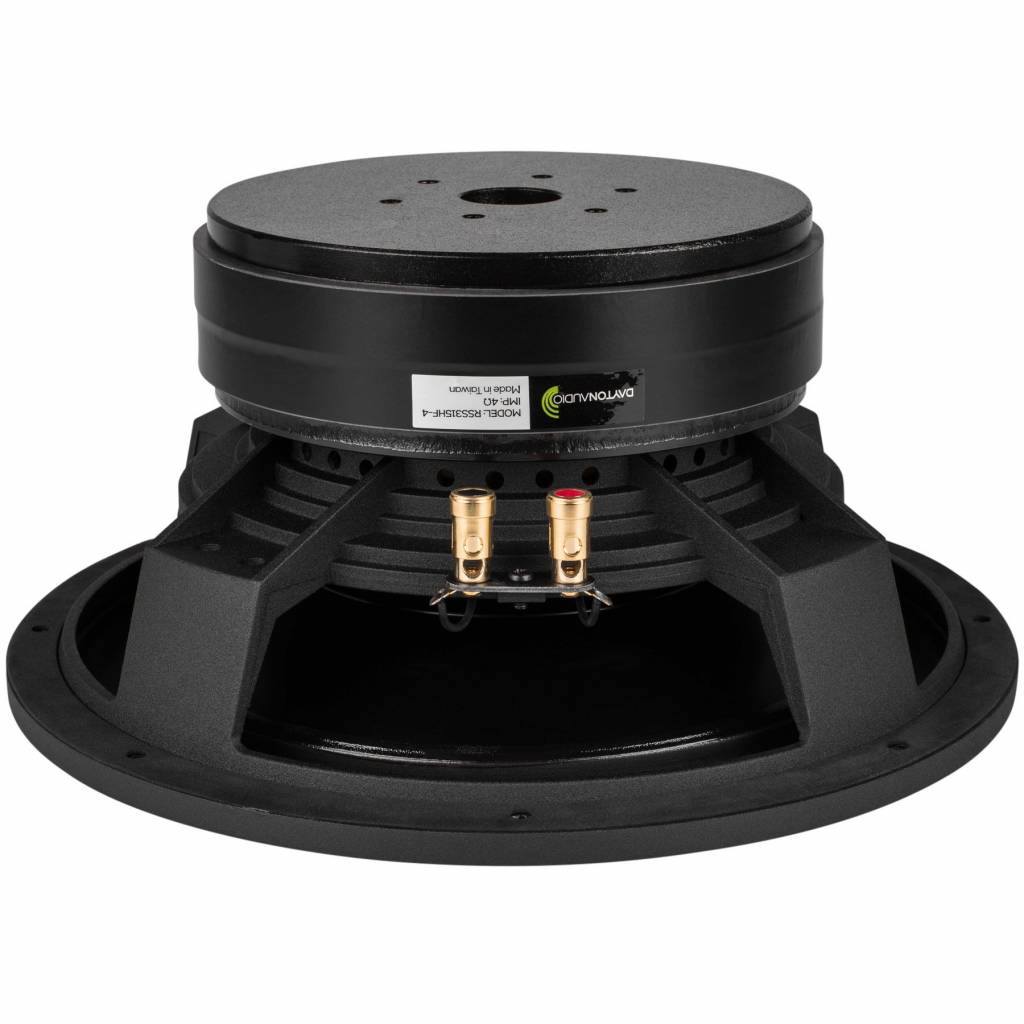

Dayton Audio RSS315HF-4 12" Reference HF Subwoofer 4 Ohm

€ 185,91€ 224,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Reference Series subwoofer speakers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €213,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio Reference Series subwoofer speakers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.



Highlights

  • Extensively vented motor eliminates compression and allows quiet excursion
  • Lightweight black anodized aluminum cone for rigidity and lower moving mass
  • Triple shorting ring motor for ultra-low distortion
  • 2-layer coil for reduced back EMF
  • Suitable for sealed or vented enclosures
  • Highest quality materials throughout for long-lasting performance



Product details

Dayton Audio RSS315HF-4 12" Reference HF Subwoofer 4 Ohm



As with the rest of the Dayton Audio Reference Series speakers, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion for the Reference Series RSS315HF-4 12" subwoofer speaker. The black anodized cone, rubber surround, and custom basket give this driver and the rest of the Reference Series a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.



Eigenschaften

Artikelnummer:
RSS315HF-4
Woofer Series
Reference Series
Woofer Type
Subwoofer
Nominal Diameter
12"
Power Handling (RMS)
400 watts
Power Handling (max)
800 watts
Impedance
4 ohms
Sensitivity
90.3 dB @ 2.83V/1m
Frequency Response
23 - 1,000 Hz
Voice Coil Diameter
64 mm
Magnet Weight
150 oz.
DC Resistance (Re)
3.1 ohms
Voice Coil Inductance (Le)
0.96 mH @ 1 kHz
Resonant Frequency (Fs)
24.2 Hz
Mechanical Q (Qms)
2.83
Electromagnetic Q (Qes)
0.45
Total Q (Qts)
0.39
Diaphragm Mass Inc. Airload (Mms)
188g
Mechanical Compliance of Suspension (Cms)
0.23 mm/N
Surface Area of Cone (Sd)
514.7 cm²
Volume of Displacement (Vd)
736.0 cm³
BL Product (BL)
13.99 Tm
Compliance Equivalent Volume (Vas)
84.1 liters
Maximum Linear Excursion (Xmax)
14.3 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
314 mm
Overall Depth
146 mm
Baffle Cutout Diameter
282 mm
# Mounting Holes
8
Sealed Volume
0.71 ft.³
Sealed F3
70 Hz
Vented Volume
4.54 ft.³
Vented F3
22 Hz
