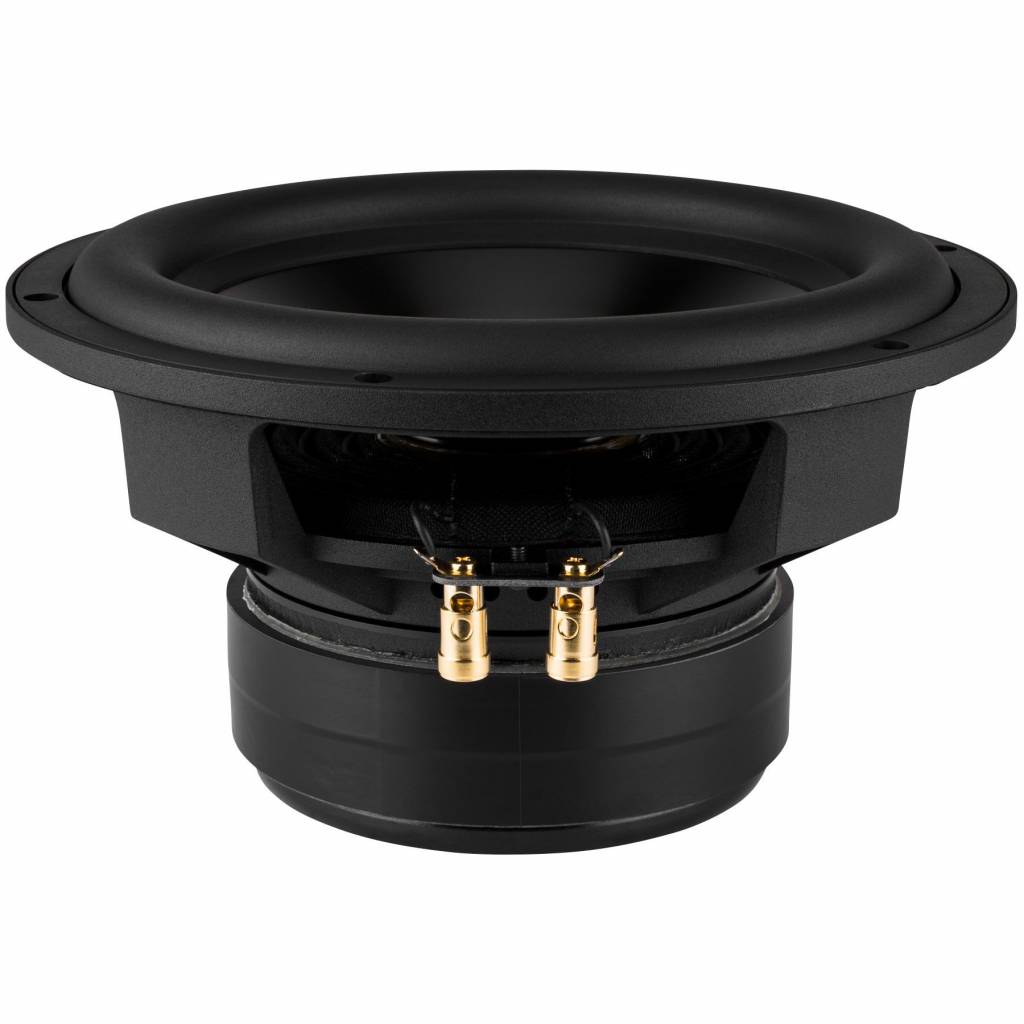

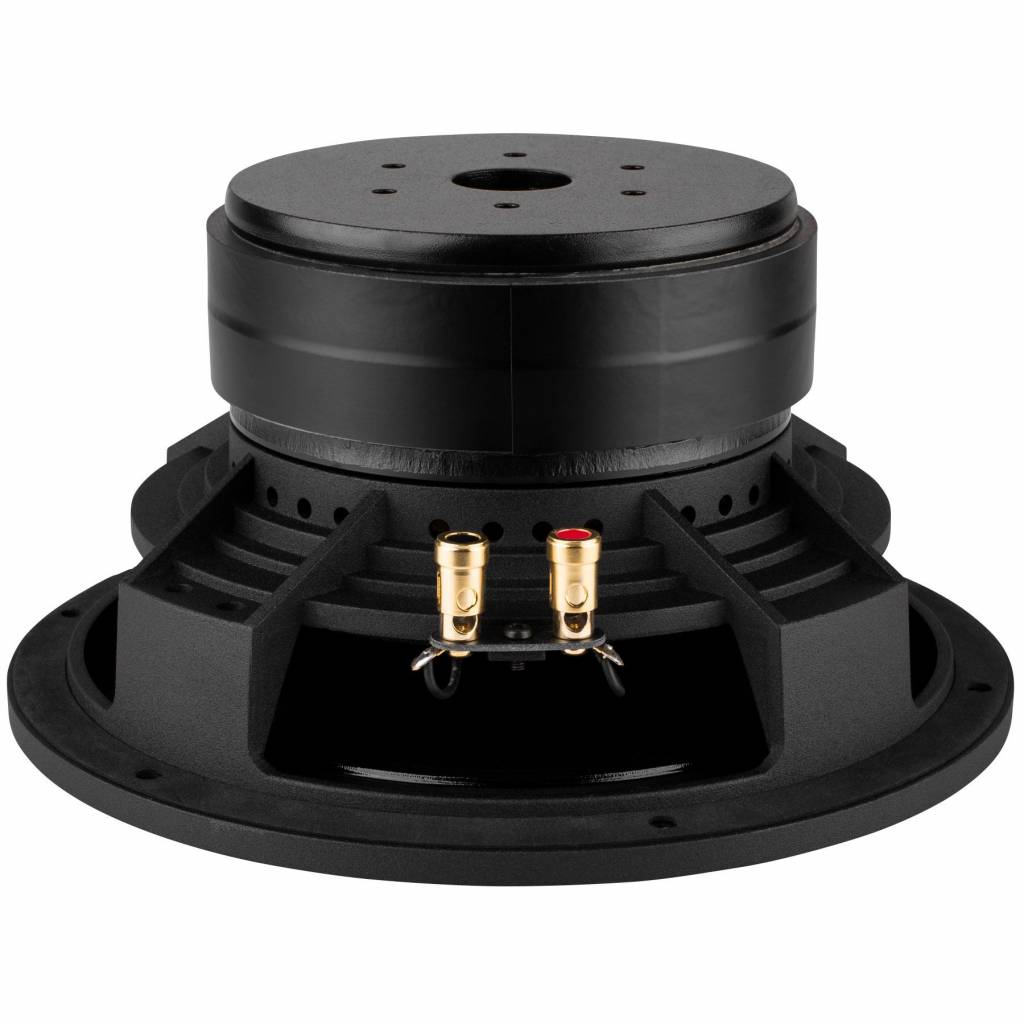

Dayton Audio RSS265HO-44 10" Reference HO DVC Subwoofer

€ 181,78€ 219,95 7 Auf Lager: Lieferzeit 1-3 Werktage
The RSS265HO-44 10" High Output Reference Subwoofer from Dayton Audio is designed for high power handling and extremely low distortion. A small enclosure requirement allows it to be used in car audio and space limited home audio applications.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €208,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The RSS265HO-44 10" High Output Reference Subwoofer from Dayton Audio is designed for high power handling and extremely low distortion. A small enclosure requirement allows it to be used in car audio and space limited home audio applications.



Highlights

  • Dual 4 ohm voice coils for many wiring options
  • Extensively vented motor eliminates compression and allows quiet excursion
  • Extra-thick black anodized aluminum cone for maximum rigidity
  • Triple shorting-ring motor for ultra-low distortion
  • Parameters optimized for small enclosures
  • Highest quality materials throughout for long-lasting performance



Product details

Dayton Audio RSS265HO-44 10" Reference HO DVC Subwoofer



Dayton Audio's 10" RSS265HO-44 High Output Reference Series subwoofer is purpose-built for moving lots of air, extreme power handling, extremely low distortion... and it does it all with an extremely small enclosure requirement! The minimum airspace optimization of this driver makes it perfect for car audio automotive applications and limited space home audio applications.



To minimize distortion, three copper short-circuit paths are built into the motor. This reduces second, third, and intermodulation distortion to levels only attained previously by expensive, exotic subwoofers. A side benefit is reduced energy storage and inductance, making the RSS265-HO-44 a very musical subwoofer. In fact, frequency response remains very flat up to 500 Hz.



Additional features include: a heavy gauge black anodized aluminum cone that resists deformation from extreme air pressure levels found inside of small sealed enclosures, a fully ventilated motor for reduced power compression, a rigid cast aluminum frame for structural integrity, and a tough rubber surround that won't wear down over years of use. Dual 4-ohm voice coils allow for a wide array of wiring options.



As with all Dayton Audio subwoofers, you receive a full 5-year warranty. Designed and engineered in the U.S.A.



Eigenschaften

Artikelnummer:
RSS265HO-44
Woofer Series
Reference Series
Woofer Type
Subwoofer
Nominal Diameter
10"
Power Handling (RMS)
600 Watts
Power Handling (max)
1200 Watts
Impedance
4+4 ohms
Sensitivity
90.5 dB 2.83V/1m
Frequency Response
25 to 600 Hz
Voice Coil Diameter
2.58"
DC Resistance (Re)
1.6 ohms
Voice Coil Inductance (Le)
0.77 mH
Resonant Frequency (Fs)
27.6 Hz
Mechanical Q (Qms)
4.42
Electromagnetic Q (Qes)
0.50
Total Q (Qts)
0.45
Diaphragm Mass Inc. Airload (Mms)
161g
Mechanical Compliance of Suspension (Cms)
0.21 mm/N
Surface Area of Cone (Sd)
352.3 cm²
BL Product (BL)
9.39 Tm
Compliance Equivalent Volume (Vas)
1.23 ft.³
Maximum Linear Excursion (Xmax)
13.25 mm
Cone / Diaphragm Material
Aluminum
Surround Material
Rubber
Dual Voice Coil
Yes
Basket / Frame Material
Cast Aluminum
Overall Outside Diameter
10.5"
Overall Depth
5"
Baffle Cutout Diameter
9.25"
Sealed Volume
0.55 ft.³
Sealed F3
46 Hz
Vented Volume
1.5 ft.³
Vented F3
22 Hz

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
perfect!!
handle power whitout problem
solid structure
sound quality is also perfect
5 star
Durch Florian Gauthier on 22 April 2021
