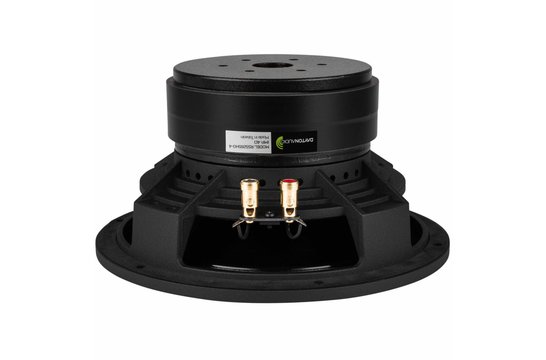

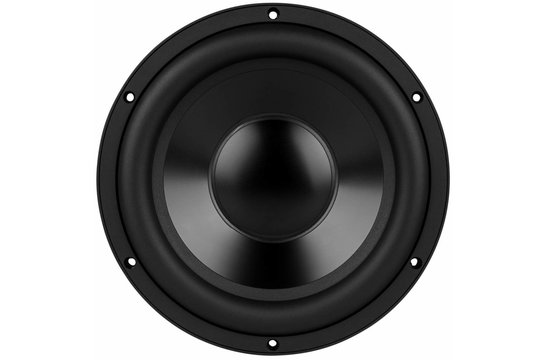

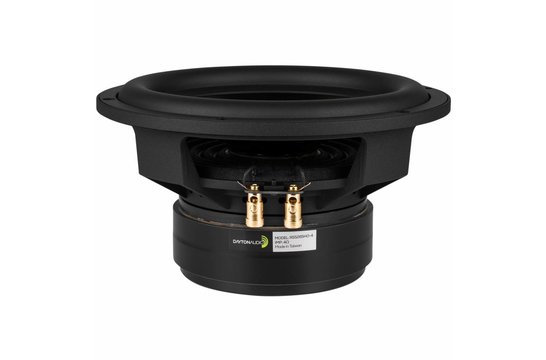

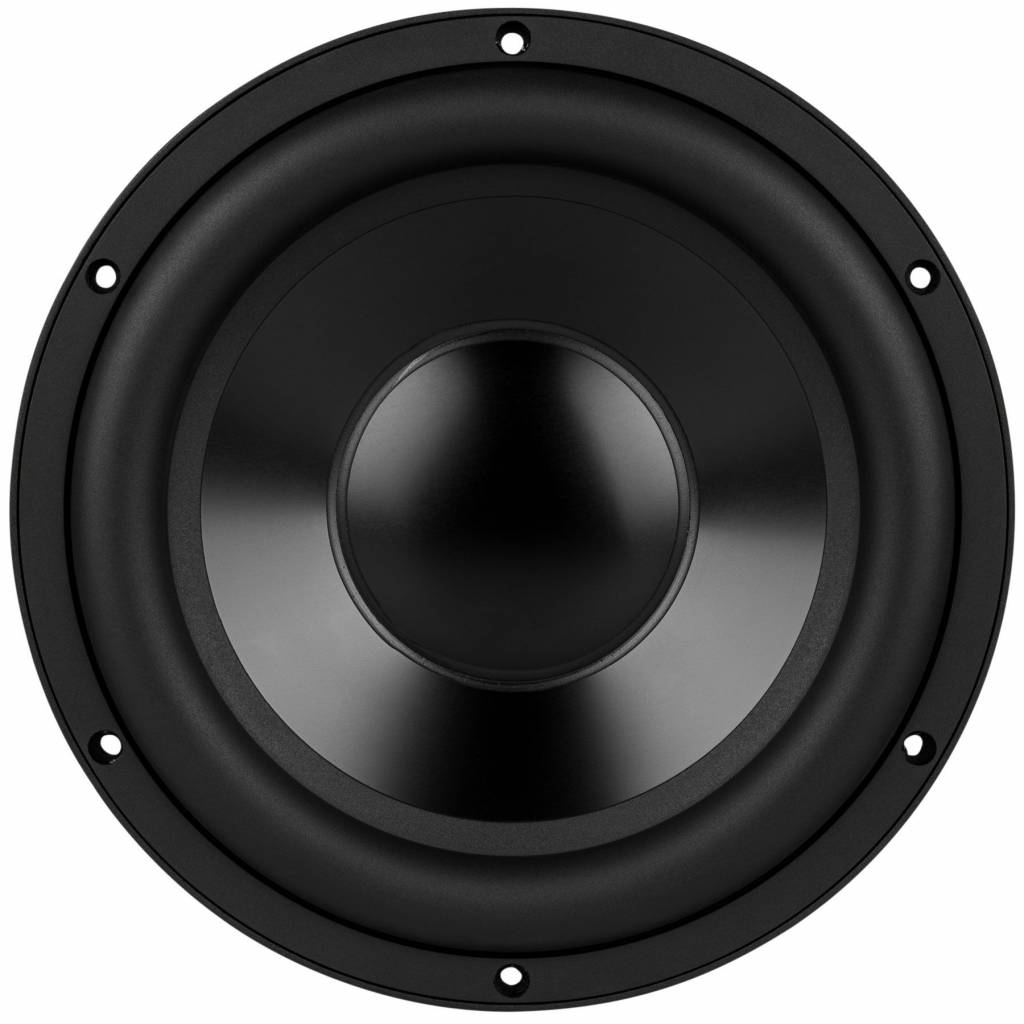

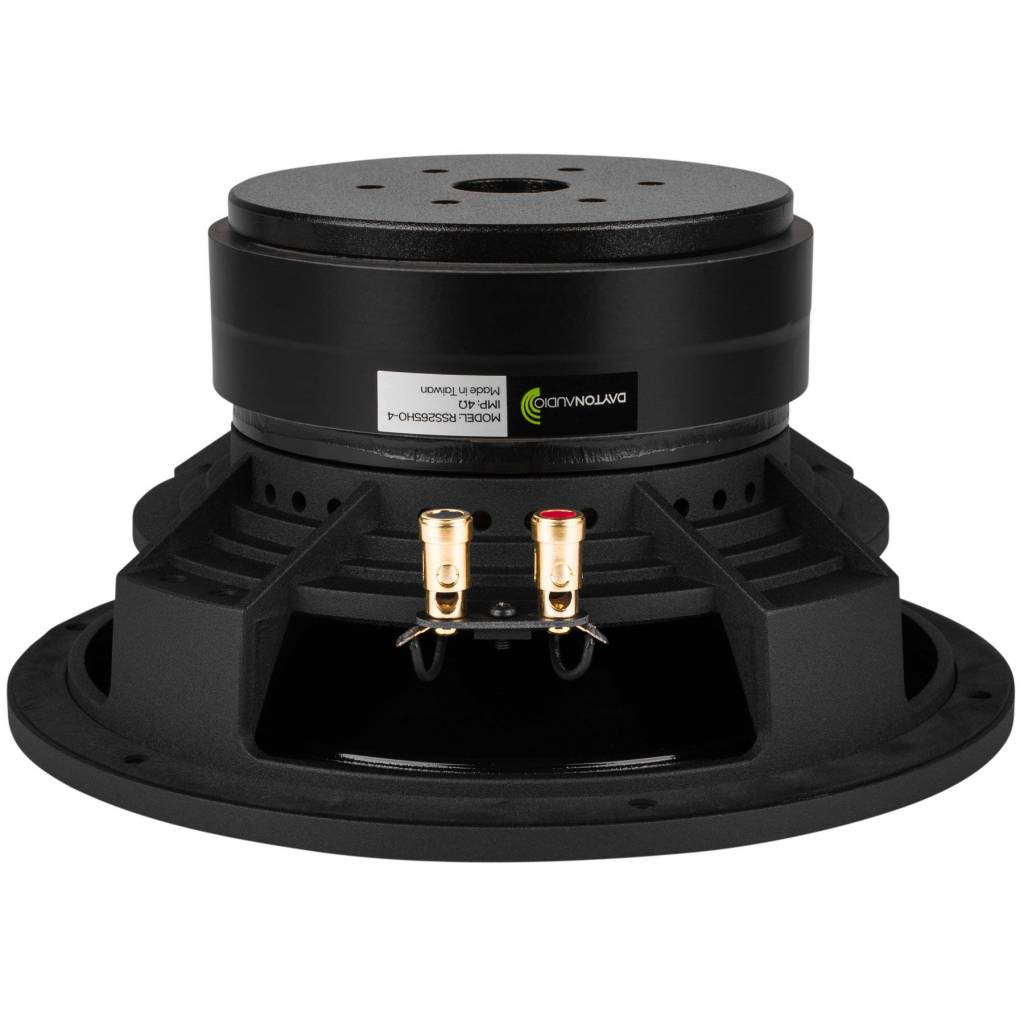

Dayton Audio RSS265HO-4 10" Reference HO Subwoofer 4 Ohm

1 reviews

Marke: Dayton Audio

Alle anzeigen Audio-Komponenten

Vergleichen

10" | 4 Ω

RSS265HO-4 10" Reference HO Subwoofer 4 Ohm

€ 152,85€ 184,95 >10 Auf Lager: Lieferzeit 1-3 Werktage

Built for extreme performance in the smallest 10" subwoofer speaker enclosures, the Dayton Audio Reference Series RSS265HO-4 features an anodized aluminum cone, 4-layer voice coil, and optimized distortion-reducing magnet system.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Extensively vented motor eliminates compression and allows quiet excursion
Extra-thick black anodized aluminum cone for maximum rigidity
Triple shorting ring motor for ultra-low distortion
4-layer coil for high power handling
Optimized parameters for small enclosures
Highest quality materials throughout for long-lasting performance

Product details

Dayton Audio RSS265HO-4 10" Reference HO Subwoofer 4 Ohm

As with the rest of the Reference Series, the main focus of the Dayton Audio RSS265HO-4 10" subwoofer is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this 10" driver a unique, high-end look. Choose the high output version for automotive applications or for equalized high-power home subwoofer speaker systems.

Eigenschaften

Artikelnummer:: RSS265HO-4
Woofer Series: Reference Series
Woofer Type: Subwoofer
Nominal Diameter: 10"
Power Handling (RMS): 600 Watts
Power Handling (max): 1200 Watts
Impedance: 4 ohms
Sensitivity: 87.2 dB 2.83V/1m
Frequency Response: 24 to 600 Hz
Voice Coil Diameter: 2.52"
Magnet Weight: 100 oz.
DC Resistance (Re): 3.50 ohms
Voice Coil Inductance (Le): 1.74 mH
Resonant Frequency (Fs): 26.9 Hz
Mechanical Q (Qms): 4.02
Electromagnetic Q (Qes): 0.39
Total Q (Qts): 0.35
Diaphragm Mass Inc. Airload (Mms): 201g
Mechanical Compliance of Suspension (Cms): 0.17 mm/N
Surface Area of Cone (Sd): 349.7 cm²
BL Product (BL): 17.6 Tm
Compliance Equivalent Volume (Vas): 1.04 ft.³
Maximum Linear Excursion (Xmax): 12.3 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 10.47"
Overall Depth: 5.37"
Baffle Cutout Diameter: 9.25"
# Mounting Holes: 6
Sealed Volume: 0.44 ft.³
Sealed F3: 61 Hz
Vented Volume: 0.53 ft.³
Vented F3: 39 Hz

Data sheet

Bewertungen

1 reviews

5 from 5Based on 1 reviews

Produkt bewerten

5 van 5

Great driver! Build it into a large 103Liter box tuned at 20.5 Hertz and it delivers very flat and distortion free sound down to ~19 Hertz.
It WILL go down to 15 hertz, all be it with less volume due to the high pass filter as it would cause over excursion of the driver. (14mm max).

Obviously, at such frequencies I do get strong standing waves in some locations. This can't be helped since my room is relatively small. Treating your room and/or using multiple subwoofers would help alleviate this problem.

Driving it with max 150Watts RMS.
All though I doubt I would use more then 60 watts in most cases.
Due to the low tuning and big box it won't give you amazing SPL levels with this setup. But For my 4 by 4 room at 105 DB @ 1 meter it's plenty!

I also tried using it sealed in a smaller box of about 45 Liters. This also works great but my 150Watt amp lacks a little bit in power for this setup.

So if you are going to be using it sealed, I would suggest getting at amplifier that can deliver a bit more beef.

All in all, great driver.

Durch Lenn M. on 6 September 2018
