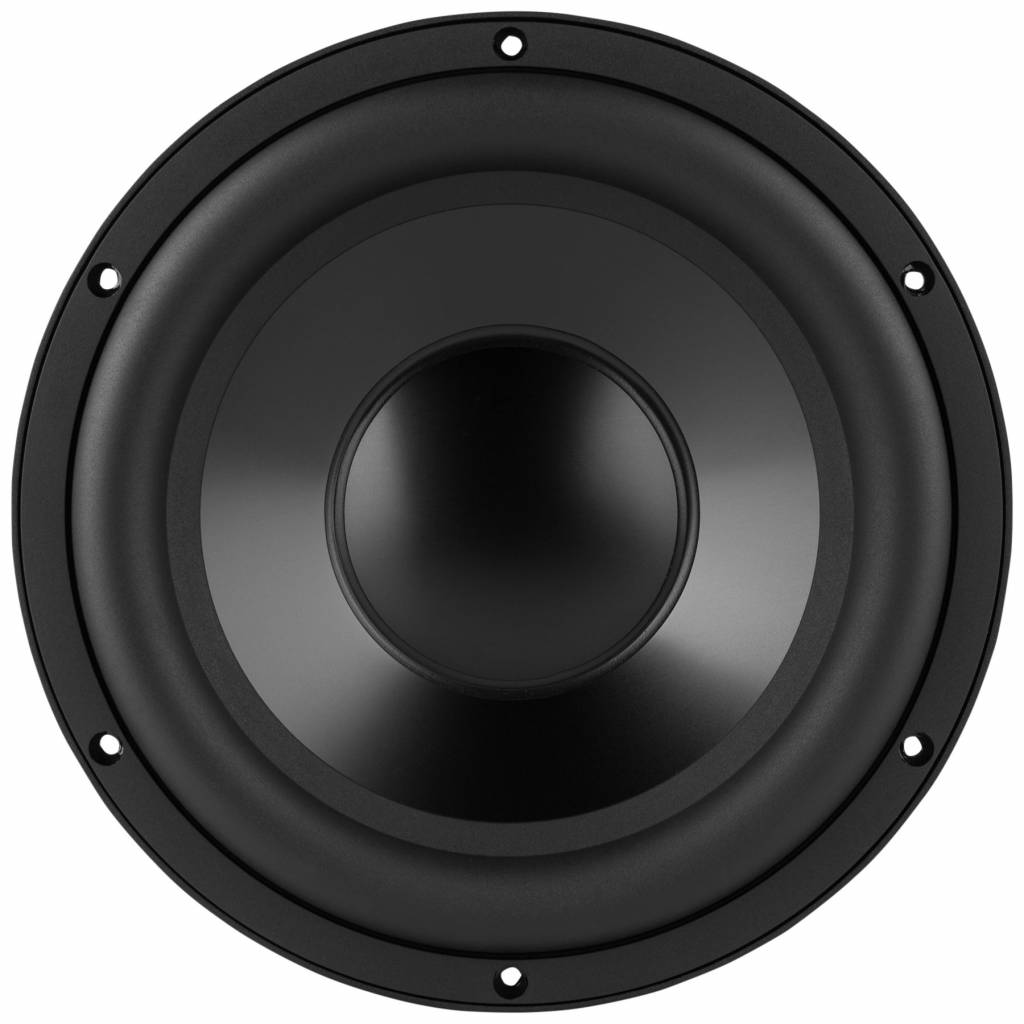

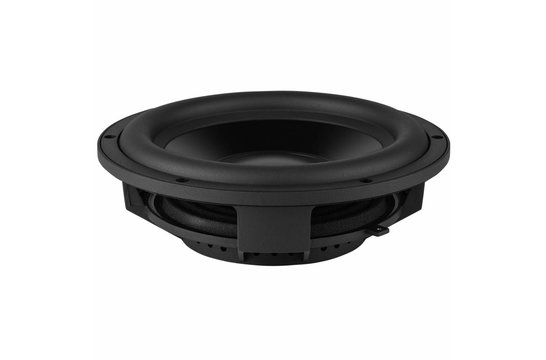

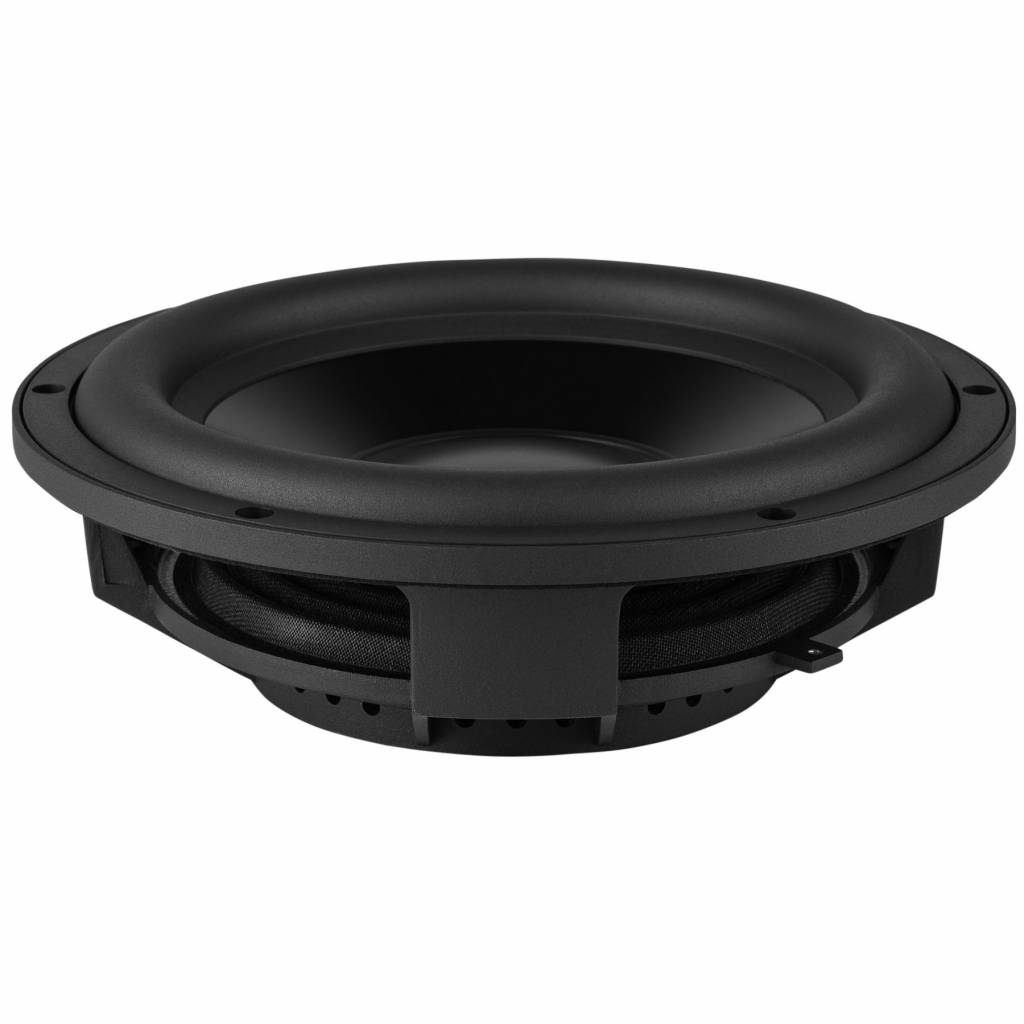

Dayton Audio RSS265-PR 10" Aluminum Cone Passive Radiator

€ 77,23€ 93,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio's RSS265-PR 10" passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminum cone, cast frame, rubber surround, and incredible excursion capabilities (48 mm peak to peak)... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €88,78 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's RSS265-PR 10" passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminum cone, cast frame, rubber surround, and incredible excursion capabilities (48 mm peak to peak) this radiator is perfect for today's high excursion subwoofers.



Highlights

  • SMS™ (Sandwich Mass System) permits greater linearity by minimizing angular torque
  • Durable yet compliant suspension provides substantial linear travel and mechanical stability
  • Rigid cast aluminum frame with thick black anodized aluminum cone

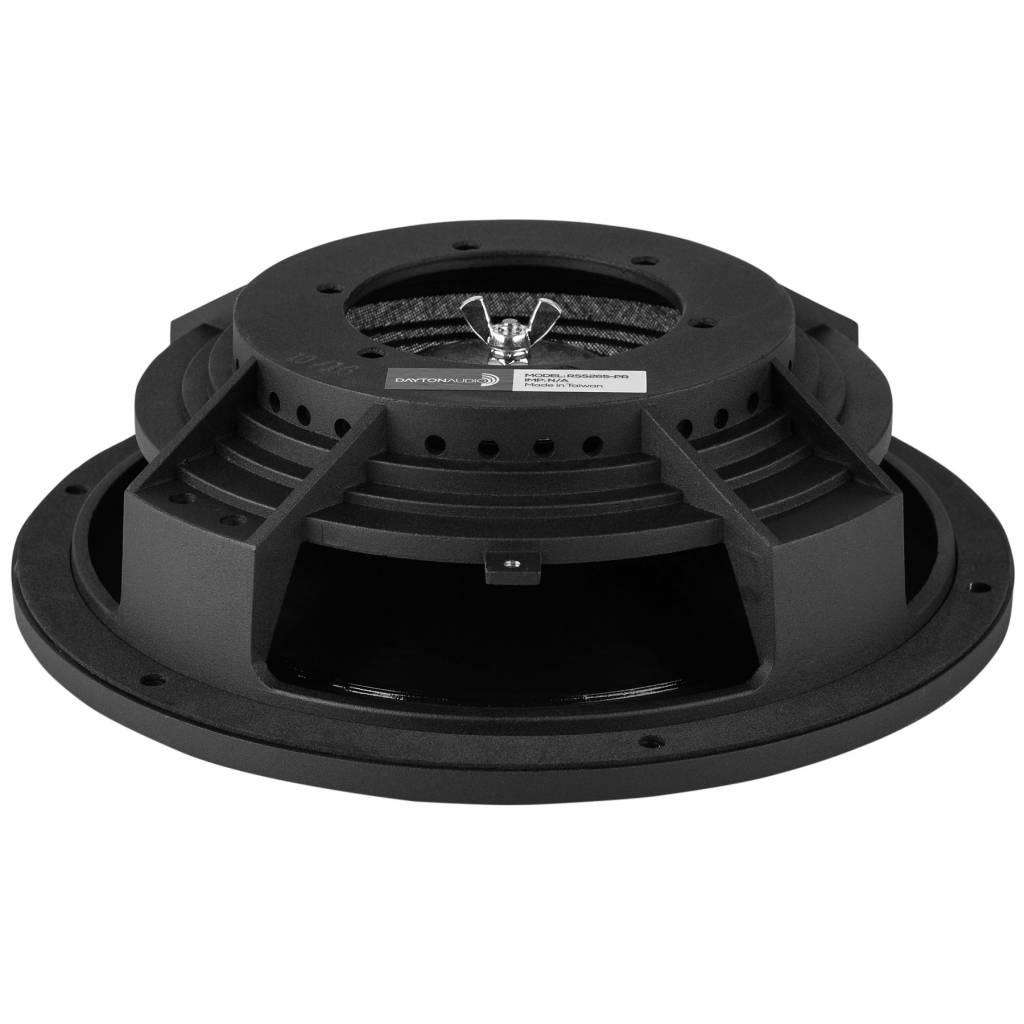

  • Threaded rod with lock nut for easy adjustment of tuning frequency
  • Includes five 75 gram weighted disks for simple tuning adjustment
  • Cosmetically identical to the popular Reference Series subwoofer lines



Product details

Dayton Audio RSS265-PR 10" Aluminum Cone Passive Radiator



We are proud to offer our customers the complete line of Dayton Audio Reference Series passive radiators. These high quality, well-engineered passive radiators are carefully constructed using the same rigid anodized aluminum cone and cast frame as Dayton Audio's world renowned Reference Series subwoofers, making them visually identical and a perfect match to the very popular line of drivers.



Each passive radiator employs the unique SMS™ (Sandwiched Mass Structure) design which keeps the majority of the mass centered between the surround and spider providing greater linearity by minimizing angular torque. These passives are also tunable using the included weights with the bolt-on mass adjustment assembly, making them easily integrated into virtually any subwoofer design.

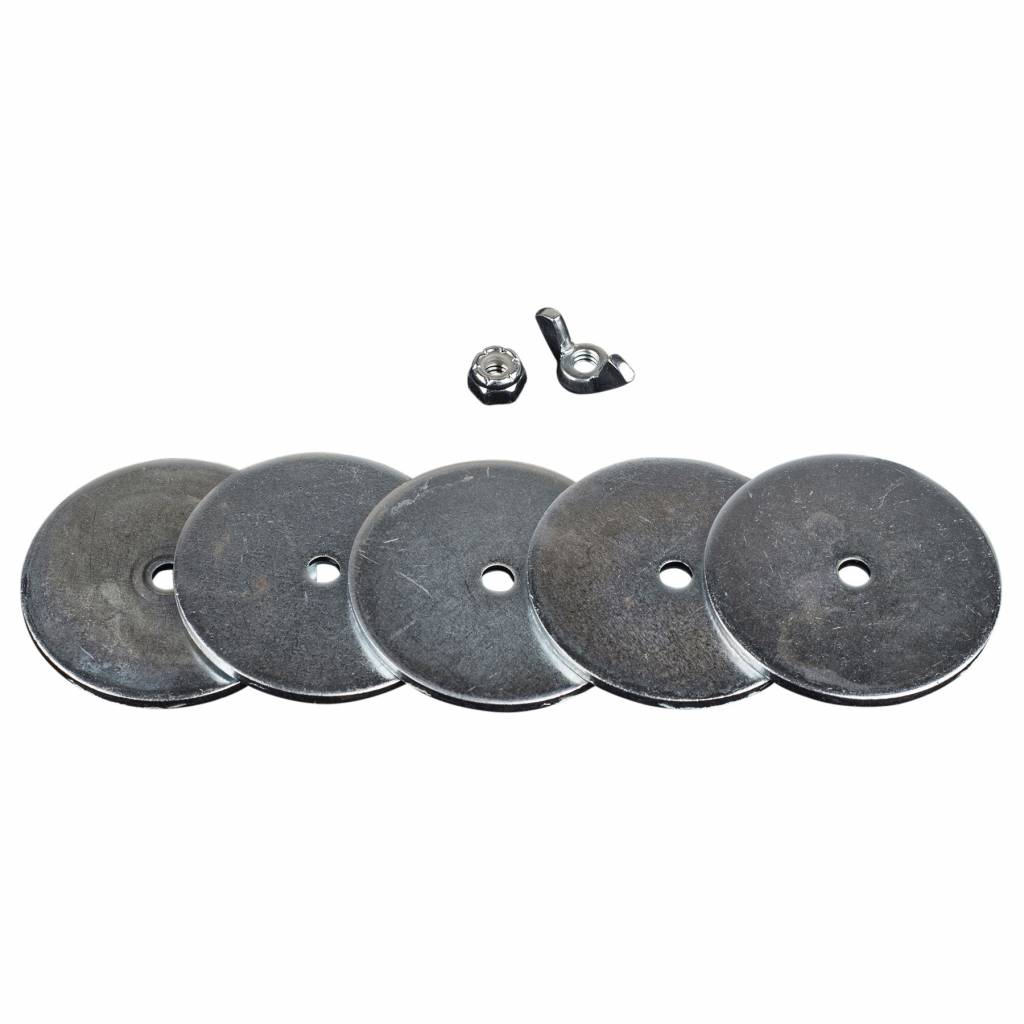

The RSS265-PR 10" passive radiator includes:


(1) Passive radiator
(5) 75 gram disk weights
(1) wing nut (for tuning)
(1) lock nut (for final assembly)



Specifications: • Fs: 19.6 Hz • Vas: 2.11 cu. ft. (59.7 liters) • Qms: 4.92 • Cms: 0.33 mm/N • Mms: 200g • Rms: 11.02 kg/s • Sd: 356.3 sq. cm. • Xmech: 24 mm • Dimensions: Overall diameter: 10.47", Cutout diameter: 9.25", Depth: 3.03".



Note: Parameters above are for the passive only with no additional mass added. Parameters with additional mass added are listed in the table below.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Eigenschaften

Artikelnummer:
RSS265-PR
Woofer Series
Reference Series
Woofer Type
Passive Radiator
Nominal Diameter
10"
Resonant Frequency (Fs)
19.6 Hz
Mechanical Q (Qms)
4.92
Diaphragm Mass Inc. Airload (Mms)
200g
Mechanical Compliance of Suspension (Cms)
0.33 mm/N
Surface Area of Cone (Sd)
356.3 cm²
Volume of Displacement (Vd)
855.1 cm³
Compliance Equivalent Volume (Vas)
59.7 liters
Maximum Linear Excursion (Xmax)
24 mm
Driver's Mechanical Losses (Rms)
11.02 kg/s
Overall Outside Diameter
266 mm
Overall Depth
77 mm
Baffle Cutout Diameter
235 mm
# Mounting Holes
6
