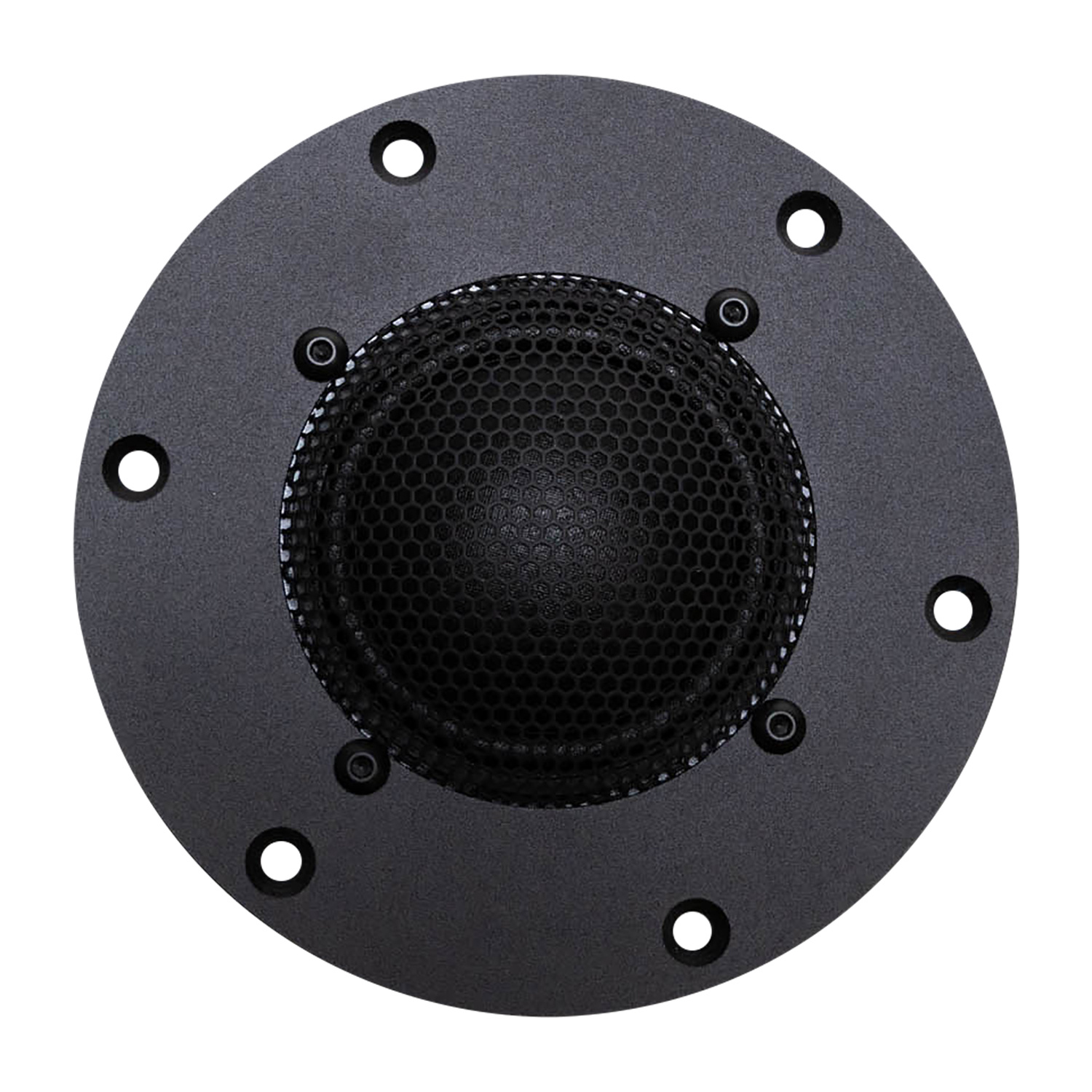

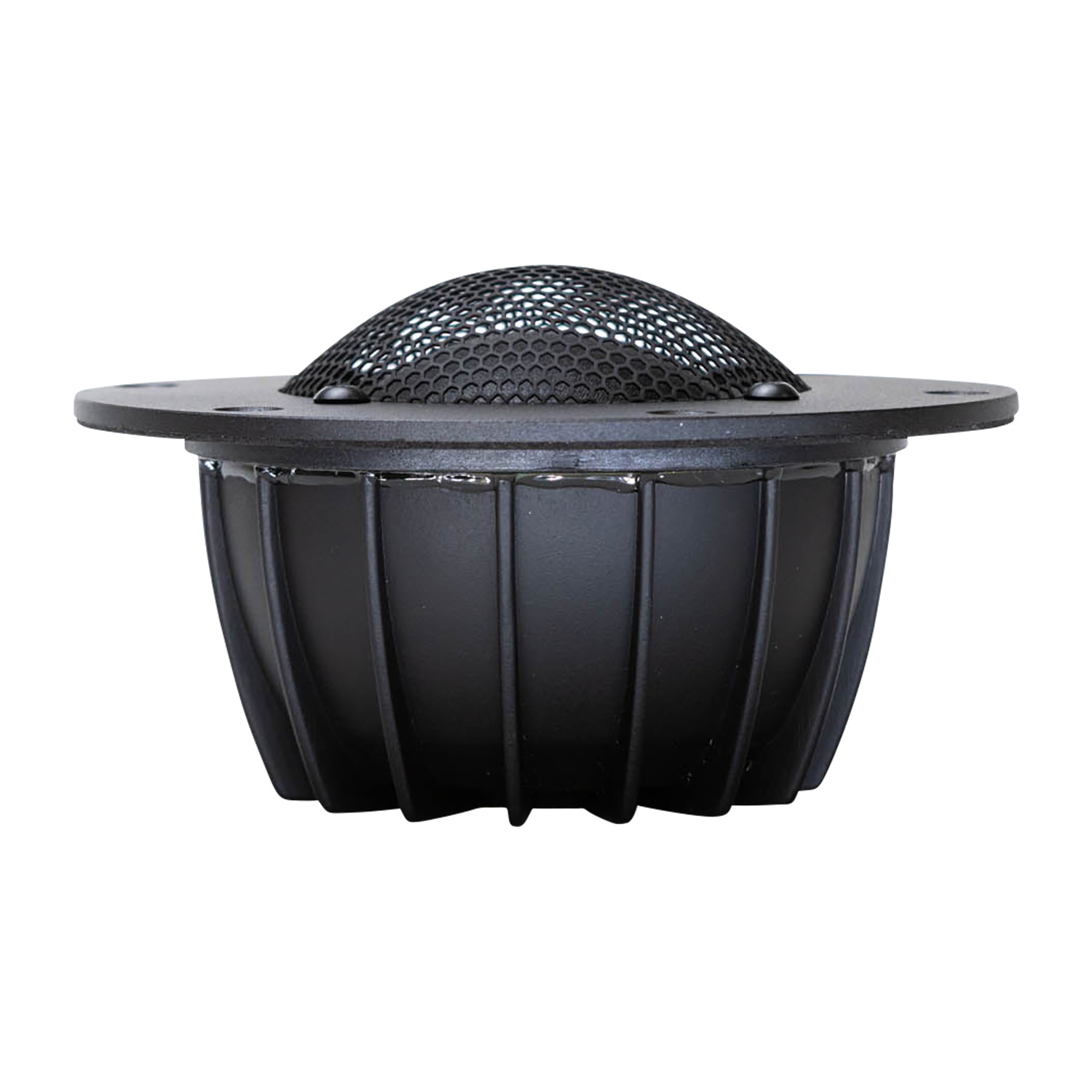

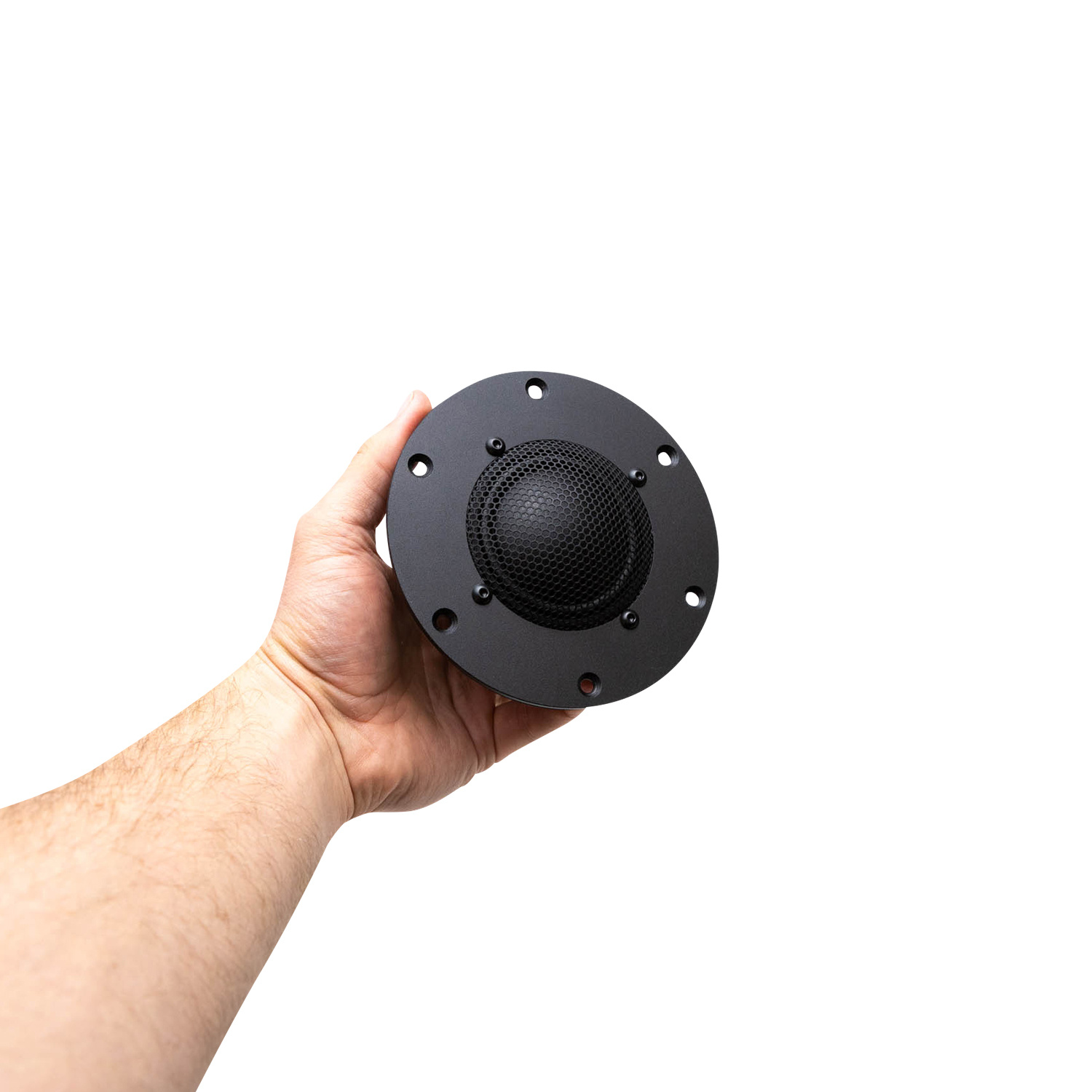

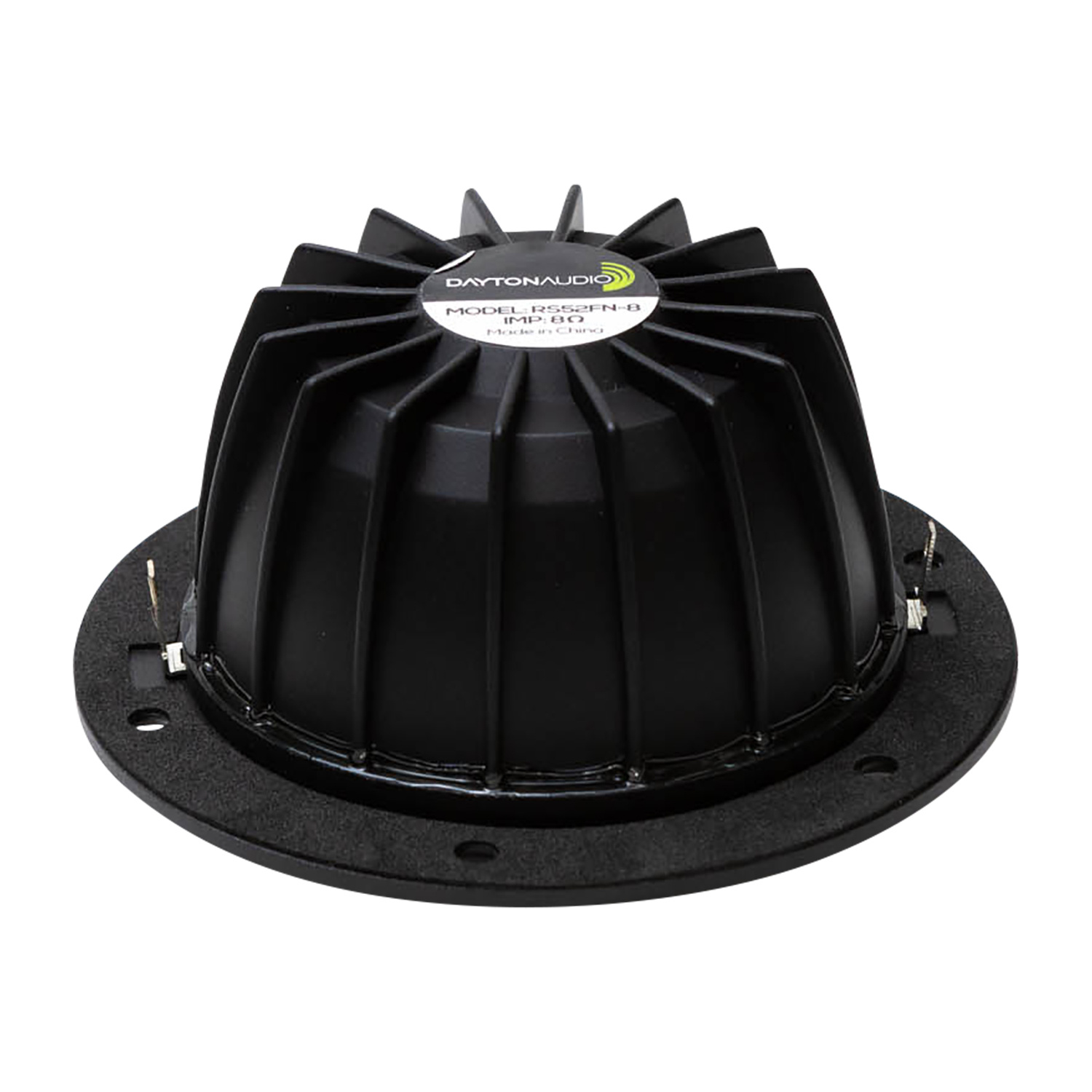

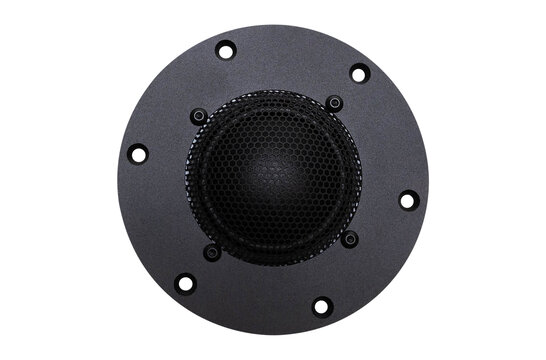

Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

€ 49,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Reference Series dome midrange delivers smooth and natural midrange performance with excellent off-axis response. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €47,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio Reference Series dome midrange delivers smooth and natural midrange performance with excellent off-axis response. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.



Highlights

  • Large damped rear chamber for low resonance point
  • 2" damped fabric diaphragm for natural response and dispersion
  • Neodymium keeps size and weight to a minimum without sacrificing efficiency
  • Copper clad motor reduces distortion for transparent sound



Product details

Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm



The Dayton Audio Reference Series soft dome midrange delivers excellent off-axis response and midrange performance. Its 2" damped fabric diaphragm is linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical 2-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series but will also work well with any high-performance drivers.

Eigenschaften

Artikelnummer:
RS52FN-8
Woofer Series
Reference Series
Woofer Type
Mid-dome
Nominal Diameter
2"
Power Handling (RMS)
60 watts
Power Handling (max)
120 watts
Impedance
8 ohms
Sensitivity
90.0 dB @ 2.83V/1m
Frequency Response
500 - 8,500 Hz
Voice Coil Diameter
2"
DC Resistance (Re)
5.7 ohms
Voice Coil Inductance (Le)
0.12 mH
Resonant Frequency (Fs)
394.3 Hz
Mechanical Q (Qms)
4.27
Electromagnetic Q (Qes)
1.39
Total Q (Qts)
1.05
Surface Area of Cone (Sd)
26.4 cm²
Maximum Linear Excursion (Xmax)
1mm
Surround Material
Cloth
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Neodymium
Overall Outside Diameter
5.12"
Overall Depth
2.24"
Baffle Cutout Diameter
3.94"
# Mounting Holes
6

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
Very good sound; frequency response is very smooth and harmonic distortion low
Durch Walter F. on 2 September 2020
5 van 5
Sehr breitbandig einsetzbar!
Durch Markus S. on 6 Februar 2020
