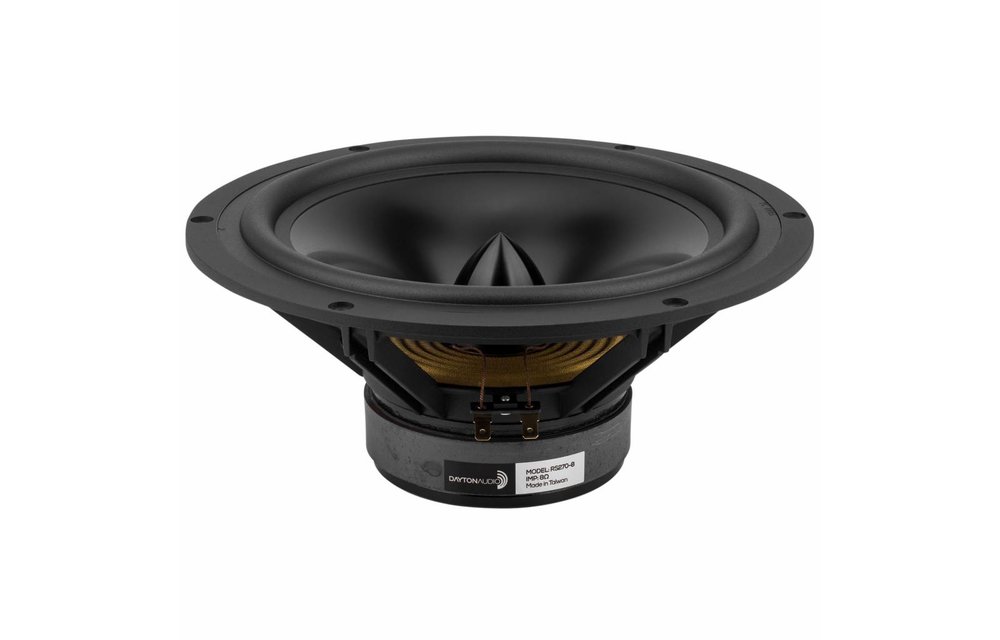

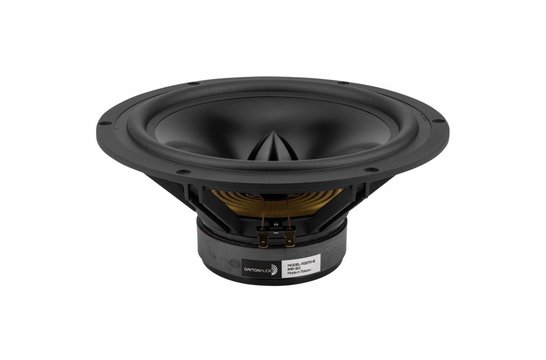

Dayton Audio RS270-8 10" Reference Woofer

€ 95,-€ 114,95 Nicht auf Lager: Lieferzeit beträgt 3 bis 6 Wochen
Dayton Audio Reference Series RS270-8 10" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €109,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio Reference Series RS270-8 10" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.



Highlights

  • One of the lowest distortion, highest resolution driver series available
  • Low-distortion high-excursion motor system with two short-circuit paths
  • Compliant suspension and rigid black anodized aluminum cone for strong bass performance
  • Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug
  • Designed and engineered in the USA



Product details

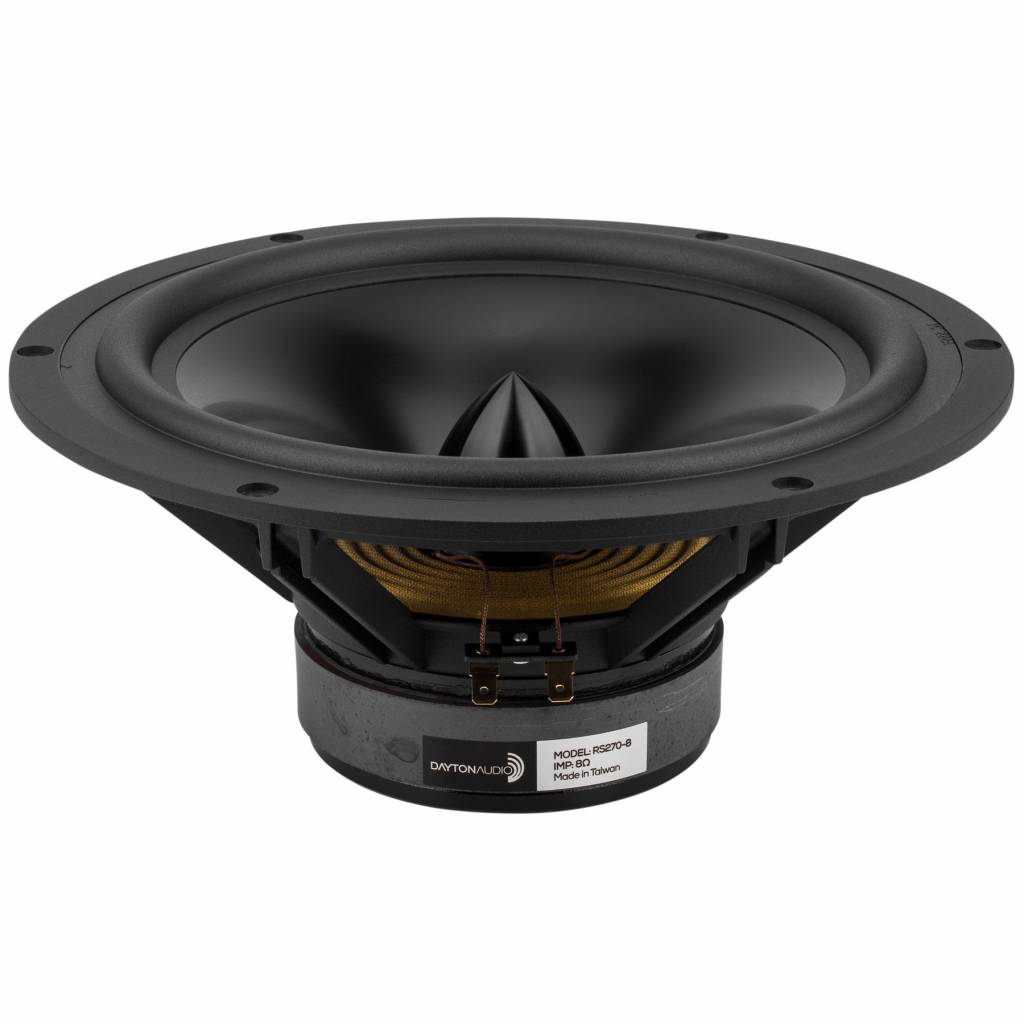

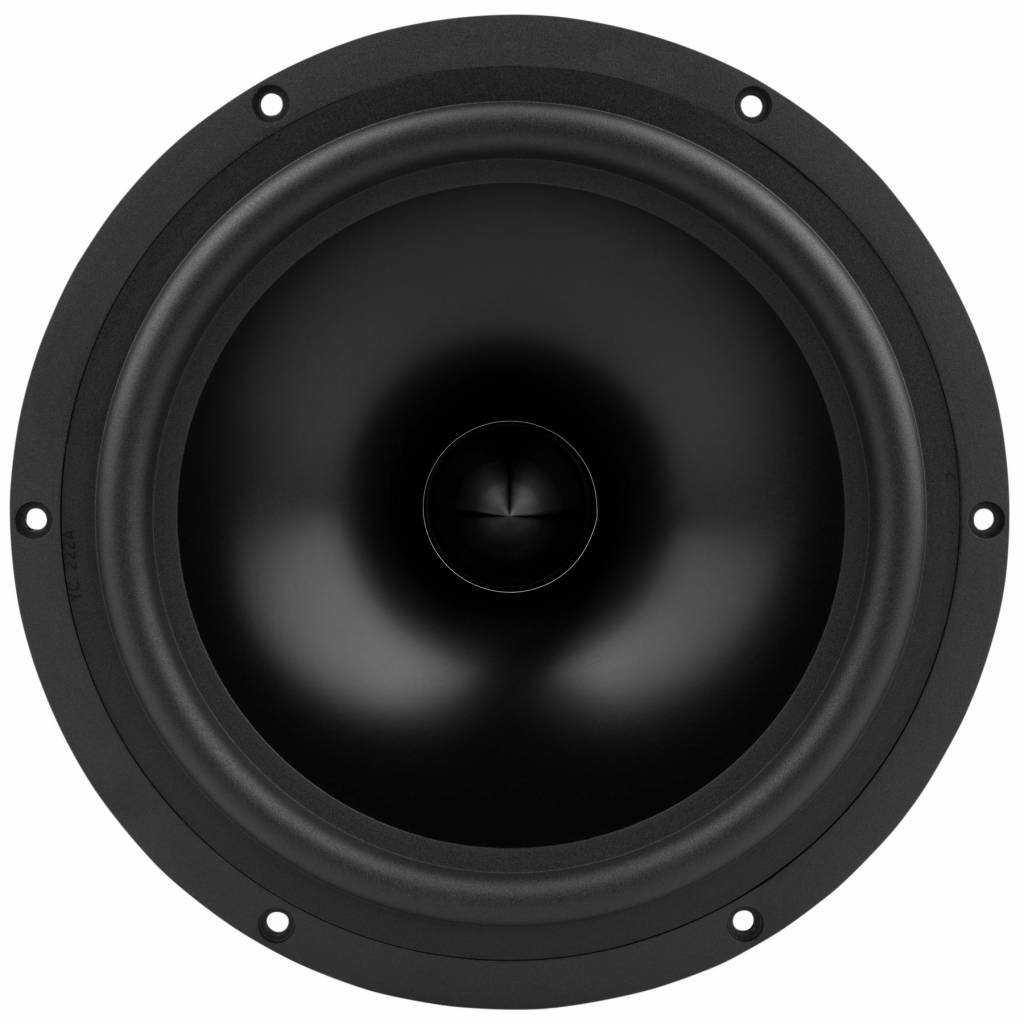

Dayton Audio RS270-8 10" Reference Woofer



The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS270-8 10" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Eigenschaften

Artikelnummer:
RS270-8
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
10"
Power Handling (RMS)
100 watts
Power Handling (max)
200 watts
Impedance
8 ohms
Sensitivity
88.7 dB @ 2.83V/1m
Frequency Response
27 - 2,040 Hz
Voice Coil Diameter
50 mm
DC Resistance (Re)
6.8 ohms
Voice Coil Inductance (Le)
0.93 mH @ 1 kHz
Resonant Frequency (Fs)
29.6 Hz
Mechanical Q (Qms)
2.08
Electromagnetic Q (Qes)
0.61
Total Q (Qts)
0.47
Diaphragm Mass Inc. Airload (Mms)
50.5g
Mechanical Compliance of Suspension (Cms)
0.57 mm/N
Surface Area of Cone (Sd)
346.4 cm²
Volume of Displacement (Vd)
228.6 cm³
BL Product (BL)
10.3 Tm
Compliance Equivalent Volume (Vas)
96.5 liters
Maximum Linear Excursion (Xmax)
6.6 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
272 mm
Overall Depth
113 mm
Baffle Cutout Diameter
236 mm
# Mounting Holes
6
Sealed Volume
1.34 ft.³
Sealed F3
50 Hz
Vented Volume
4.16 ft.³
Vented F3
27 Hz

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Very clear natural sound, Nice controlled bass, Good value for money.
Durch Mikael L. on 8 Januar 2021
