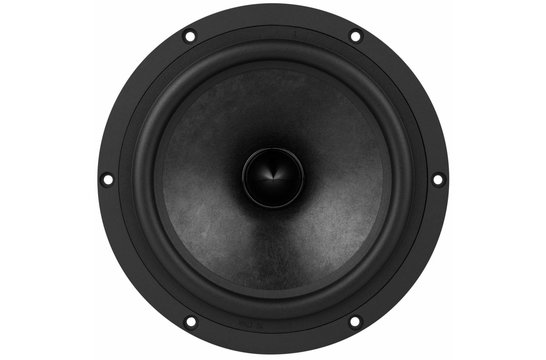

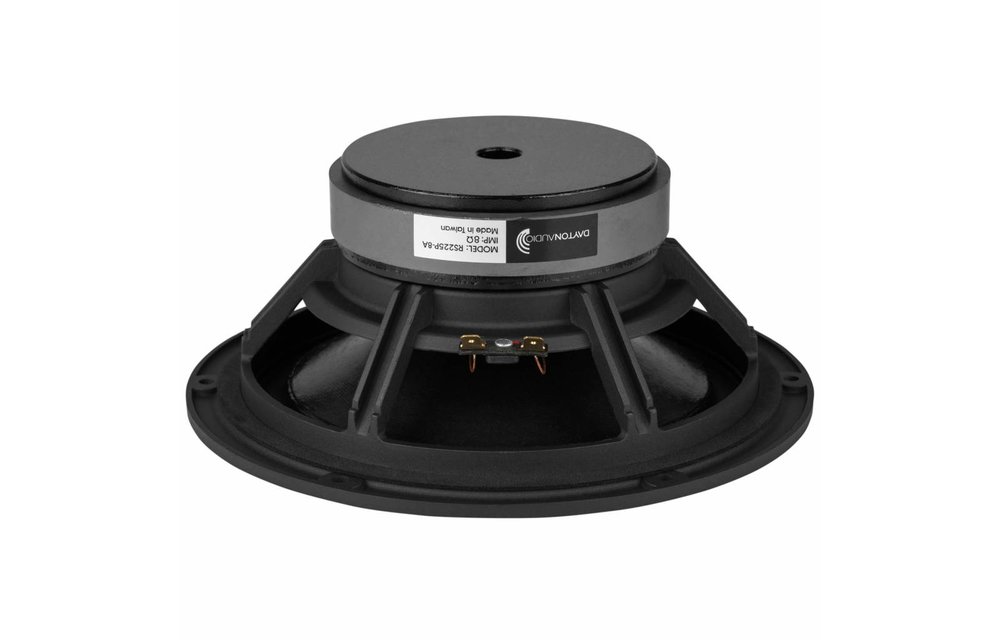

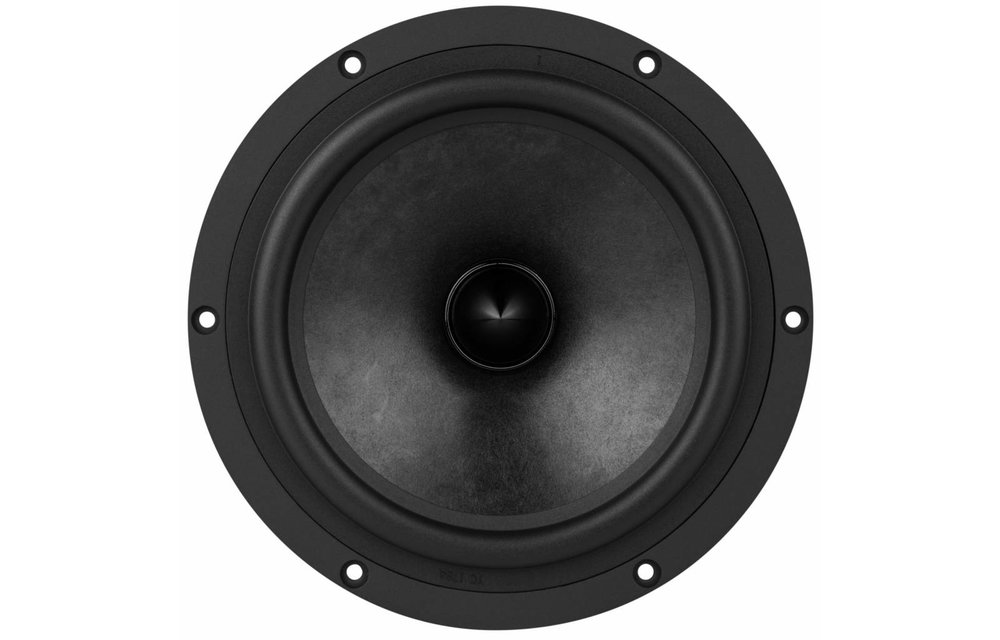

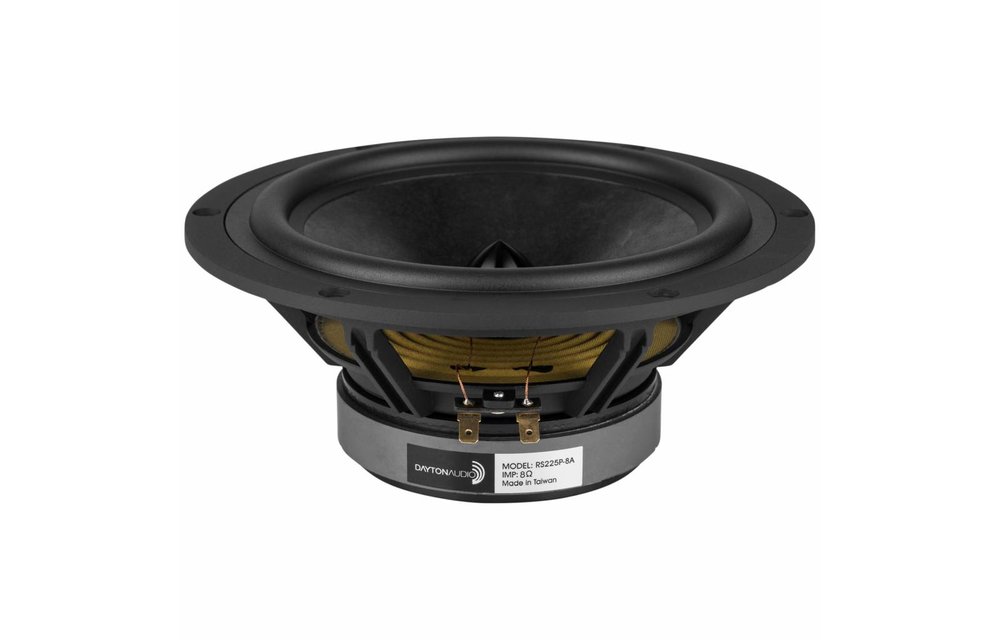

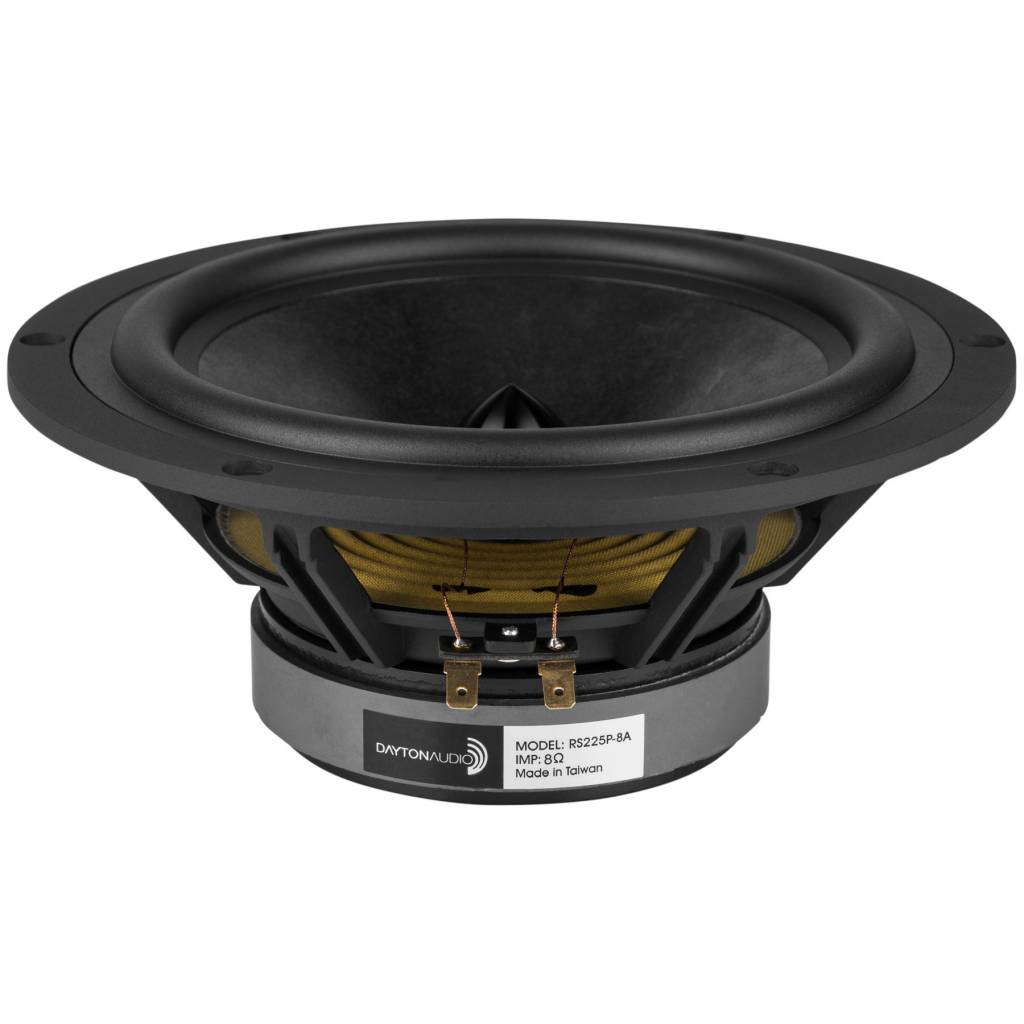

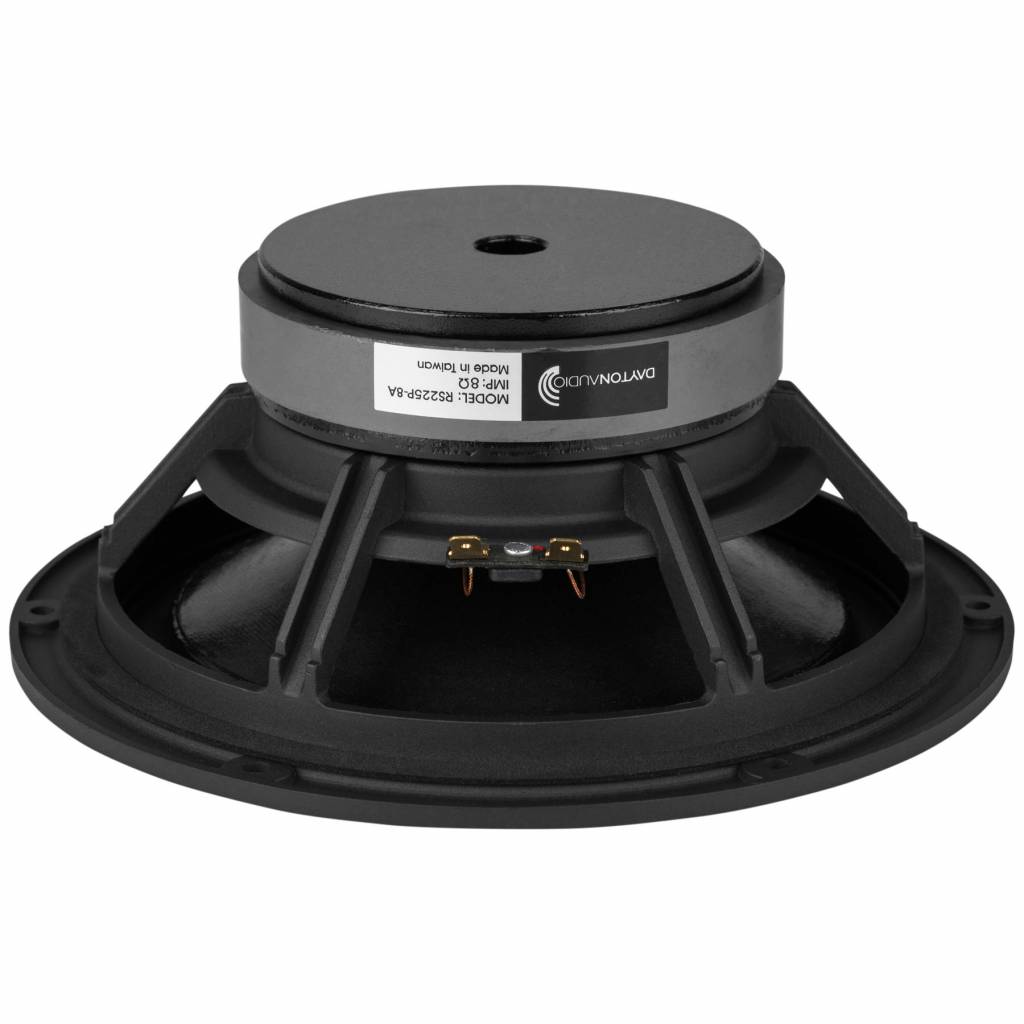

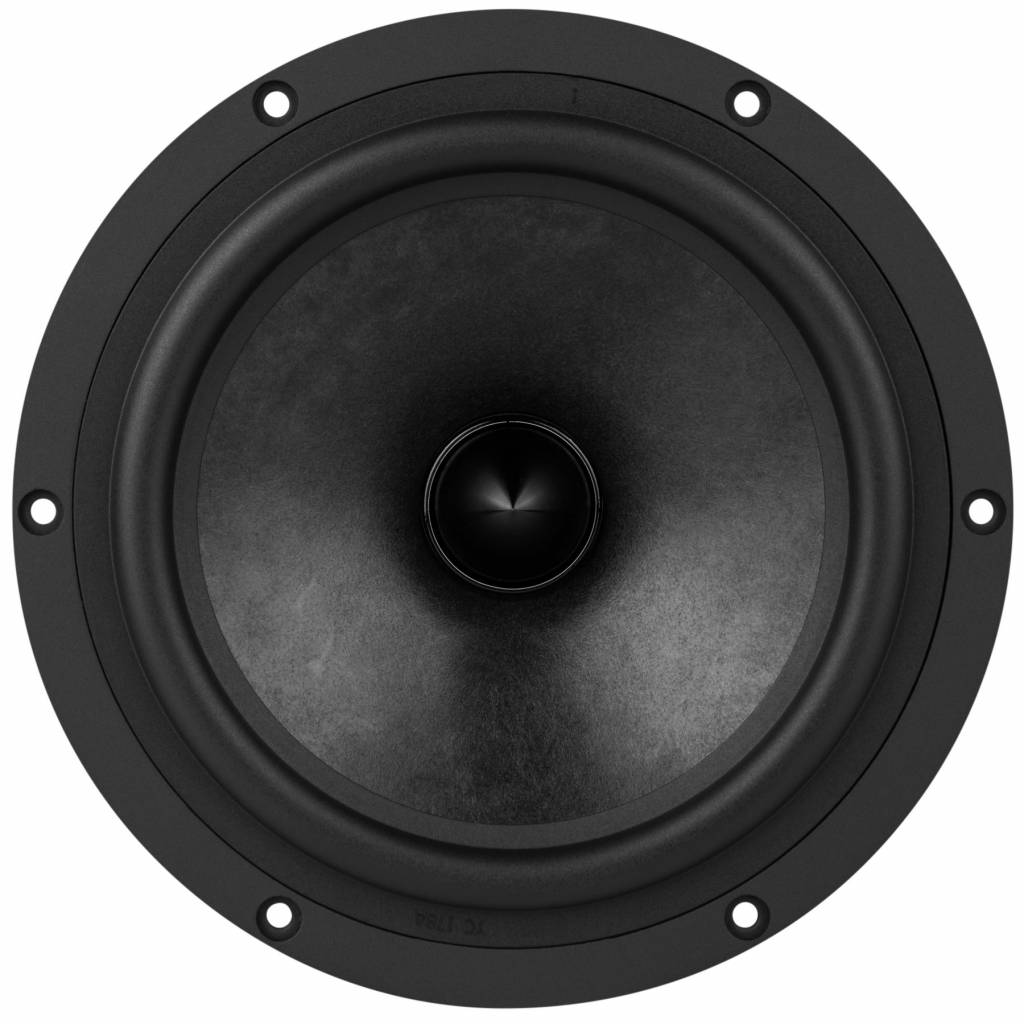

Dayton Audio RS225P-8A 8" Reference Paper Woofer 8 Ohm

€ 66,07€ 79,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easi... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €75,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.



Highlights

  • Now with improved frequency response for easier crossover integration
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
  • 89.1 dB sensitivity and 7 mm of excursion



Product details

Dayton Audio RS225P-8A 8" Reference Paper Woofer 8 Ohm



Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.



The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Eigenschaften

Artikelnummer:
RS225P-8A
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
8"
Power Handling (RMS)
80 watts
Power Handling (max)
120 watts
Impedance
8 ohms
Sensitivity
89.1 dB @ 2.83V/1m
Frequency Response
30 - 7,000 Hz
Voice Coil Diameter
38.6 mm
DC Resistance (Re)
7.1 ohms
Voice Coil Inductance (Le)
1.02 mH @ 1 kHz
Resonant Frequency (Fs)
31.6 Hz
Mechanical Q (Qms)
1.25
Electromagnetic Q (Qes)
0.46
Total Q (Qts)
0.34
Diaphragm Mass Inc. Airload (Mms)
23.6g
Mechanical Compliance of Suspension (Cms)
1.07 mm/N
Surface Area of Cone (Sd)
213.8 cm²
Volume of Displacement (Vd)
70.3 cm³
BL Product (BL)
8.5 Tm
Compliance Equivalent Volume (Vas)
68.8 liters
Maximum Linear Excursion (Xmax)
7 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Rubber
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
223 mm
Overall Depth
89 mm
Baffle Cutout Diameter
184 mm
# Mounting Holes
6
Sealed Volume
0.41 ft.³
Sealed F3
80 Hz
Vented Volume
1.05 ft.³
Vented F3
49 Hz
