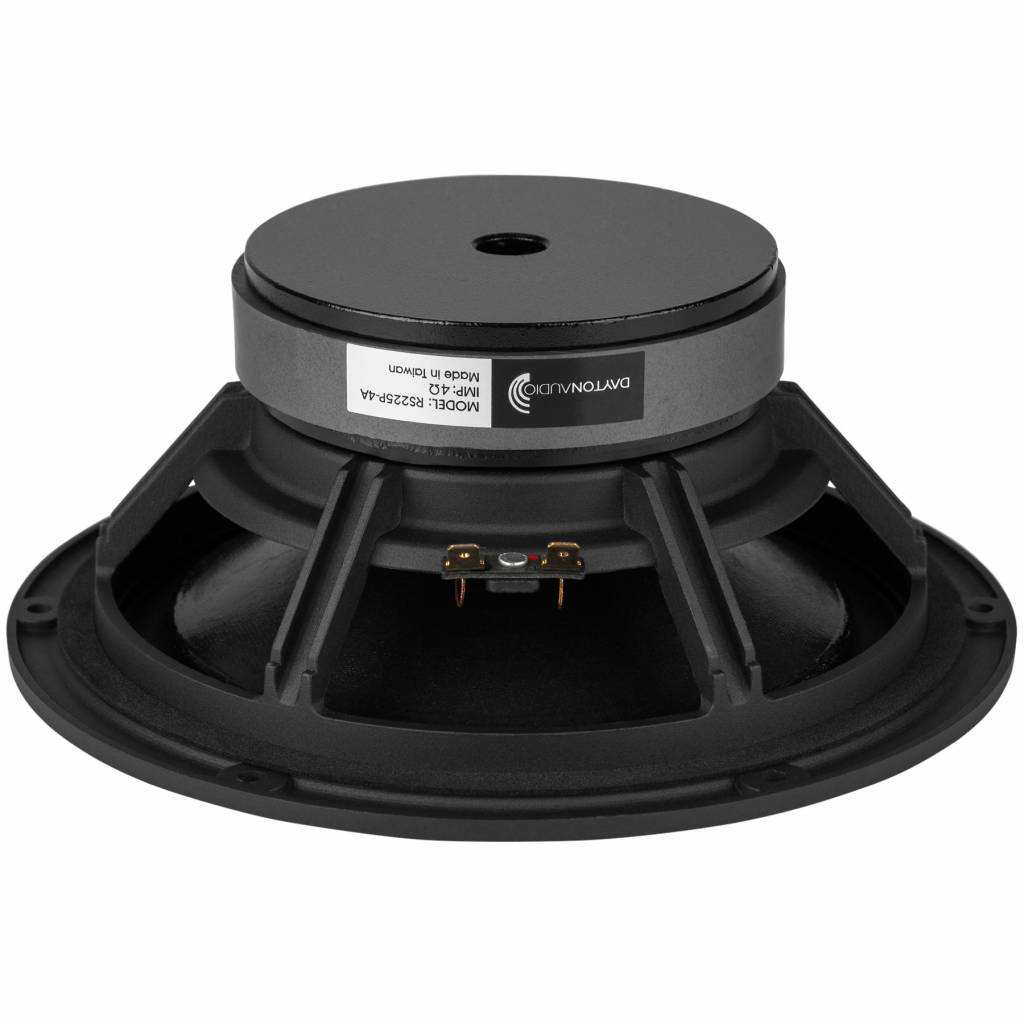

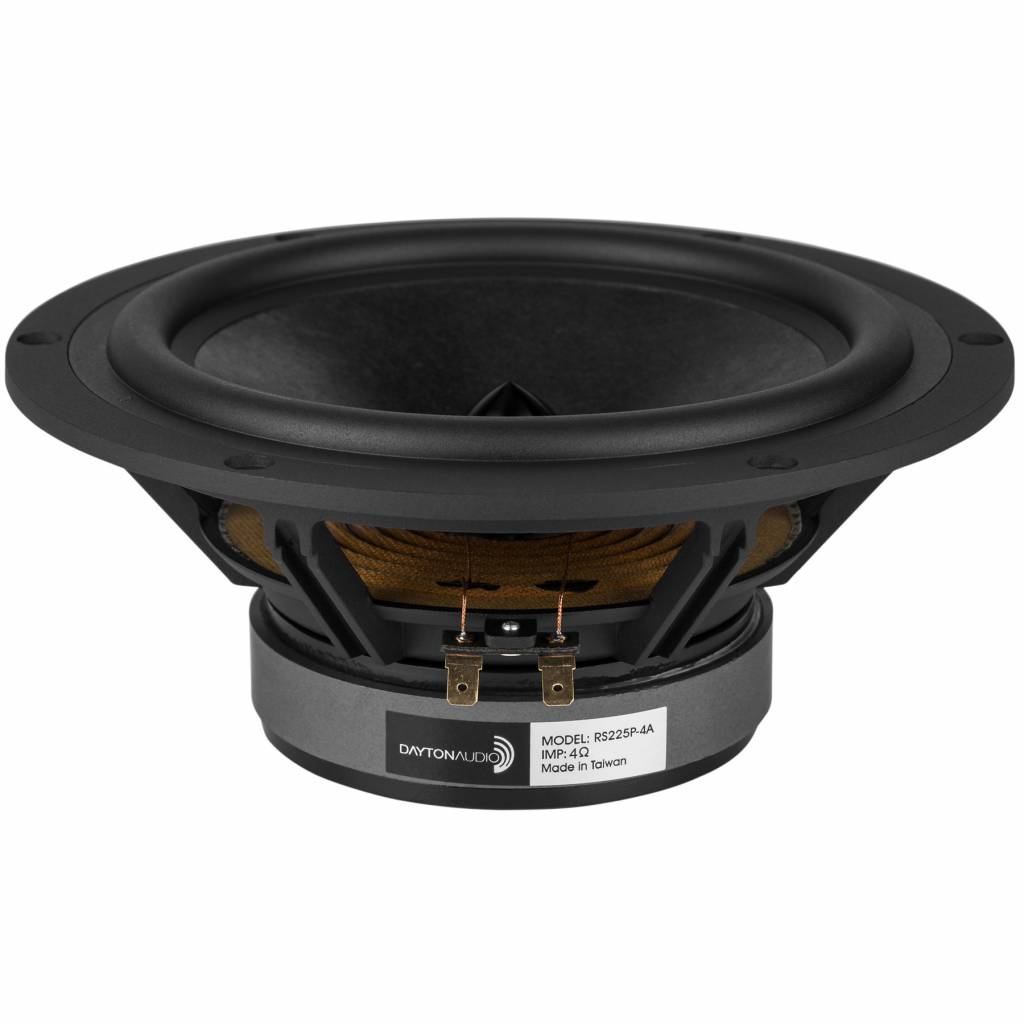

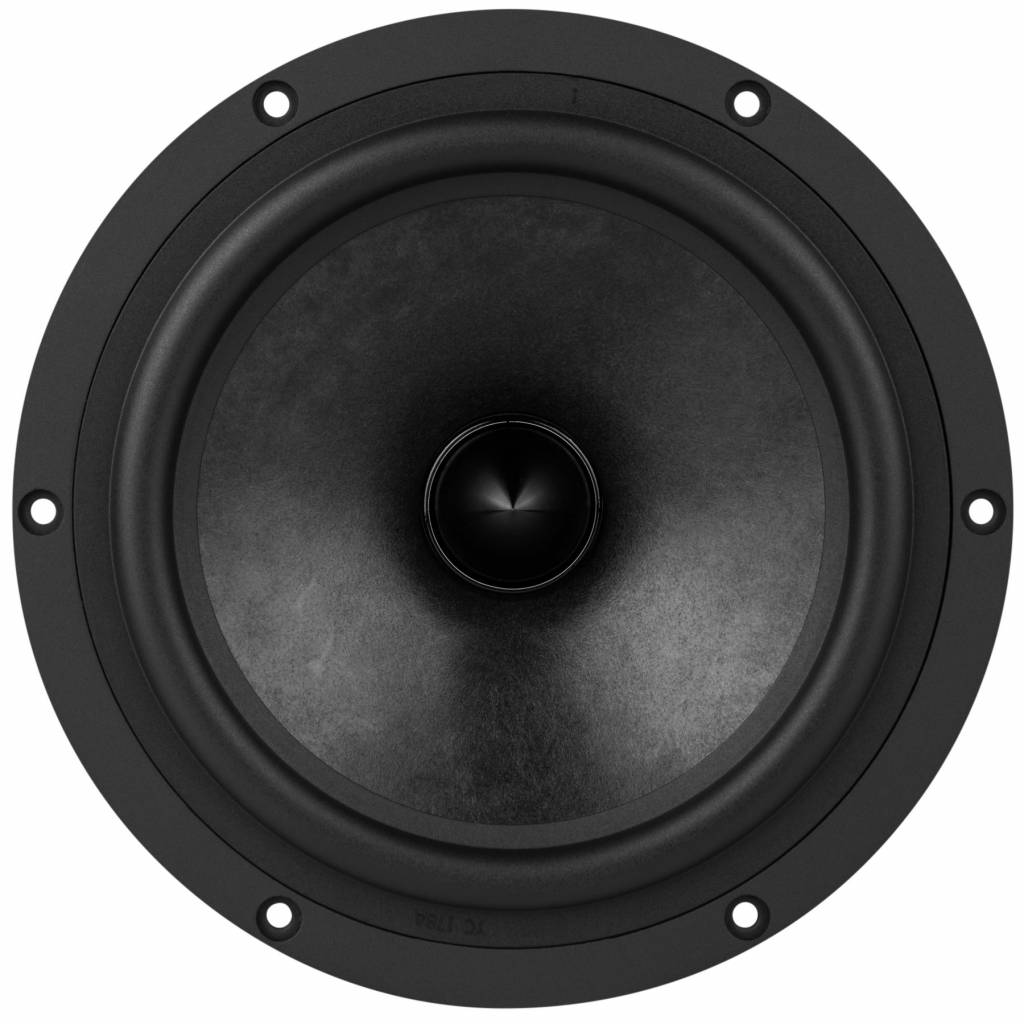

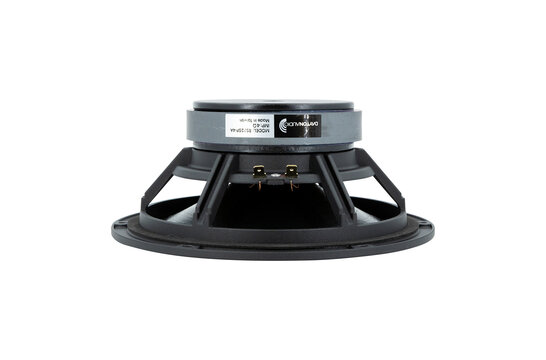

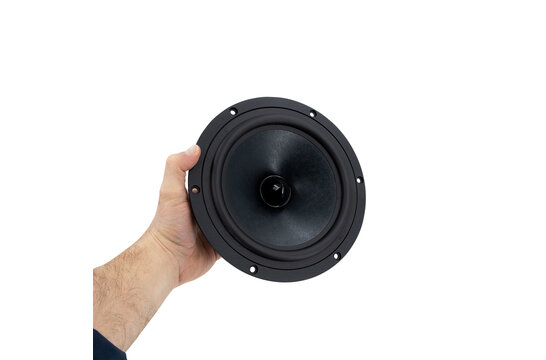

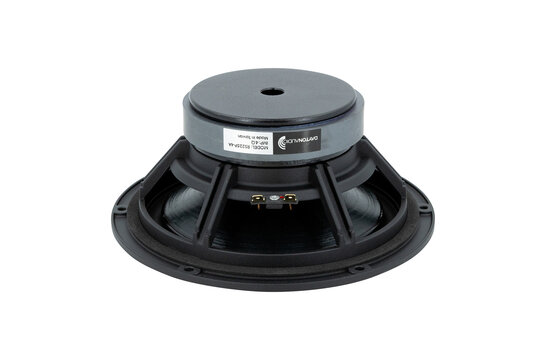

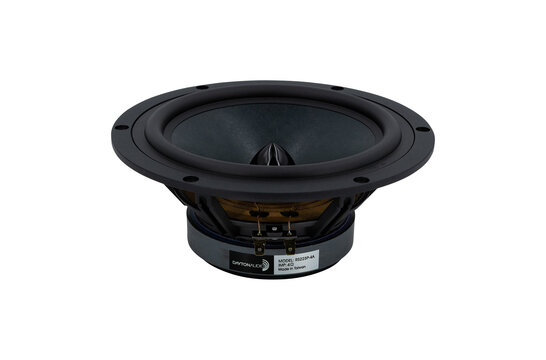

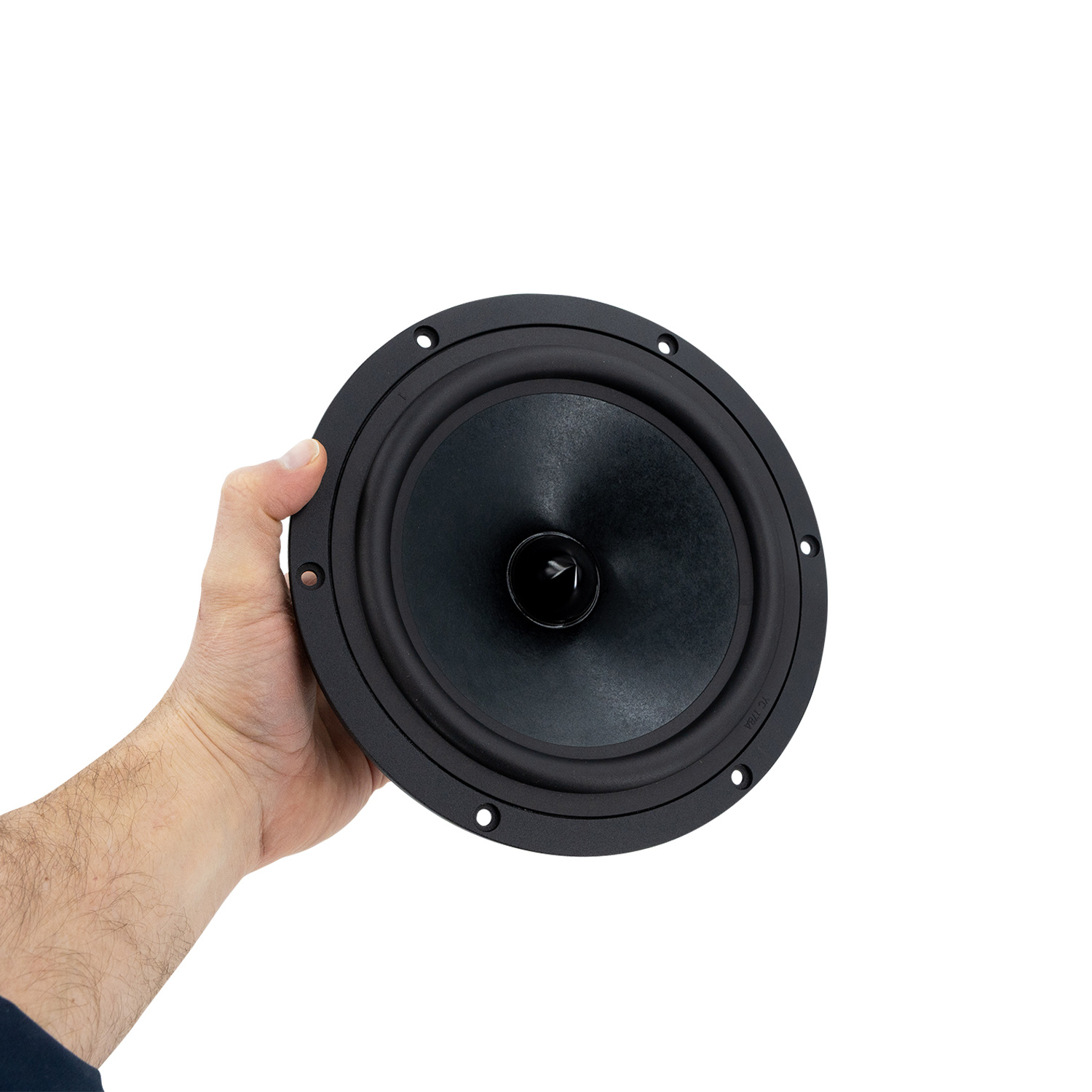

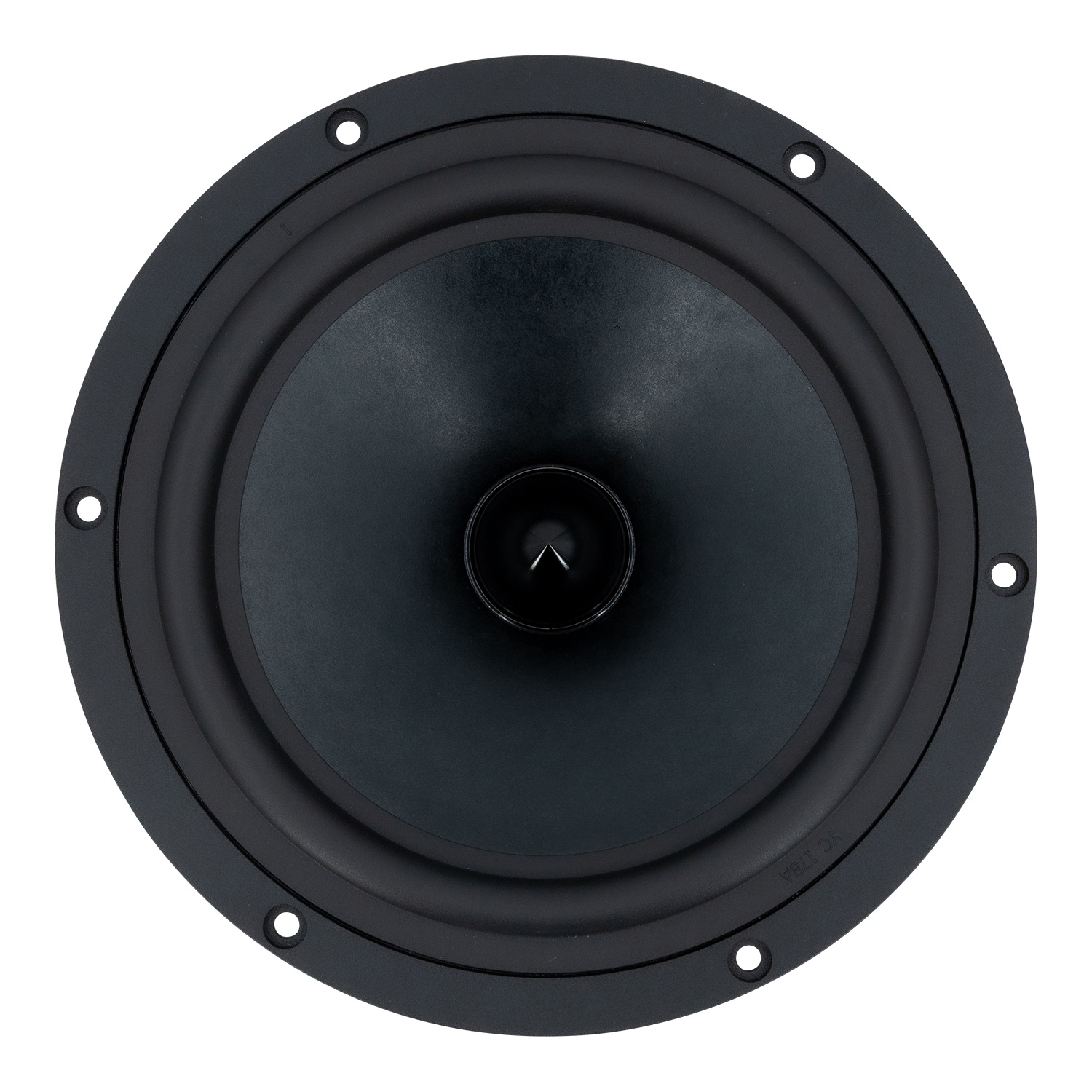

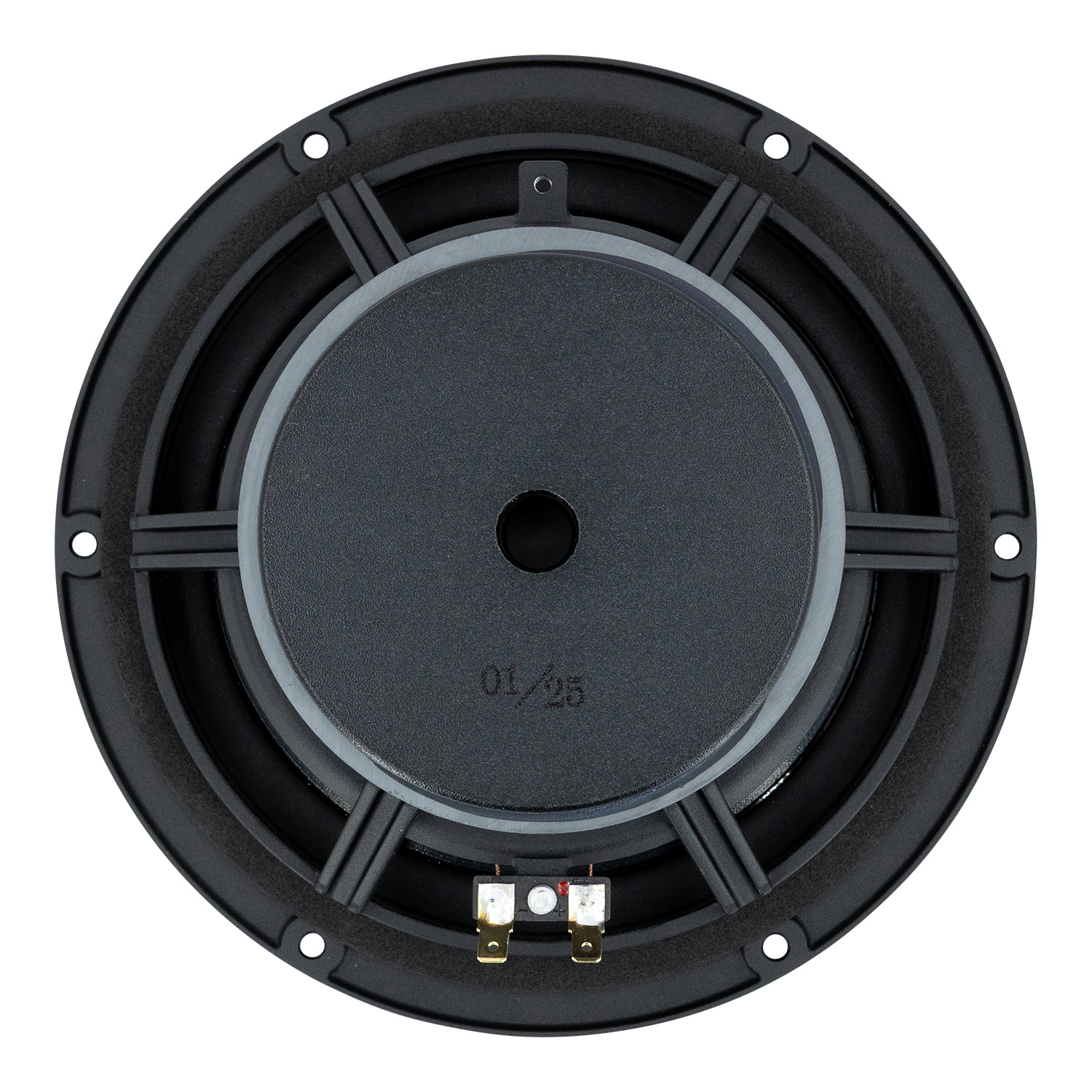

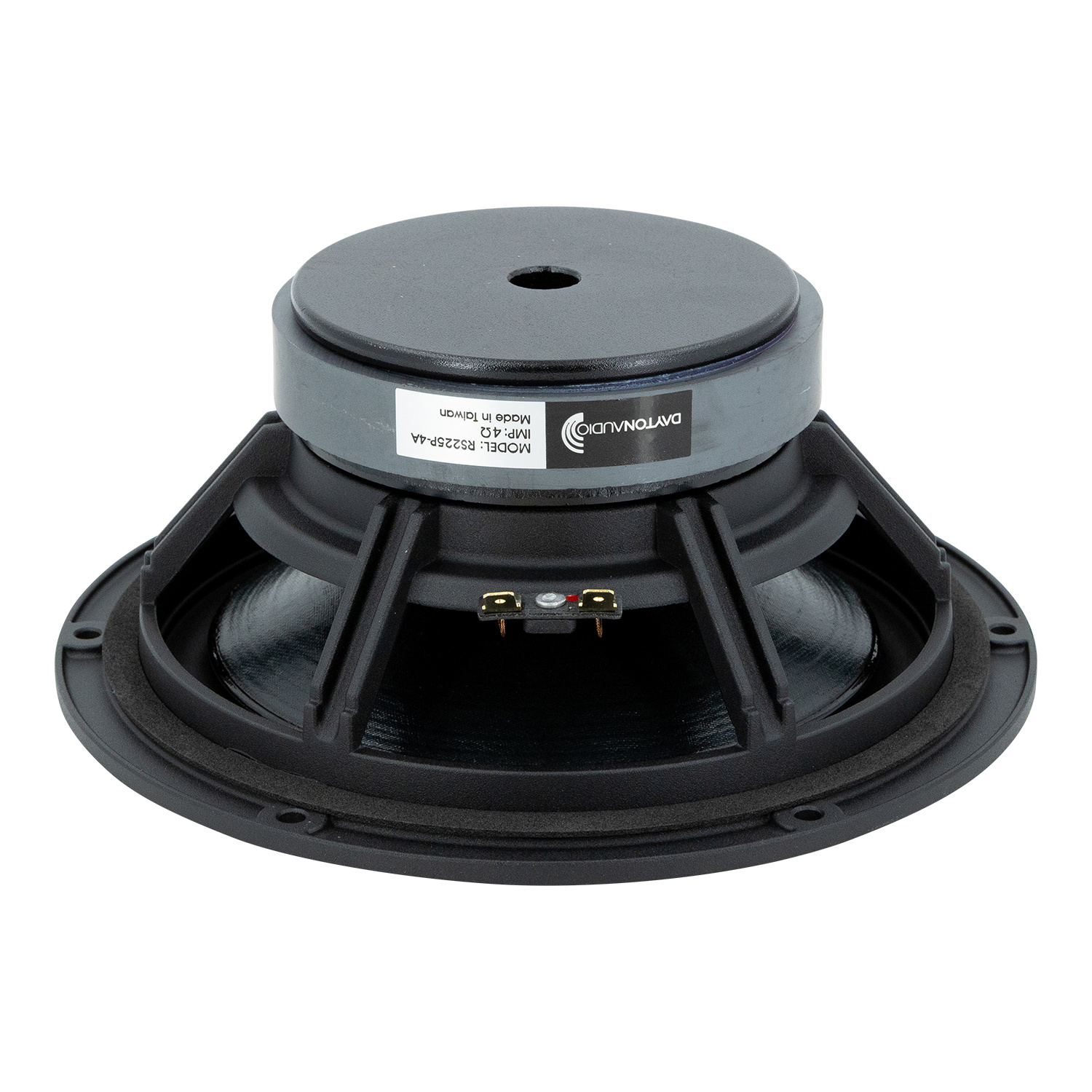

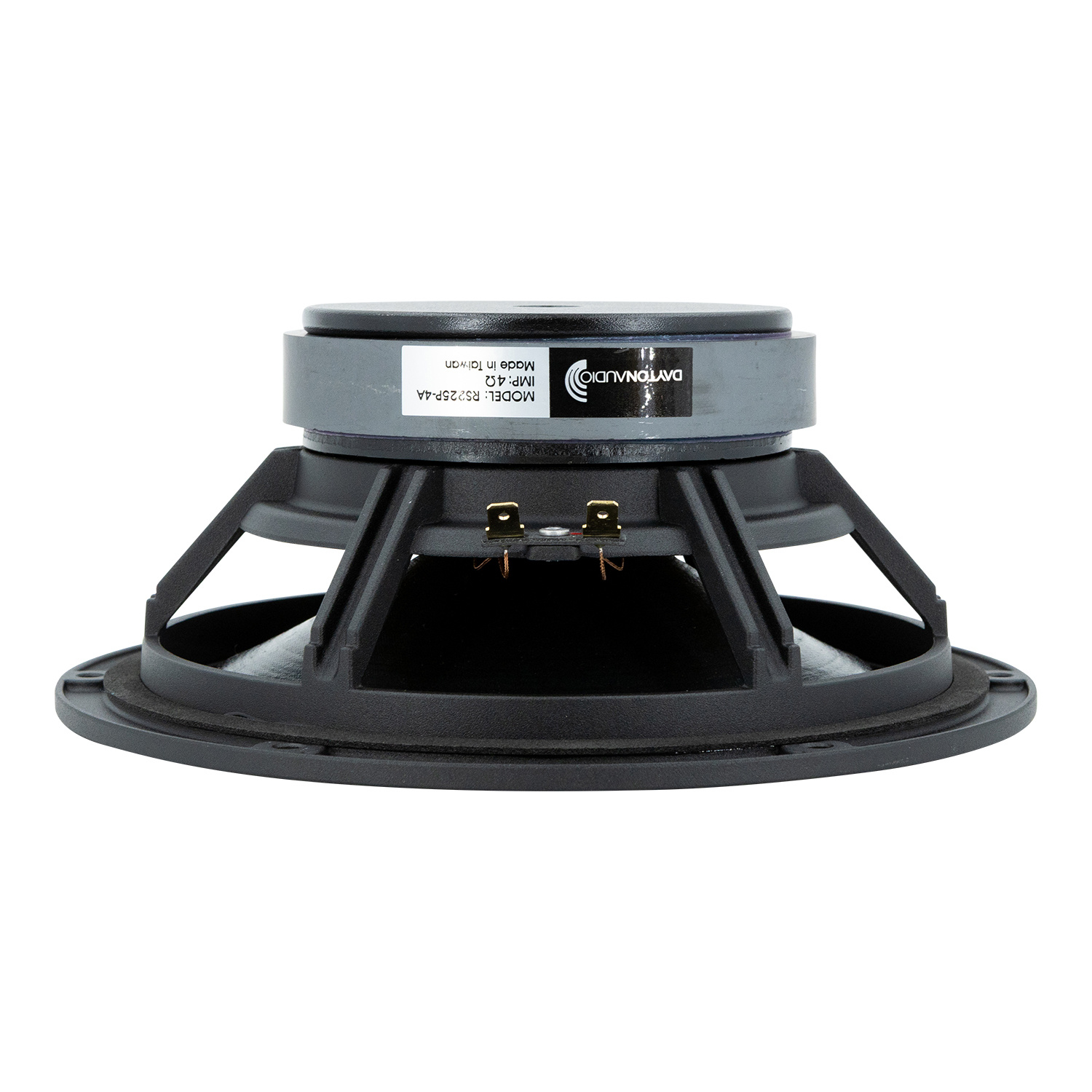

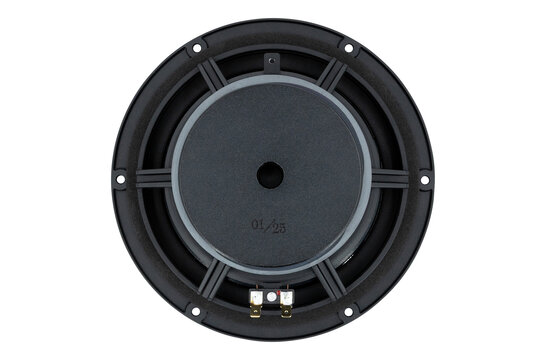

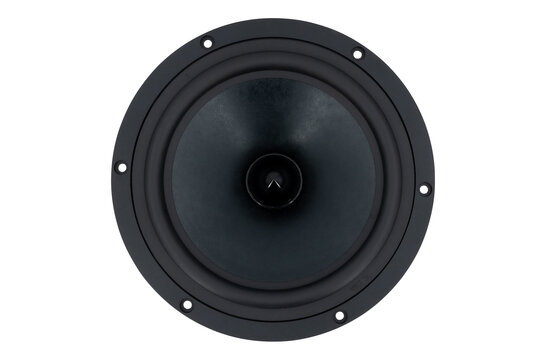

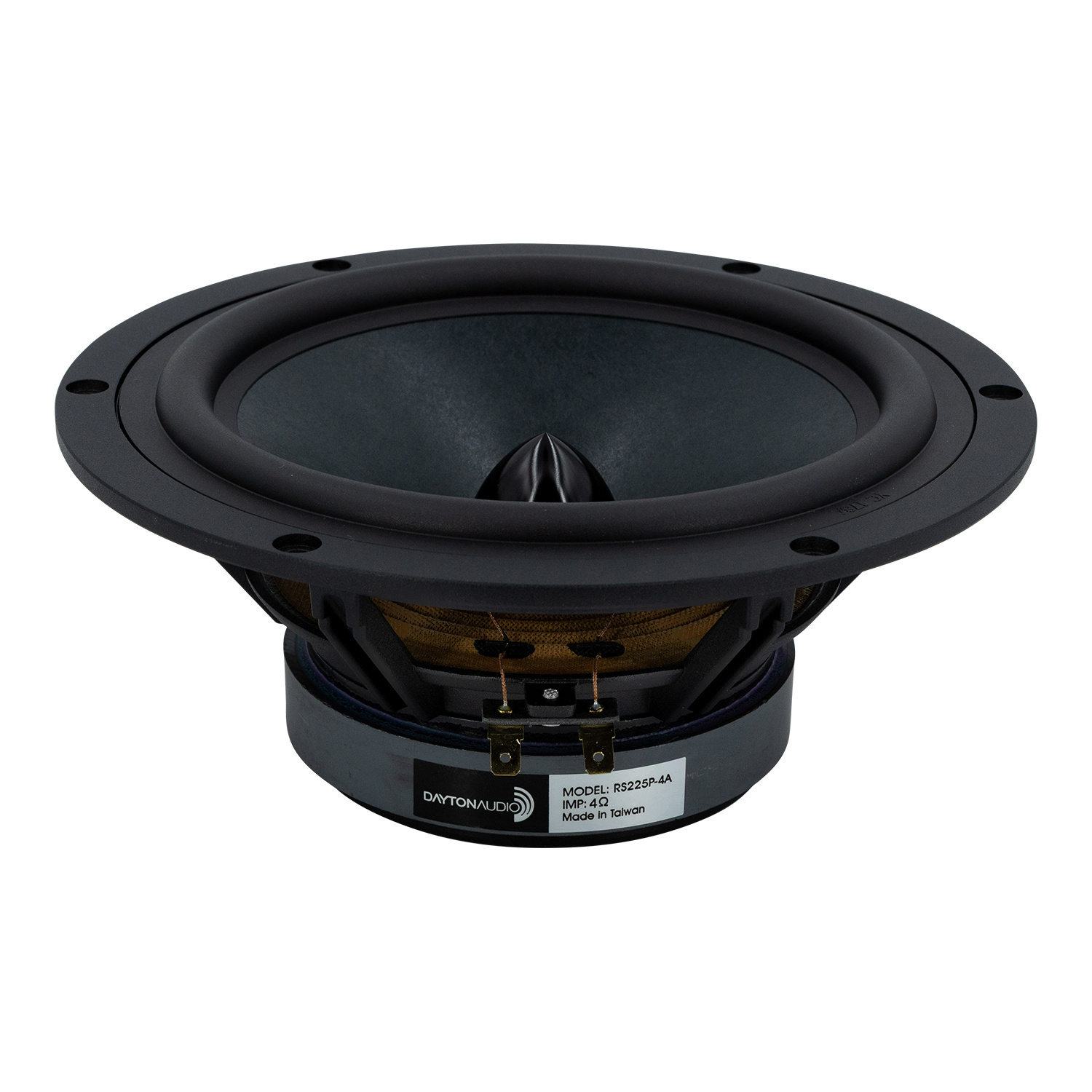

Dayton Audio RS225P-4A 8" Reference Paper Woofer 4 Ohm

€ 66,07€ 79,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easi... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €75,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.



Highlights

  • Now with improved frequency response for easier crossover integration
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
  • 92.9 dB sensitivity and 6 mm of excursion



Product details

Dayton Audio RS225P-4A 8" Reference Paper Woofer 4 Ohm



Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.



The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Eigenschaften

Artikelnummer:
RS225P-4A
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
8"
Power Handling (RMS)
80 watts
Power Handling (max)
120 watts
Impedance
4 ohms
Sensitivity
92.9 dB @ 2.83V/1m
Frequency Response
35 - 5,500 Hz
Voice Coil Diameter
38.5 mm
DC Resistance (Re)
3.3 ohms
Voice Coil Inductance (Le)
0.51 mH @ 1 kHz
Resonant Frequency (Fs)
37.7 Hz
Mechanical Q (Qms)
1.85
Electromagnetic Q (Qes)
0.48
Total Q (Qts)
0.38
Diaphragm Mass Inc. Airload (Mms)
25.0g
Mechanical Compliance of Suspension (Cms)
0.71 mm/N
Surface Area of Cone (Sd)
213.8 cm²
Volume of Displacement (Vd)
128.2 cm³
BL Product (BL)
6.4 Tm
Compliance Equivalent Volume (Vas)
45.8 liters
Maximum Linear Excursion (Xmax)
6 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Rubber
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
223 mm
Overall Depth
84 mm
Baffle Cutout Diameter
184 mm
# Mounting Holes
6
Mounting Hole Diameter
209 mm
Sealed Volume
0.11 ft.³
Sealed F3
117 Hz
Vented Volume
0.27 ft.³
Vented F3
71 Hz

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
No description was given
Durch Igor P. on 13 November 2020
5 van 5
Zeer mooie bas response. Neemt een deel van mijn subwoofer voor z'n rekening met mooie gedefinieerde klanken. Deze upgrade van mijn oude Philips digital serie boxen geven ze een nog beter geluid dan ze al deden. Zéér tevreden. En het staat ook nog super gelikt :-)
Durch Peter V. on 12 November 2019
