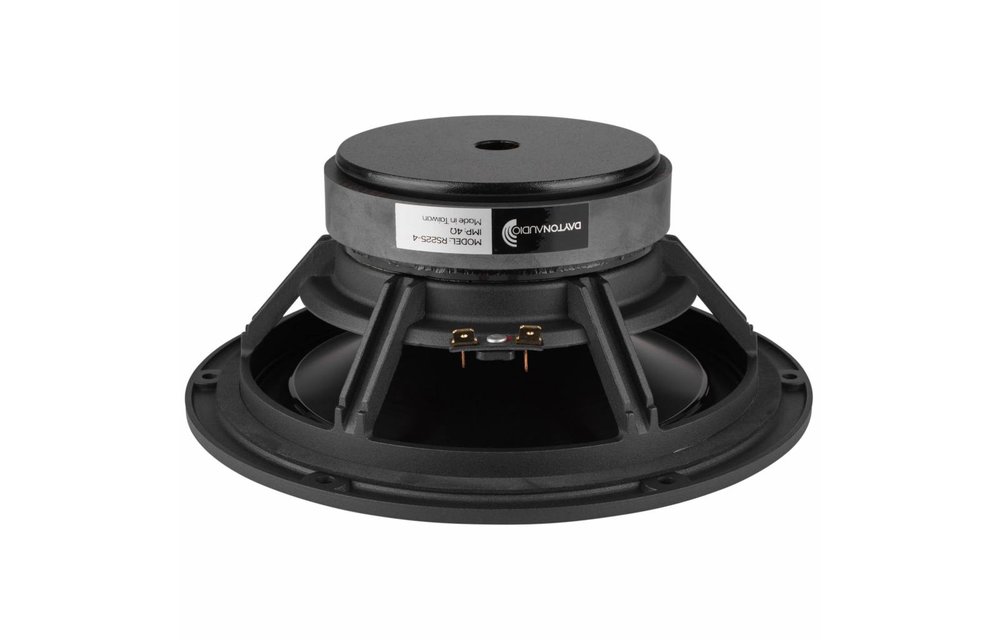

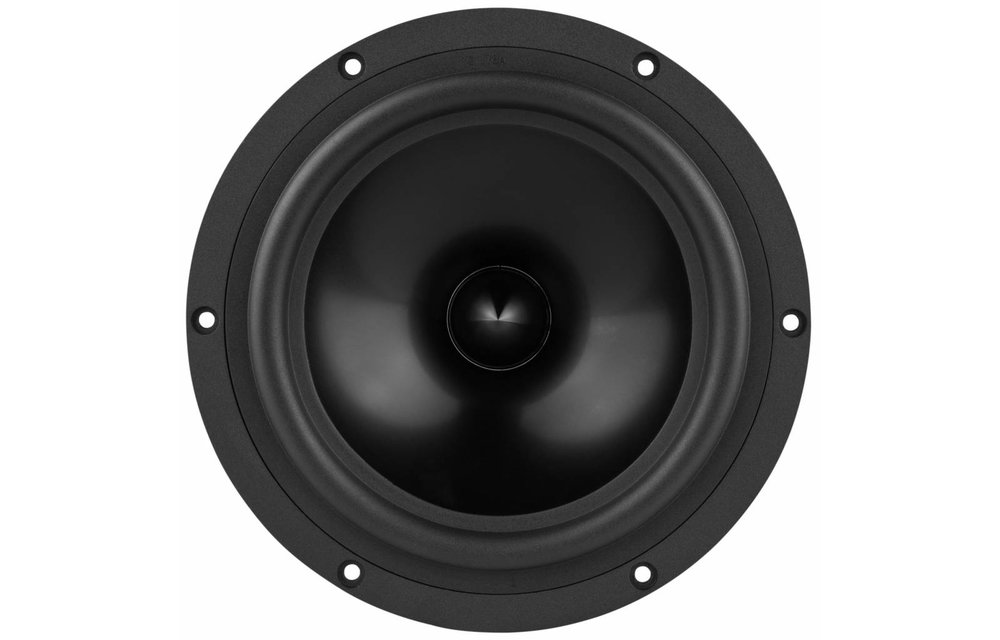

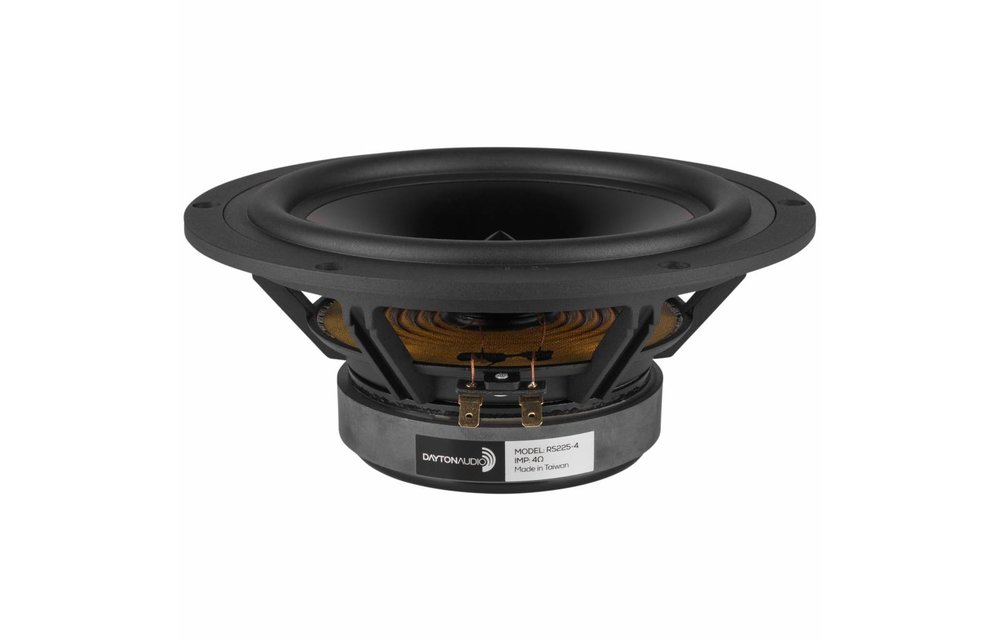

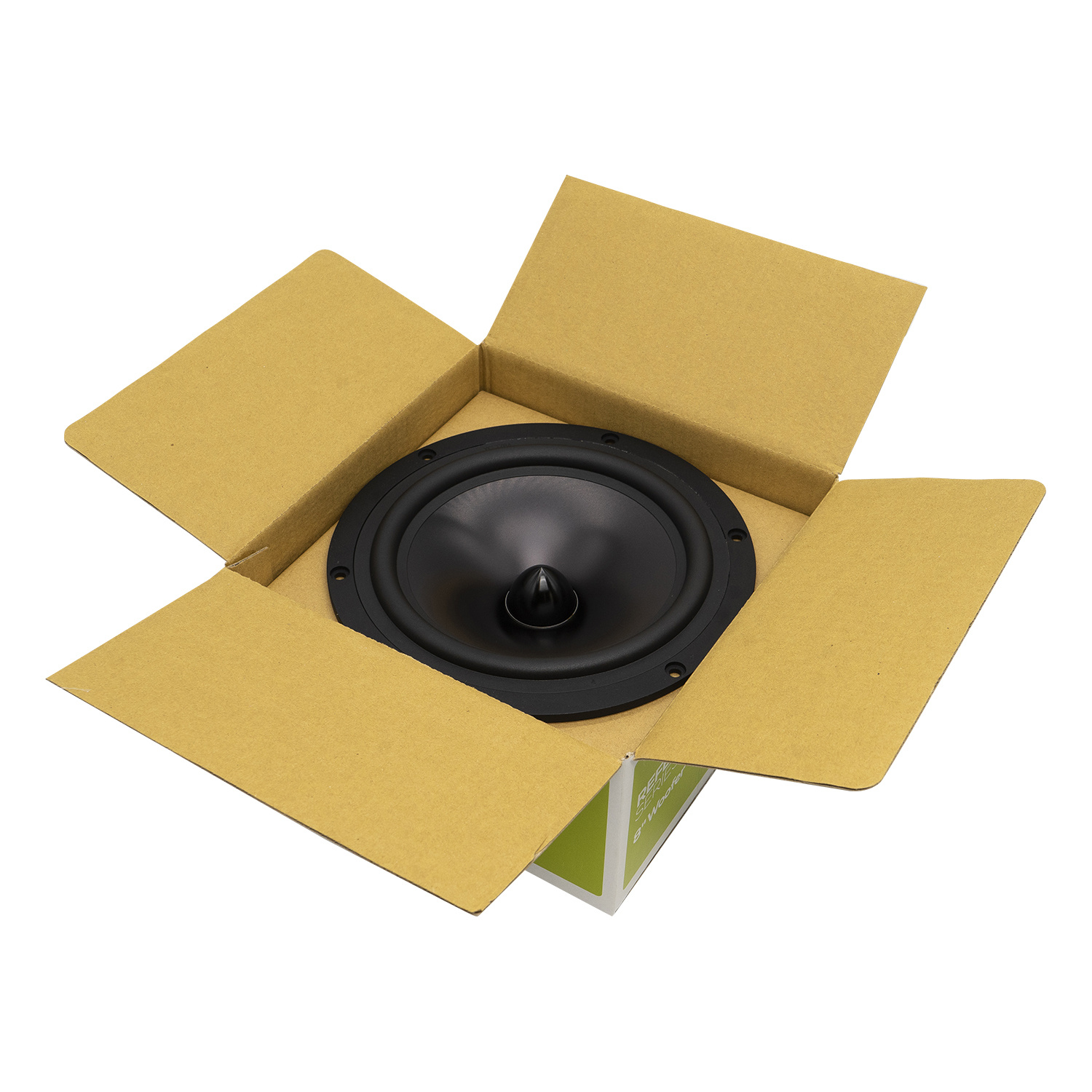

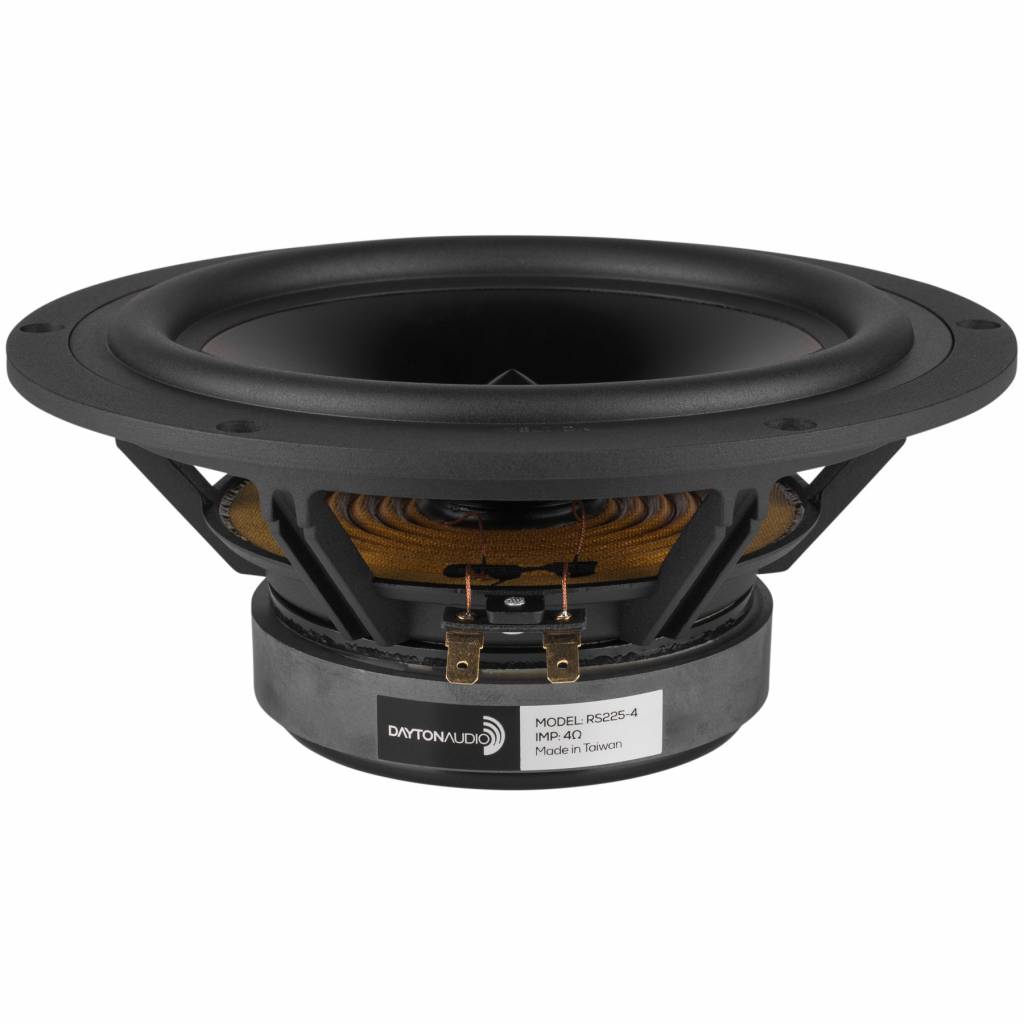

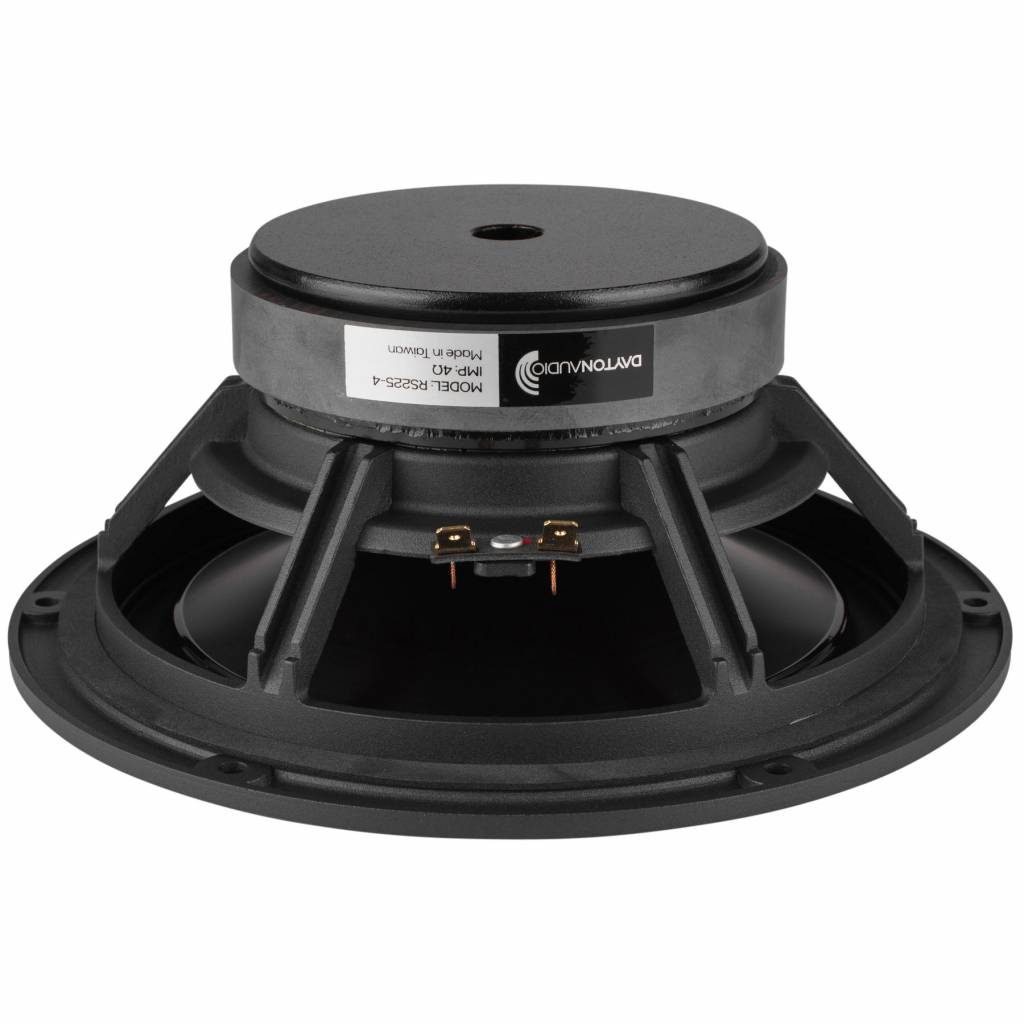

Dayton Audio RS225-4 8" Reference Woofer 4 Ohm

€ 66,07€ 79,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €75,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.



Highlights

  • 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers
  • Excellent car audio midrange/midbass
  • High-end low-distortion motor with two shorting paths to reduce inductance
  • Designed and engineered in the USA



Product details

Dayton Audio RS225-4 8" Reference Woofer 4 Ohm



The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.

Eigenschaften

Artikelnummer:
RS225-4
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
8"
Power Handling (RMS)
80 watts
Power Handling (max)
160 watts
Impedance
4 ohms
Sensitivity
91 dB @ 2.83V/1m
Frequency Response
35 - 2,300 Hz
Voice Coil Diameter
38 mm
DC Resistance (Re)
3.2 ohms
Voice Coil Inductance (Le)
0.49 mH @ 1 kHz
Resonant Frequency (Fs)
33 Hz
Mechanical Q (Qms)
2.02
Electromagnetic Q (Qes)
0.52
Total Q (Qts)
0.41
Diaphragm Mass Inc. Airload (Mms)
32.2g
Mechanical Compliance of Suspension (Cms)
0.72 mm/N
Surface Area of Cone (Sd)
213.8 cm²
Volume of Displacement (Vd)
128.2 cm³
BL Product (BL)
6.38 Tm
Compliance Equivalent Volume (Vas)
46.4 liters
Maximum Linear Excursion (Xmax)
6.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
223 mm
Overall Depth
92 mm
Baffle Cutout Diameter
184 mm
# Mounting Holes
6
Sealed Volume
0.5 ft.³
Sealed F3
70 Hz
Vented Volume
1.62 ft.³
Vented F3
36 Hz
