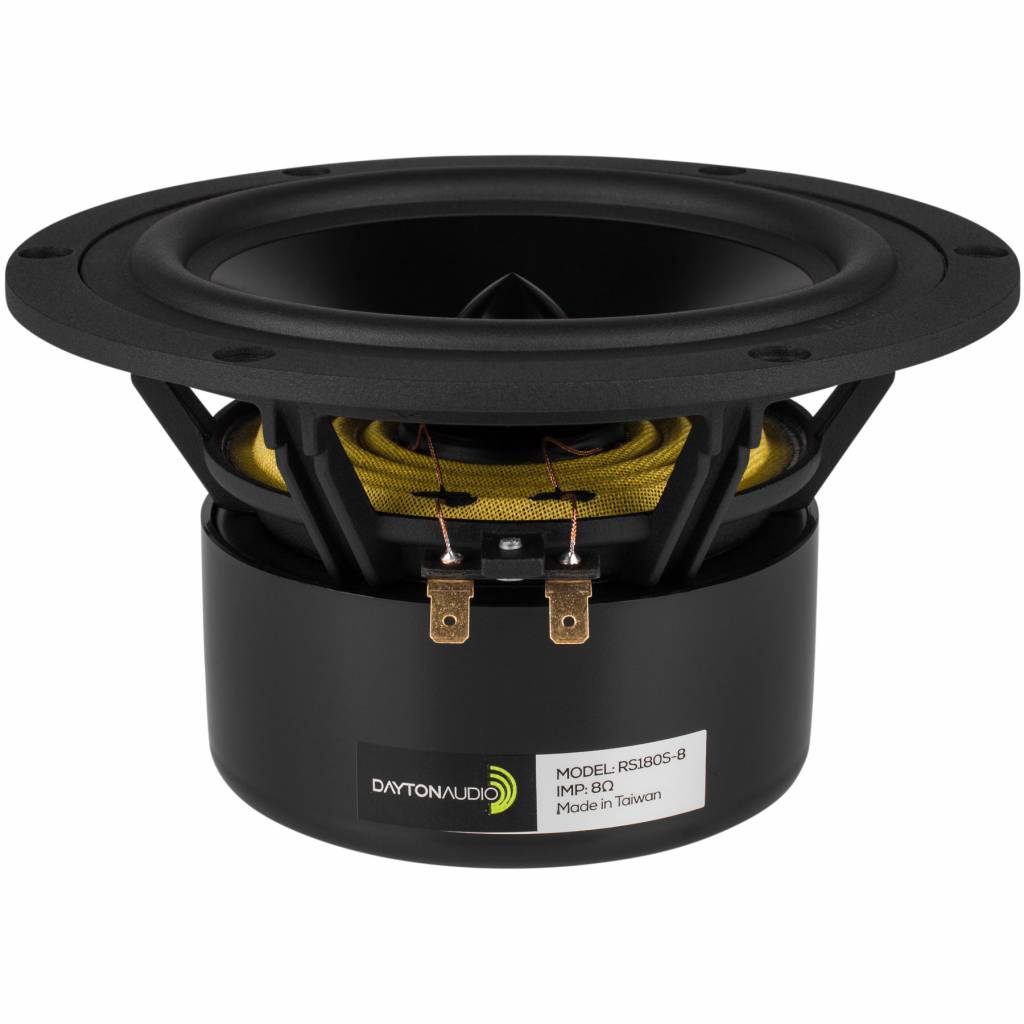

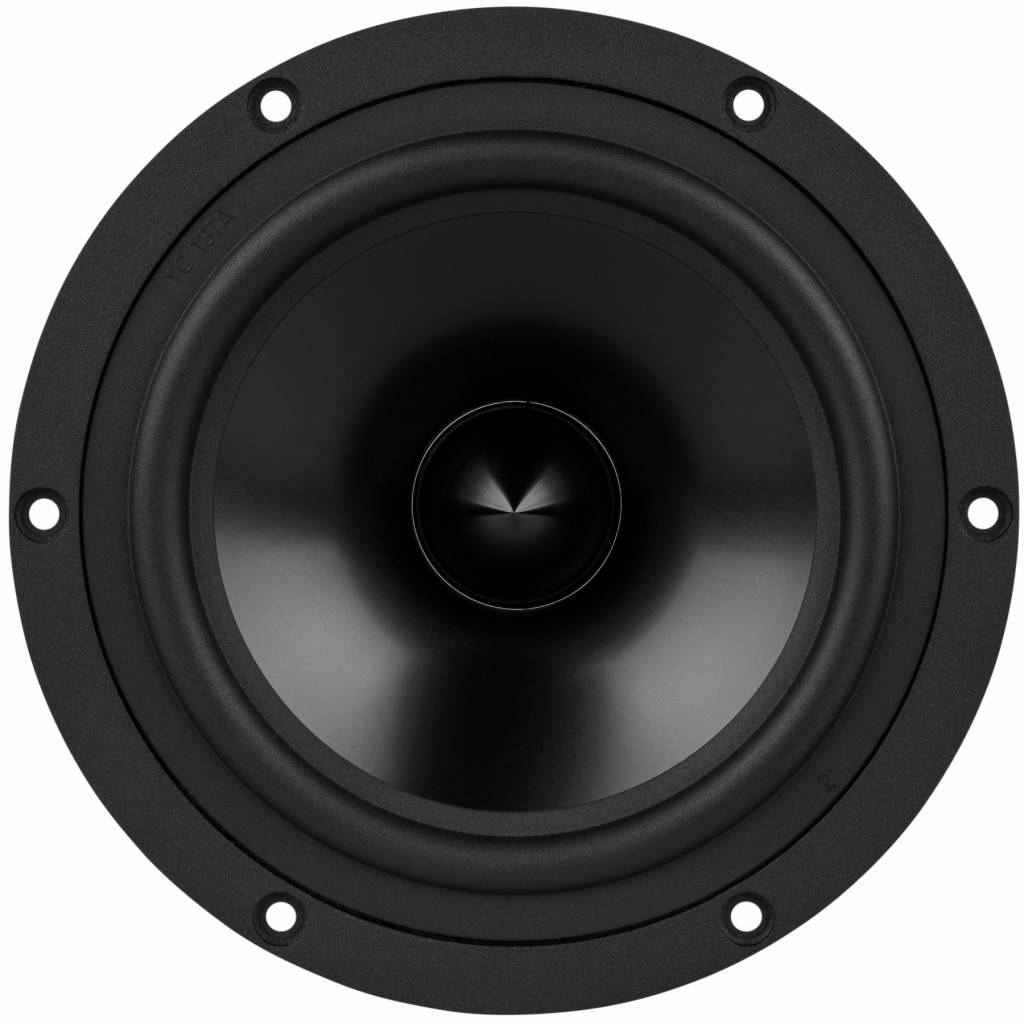

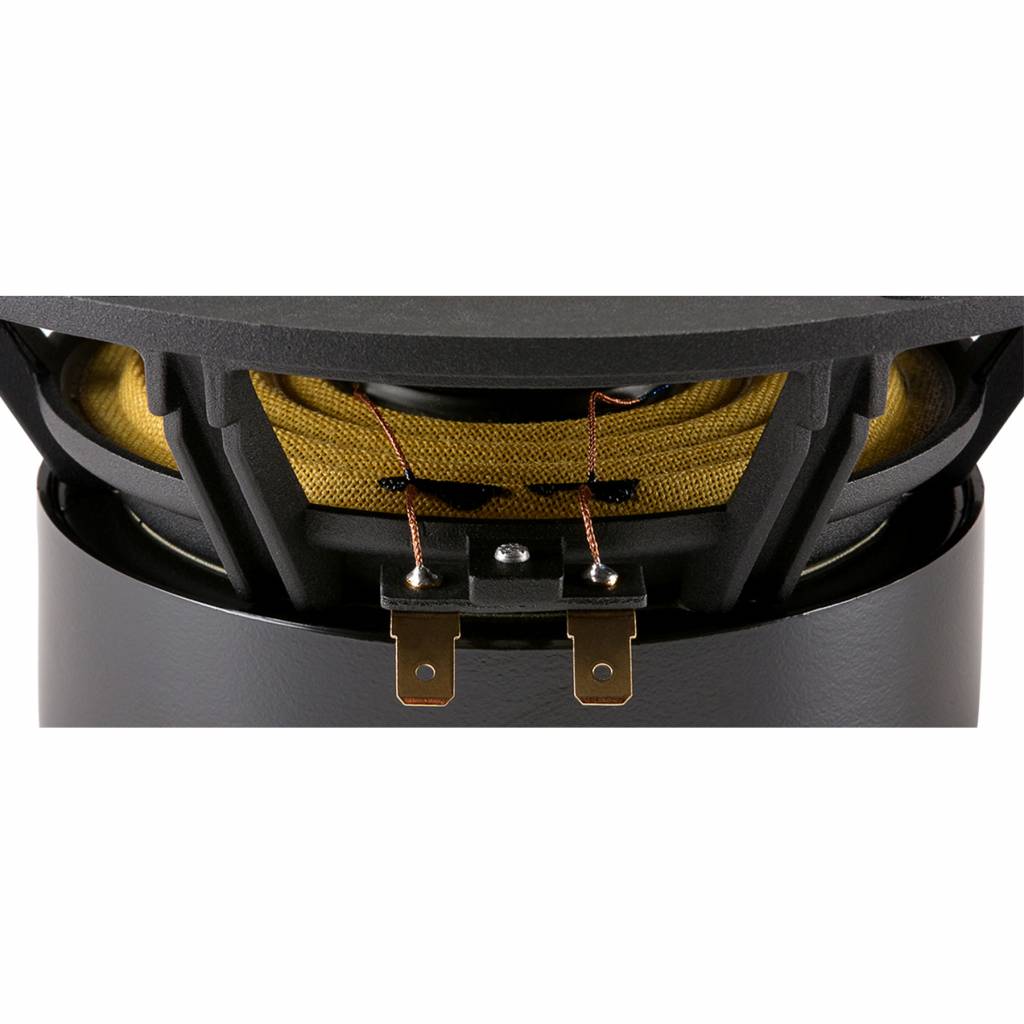

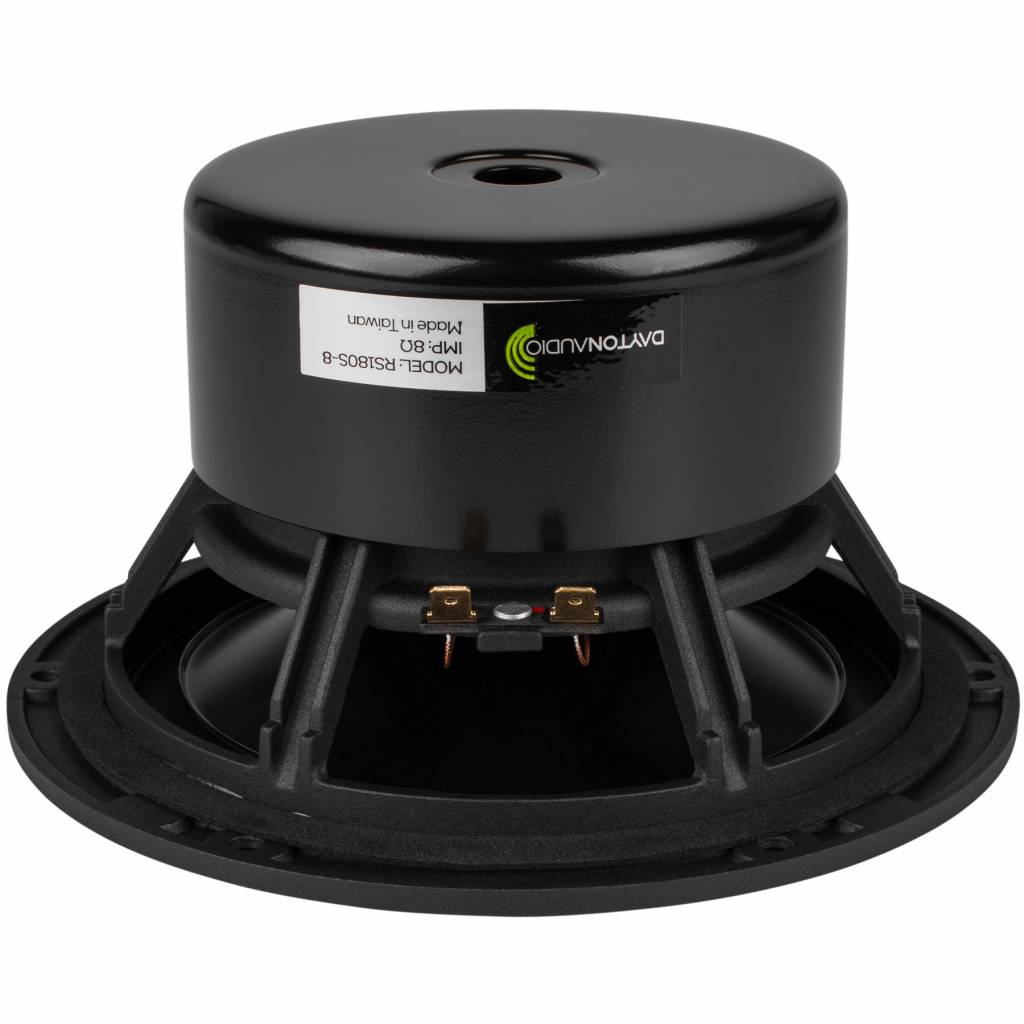

Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm

€ 49,55€ 59,95 Nicht auf Lager: Lieferzeit beträgt 3 bis 6 Wochen
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost s... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €56,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.



Highlights

  • Long-excursion motor and suspension for strong bass performance
  • Subtle yet high-tech look makes a bold cosmetic statement
  • Ultra-low stray magnetic field allows extremely close proximity to CRT's
  • Designed and engineered in the U.S.A.



Product details

Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm



The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofers feature a shielded motor system, black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.



Eigenschaften

Artikelnummer:
RS180S-8
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
7"
Power Handling (RMS)
60 watts
Power Handling (max)
120 watts
Impedance
8 ohms
Sensitivity
86.9 dB @ 2.83V/1m
Frequency Response
41 - 3,600 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
6.4 ohms
Voice Coil Inductance (Le)
0.79 mH @ 1 kHz
Resonant Frequency (Fs)
37.7 Hz
Mechanical Q (Qms)
1.45
Electromagnetic Q (Qes)
0.49
Total Q (Qts)
0.36
Diaphragm Mass Inc. Airload (Mms)
17g
Mechanical Compliance of Suspension (Cms)
1.05 mm/N
Surface Area of Cone (Sd)
124.7 cm²
Volume of Displacement (Vd)
74.8 cm³
BL Product (BL)
7.28 Tm
Compliance Equivalent Volume (Vas)
23 liters
Maximum Linear Excursion (Xmax)
6.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Shielded
Yes
Overall Outside Diameter
180.5 mm
Overall Depth
98 mm
Baffle Cutout Diameter
146 mm
# Mounting Holes
6
Sealed Volume
0.17 ft.³
Sealed F3
99 Hz
Vented Volume
0.49 ft.³
Vented F3
56 Hz

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
Excellent midrange drivers. Been using them for 6 months (DIY build; ported speakers with these mid/low range drivers and RST28F-4 Dome tweeters. Works like a charm.
Durch Subhasish on 2 Mai 2020
4 van 5
Prima product, prima levering!!
Durch bert r. on 15 Oktober 2019
