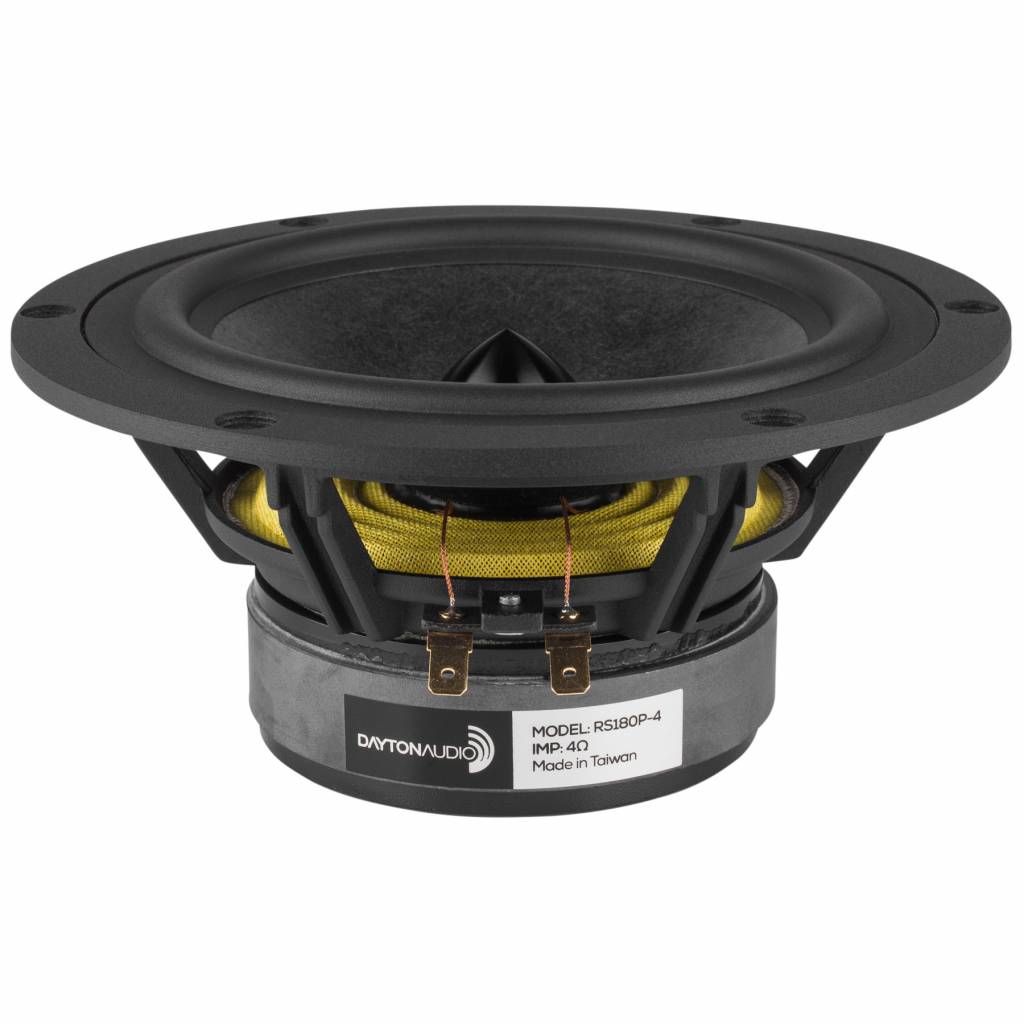

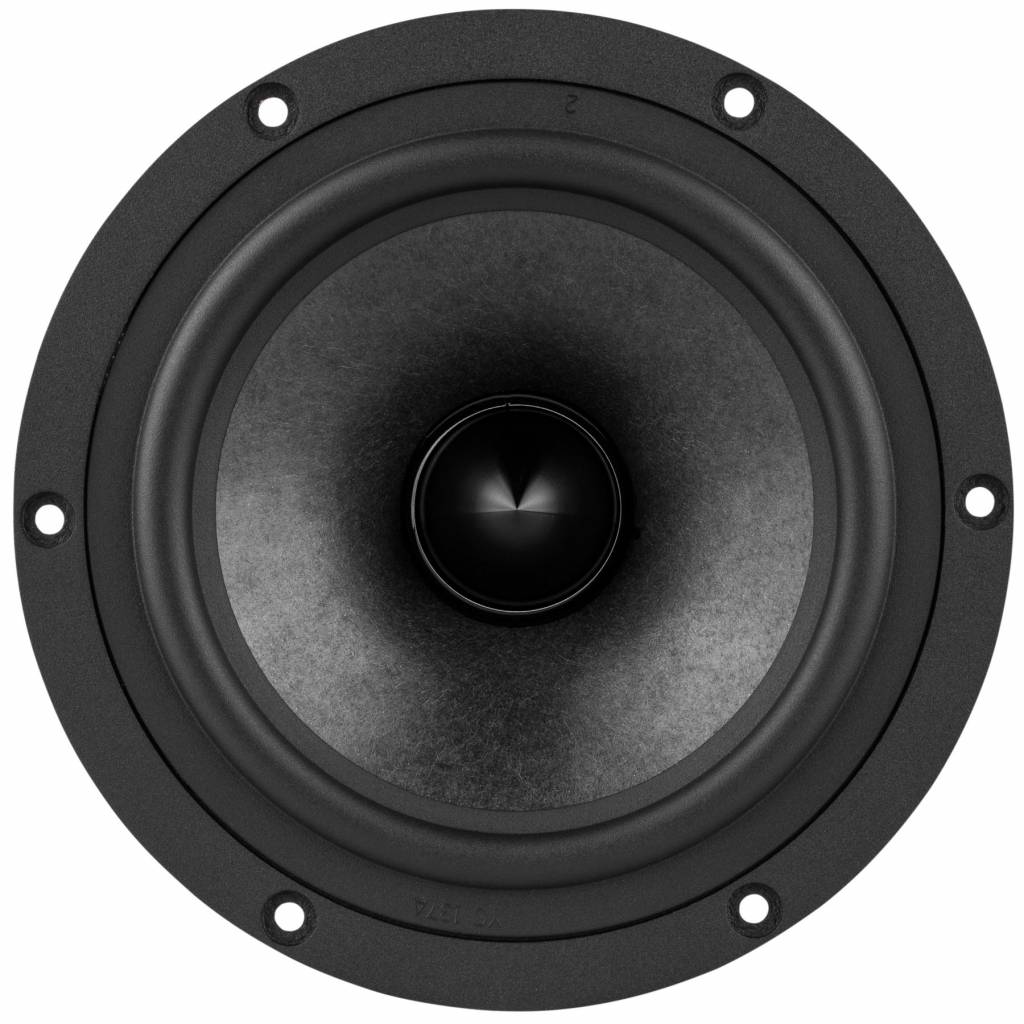

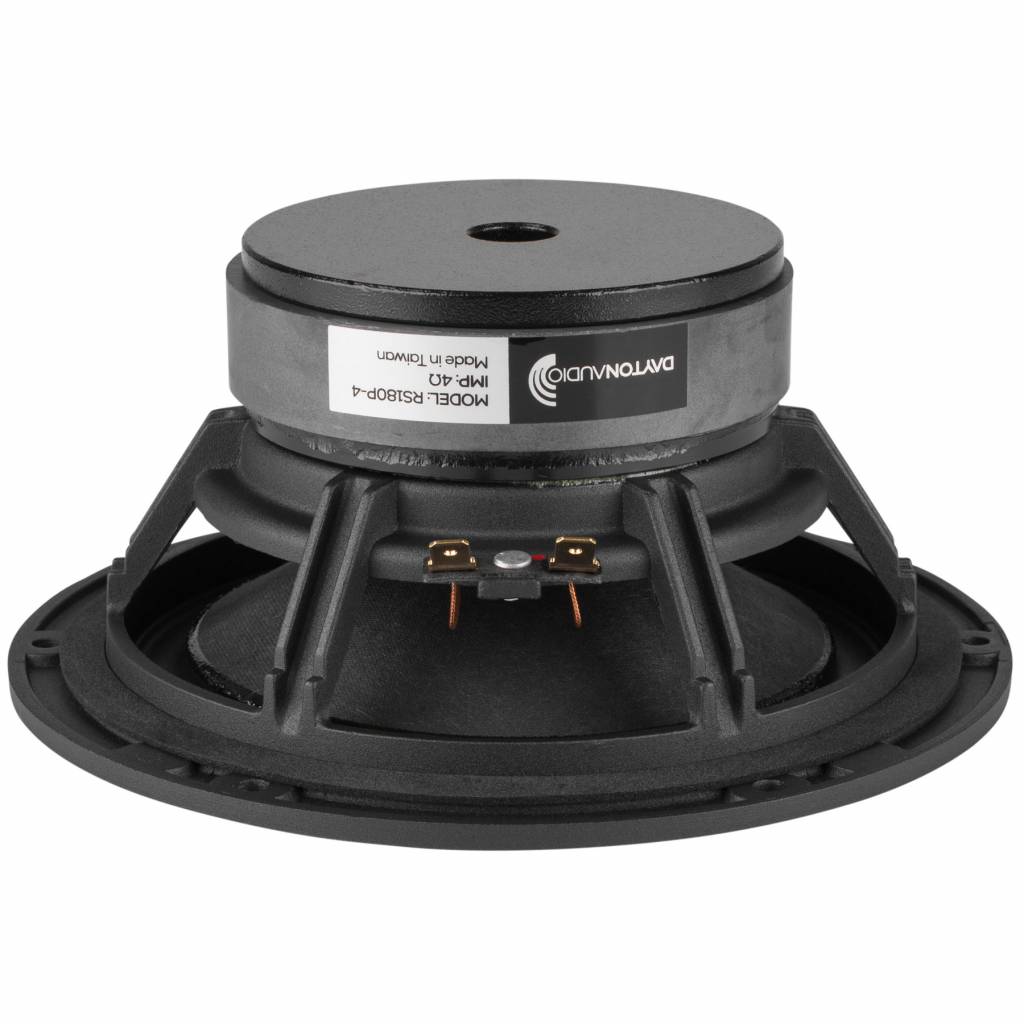

Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm

€ 49,55€ 59,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €56,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



Highlights

  • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect as a woofer, midwoofer, or dedicated midrange driver
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • 6 mm of Xmax and 88.2 dB sensitivity



Product details

Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm



The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.



Eigenschaften

Artikelnummer:
RS180P-4
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
7"
Power Handling (RMS)
60 watts
Power Handling (max)
90 watts
Impedance
4 ohms
Sensitivity
90.8 dB @ 2.83V/1m
Frequency Response
35 - 8,000 Hz
Voice Coil Diameter
38.5 mm
DC Resistance (Re)
3.1 ohms
Voice Coil Inductance (Le)
0.47 mH @ 1 kHz
Resonant Frequency (Fs)
37.7 Hz
Mechanical Q (Qms)
1.98
Electromagnetic Q (Qes)
0.48
Total Q (Qts)
0.39
Diaphragm Mass Inc. Airload (Mms)
14.8g
Mechanical Compliance of Suspension (Cms)
1.21 mm/N
Surface Area of Cone (Sd)
126.7 cm²
Volume of Displacement (Vd)
76.02 cm³
BL Product (BL)
4.67 Tm
Compliance Equivalent Volume (Vas)
27.3 liters
Maximum Linear Excursion (Xmax)
6 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Rubber
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
180.5 mm
Overall Depth
81 mm
Baffle Cutout Diameter
146 mm
# Mounting Holes
6
Sealed Volume
0.27 ft.³
Sealed F3
78 Hz
Vented Volume
0.64 ft.³
Vented F3
42 Hz

Bewertungen

5 from 5Based on 5 reviews
Produkt bewerten
5 van 5
I have bought four RS180p 4ohm (paper) for my system, It is a 5 ways-system with separate amplifier for each range. The earth of the system is a couple of Spica Tc 50 (1991) in which I use only the original 6” woofer for midrange frequencies between 400-4000 Hz. Beyond that ranges I use for the high three Emit Infinity, while in the very deep bass, 20-50 Hz, there is a couple of Mirage subwoofers with 12” unit.
For each channel I use 2 Dayton's for further reduce distorsion and further increase dynamic answer on mid-low bass (drum, piano, bass). Result: superior body, air and sense of reality to the whole 3D stage.
Each Dayton RS180p is put in a Wharfedale Diamond 8.2 box in place of the original 6" mid-woofer. Therefore is driven by a separate amplifier (60 watt) having kept away also the original tweeter. Dimensions of the box are almost ok (10 litres bass reflex) and then the 2 Dayton's give 60+60 for each channel.
The result is a very, very low distorsion and a superior readiness to transients with a deeper liquid scene 3D, natural sound, especially with vocals, classic orchestra and country west coast as well.
Durch Ugo Gaetano S. on 27 Februar 2021
5 van 5
Soundimports it's an guarantee
Durch Marian C. on 21 Juli 2020
