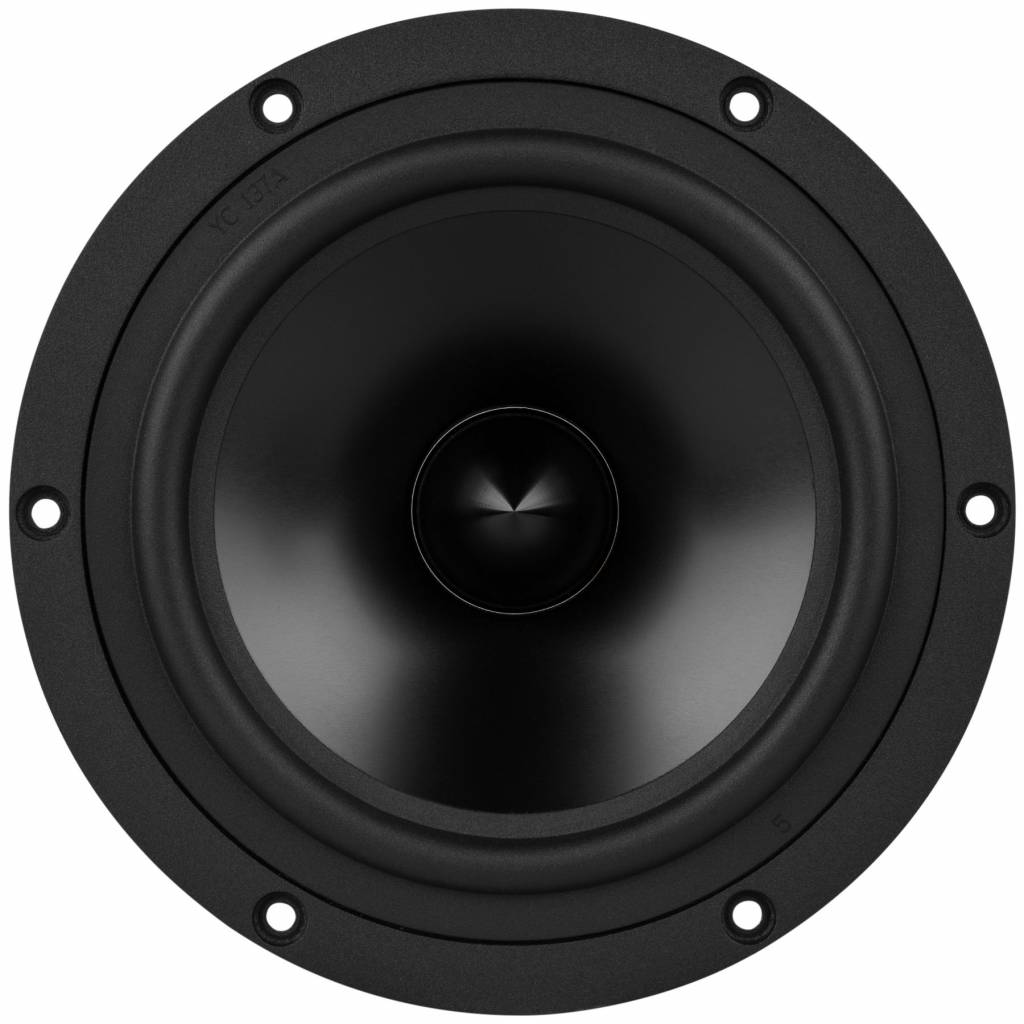

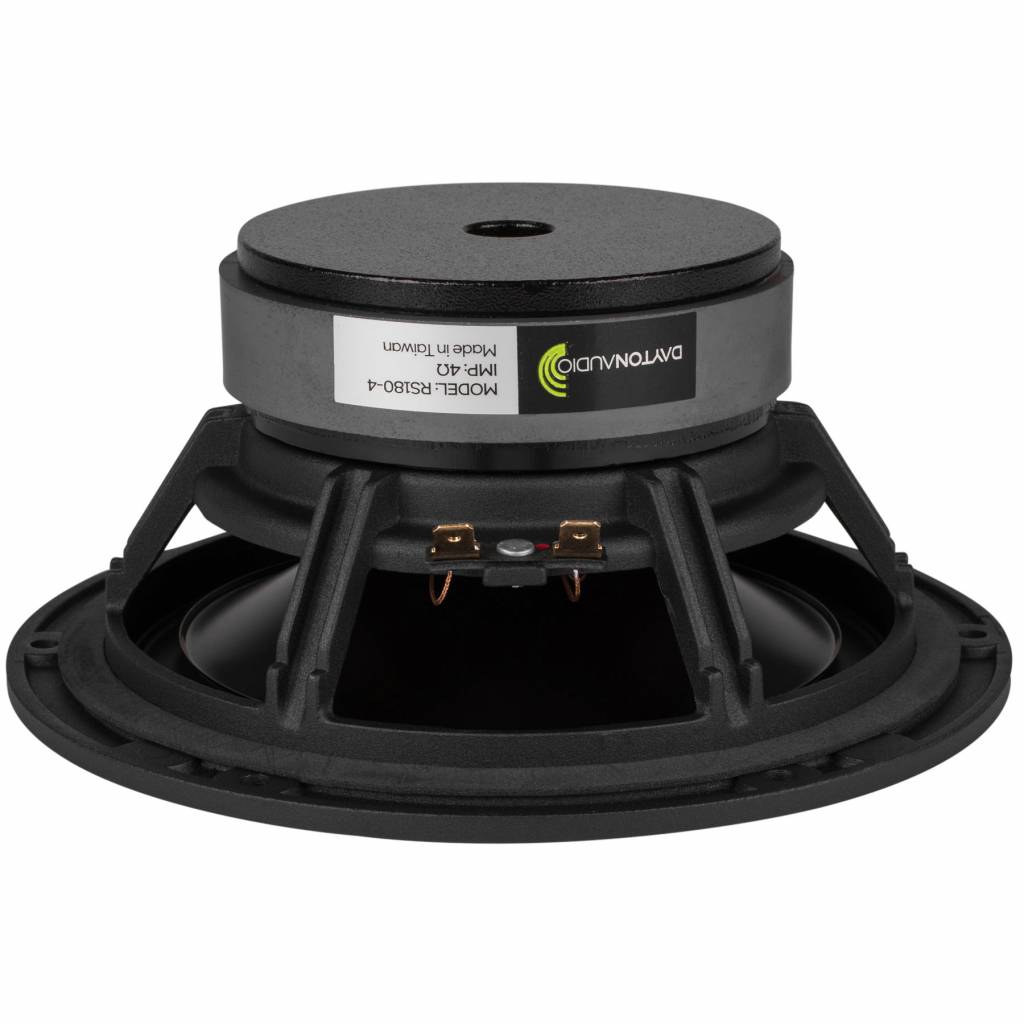

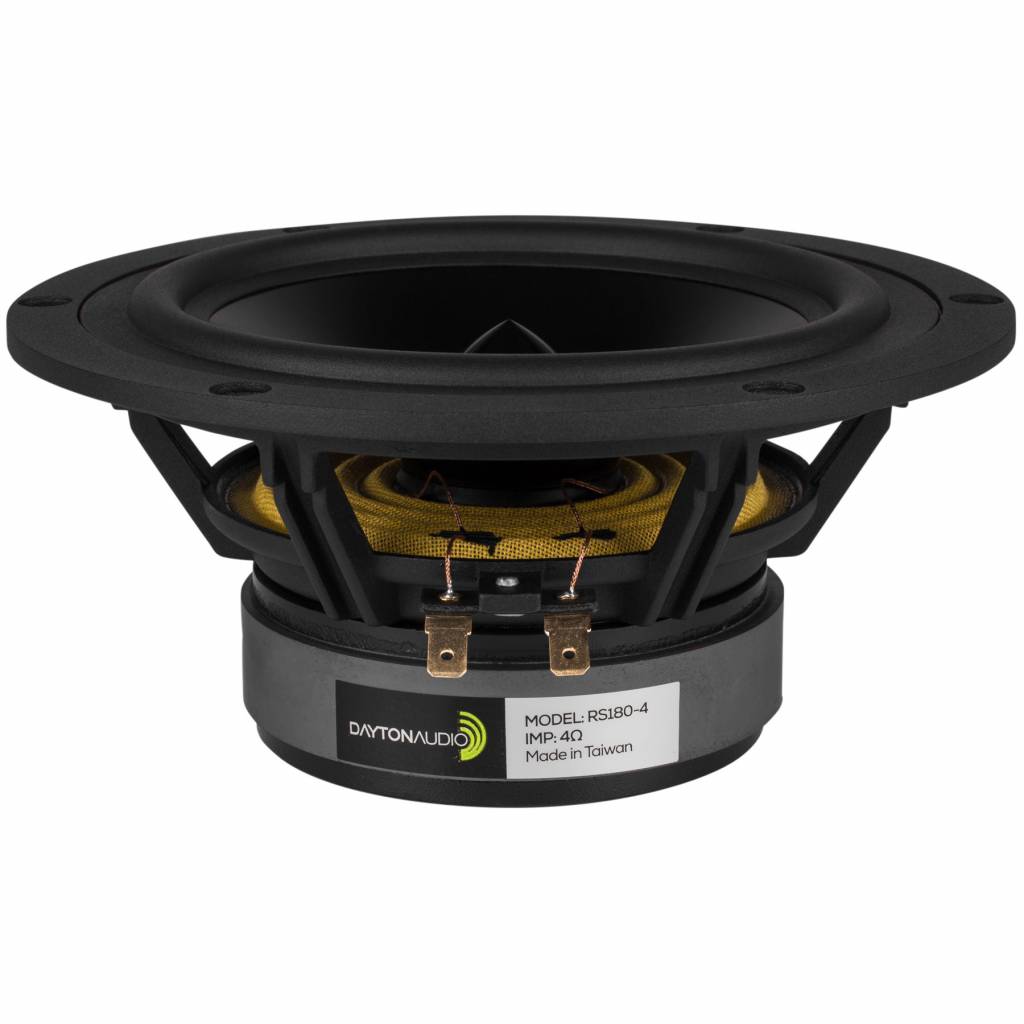

Dayton Audio RS180-4 7" Reference Woofer 4 Ohm

€ 49,55€ 59,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold spring terminals.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €56,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

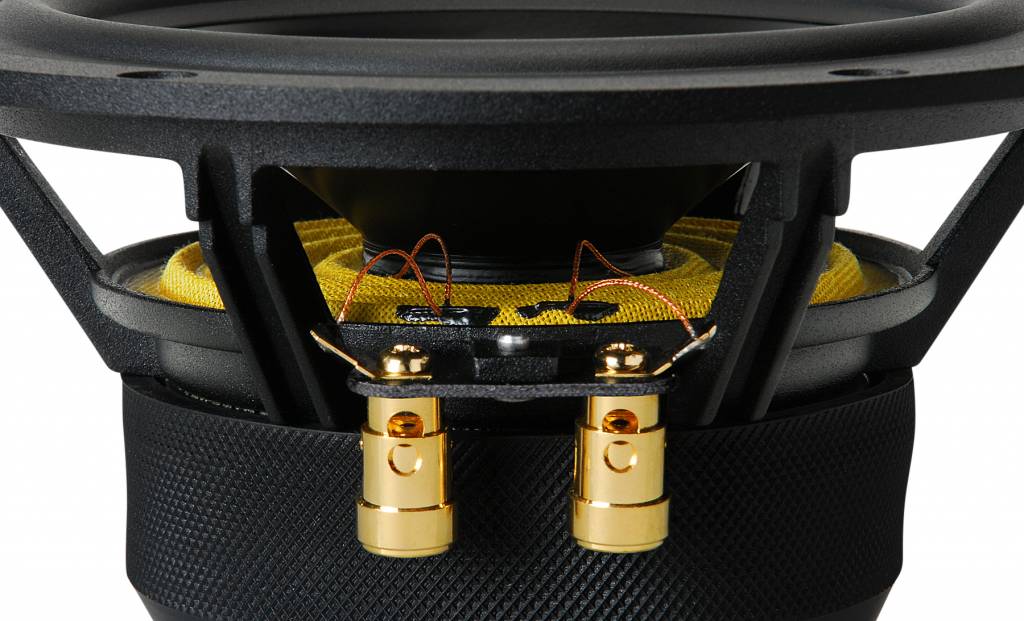

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold spring terminals.



Highlights

  • 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers
  • Excellent car audio midrange/midbass
  • High-end low-distortion motor with two shorting paths to reduce inductance



Product details

Dayton Audio RS180-4 7" Reference Woofer 4 Ohm

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

Eigenschaften

Artikelnummer:
RS180-4
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
7"
Power Handling (RMS)
60 watts
Power Handling (max)
120 watts
Impedance
4 ohms
Sensitivity
89.2 dB @ 2.83V/1m
Frequency Response
39 - 3,600 Hz
Voice Coil Diameter
38 mm
DC Resistance (Re)
3.1 ohms
Voice Coil Inductance (Le)
0.45 mH @ 1 kHz
Resonant Frequency (Fs)
38.4 Hz
Mechanical Q (Qms)
2.13
Electromagnetic Q (Qes)
0.59
Total Q (Qts)
0.46
Diaphragm Mass Inc. Airload (Mms)
17.8g
Mechanical Compliance of Suspension (Cms)
0.97 mm/N
Surface Area of Cone (Sd)
124.7 cm²
Volume of Displacement (Vd)
74.8 cm³
BL Product (BL)
4.71 Tm
Compliance Equivalent Volume (Vas)
21.2 liters
Maximum Linear Excursion (Xmax)
6.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
180.5 mm
Overall Depth
82 mm
Baffle Cutout Diameter
146 mm
# Mounting Holes
6
Sealed Volume
0.42 ft.³
Sealed F3
69 Hz
Vented Volume
1.33 ft.³
Vented F3
35 Hz
