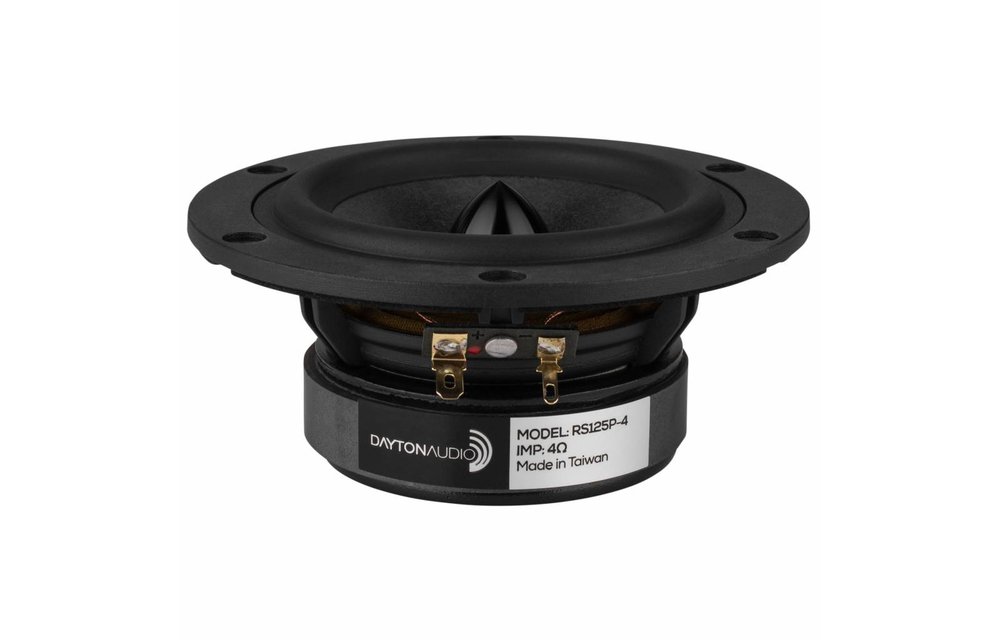

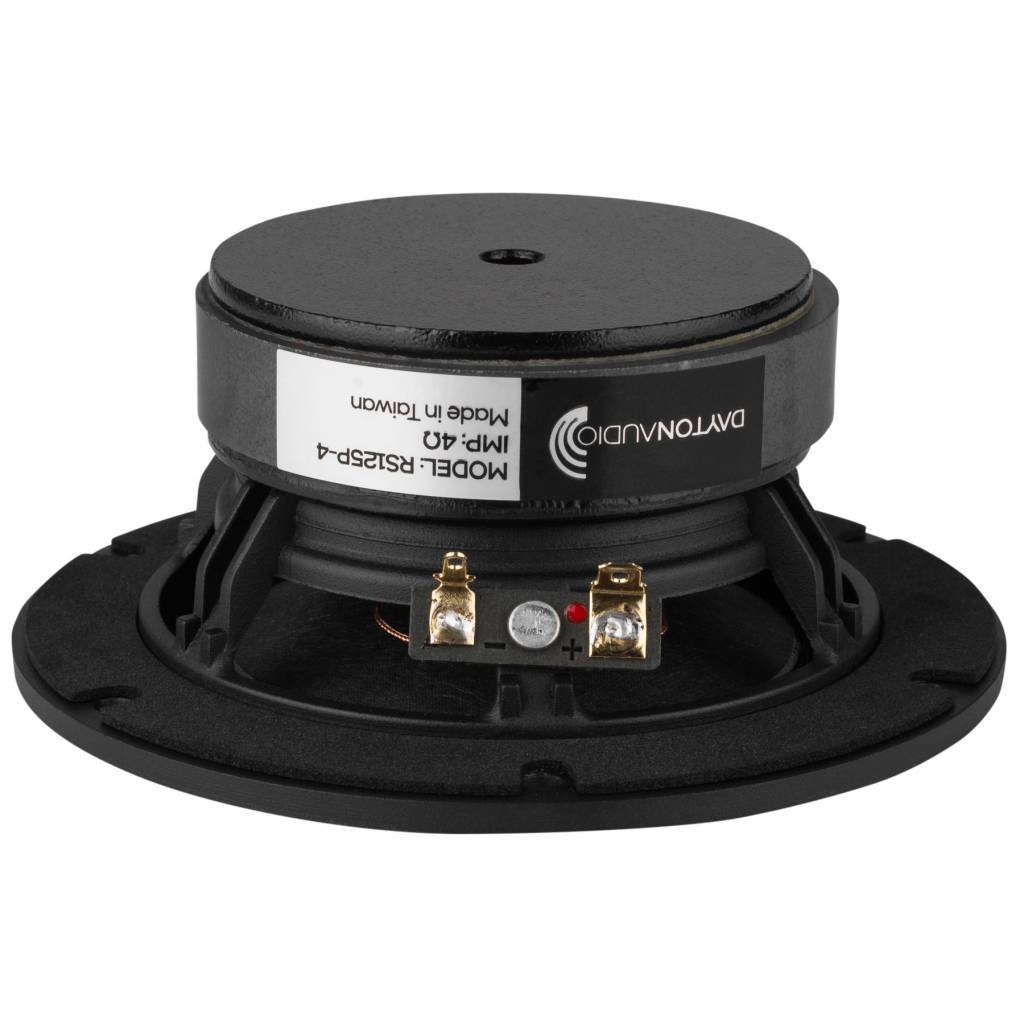

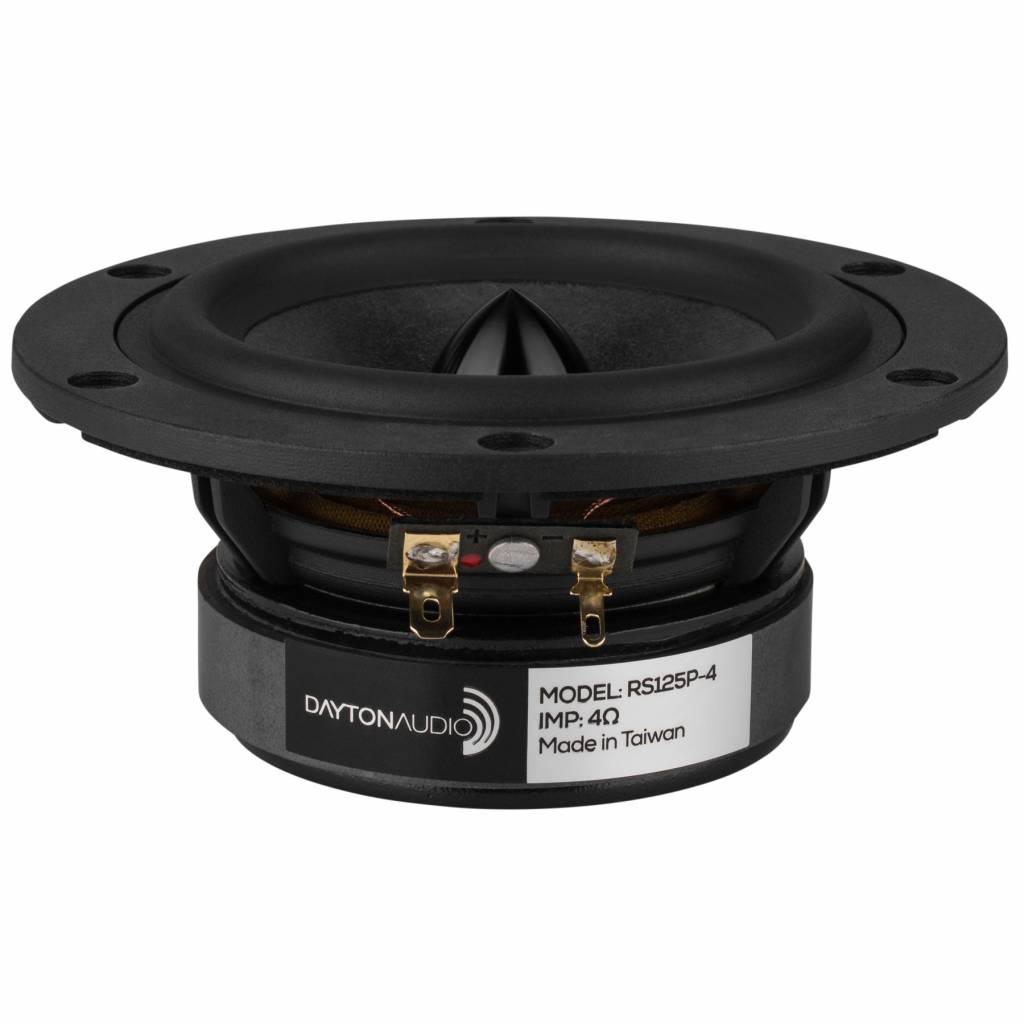

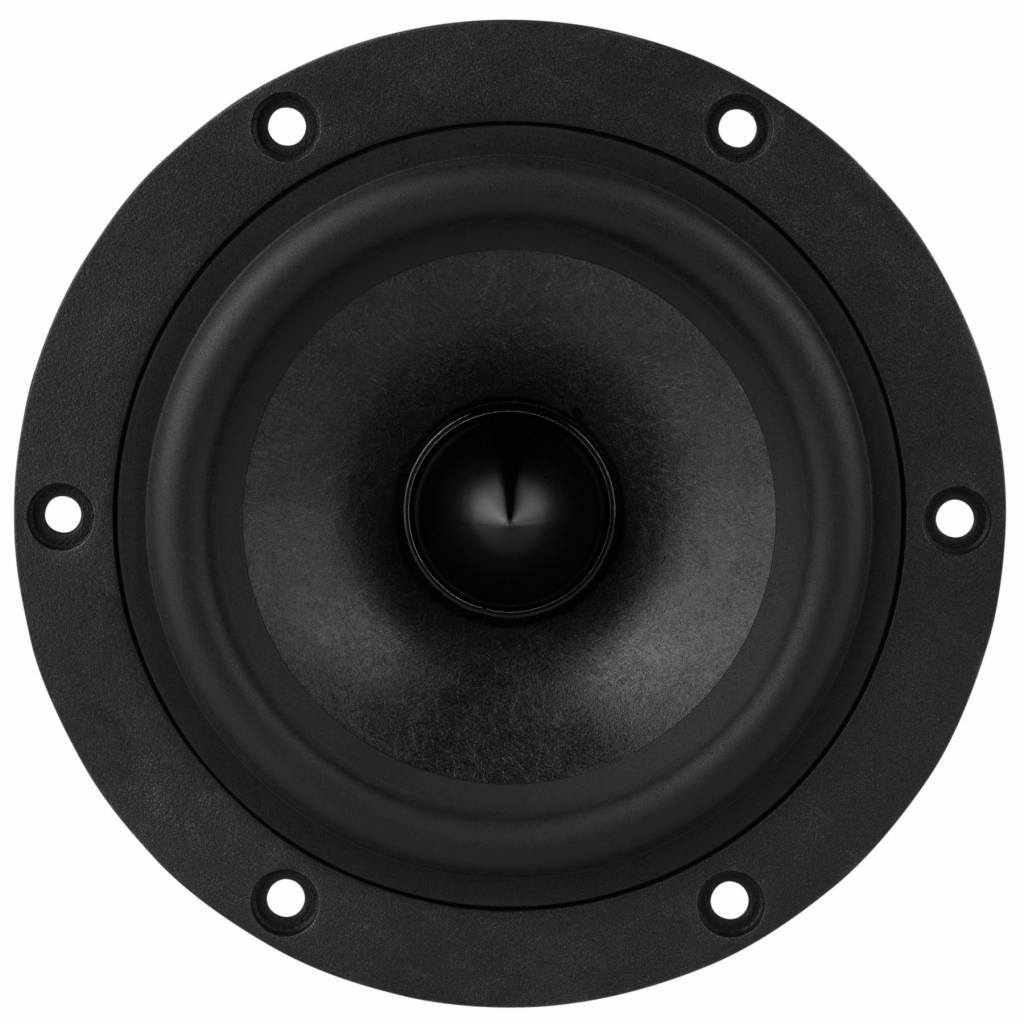

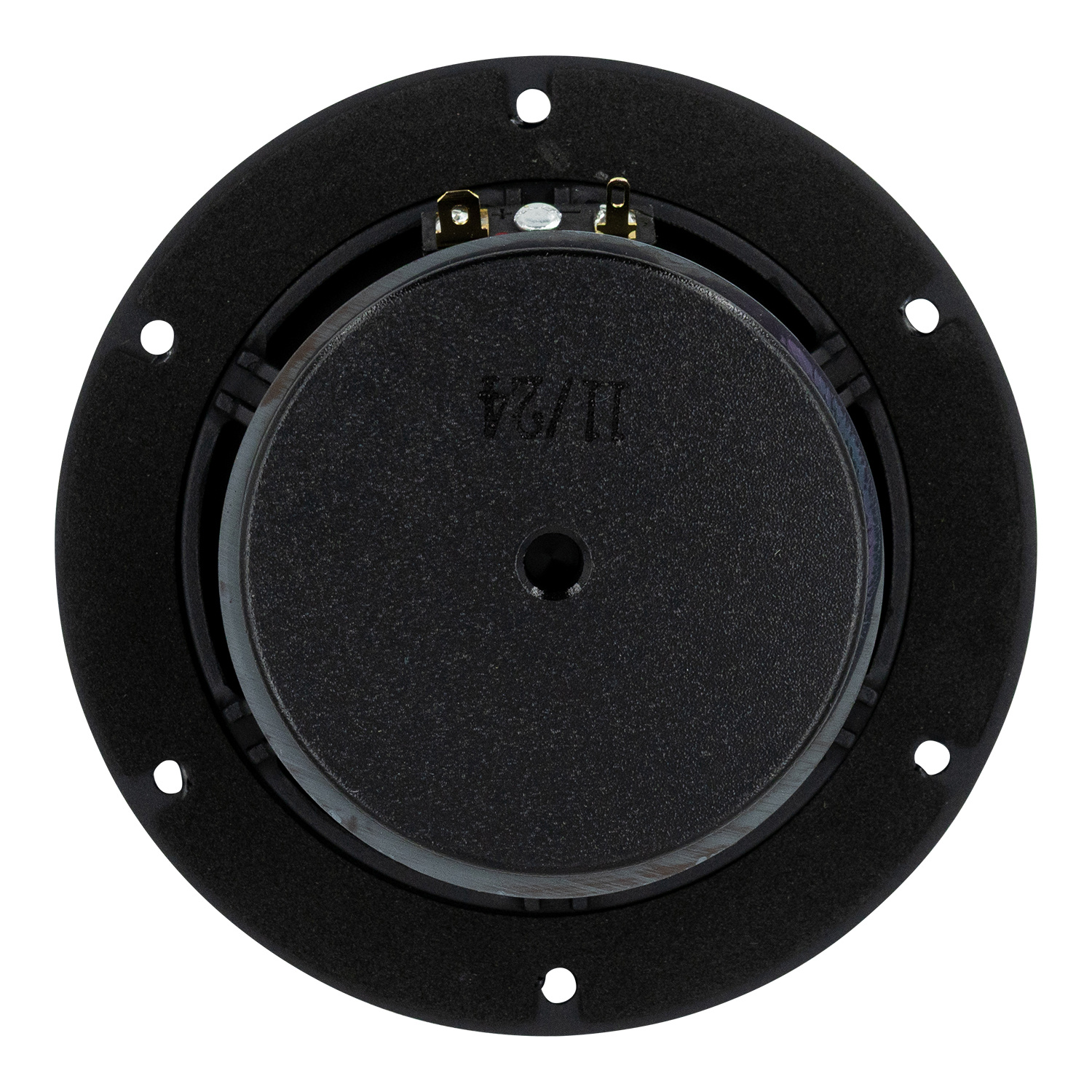

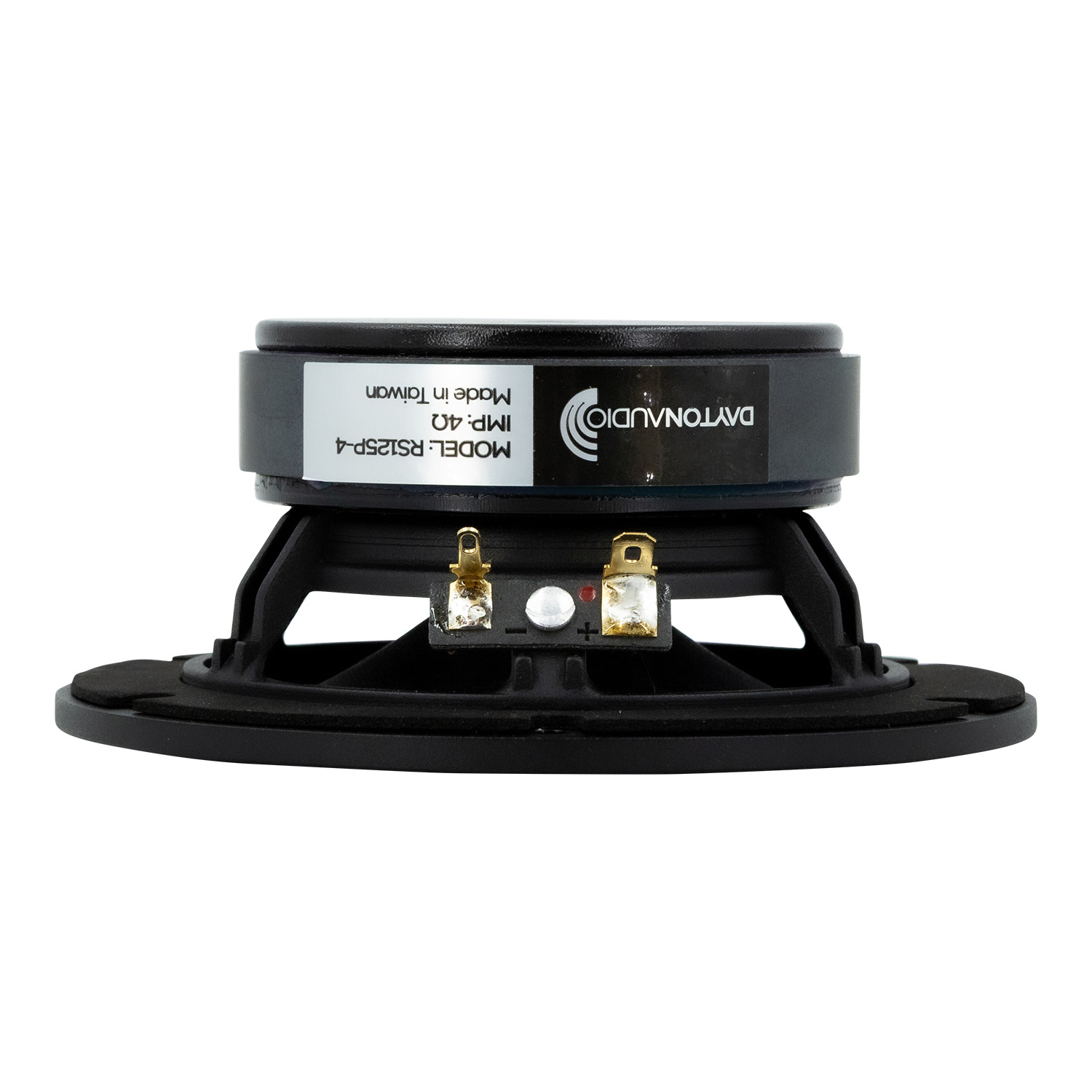

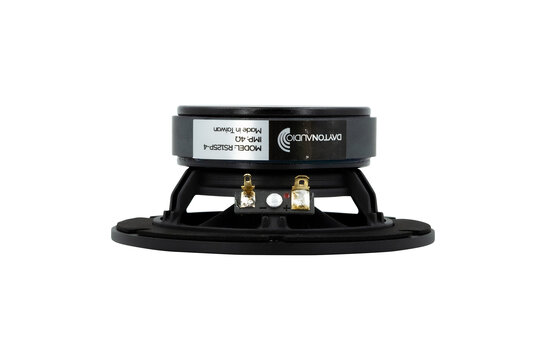

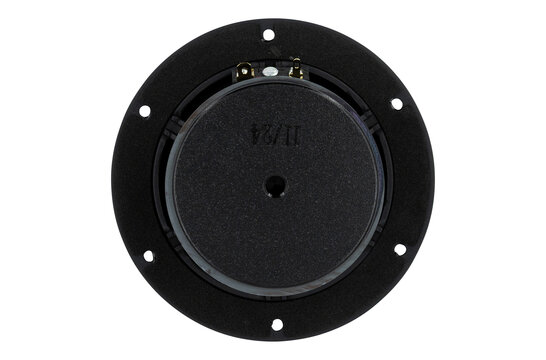

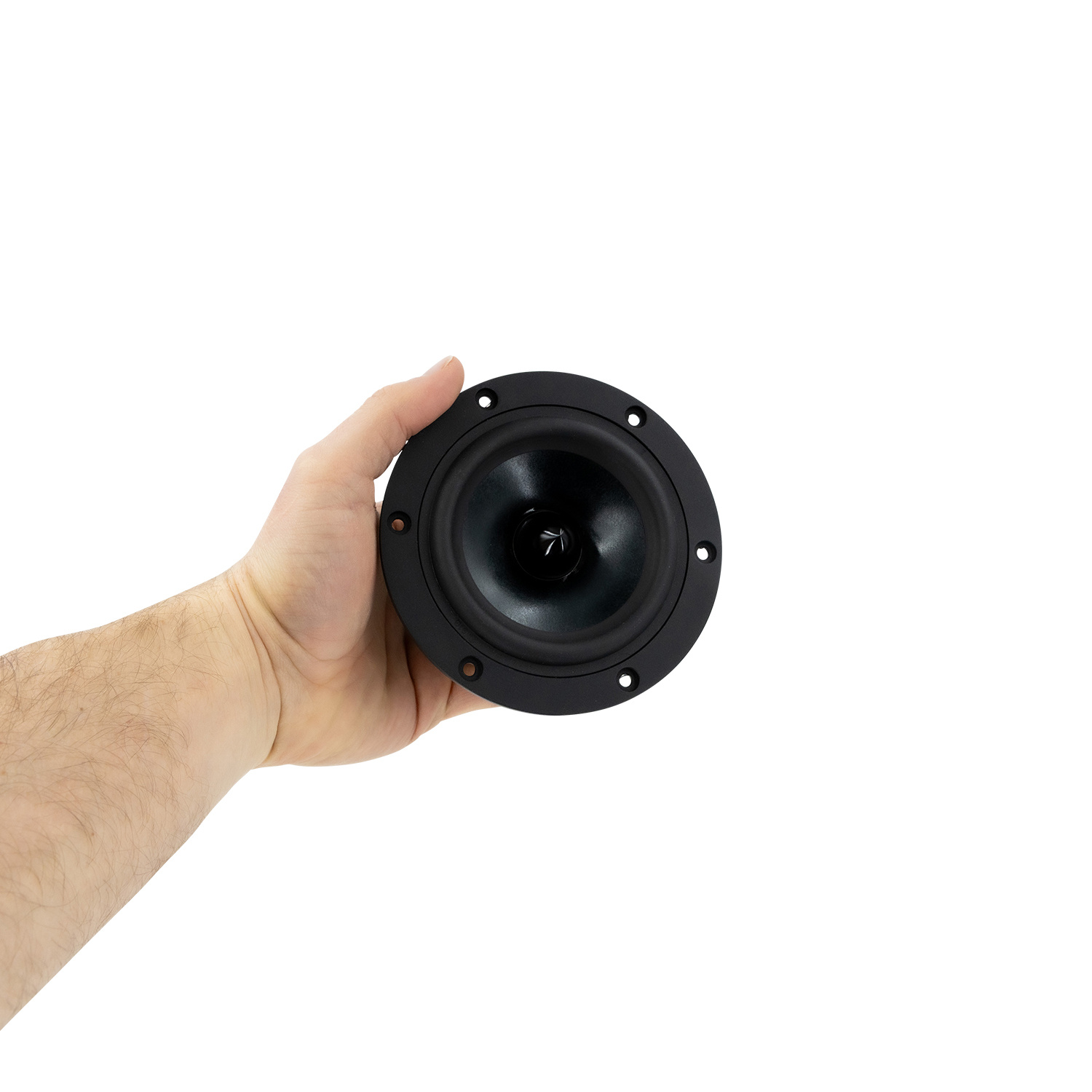

Dayton Audio RS125P-4 5" Reference Paper Woofer 4 Ohm

€ 37,15€ 44,95 5 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €42,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



Highlights

  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect for use as a woofer, midwoofer, or dedicated midrange driver



Product details

Dayton Audio RS125P-4 5" Reference Paper Woofer 4 Ohm



The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Eigenschaften

Artikelnummer:
RS125P-4
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
5"
Power Handling (RMS)
30 watts
Power Handling (max)
45 watts
Impedance
4 ohms
Sensitivity
90 dB @ 2.83V/1m
Frequency Response
70 - 12,000 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
3.1 ohms
Voice Coil Inductance (Le)
0.32 mH @ 1 kHz
Resonant Frequency (Fs)
70 Hz
Mechanical Q (Qms)
3.19
Electromagnetic Q (Qes)
0.57
Total Q (Qts)
0.48
Diaphragm Mass Inc. Airload (Mms)
5.1g
Mechanical Compliance of Suspension (Cms)
1.02 mm/N
Surface Area of Cone (Sd)
52.8 cm²
Volume of Displacement (Vd)
21.1 cm³
BL Product (BL)
5.08 Tm
Compliance Equivalent Volume (Vas)
3.98 liters
Maximum Linear Excursion (Xmax)
4 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
125.5 mm
Overall Depth
55 mm
Baffle Cutout Diameter
94 mm
# Mounting Holes
6
Sealed Volume
0.05 ft.³
Sealed F3
146 Hz
Vented Volume
0.13 ft.³
Vented F3
77 Hz

Bewertungen

4 from 5Based on 3 reviews
Produkt bewerten
5 van 5
Deze gebruikt voor mijn JBL Control/Universe surroundboxen.
Wauw.. wat een waanzinnige verbetering, ze klinken als volwaardige 2-weg boxen, met veel meer laag dan ze oorspronkelijk hadden.
Het is een vreemd gezicht om deze mini's te zien en tegelijk een veel groter geluid te horen.
Durch PeterV on 28 März 2020
2 van 5
The woofer sounds good, but has no dust cover for the voice coil. Only suitable for downfire Boxes.

Therefore only two stars.
Durch Erhard M. on 29 März 2019
