Dayton Audio RS125-8 5" Reference Woofer

€ 37,15€ 44,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio Reference Series RS125-8 5" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €42,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio Reference Series RS125-8 5" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.



Highlights

  • One of the lowest distortion, highest resolution driver series available
  • Low-distortion high-excursion motor system with two short-circuit paths
  • Compliant suspension and rigid black anodized aluminum cone for strong bass performance
  • Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug
  • Designed and engineered in the USA



Product details

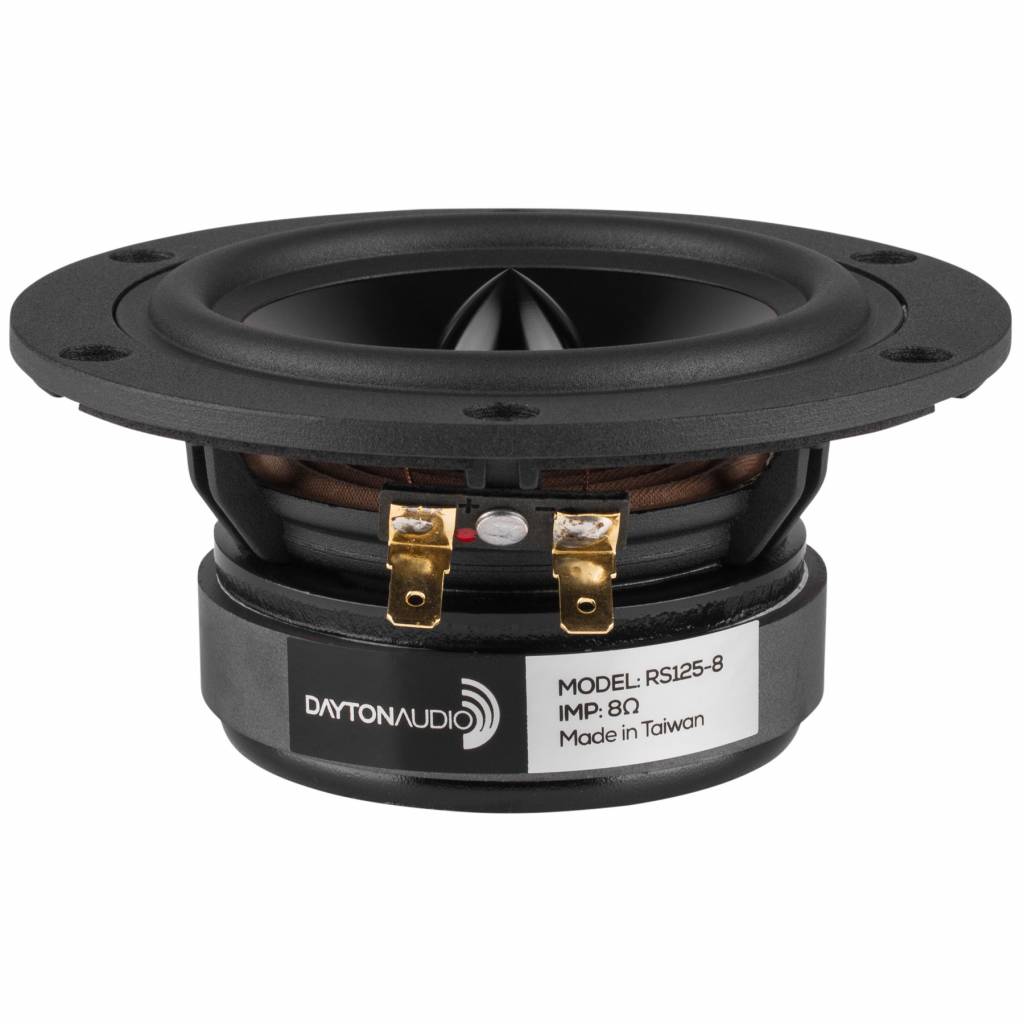

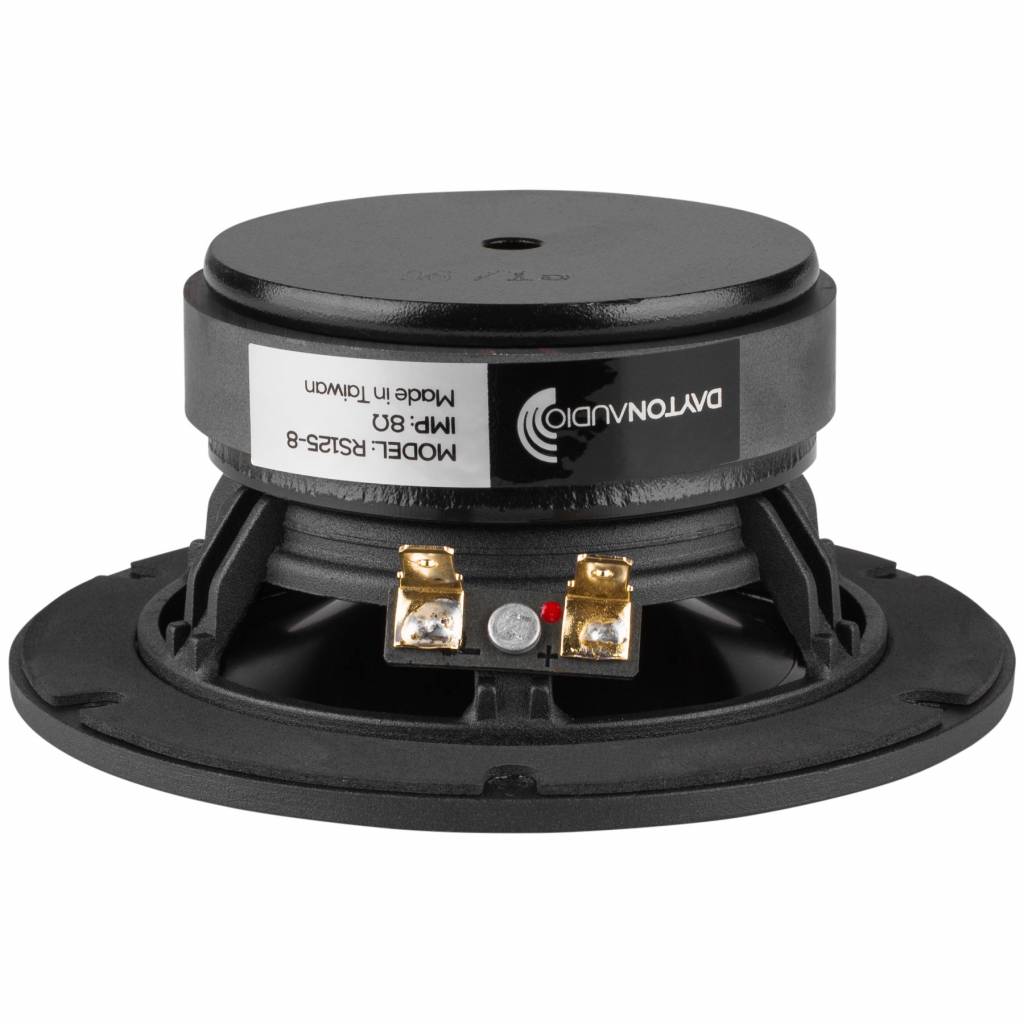

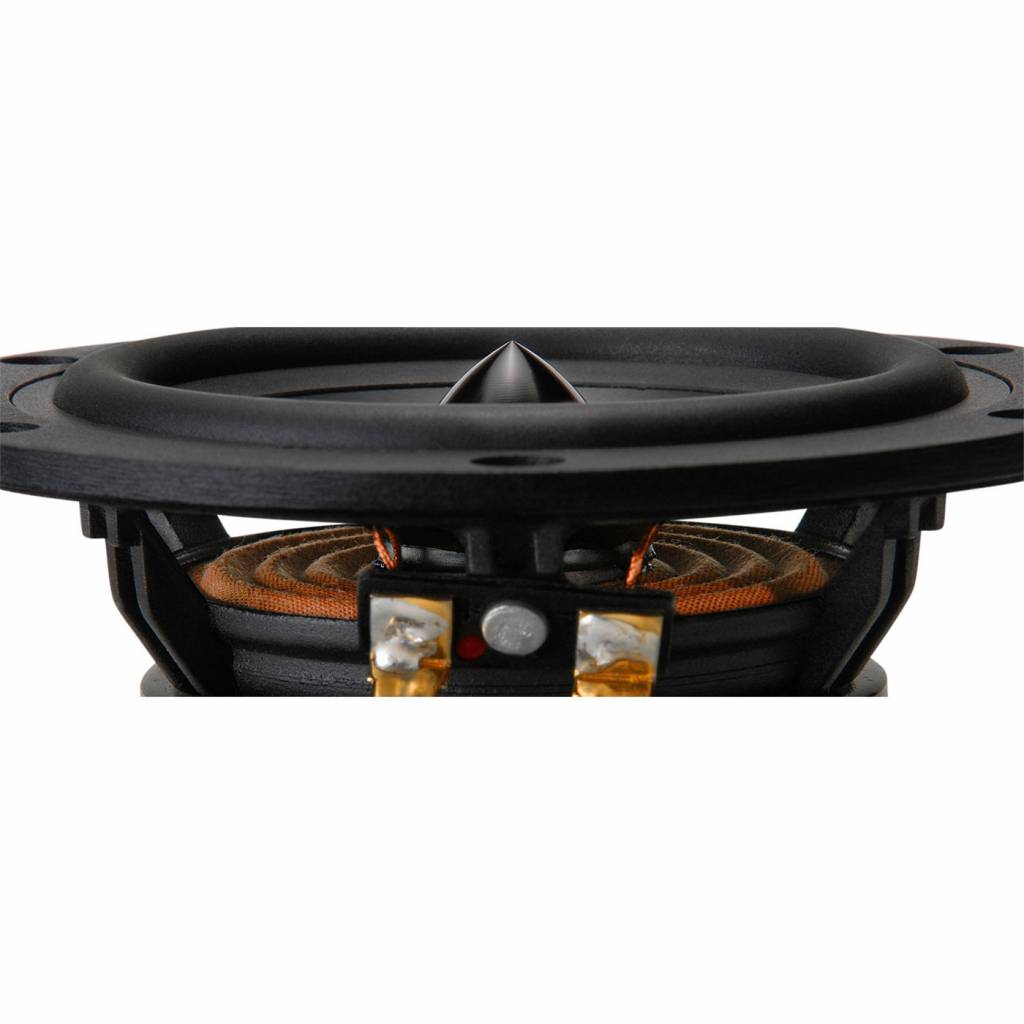

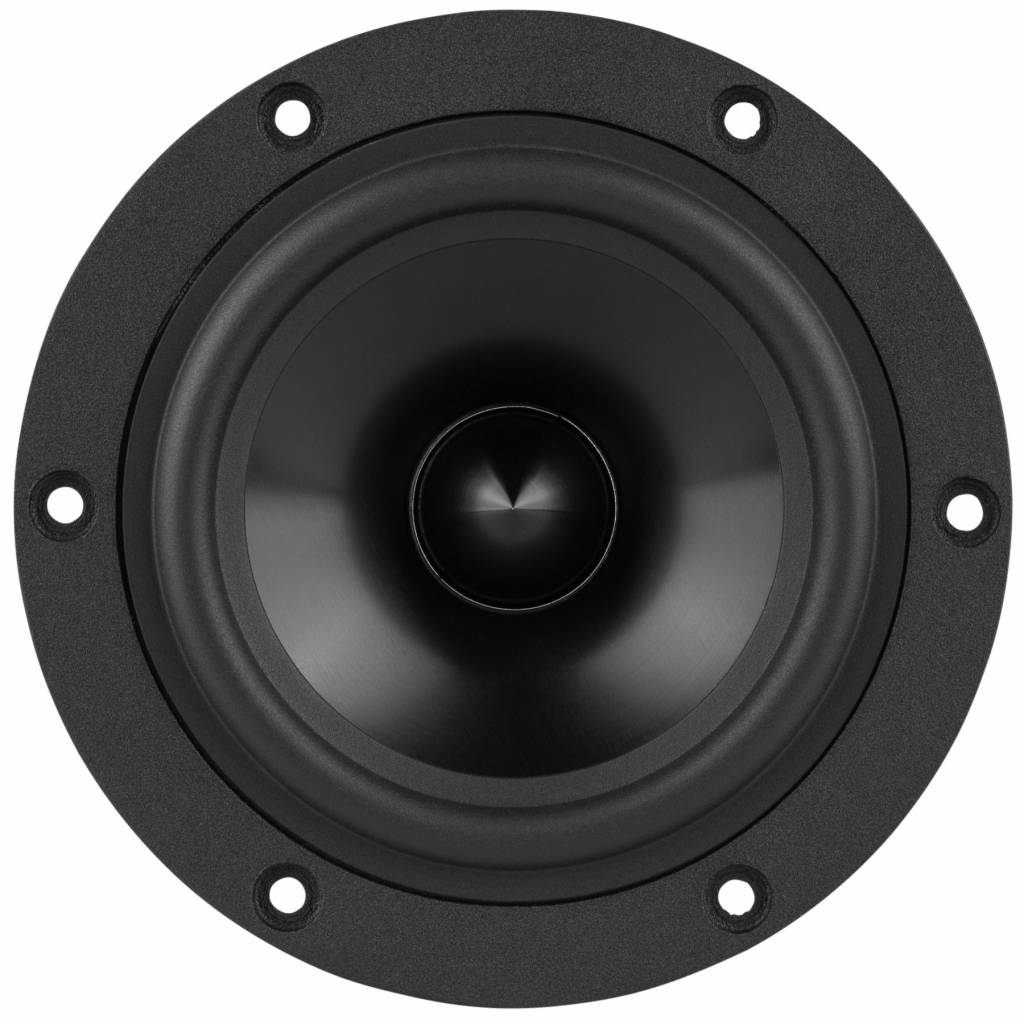

Dayton Audio RS125-8 5" Reference Woofer



The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS125-8 5" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Eigenschaften

Artikelnummer:
RS125-8
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
5"
Power Handling (RMS)
30 watts
Power Handling (max)
60 watts
Impedance
8 ohms
Sensitivity
86.8 dB @ 2.83V/1m
Frequency Response
65 - 5,400 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
0.57 mH @ 1 kHz
Resonant Frequency (Fs)
59.2 Hz
Mechanical Q (Qms)
1.74
Electromagnetic Q (Qes)
0.42
Total Q (Qts)
0.34
Diaphragm Mass Inc. Airload (Mms)
5.9g
Mechanical Compliance of Suspension (Cms)
1.22 mm/N
Surface Area of Cone (Sd)
52.8 cm²
Volume of Displacement (Vd)
21.1 cm³
BL Product (BL)
5.69 Tm
Compliance Equivalent Volume (Vas)
4.77 liters
Maximum Linear Excursion (Xmax)
4.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
125.5 mm
Overall Depth
55 mm
Baffle Cutout Diameter
94 mm
# Mounting Holes
6
Sealed Volume
0.07 ft.³
Sealed F3
122 Hz
Vented Volume
0.23 ft.³
Vented F3
61 Hz

Bewertungen

5 from 5Based on 4 reviews
Produkt bewerten
5 van 5
It's a really great little midrange driver. Only need one PEQ around 2200hz to measure very flat and smooth in my 3-way setup. Fits perfect with a Seas DXT in a narrow beveled box, with 2 SB23NRX as woofers. Crossed at 400 and 2000hz.
Very open and clear. The only thing to consider - is the low sensitivity, which might not be for high SPL. But in my fully active DSP controlled setup, it plays with sufficient volume for all I need.
Durch Thorbjørn H. on 21 April 2021
5 van 5
Great woofer as always. Outside diameter appears to have changed to 126mm and mounting ring thickness to 4.5mm! Please don't cut any holes before you receive it.
Durch Tadeusz on 12 April 2021
