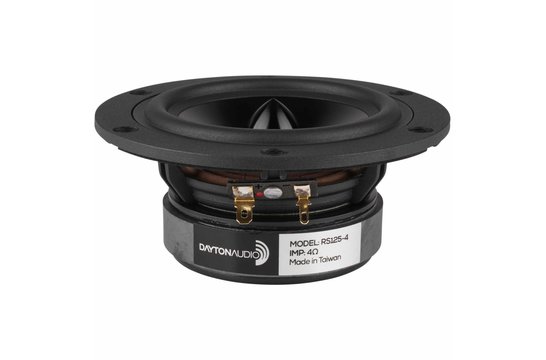

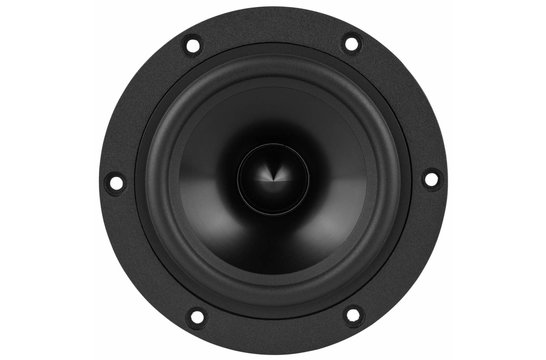

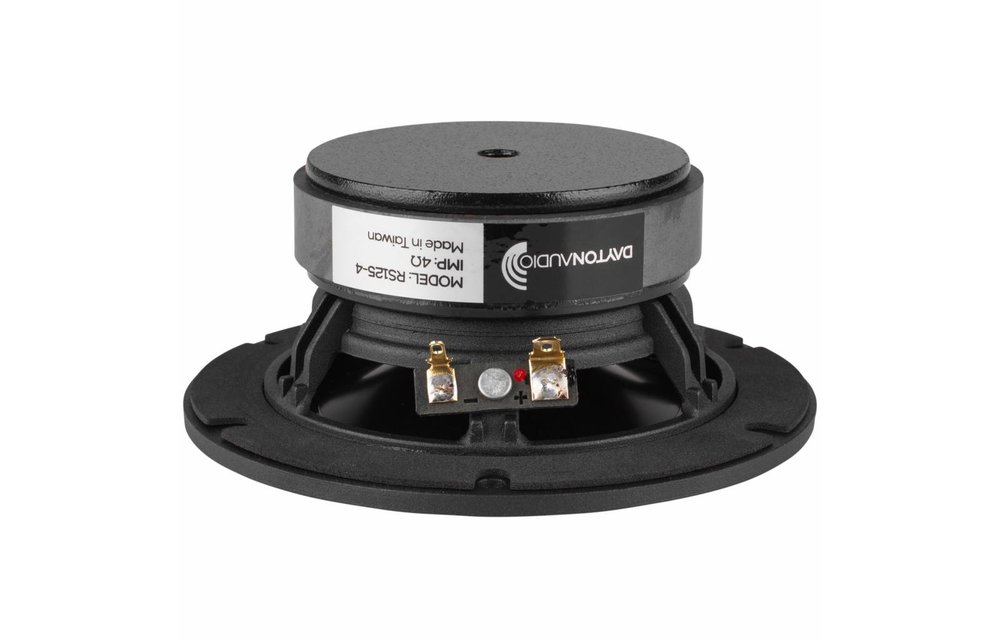

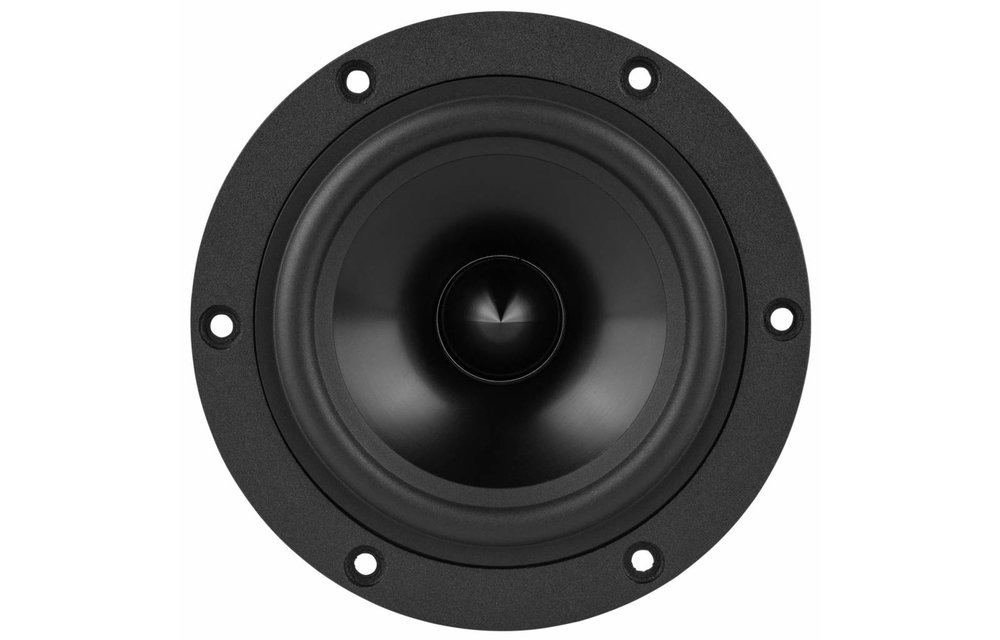

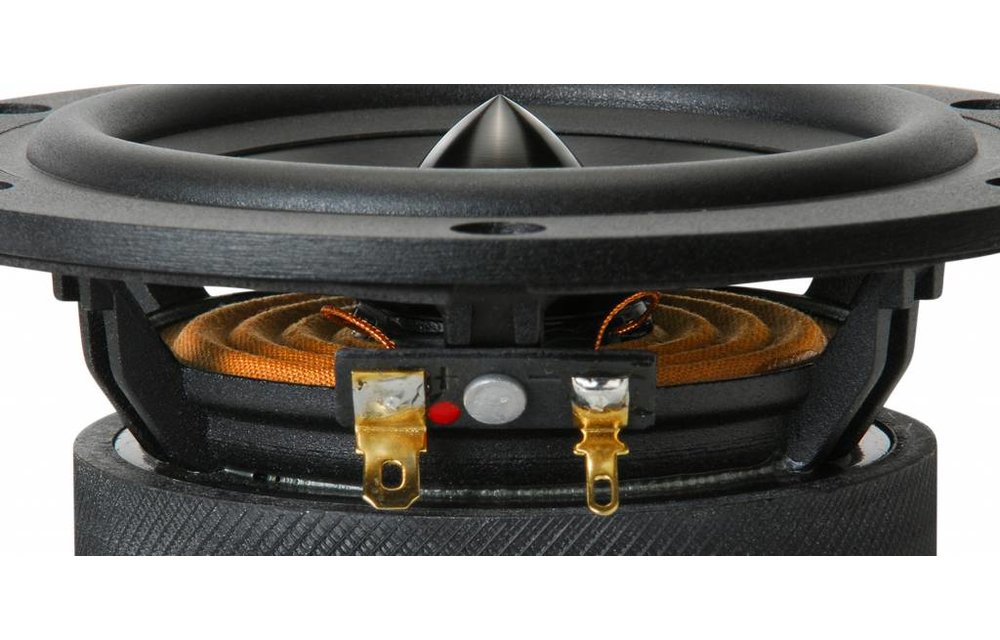

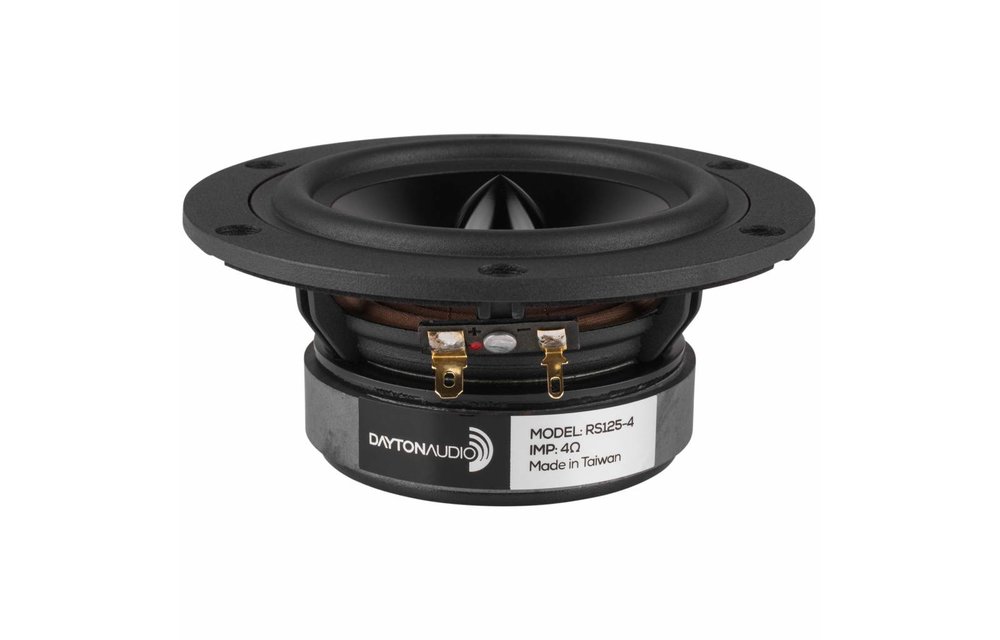

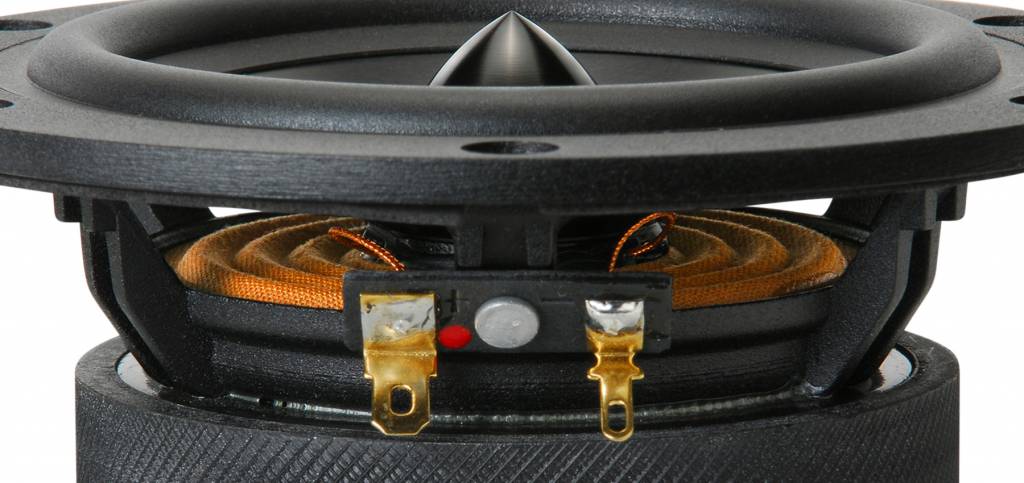

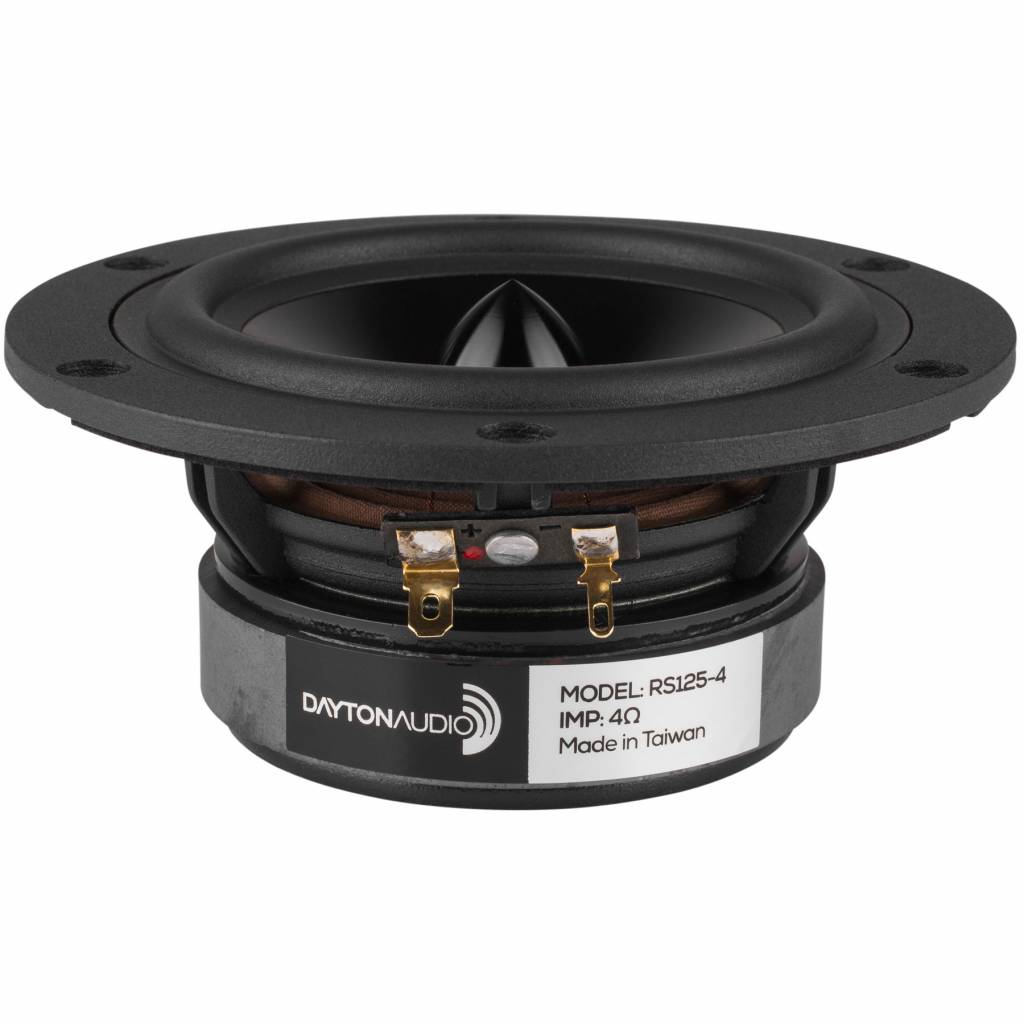

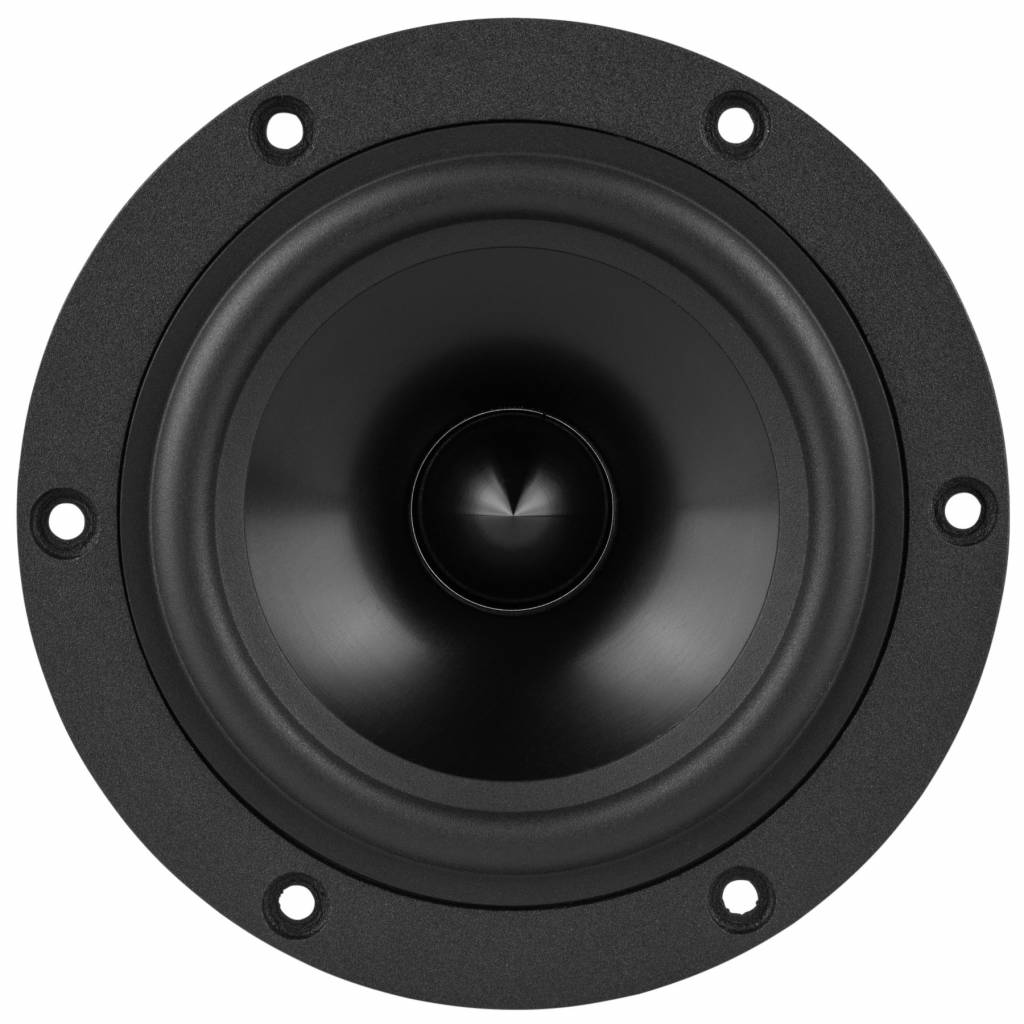

Dayton Audio RS125-4 5" Reference Woofer 4 Ohm

€ 37,15€ 44,95 4 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €42,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.



Highlights

  • 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers
  • Excellent car audio midrange/midbass
  • High-end low-distortion motor with two shorting paths to reduce inductance



Product details

Dayton Audio RS125-4 5" Reference Woofer 4 Ohm

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

Eigenschaften

Artikelnummer:
RS125-4
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
5"
Power Handling (RMS)
30 watts
Power Handling (max)
60 watts
Impedance
4 ohms
Sensitivity
89.9 dB @ 2.83V/1m
Frequency Response
65 - 5,400 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
2.9 ohms
Voice Coil Inductance (Le)
0.28 mH @ 1 kHz
Resonant Frequency (Fs)
57.2 Hz
Mechanical Q (Qms)
2.04
Electromagnetic Q (Qes)
0.45
Total Q (Qts)
0.37
Diaphragm Mass Inc. Airload (Mms)
5.7g
Mechanical Compliance of Suspension (Cms)
1.35 mm/N
Surface Area of Cone (Sd)
52.8 cm²
Volume of Displacement (Vd)
21.1 cm³
BL Product (BL)
3.63 Tm
Compliance Equivalent Volume (Vas)
5.29 liters
Maximum Linear Excursion (Xmax)
4.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
125.5 mm
Overall Depth
54.2 mm
Baffle Cutout Diameter
94 mm
# Mounting Holes
6
Sealed Volume
0.12 ft.³
Sealed F3
103 Hz
Vented Volume
0.27 ft.³
Vented F3
51 Hz

Bewertungen

5 from 5Based on 3 reviews
Produkt bewerten
5 van 5
I use this speaker in a 3-way floorstander, with cross-over freqs of 150 and 3000 Hz. It has a separate chamber of 1,7 ltr and sounds perfect. I use it with active xover 48 dB/oct Linkwitz Riley (DSP Adau 1701) even low as 120,100 and 80 Hz for a try, sounds very good. I can recommend this one.
Durch Martin H. on 13 Oktober 2020
5 van 5
Hoogwaardig product voor de prijs. Heb er eentje in combinatie met een dayton 6ohm tweeter in een bass-reflex doos met een 30cm hoog en 18cm wijd op de voorkant. Klinkt zeer goed. Schijnbaar minder efficiënt dan zijn grotere tegenhangers, maar heeft dan weer andere voordelen (i.e. Crossover kan op hogere frequencies gebeuren tov deze).

Voldoende voor een bureau/kleine living van 4/5m diep/breed.
Durch Laurens VC on 15 Juni 2020
