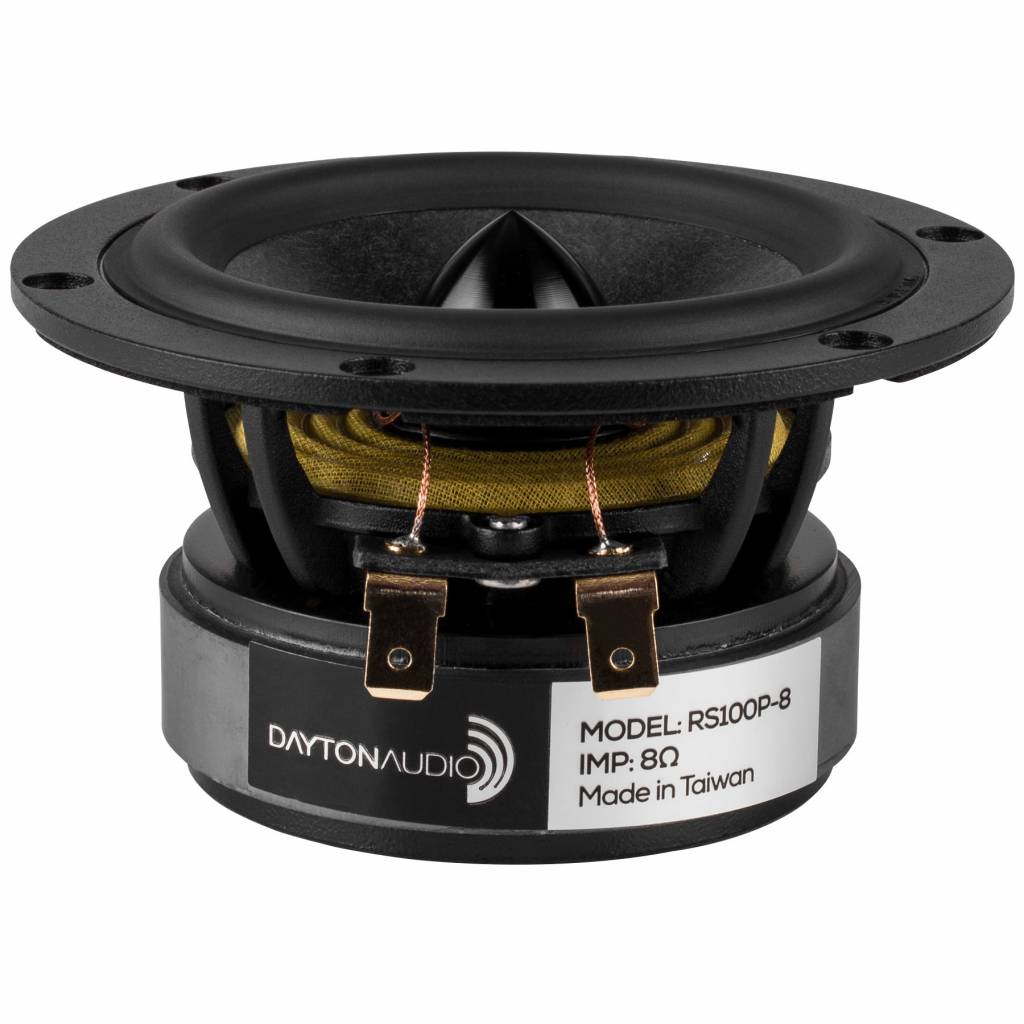

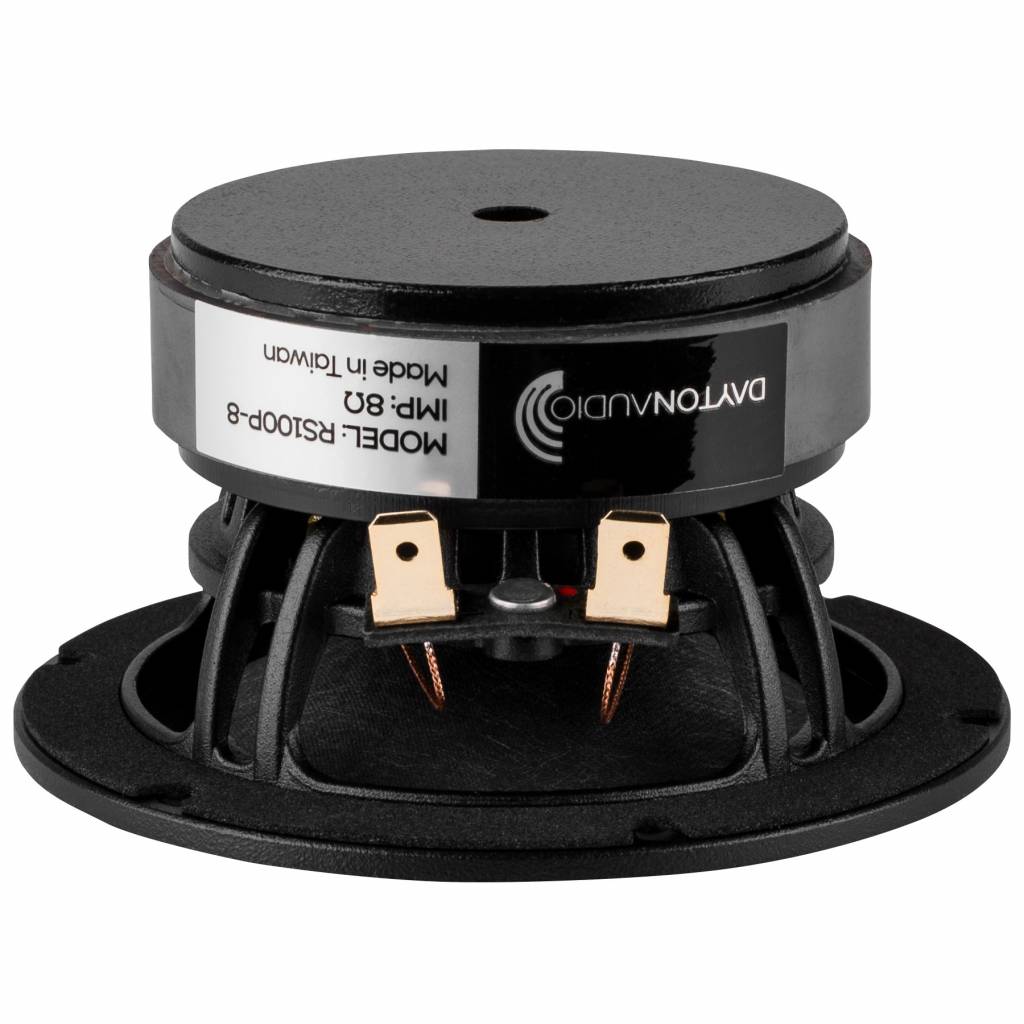

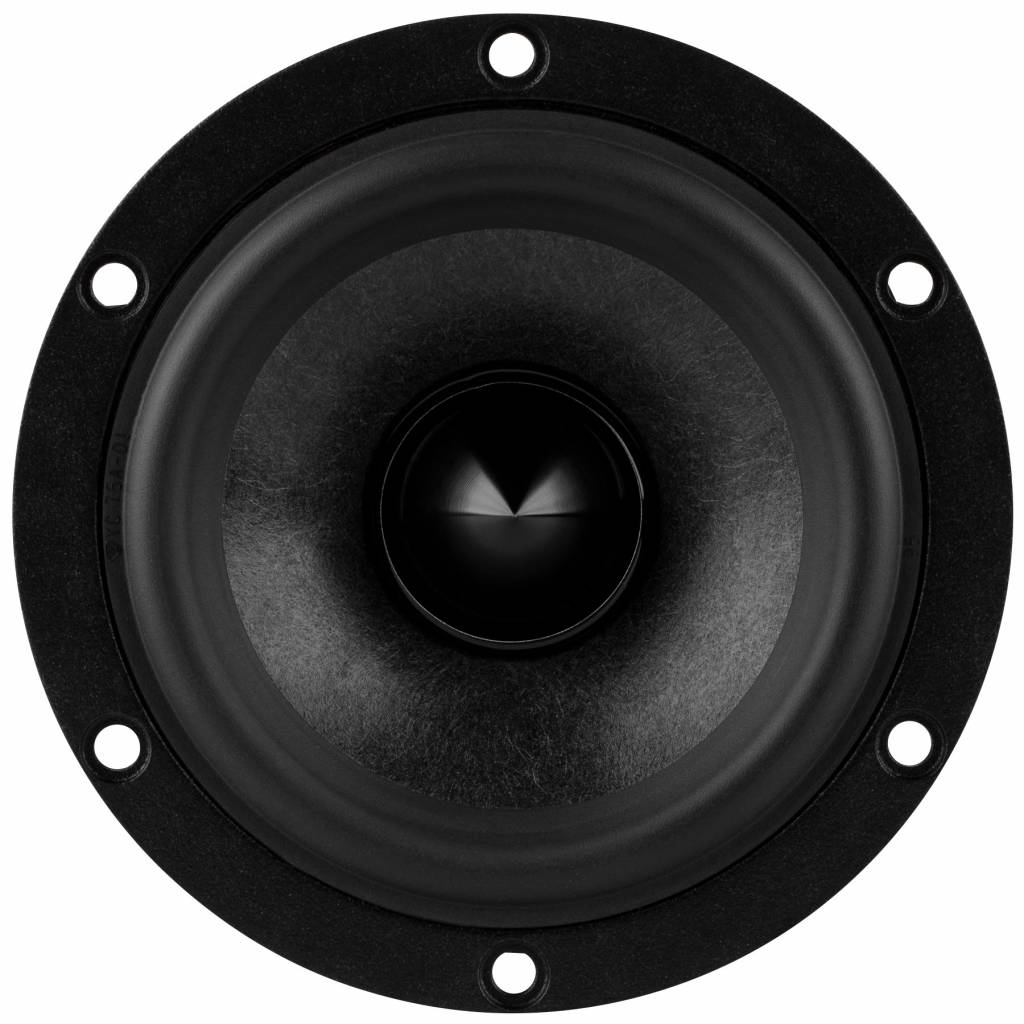

Dayton Audio RS100P-8 4" Reference Paper Midwoofer 8 Ohm

€ 33,02€ 39,95 7 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €37,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



Highlights

  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Similar cosmetics and design features as original aluminum Dayton Audio Reference Series
  • Perfect for use a woofer, midwoofer, or dedicated midrange driver



Product details

Dayton Audio RS100P-8 4" Reference Paper Midwoofer 8 Ohm



The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Eigenschaften

Artikelnummer:
RS100P-8
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
4"
Power Handling (RMS)
30 watts
Power Handling (max)
45 watts
Impedance
8 ohms
Sensitivity
86.2 dB @ 2.83V/1m
Frequency Response
90 - 12,500 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
6.6 ohms
Voice Coil Inductance (Le)
0.51 mH @ 1 kHz
Resonant Frequency (Fs)
95.6 Hz
Mechanical Q (Qms)
2.18
Electromagnetic Q (Qes)
0.71
Total Q (Qts)
0.54
Diaphragm Mass Inc. Airload (Mms)
2.8g
Mechanical Compliance of Suspension (Cms)
0.98 mm/N
Surface Area of Cone (Sd)
37.4 cm²
Volume of Displacement (Vd)
13.8 cm³
BL Product (BL)
3.95 Tm
Compliance Equivalent Volume (Vas)
1.82 liters
Maximum Linear Excursion (Xmax)
3.7 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Rubber
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
98 mm
Overall Depth
51 mm
Baffle Cutout Diameter
77.2 mm
# Mounting Holes
6
Sealed Volume
0.04 ft.³
Sealed F3
141 Hz
Vented Volume
0.10 ft.³
Vented F3
68 Hz
