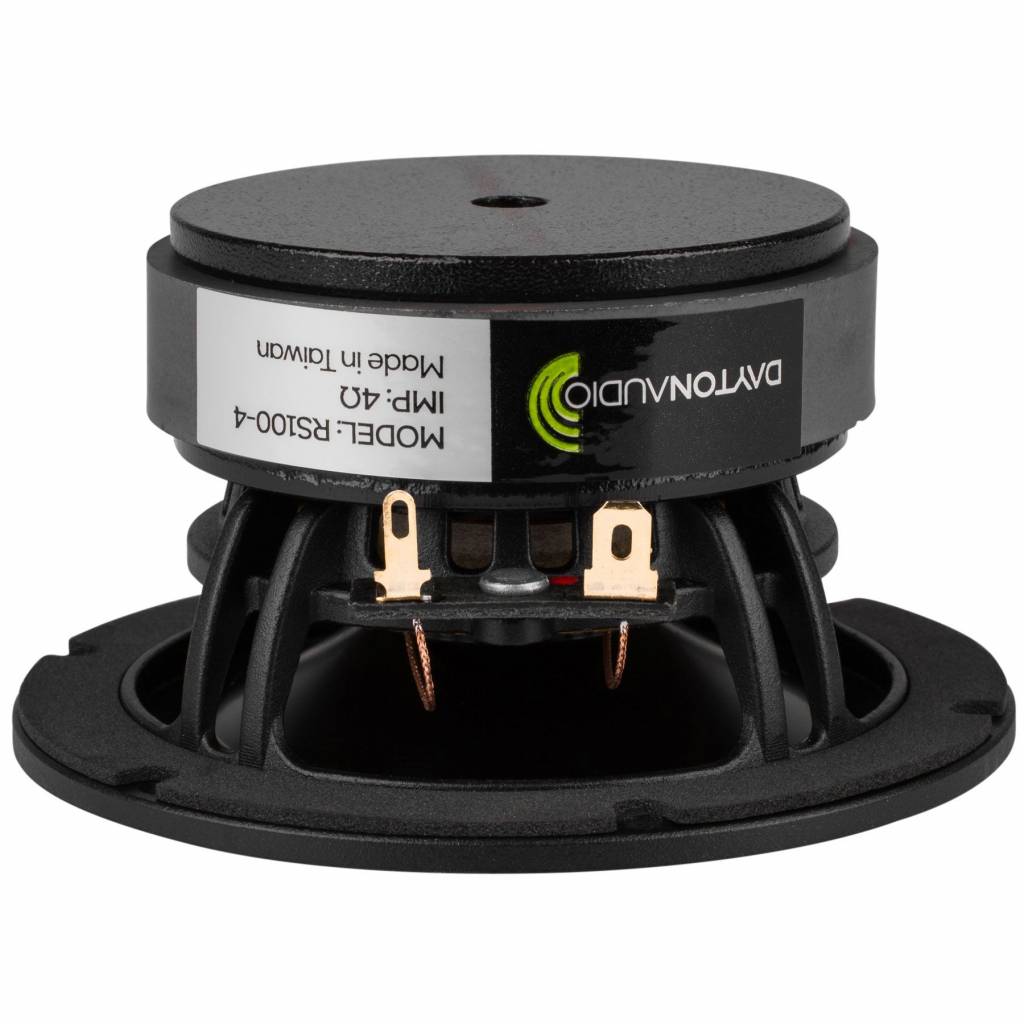

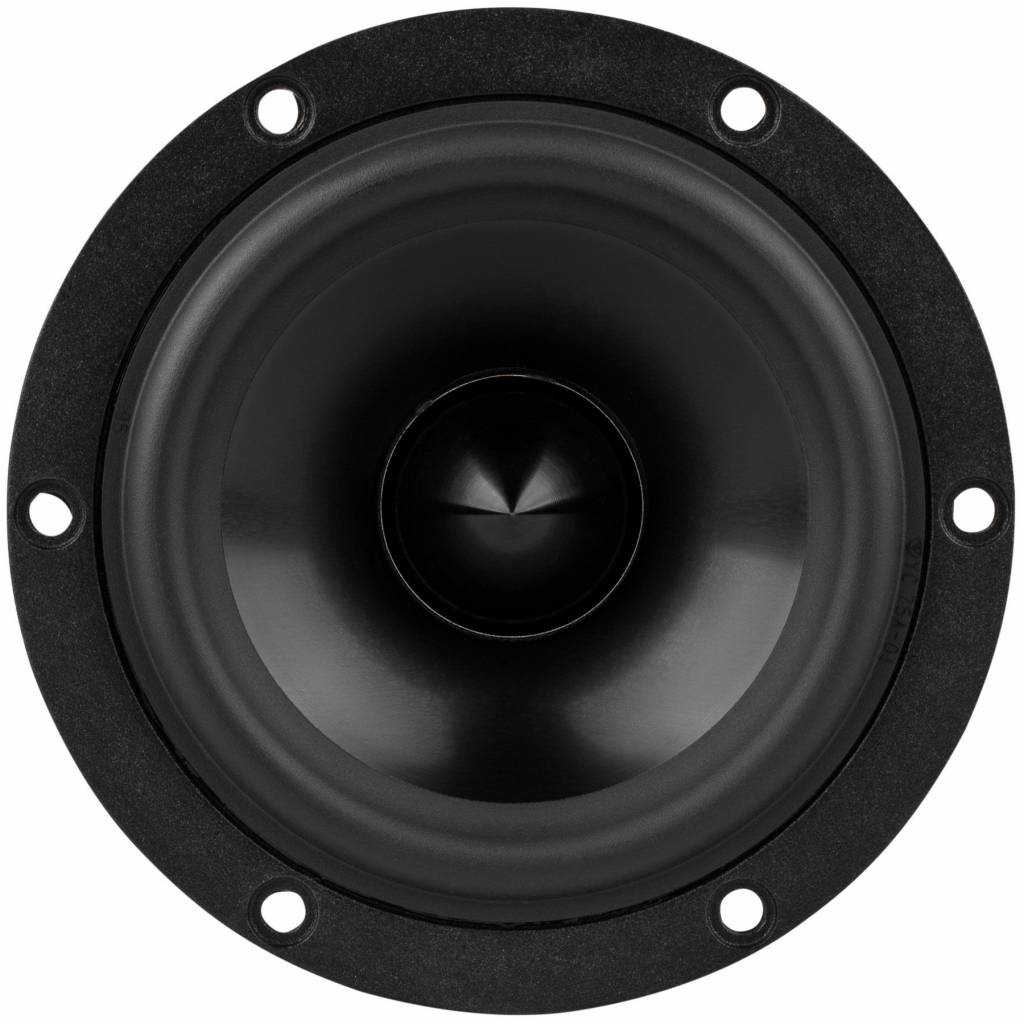

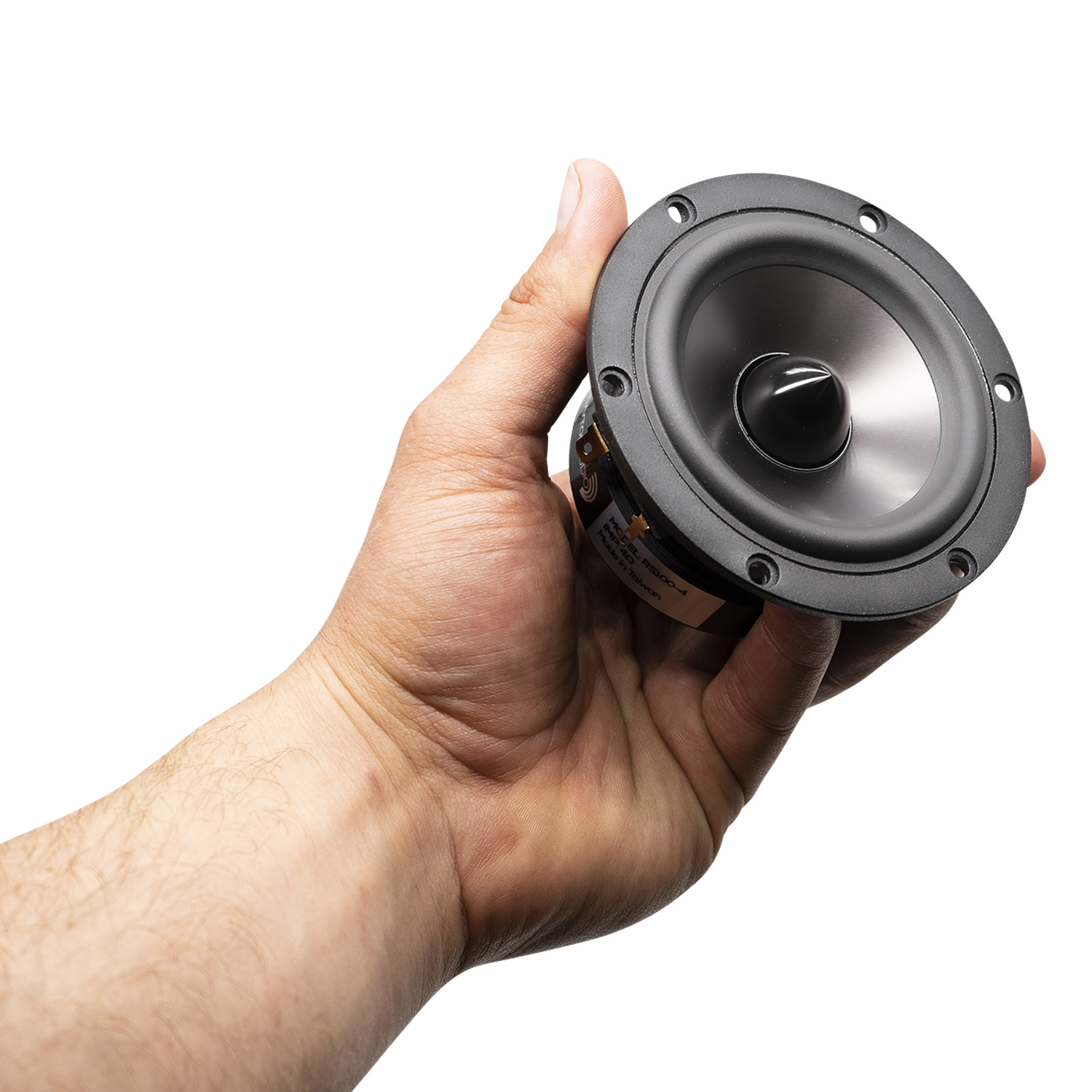

Dayton Audio Reference RS100-4 | 4'' Aluminum Full-Range Driver | 4 Ω | 30 W

€ 33,02€ 39,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €37,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers.



Highlights

  • Full-range capability
  • Long-excursion motor and suspension for strong bass performance
  • Subtle yet high-tech look makes a bold cosmetic statement
  • Designed and engineered in the U.S.A.
  • Great replacement for the Dayton RS100S-8 4" Reference Shielded Full-Range Driver



Product details

Dayton Audio RS100-4 4" Reference Full-Range Driver 4 Ohm

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold terminals.

Eigenschaften

Artikelnummer:
RS100-4
Woofer Series
Reference Series
Woofer Type
Full-Range
Nominal Diameter
4"
Power Handling (RMS)
30 watts
Power Handling (max)
60 watts
Impedance
4 ohms
Sensitivity
87.5 dB @ 2.83V/1m
Frequency Response
80 - 20,000 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
3 ohms
Voice Coil Inductance (Le)
0.28 mH @ 1 kHz
Resonant Frequency (Fs)
84.8 Hz
Mechanical Q (Qms)
2.55
Electromagnetic Q (Qes)
0.66
Total Q (Qts)
0.53
Diaphragm Mass Inc. Airload (Mms)
4.3g
Mechanical Compliance of Suspension (Cms)
0.83 mm/N
Surface Area of Cone (Sd)
35.3 cm²
Volume of Displacement (Vd)
14.1 cm³
BL Product (BL)
3.18 Tm
Compliance Equivalent Volume (Vas)
1.45 liters
Maximum Linear Excursion (Xmax)
4.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
98 mm
Overall Depth
51 mm
Baffle Cutout Diameter
77.2 mm
# Mounting Holes
6
Sealed Volume
0.03 ft.³
Sealed F3
143 Hz
Vented Volume
0.1 ft.³
Vented F3
72 Hz

Bewertungen

5 from 5Based on 7 reviews
Produkt bewerten
5 van 5
Einfach super schnell nur 3Tage, in die Schweiz.
Durch Willi W. on 16 März 2021
5 van 5
Sehr gut, habe diesen Full Range in meinem DINAS Projekt verwendet, Top.
Durch Maxim G. on 31 Januar 2021
