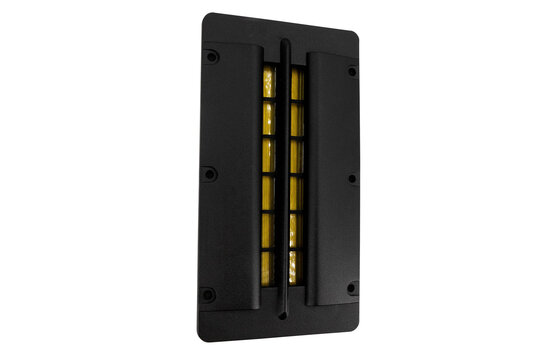

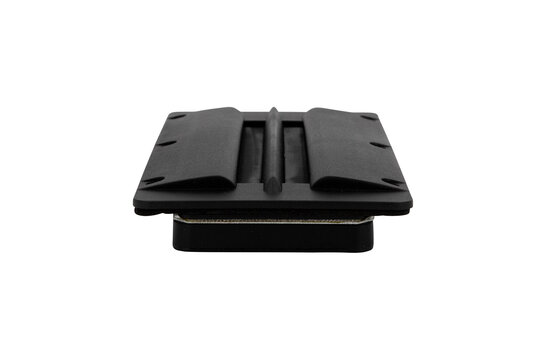

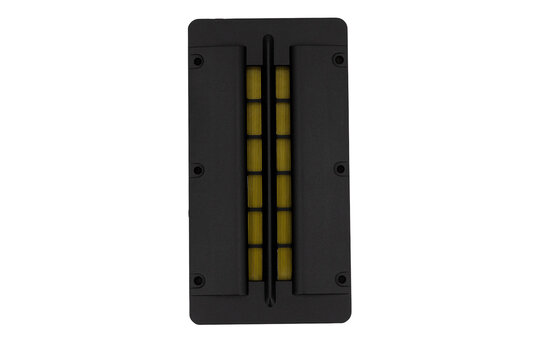

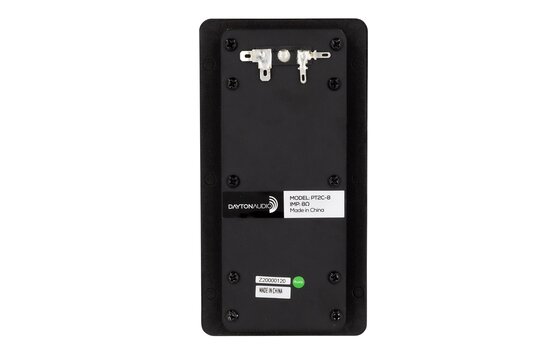

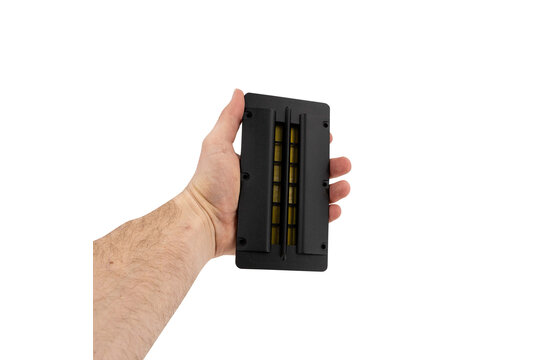

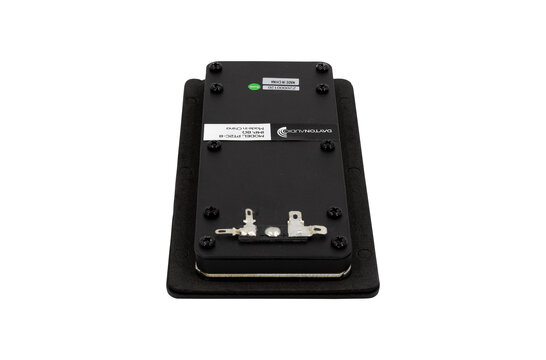

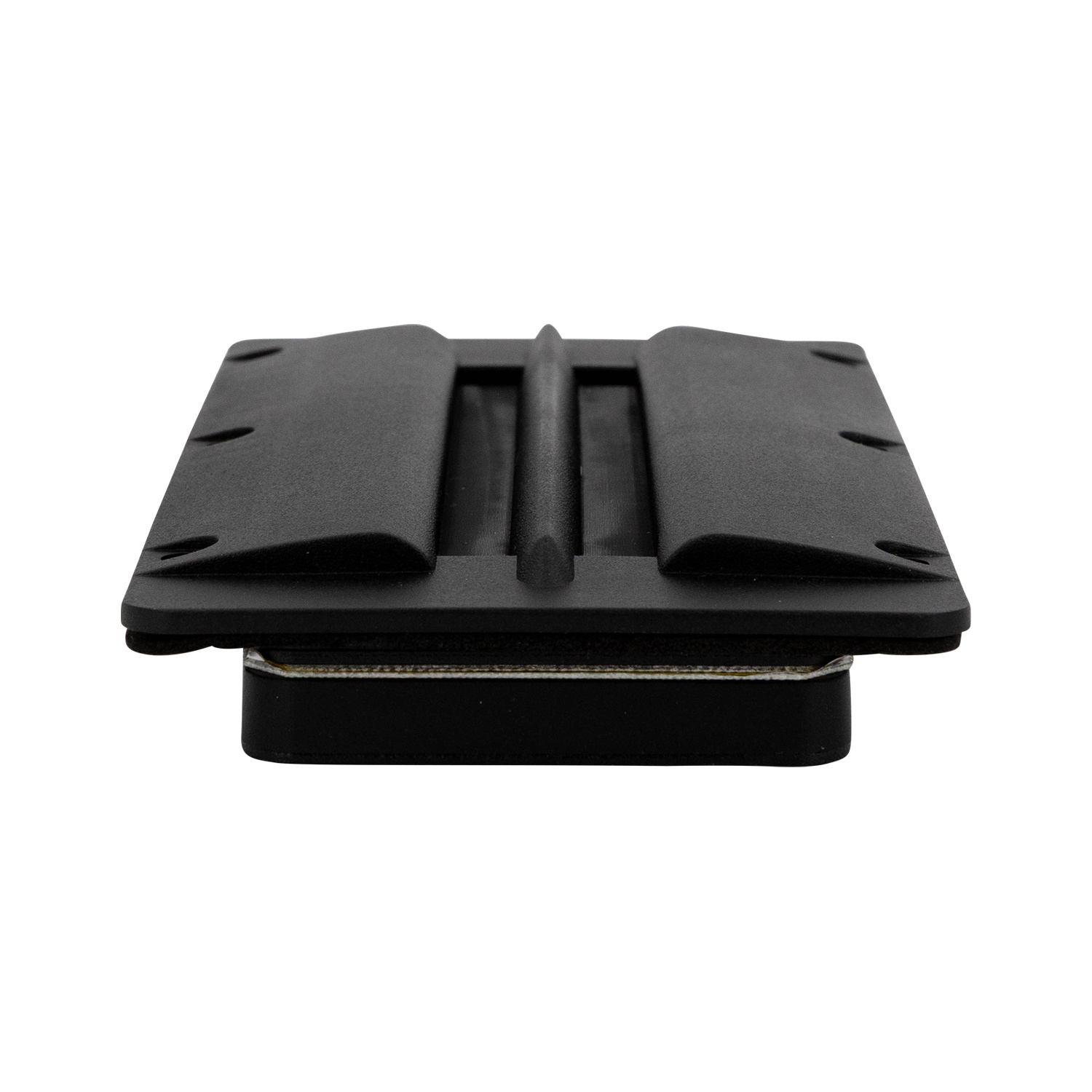

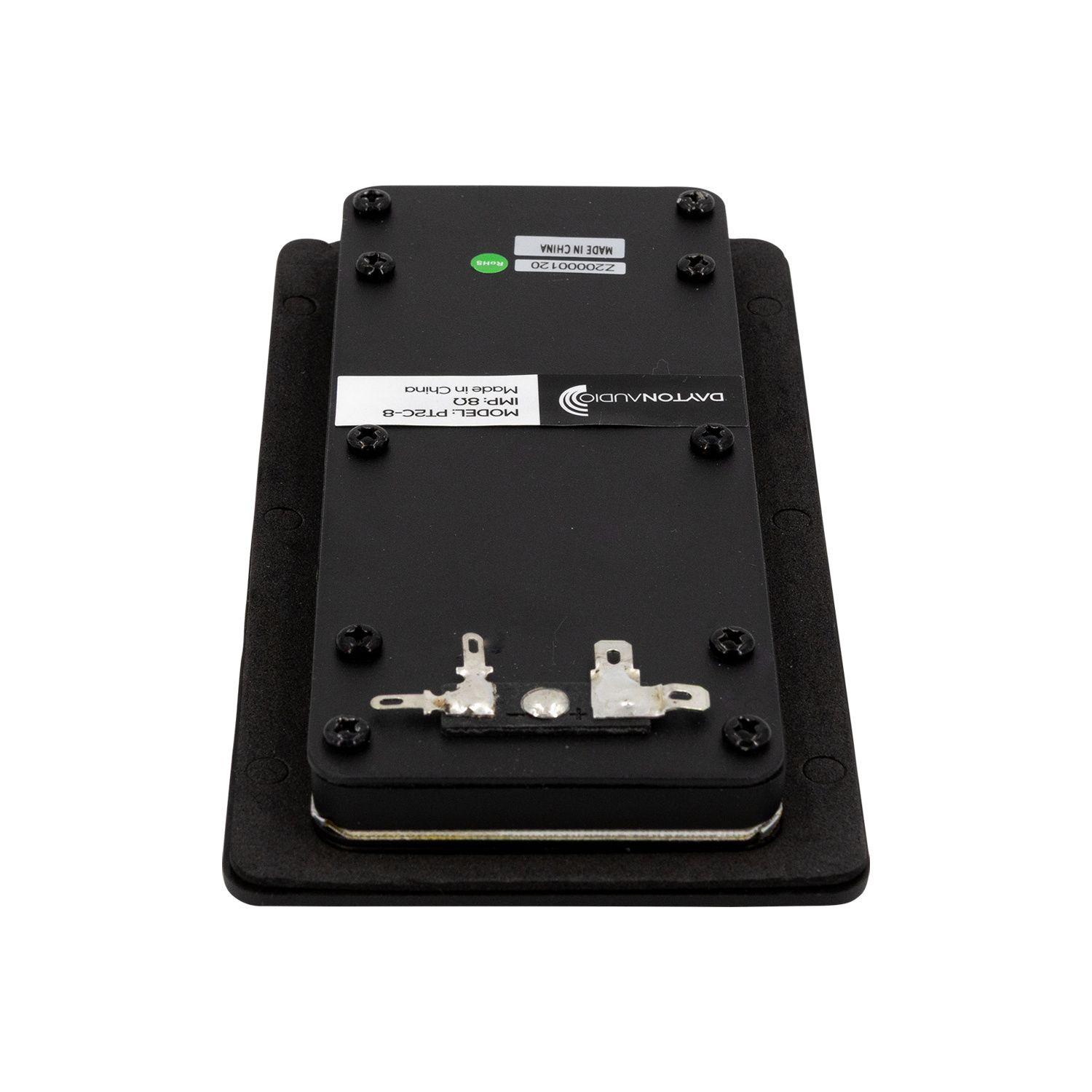

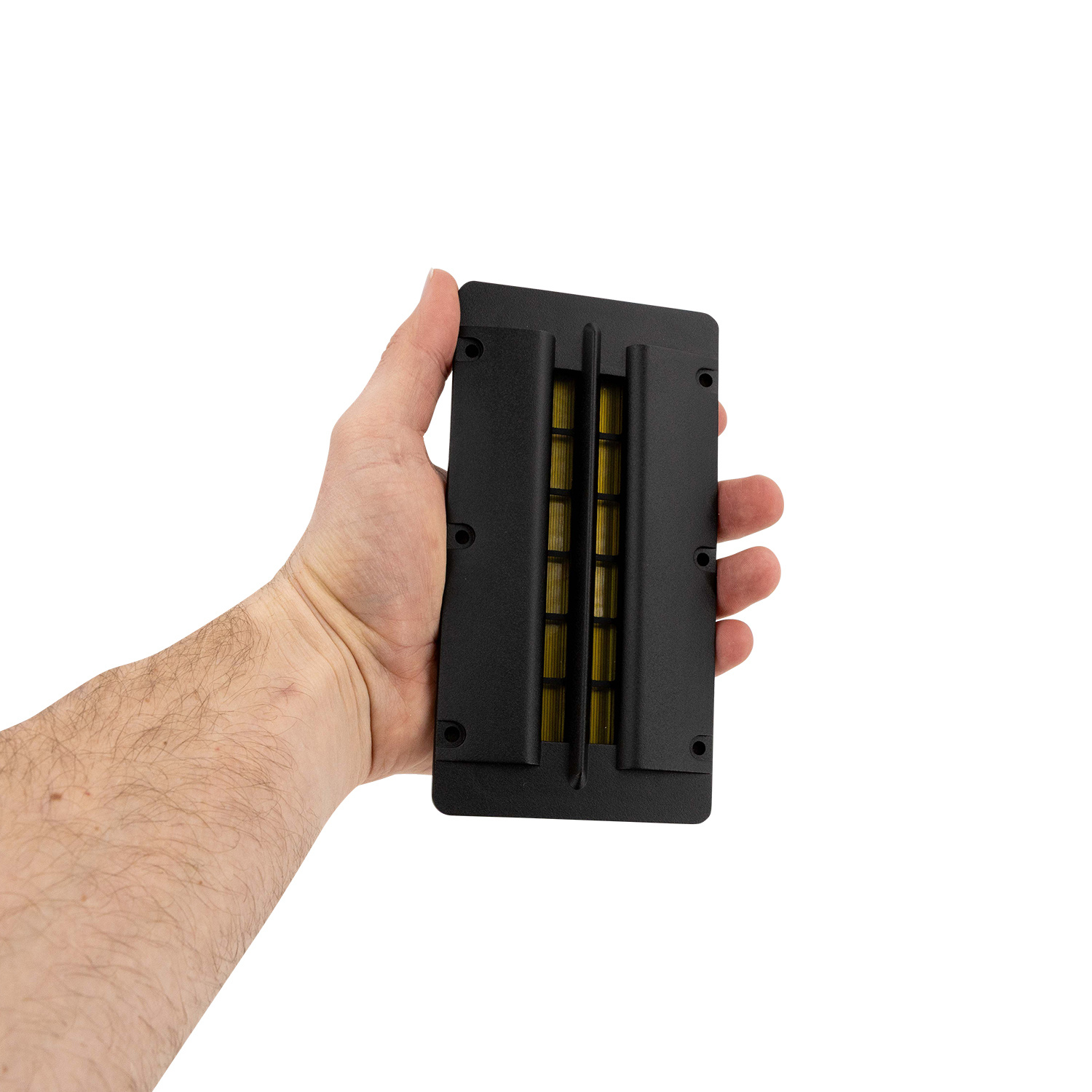

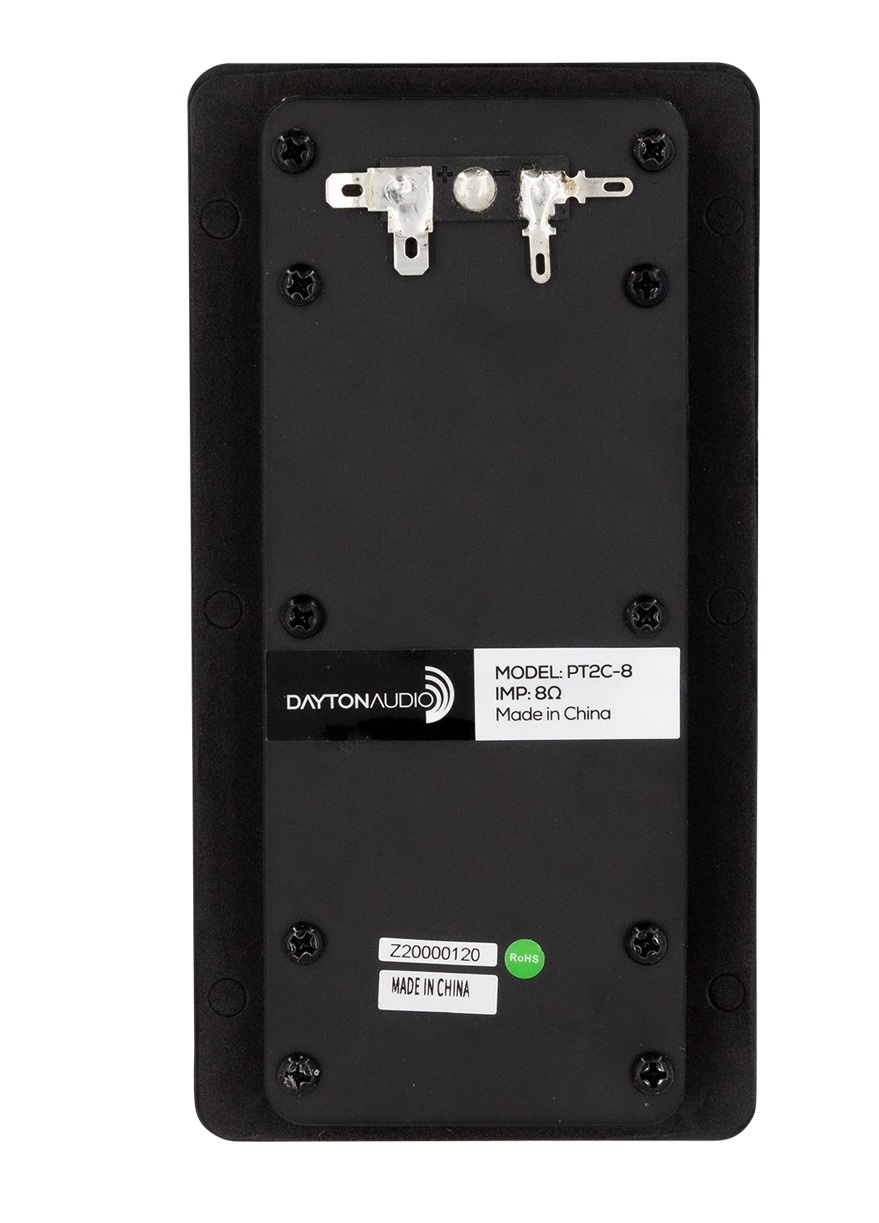

Dayton Audio Dayton Audio PT2C-8 Planar Tweeter

€ 73,45 4 Auf Lager: Lieferzeit 1-3 Werktage
The immediacy and lack of coloration found in planar-type tweeters offers users extremely detailed, effortless high frequency reproduction. The Dayton Audio PT2C-8's physical shape and wide horizontal/narrow vertical dispersion also make it an obvious cho... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €69,78 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The immediacy and lack of coloration found in planar-type tweeters offers users extremely detailed, effortless high frequency reproduction. The Dayton Audio PT2C-8's physical shape and wide horizontal/narrow vertical dispersion also make it an obvious choice for line arrays.



Highlights

  • Superb resolution and detail for the most discerning audiophile
  • Wide horizontal and narrow vertical dispersion patterns
  • Perfect for use in line arrays
  • 3 kHz recommended crossover frequency at 12 dB per octave



Product details

Dayton Audio PT2C-8 Planar Tweeter

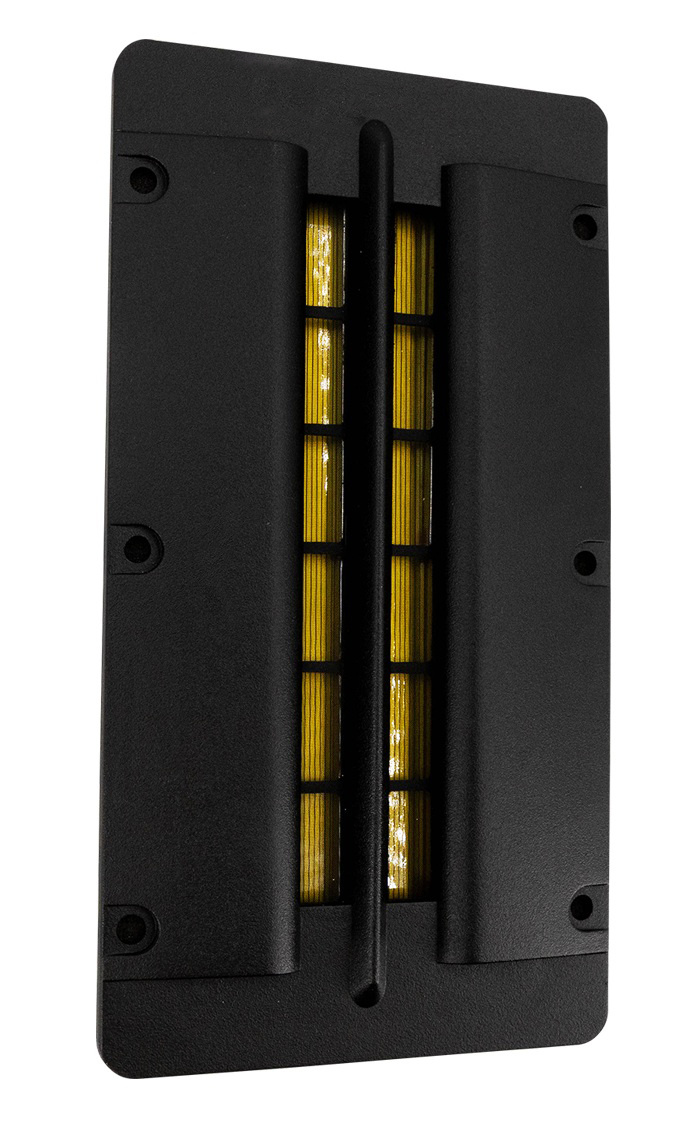

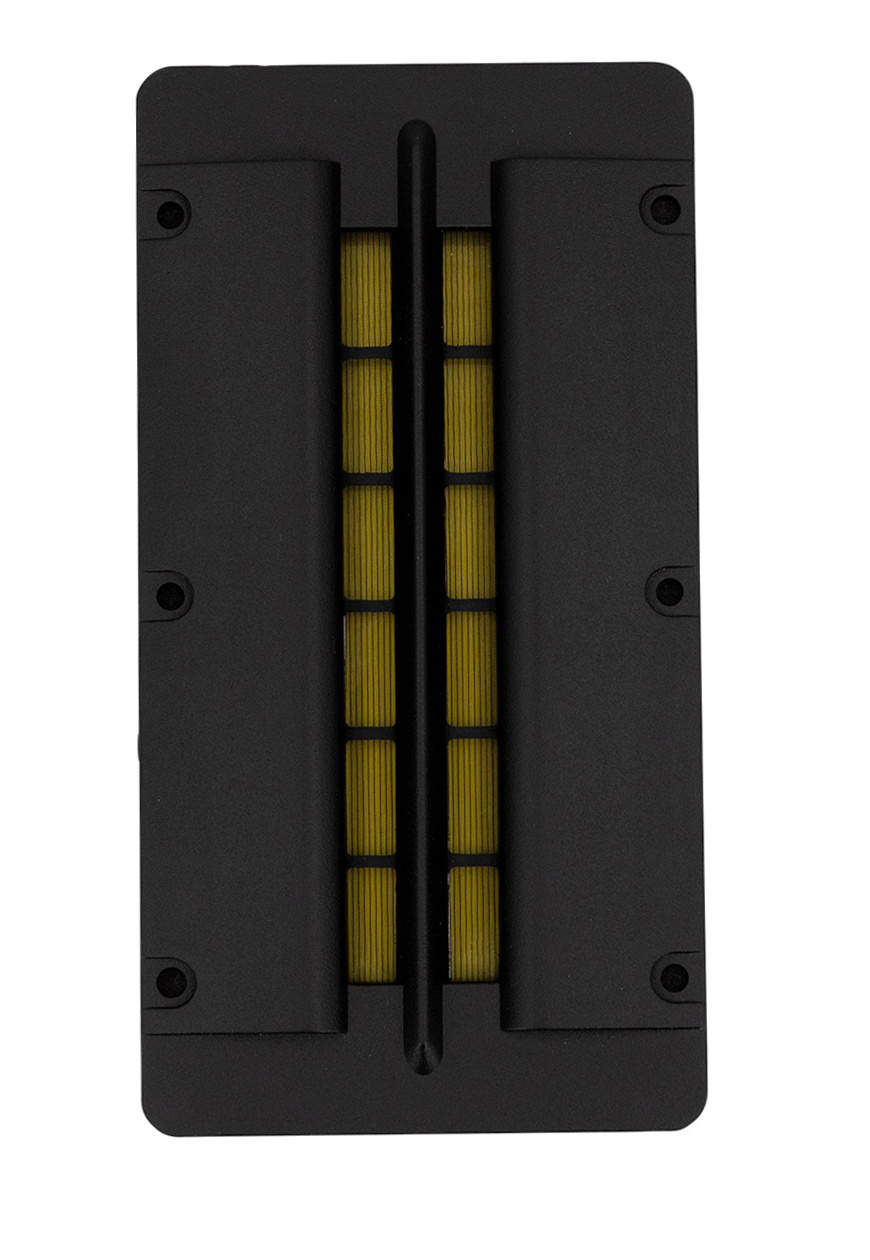

Many audiophiles praise the Dayton Audio PT2C-8 ribbon tweeter's excellent clarity, transparency, and imaging. The key to this remarkable performance is the almost weightless ribbon element: a Kapton film membrane etched with a pattern of aluminum conductors and placed precisely between two rows of neodymium magnets. The result is an immediate response to any transient impulse found in the original signal.



The Dayton Audio PT2's ability to deliver musical detail is clearly amazing. The tweeter's large membrane and radiating area provide higher power handling and a substantially lower cut off frequency. This membrane is thermally attached to a cast aluminum plate that facilitates cooling and dramatically increases dynamic range. The flared waveguide's wide horizontal dispersion projects an excellent off axis response. At the same time, vertical dispersion is limited, which reduces distracting floor and ceiling reflections. Perfect for line array applications. The recommended second order crossover cut-off frequency is 3 kHz or higher, although the crossover point can be lowered to 2,500 Hz if a 3rd order crossover is used.

Eigenschaften

Artikelnummer:
PT2C-8
Tweeter Type
Planar
Tweeter Series
Specialty Drivers Series
Power Handling (RMS)
80 Watts
Impedance
8 ohms
Sensitivity
94 dB 1W/1m
Frequency Response
2,000 to 26,000 Hz
Resonant Frequency (Fs)
1,607 Hz
DC Resistance (Re)
6.60 ohms
Voice Coil Inductance (Le)
0.15 mH
Mechanical Q (Qms)
1.86
Total Q (Qts)
1.78
Overall Outside Diameter
6.61" x 3.46"
Cutout Diameter
6.14" x 2.52"
Depth
1.09"

Bewertungen

5 from 5Based on 4 reviews
Produkt bewerten
5 van 5
Alternativ Produkt zum Original und Klanglich passend
Durch Andreas O. on 7 Oktober 2019
5 van 5
Natuurlijk hoog, best met afzonderlijke versterker aansturen omdat het rendement vrij laag is.
Goede prijs kwaliteit.
