Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver

€ 119,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €113,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.



Highlights

  • High sensitivity/minimal distortion—an ideal match for lower powered amplifiers

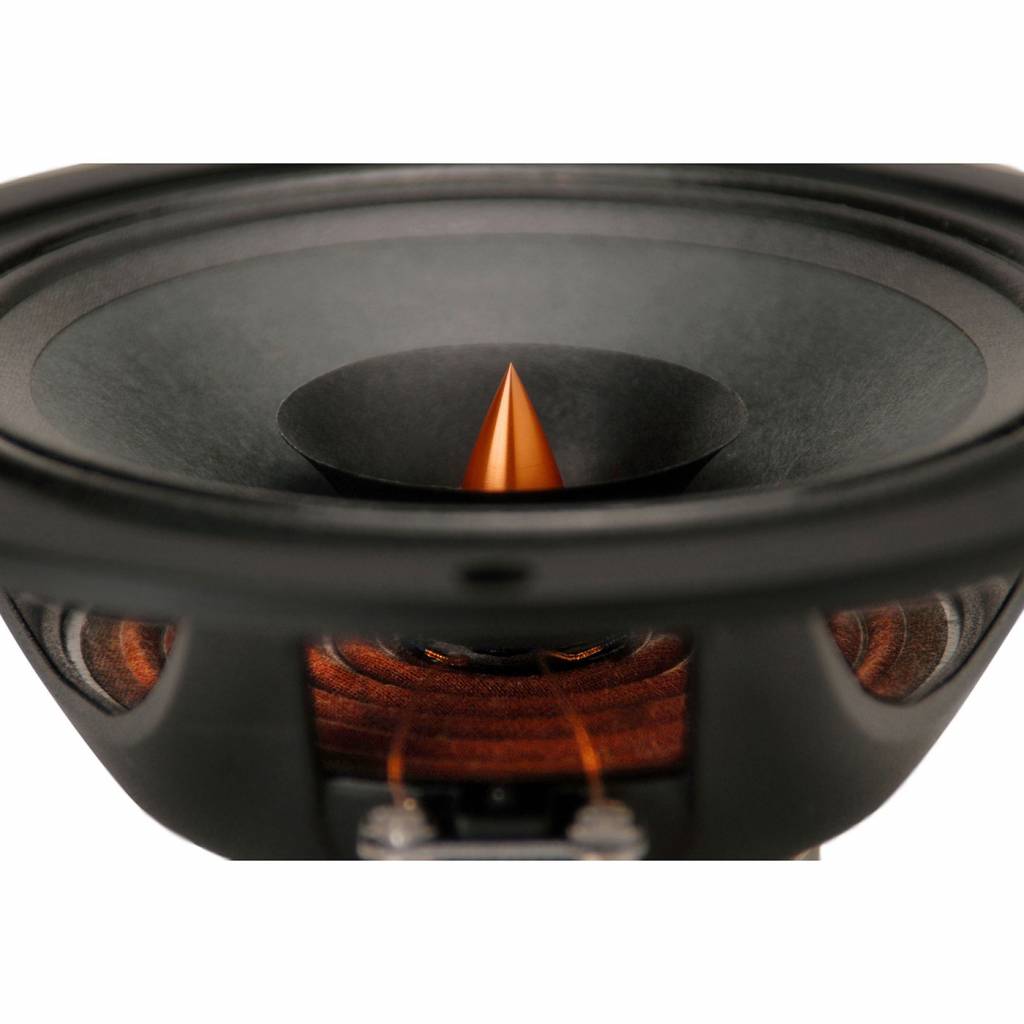

  • Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
  • Solid bass performance, thanks to usefully high excursion capability (4.6 mm Xmax)
  • Optimized neodymium magnet provides high motor strength
  • Low-mass copper clad aluminum voice coil

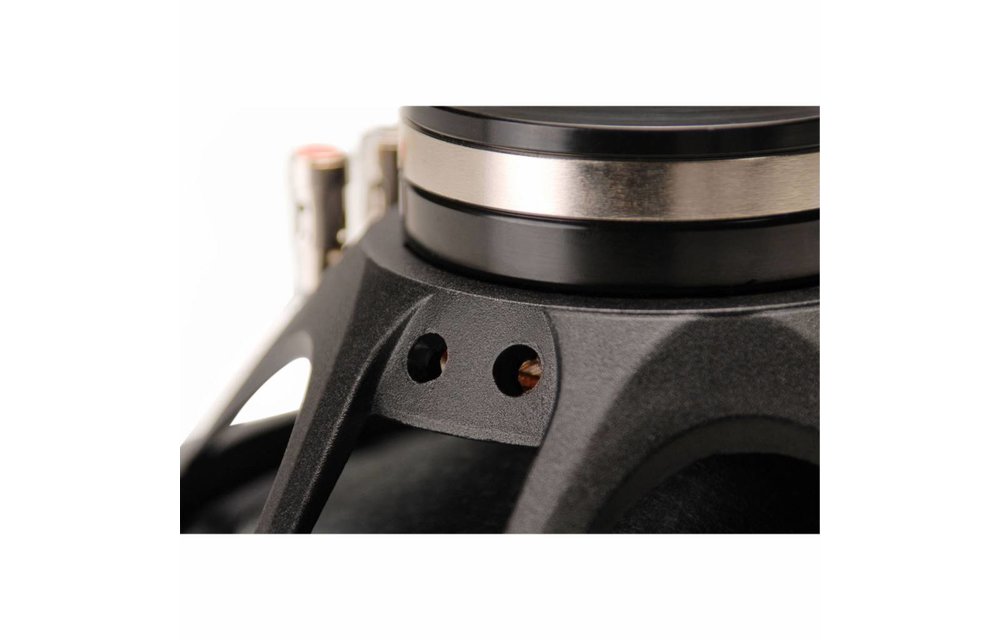

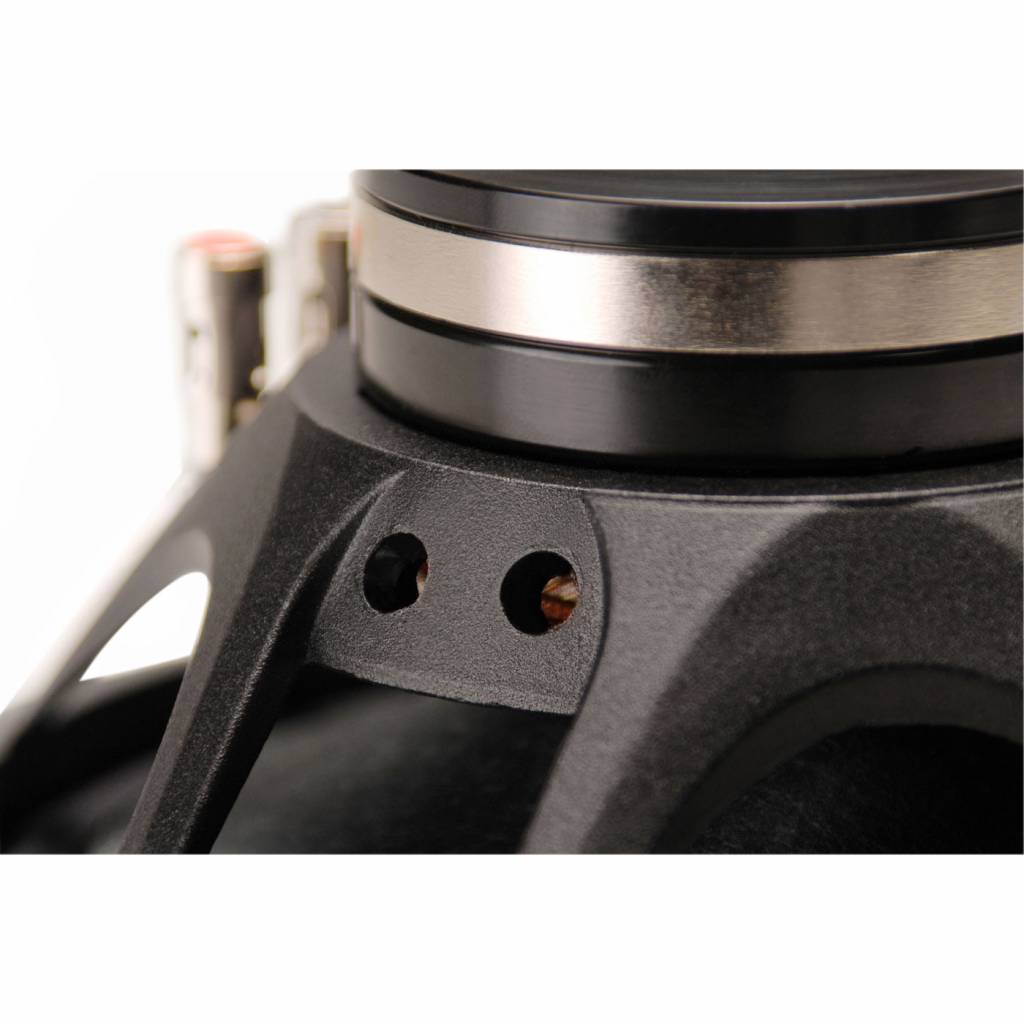

  • Copper cap and copper ring on pole piece reduce inductance and distortion
  • Kevlar reinforced paper cone is lightweight yet rigid and well controlled



Product details

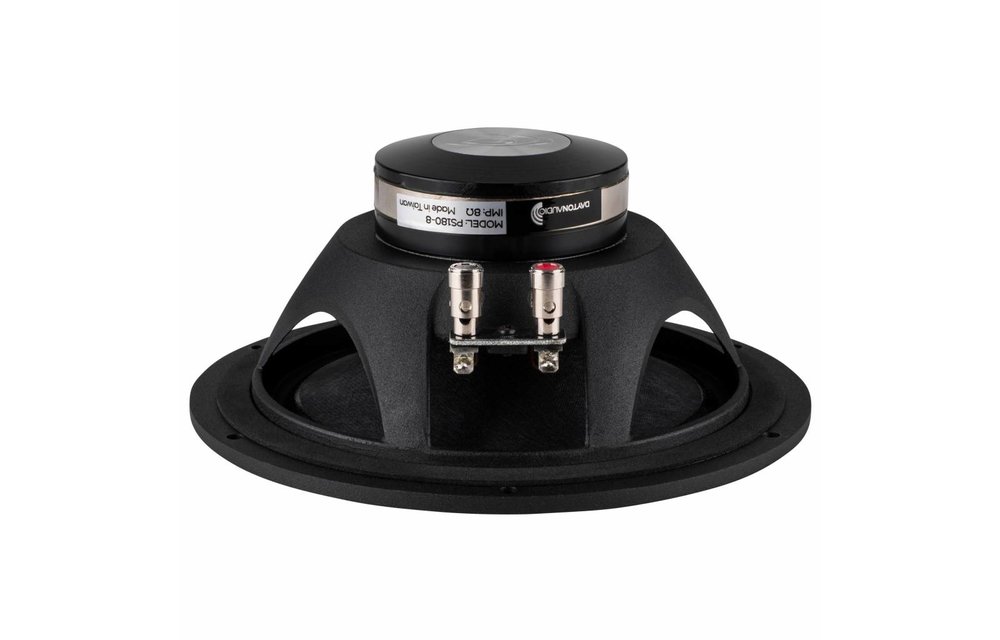

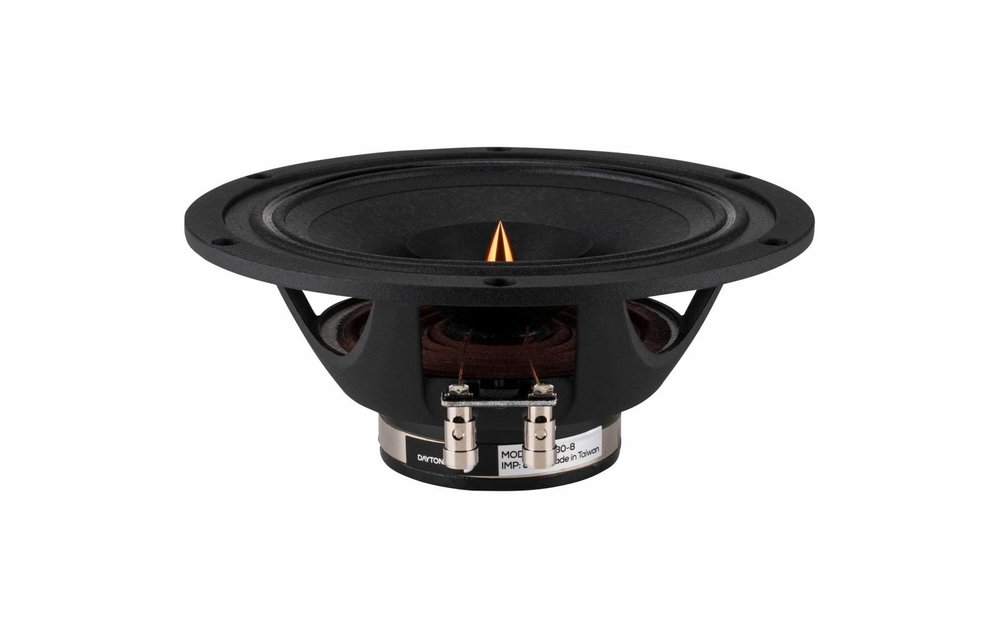

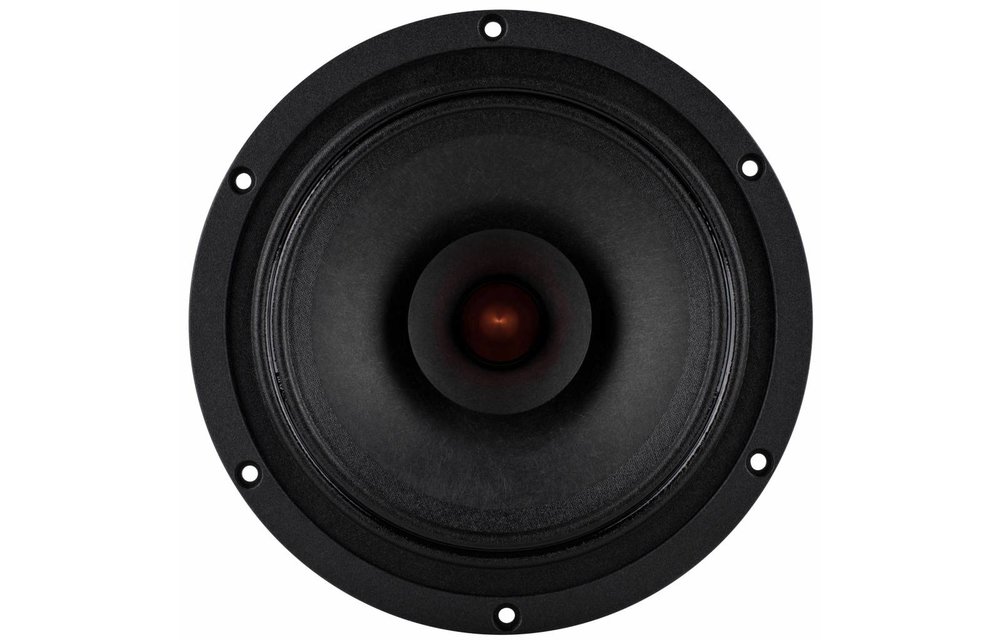

Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver

The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS180-8 6-1/2" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!

Eigenschaften

Artikelnummer:
PS180-8
Woofer Series
Point Source Series
Woofer Type
Full-Range
Nominal Diameter
6.50"
Power Handling (RMS)
30 watts
Power Handling (max)
60 watts
Impedance
8 ohms
Sensitivity
94.8 dB @ 2.83V/1m
Frequency Response
48 - 25,000 Hz
Voice Coil Diameter
25.4 mm
DC Resistance (Re)
6.4 ohms
Voice Coil Inductance (Le)
0.63 mH @ 1 kHz
Resonant Frequency (Fs)
58.5 Hz
Mechanical Q (Qms)
3.64
Electromagnetic Q (Qes)
0.36
Total Q (Qts)
0.33
Diaphragm Mass Inc. Airload (Mms)
7g
Mechanical Compliance of Suspension (Cms)
1.05 mm/N
Surface Area of Cone (Sd)
132.7 cm²
Volume of Displacement (Vd)
61.1 cm³
BL Product (BL)
6.82 Tm
Compliance Equivalent Volume (Vas)
27.6 liters
Maximum Linear Excursion (Xmax)
4.6 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Cloth
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Neodymium
Overall Outside Diameter
180 mm
Overall Depth
77.7 mm
Baffle Cutout Diameter
145 mm
# Mounting Holes
6
Sealed Volume
0.11 ft.³
Sealed F3
168 Hz
Vented Volume
0.25 ft.³
Vented F3
108 Hz
