Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm

€ 76,41€ 92,45 Nicht auf Lager: Lieferzeit beträgt 3 bis 6 Wochen
Dayton Audio's PHT1-6 provides the quick reflexes and smooth, non-fatiguing detail of a planar tweeter with horn-loaded efficiency and high power handling, creating the perfect high frequency complement to powerful pro audio drivers or other high-sensitiv... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €87,83 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's PHT1-6 provides the quick reflexes and smooth, non-fatiguing detail of a planar tweeter with horn-loaded efficiency and high power handling, creating the perfect high frequency complement to powerful pro audio drivers or other high-sensitivity speakers. 6 ohm impedance.



Highlights

  • Low-compression planar horn design
  • Detailed, non-fatiguing sound reproduction
  • Rugged, reinforced injection-molded horn flare
  • Controlled, 60 degree horizontal dispersion
  • High 80-watt RMS power handling



Product details

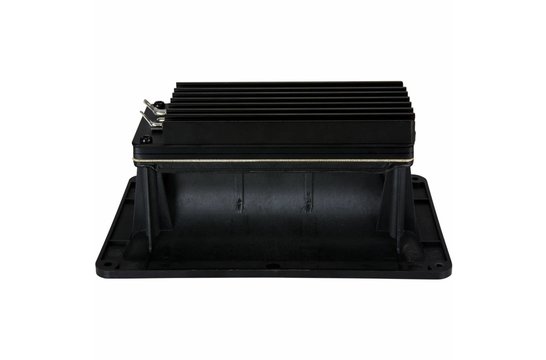

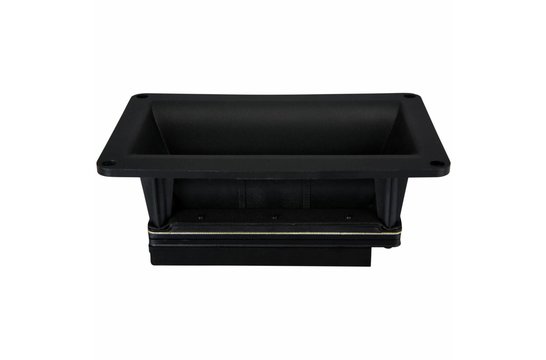

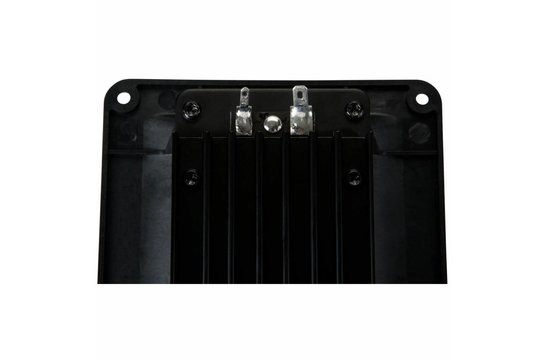

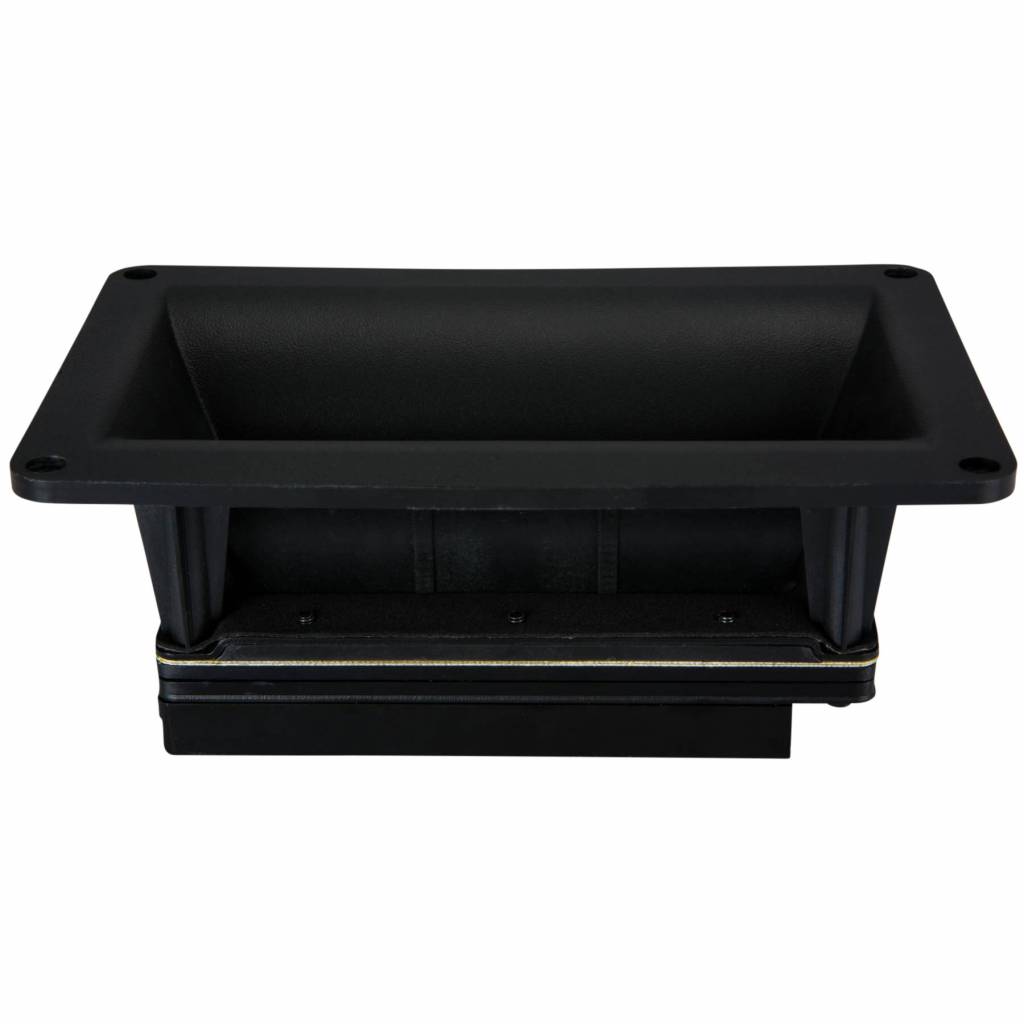

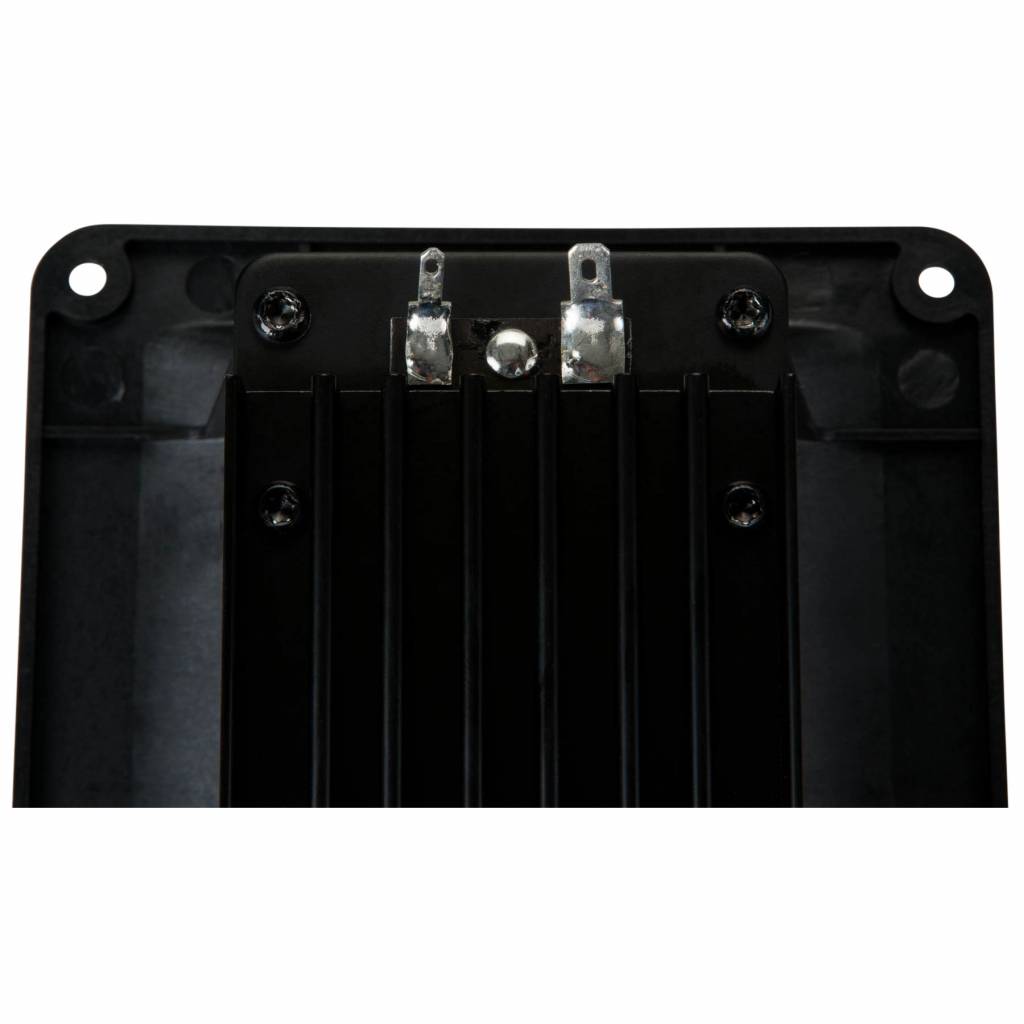

Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm



Planar tweeters offer a seductively smooth and richly detailed sound, but most don’t have the ruggedness or reliability for use in pro audio and high level studio monitoring applications. The Dayton Audio PHT1-6 Planar Horn Tweeter is different. It features a horn loaded design that achieves the high sensitivity of many horn loaded compression drivers, and its thermally robust Kapton diaphragm with etched aluminum conductor is rugged enough to handle the high power levels common in pro audio.



Cooling is often a problem in planar drivers, but the PHT1-6 features a large, rear-mounted aluminum heatsink that is thermally coupled to the membrane’s conductor and also evacuates heat from the transducer’s rear chamber, for extended component life and the ability to withstand peaks of 160 watts (80 watts RMS) when used with a 2nd order 2,500 Hz (minimum) crossover. The 6-ohm impedance helps the PHT1-6 maintain a high sensitivity, for use with virtually any pro audio or high efficiency midbass driver.

Eigenschaften

Artikelnummer:
PHT1-6
Tweeter Type
Planar Horn
Tweeter Series
Planar Series
Power Handling (RMS)
80 watts
Impedance
6 ohms
Sensitivity
105 dB @ 2.83V/1m
Frequency Response
2,500 - 18,000 Hz
DC Resistance (Re)
5.77 ohms
Voice Coil Inductance (Le)
0.17 mH
Overall Outside Diameter
126 mm x 196 mm
Cutout Diameter
85 mm x 181 mm
Depth
75 mm

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
well if you want experience hi-end sound,this tweeter might be good choice to 15inch midrande sensitive driver.I am using this tweeter with faital pro 15 4ohms midrange bass drivers. Guitar strings,vocals ,trumpets,cymbals and many other instruments sounds real,like they are in the room.No blankets on intruments like in main stream speakers till 10000euros.You might be shocked by the sound in good way.Improves highs,midrange very much
Durch Albina M. on 12 März 2019
