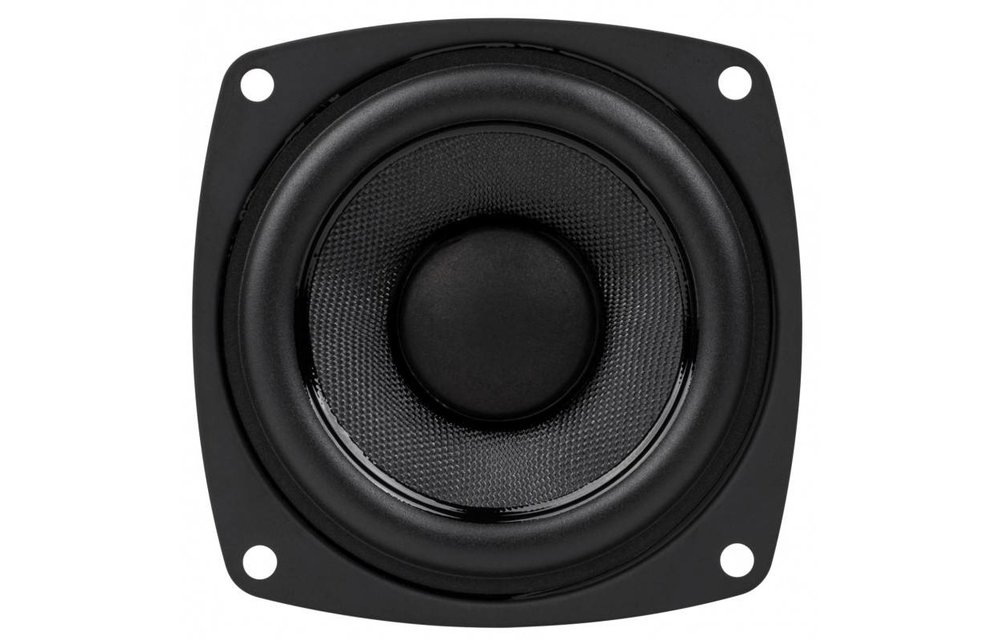

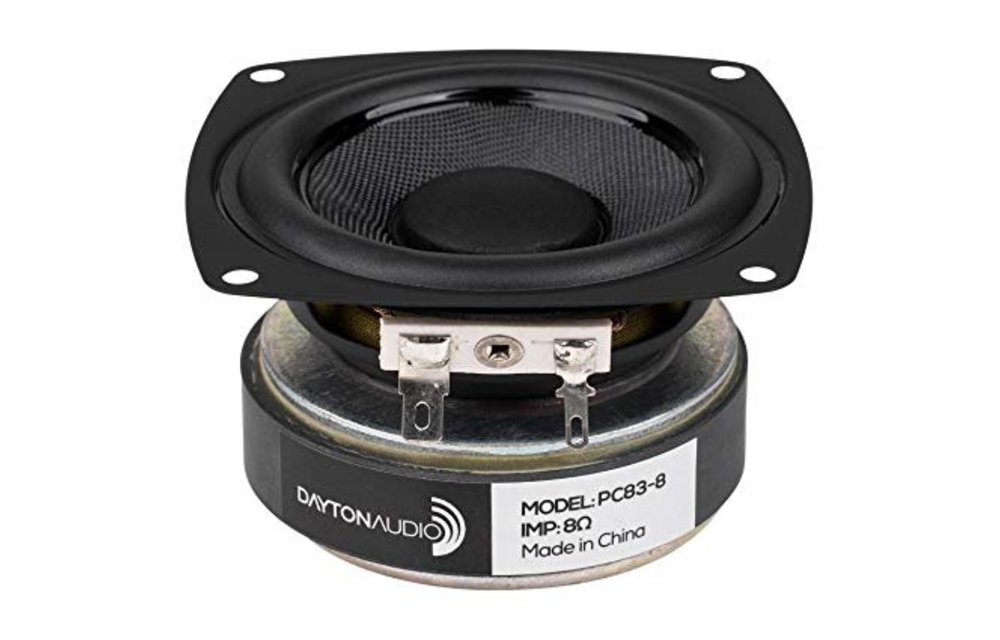

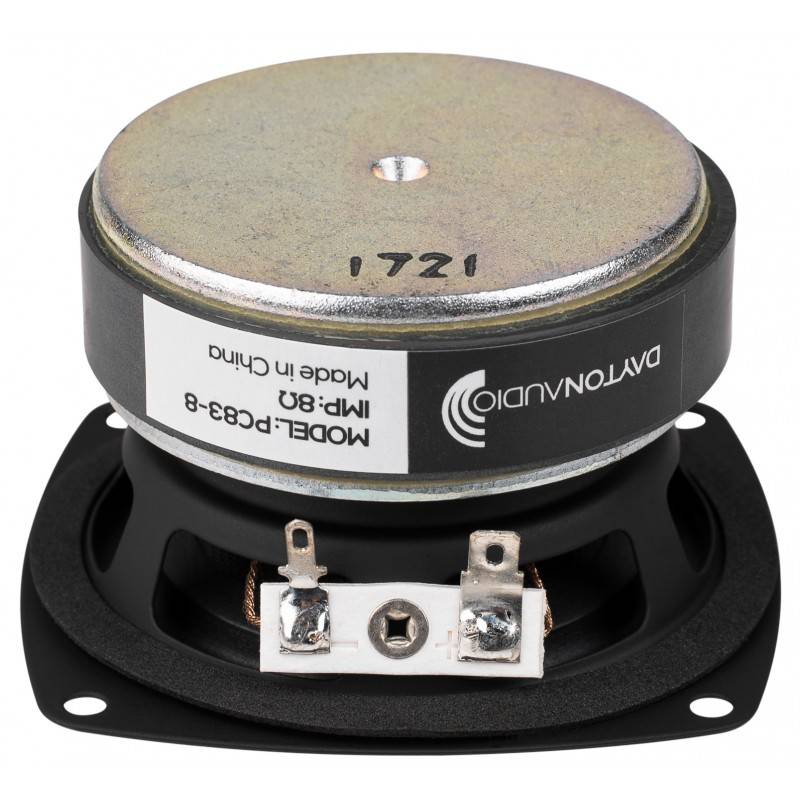

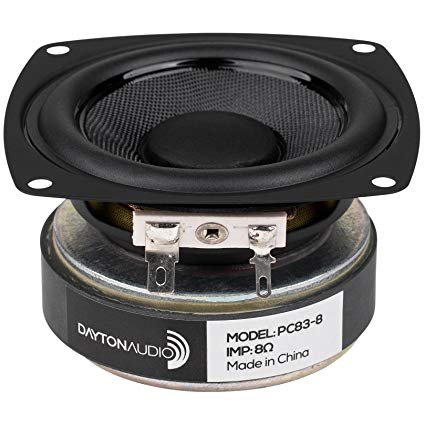

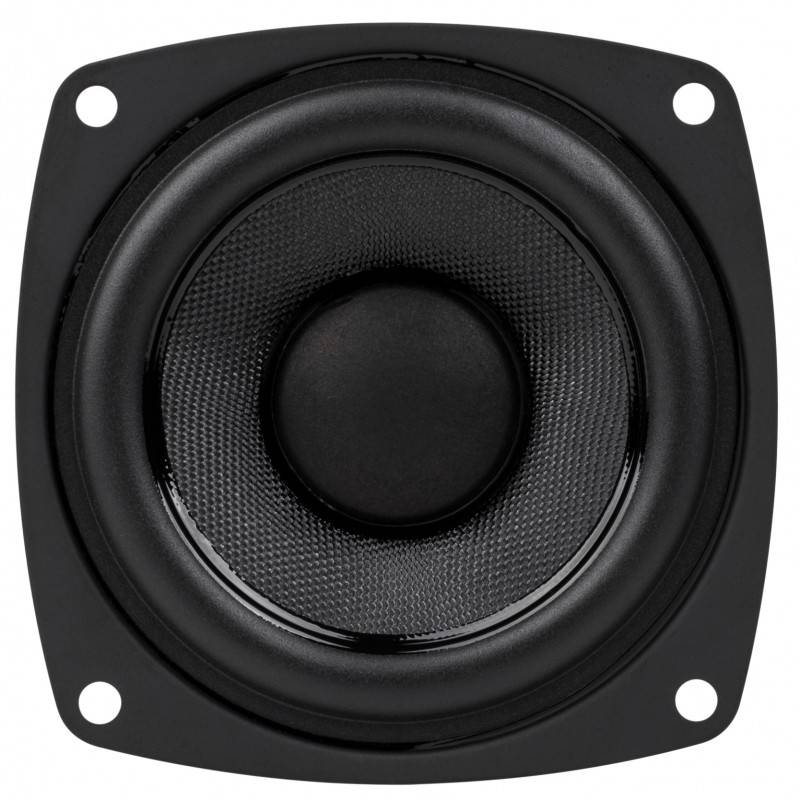

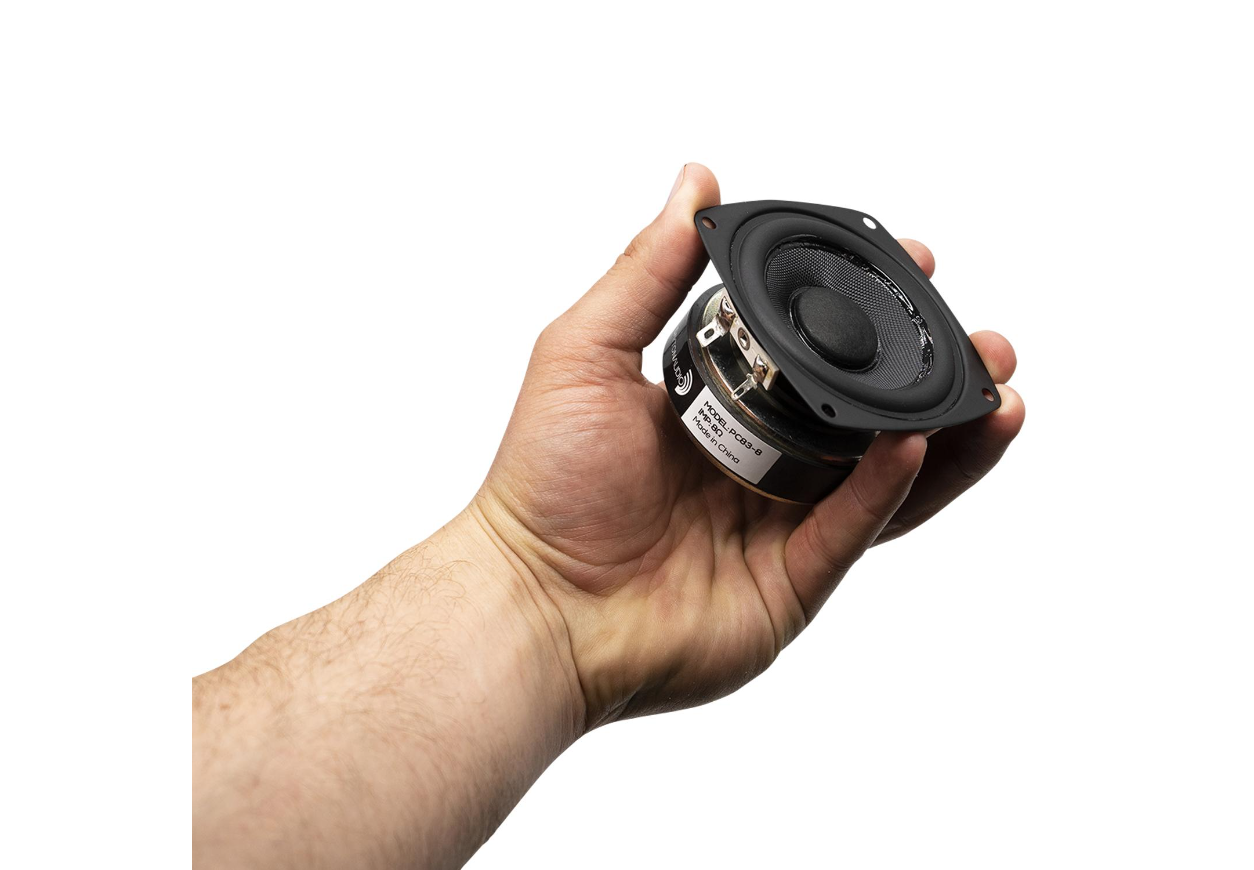

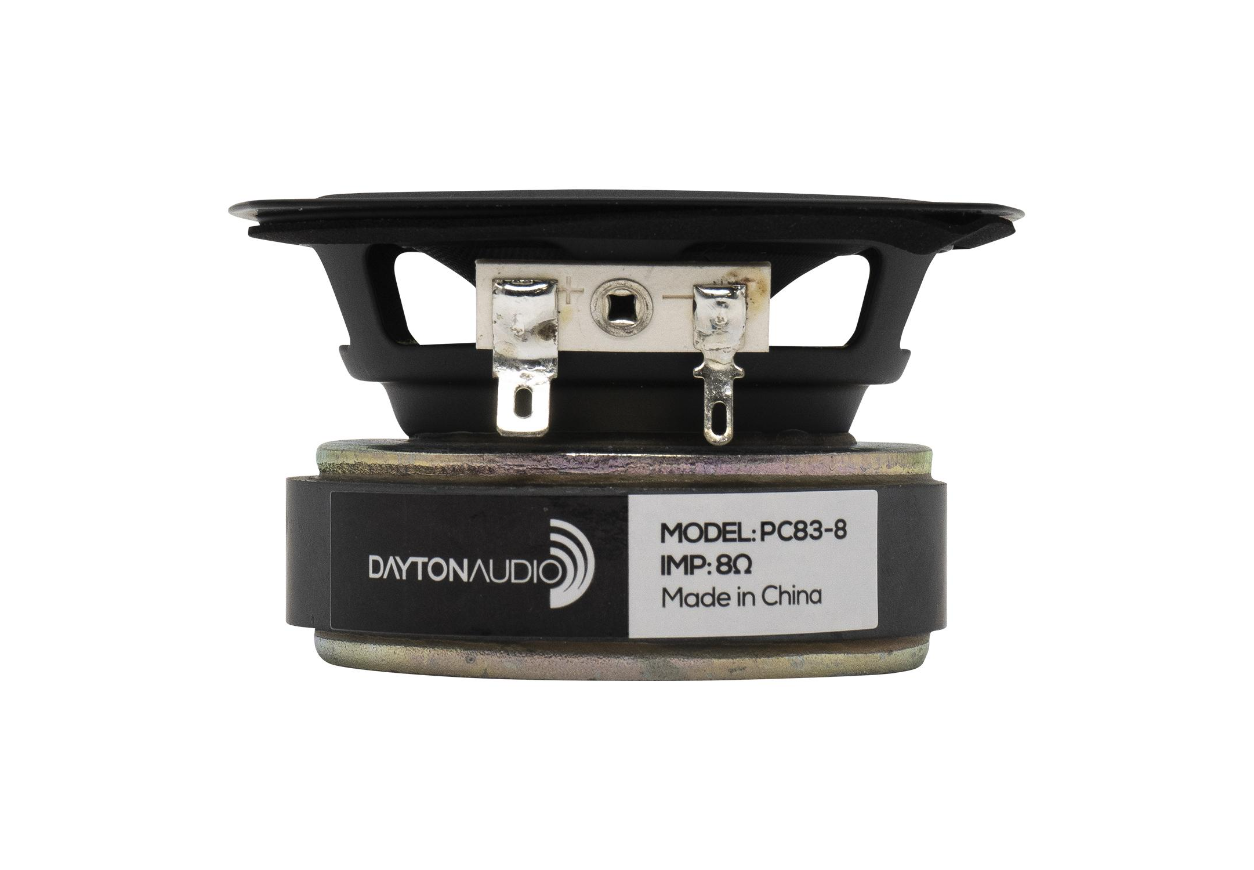

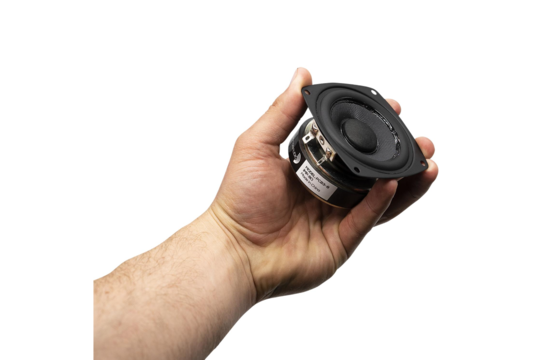

Dayton Audio PC83-8 3" Full-Range Poly Cone Driver

€ 12,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio's PC83-8 3" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excell... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €12,30 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's PC83-8 3" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.



Highlights

  • Smooth response with true full-range reproduction for simple speaker designs
  • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off

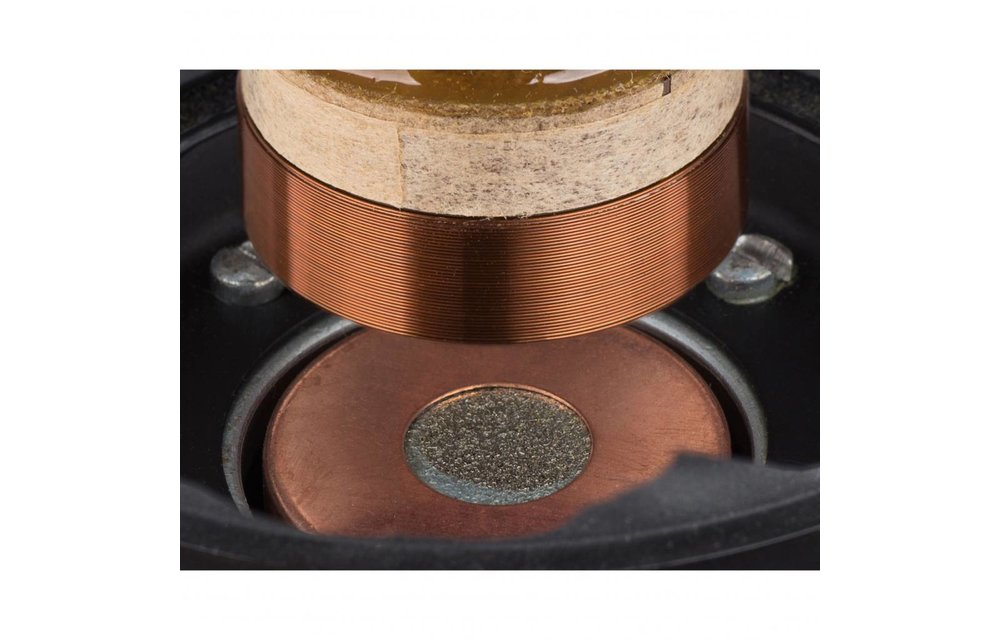

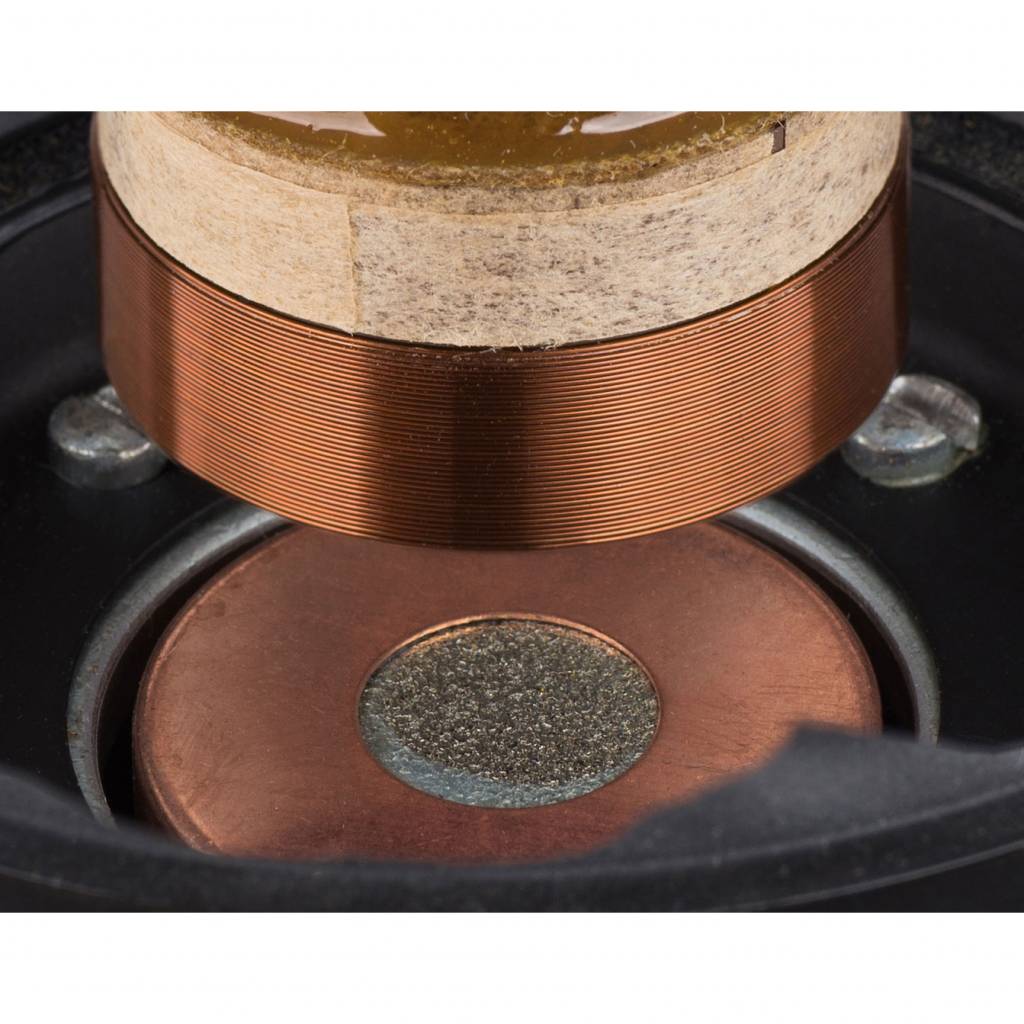

  • Copper cap keeps inductance under control and extends high frequency response
  • High energy ferrite magnet increases BL for higher efficiency and more output
  • Great for MTM bookshelves, car audio, or line arrays



Product details

Dayton Audio PC83-8 3" Full-Range Poly Cone Driver



The Dayton Audio PC83-8 3" full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC83-8 will deliver high fidelity and low distortion from compact applications for an amazing value.

Eigenschaften

Artikelnummer:
PC83-8
Woofer Series
PC series
Woofer Type
Full-Range
Nominal Diameter
3"
Power Handling (RMS)
30 watts
Power Handling (max)
60 watts
Impedance
8 ohms
Sensitivity
86.8 dB @ 2.83V/1m
Frequency Response
80 - 20,000 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
3.9 ohms
Voice Coil Inductance (Le)
0.38 mH
Resonant Frequency (Fs)
80.1 Hz
Mechanical Q (Qms)
3.41
Electromagnetic Q (Qes)
0.64
Total Q (Qts)
0.54
Diaphragm Mass Inc. Airload (Mms)
2.7g
Mechanical Compliance of Suspension (Cms)
1.47 mm/N
Surface Area of Cone (Sd)
30.2 cm²
Volume of Displacement (Vd)
6.0 cm³
BL Product (BL)
2.9 Tm
Compliance Equivalent Volume (Vas)
0.07 ft.³
Maximum Linear Excursion (Xmax)
2.0 mm
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton®
Basket / Frame Material
Stamped Steel
Magnet Material
Ferrite
Overall Outside Diameter
83 mm
Overall Depth
50 mm
Baffle Cutout Diameter
77 mm
# Mounting Holes
4
Sealed Volume
0.09 ft.³
Sealed F3
107 Hz
Vented Volume
0.16 ft.³
Vented F3
54 Hz
