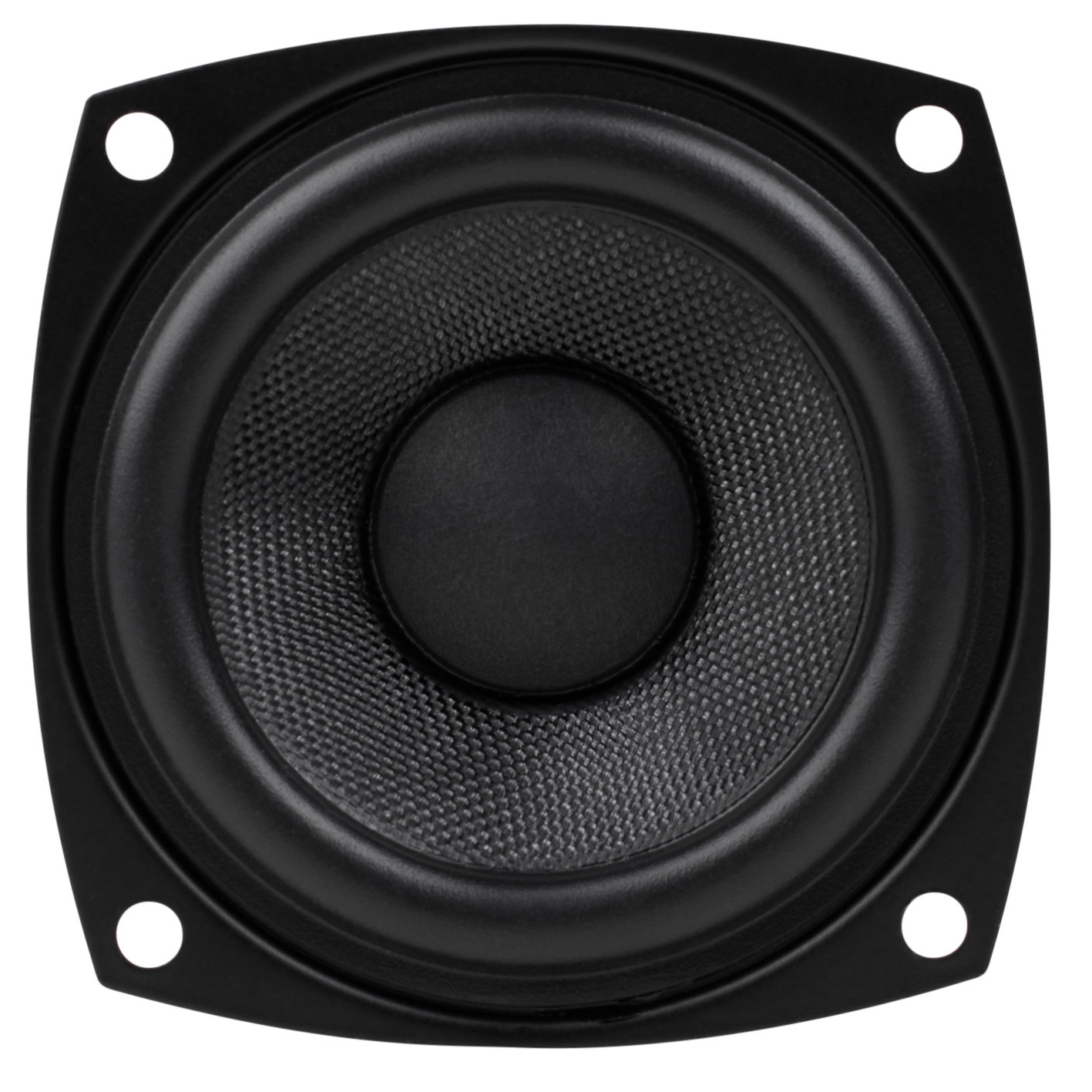

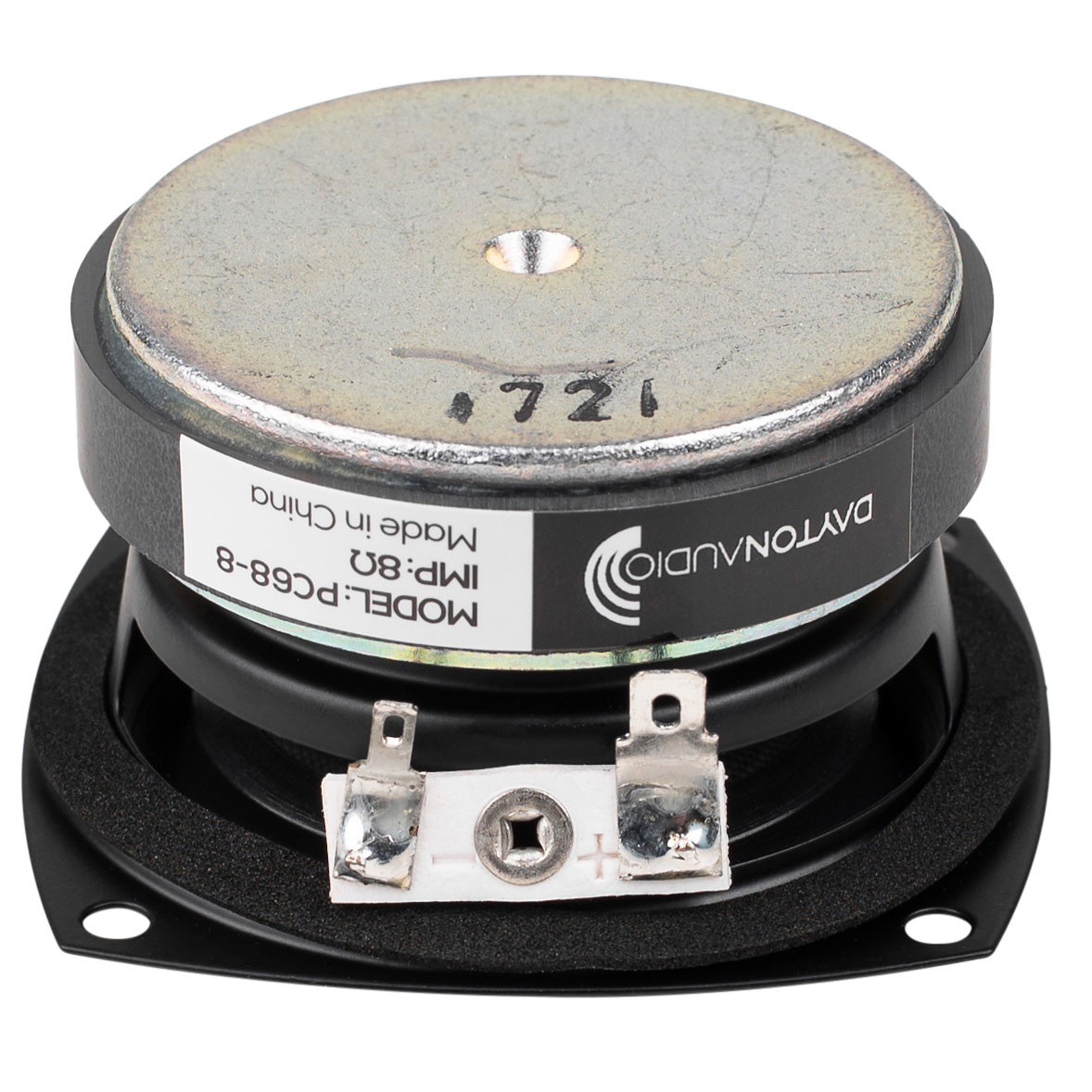

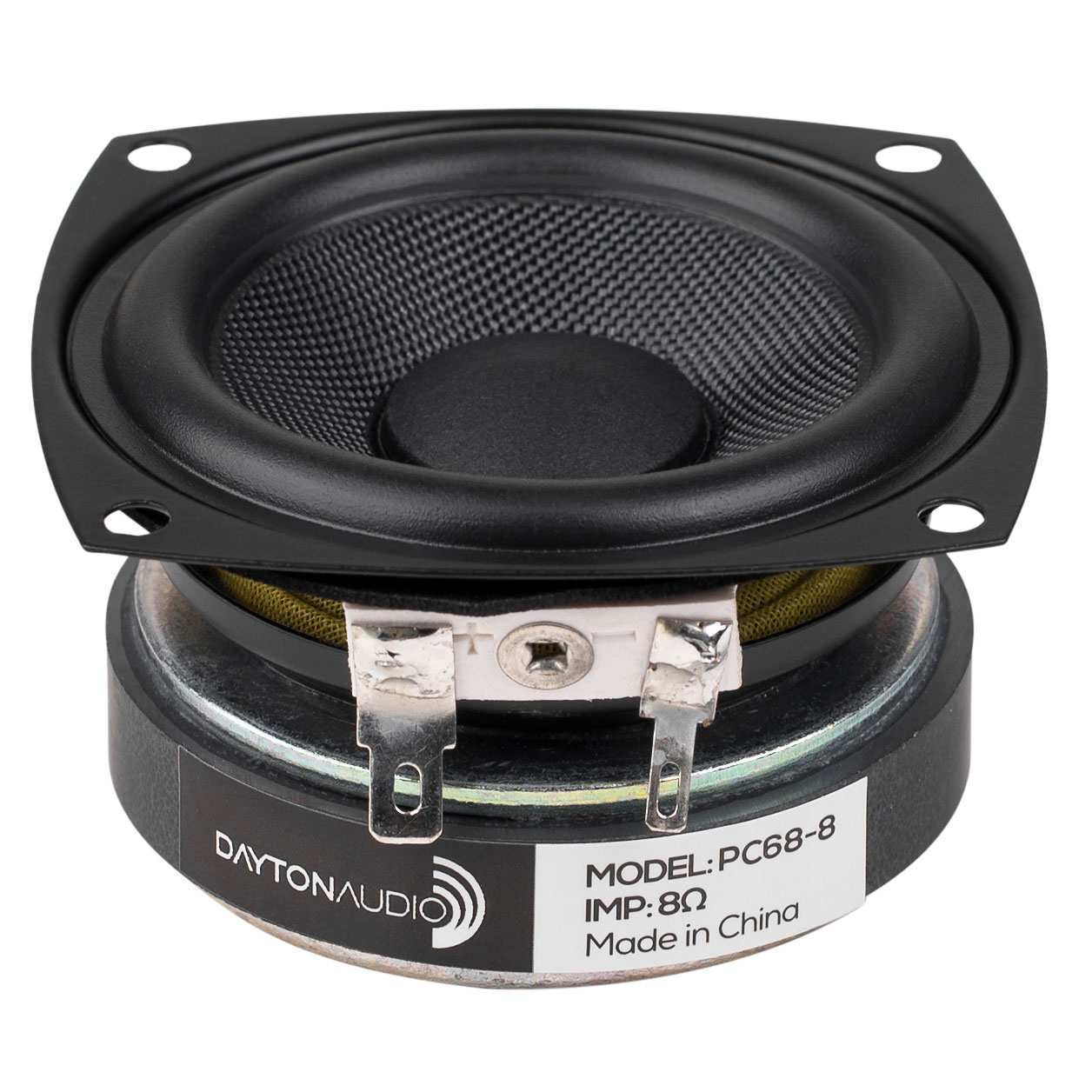

Dayton Audio PC68-8 2-1/2" Full-Range Poly Cone Driver 8 Ohm

€ 8,22€ 9,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
Dayton Audio's PC68-8 2-1/2" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an ex... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €9,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's PC68-8 2-1/2" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated mid-range in 3-way designs this driver will prove to be an excellent value.



Highlights

  • Smooth response with true full-range reproduction for simple speaker designs
  • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off
  • Rubber surround improves cone linearity and transients
  • High energy ferrite magnet increases BL for higher efficiency and more output



Product details

Dayton Audio PC68-8 2-1/2" Full-Range Poly Cone Driver



The Dayton Audio PC68-8 2-1/2" full-range driver features a poly damped woven glass fiber cone, rubber surround, and high energy motor. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio the Dayton Audio PC68-8 driver will deliver high fidelity and low distortion from compact applications for an amazing value.

Eigenschaften

Artikelnummer:
PC68-8
Woofer Series
PC series
Woofer Type
Full-Range
Nominal Diameter
2.5"
Power Handling (RMS)
20 watts
Power Handling (max)
40 watts
Continuous Program Power
-
Impedance
8 ohms
Sensitivity
85.6 dB @ 2.83V/1m
Frequency Response
110 - 17,000 Hz

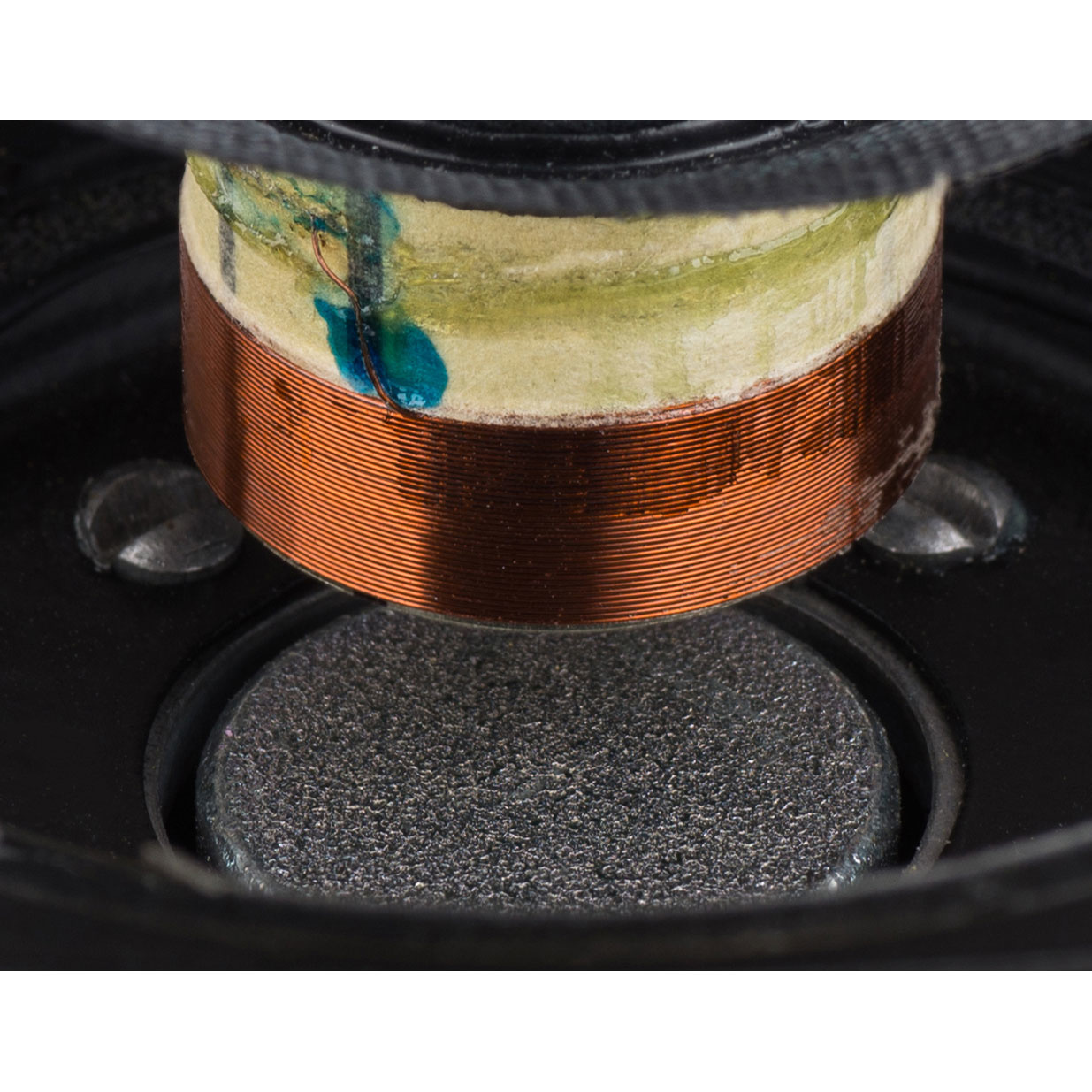

Voice Coil Diameter
19 mm
Magnet Weight
-
DC Resistance (Re)
6.9 ohms
Voice Coil Inductance (Le)
0.47 mH
Resonant Frequency (Fs)
109 Hz
Mechanical Q (Qms)
2.27
Electromagnetic Q (Qes)
0.88
Total Q (Qts)
0.64
Diaphragm Mass Inc. Airload (Mms)
2.0g
Moving Mass Of Diaphragm (Mmd)
-
Mechanical Compliance of Suspension (Cms)
1.05 mm/N
Surface Area of Cone (Sd)
21.2 cm²
Volume of Displacement (Vd)
4.24‬ cm³
BL Product (BL)
3.3 Tm
Compliance Equivalent Volume (Vas)
1.4 liters
Maximum Linear Excursion (Xmax)
2 mm
Driver's Mechanical Losses (Rms)
-
Cone / Diaphragm Material
Poly Composite
Surround Material
Rubber
Voice Coil Wire Material
Copper-clad aluminum
Voice Coil Former
Aluminum
Dual Voice Coil
-
Basket / Frame Material
Steel
Magnet Material
Ferrite
Shielded
-
Overall Outside Diameter
68 mm
Overall Depth
37 mm
Baffle Cutout Diameter
64 mm
Bolt Circle Diameter
73 mm
# Mounting Holes
4
Mounting Hole Diameter
4.2 mm
Sealed Volume
1.98 liters
Sealed F3
140 Hz
Vented Volume
3.4 liters
Vented F3
71 Hz
