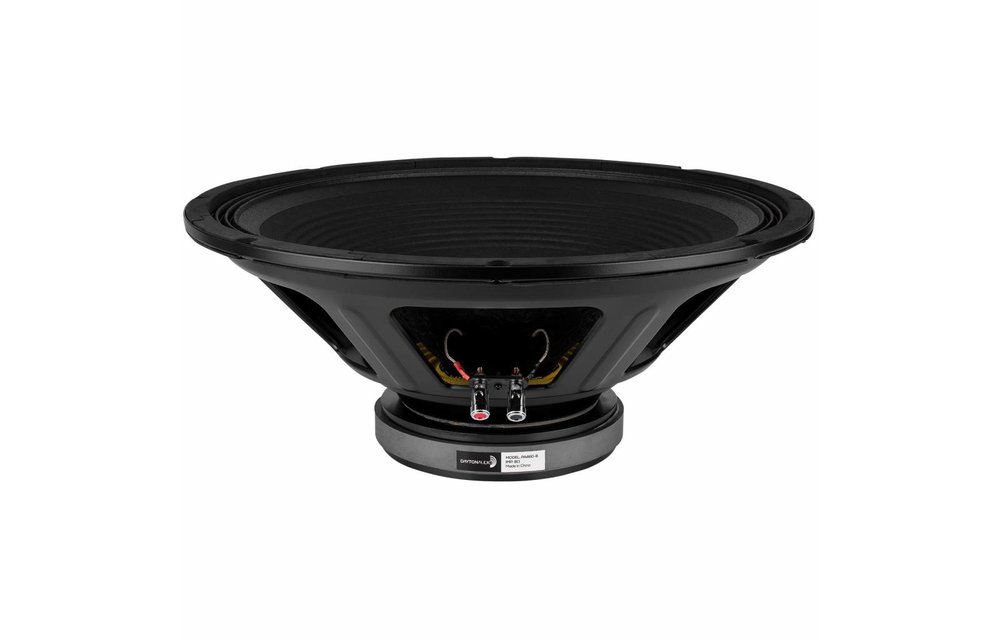

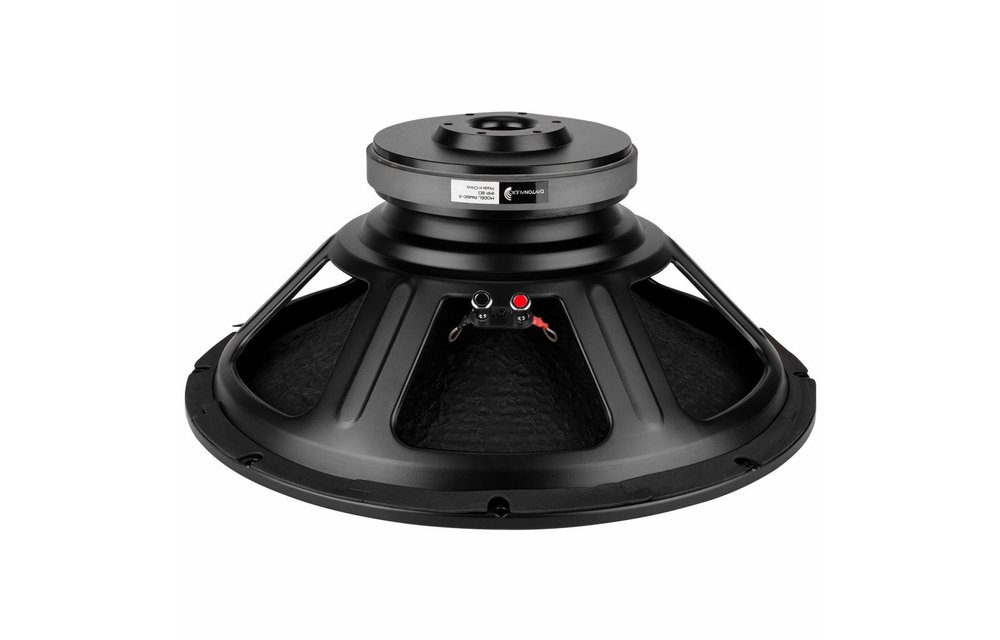

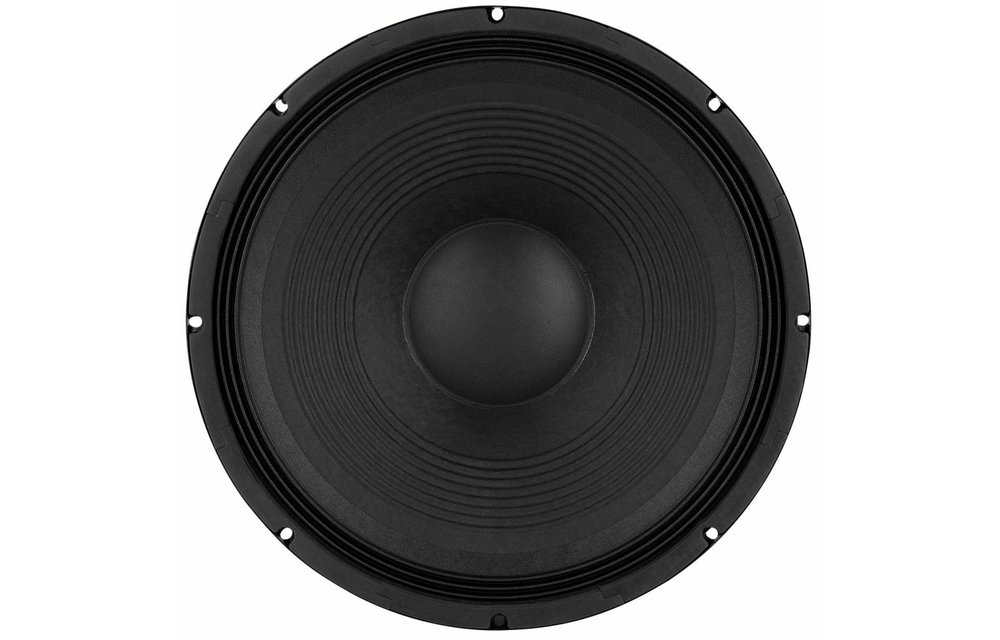

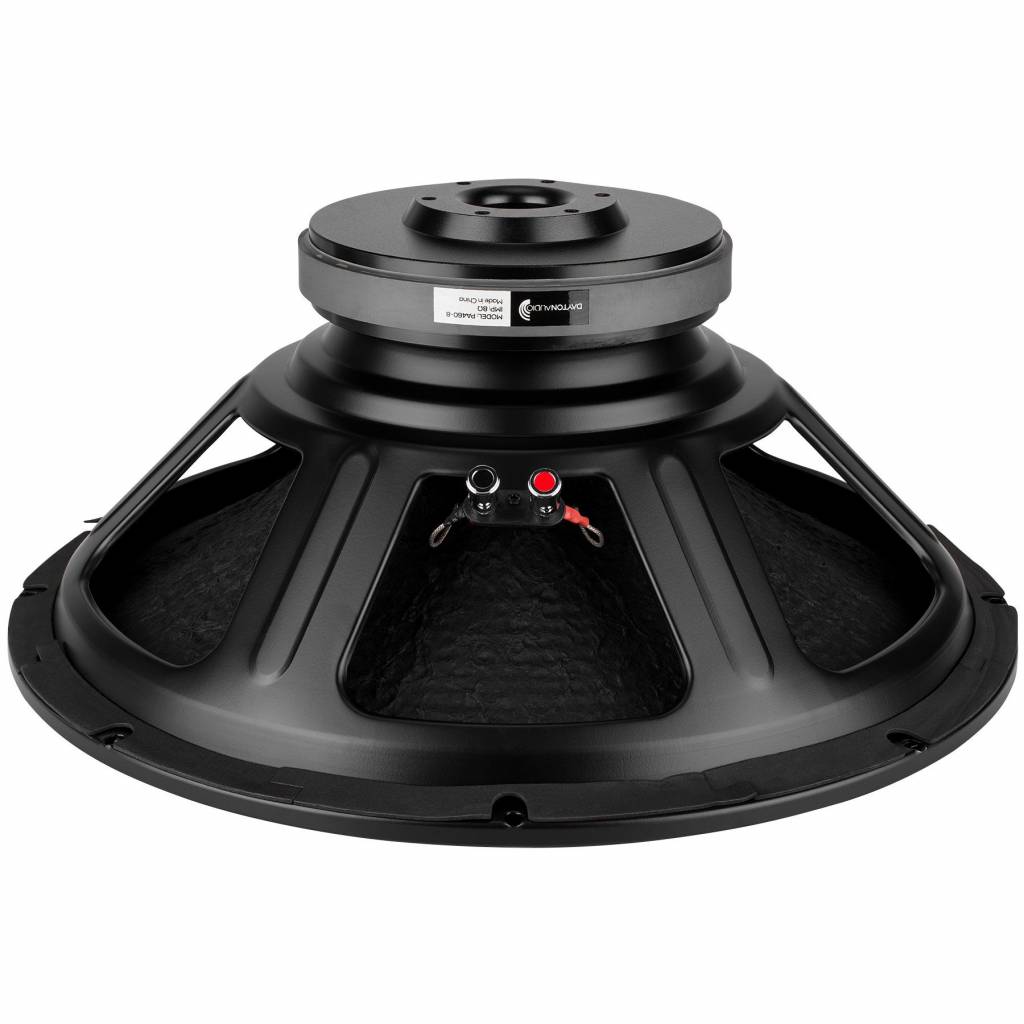

Dayton Audio PA460-8 18" Pro Woofer

€ 162,45 Nicht auf Lager: Lieferzeit beträgt 3 bis 6 Wochen
Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €154,33 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.



Highlights

  • Strong, low-mass carbon fiber impregnated paper cone
  • I-beam rolled edge 1.5 mm steel frame
  • Low distortion motor system w/copper cap
  • Powerful 80 oz. ceramic ferrite magnet
  • Vented pole piece/vented voice coil gap improve thermal management
  • Black motor parts and black polyimide voice coil former dissipate heat
  • Bumped back plate for unrestricted excursion



Product details

Dayton Audio PA460-8 18" Pro Woofer



Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers – premium performance, but value priced.



Eigenschaften

Artikelnummer:
PA460-8
Woofer Series
Pro Audio Series
Woofer Type
Midwoofer
Nominal Diameter
18"
Power Handling (RMS)
500 watts
Power Handling (max)
1,000 watts
Impedance
8 ohms
Sensitivity
97.8 dB @ 2.83V/1m
Frequency Response
26 - 2,000 Hz
Voice Coil Diameter
76 mm
Magnet Weight
80 oz.
DC Resistance (Re)
5.6 ohms
Voice Coil Inductance (Le)
3.9 mH
Resonant Frequency (Fs)
28.3 Hz
Mechanical Q (Qms)
11.2
Electromagnetic Q (Qes)
0.34
Total Q (Qts)
0.33
Diaphragm Mass Inc. Airload (Mms)
171g
Mechanical Compliance of Suspension (Cms)
0.19 mm/N
Surface Area of Cone (Sd)
1,241.1 cm²
Volume of Displacement (Vd)
746.5 cm³
BL Product (BL)
22.3 Tm
Compliance Equivalent Volume (Vas)
402 liters
Maximum Linear Excursion (Xmax)
6.0 mm
Cone / Diaphragm Material
Paper / Carbon Fiber Cone
Surround Material
Cloth
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
460 mm
Overall Depth
198 mm
Baffle Cutout Diameter
425 mm
# Mounting Holes
8
Sealed Volume
2.73 ft.³
Sealed F3
72 Hz
Vented Volume
5.68 ft.³
Vented F3
47 Hz
