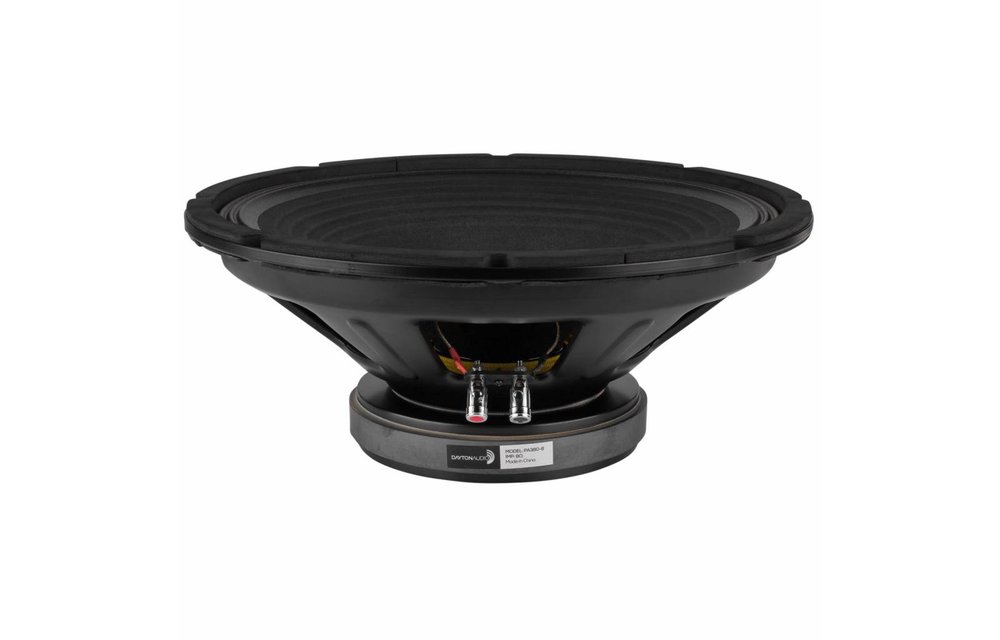

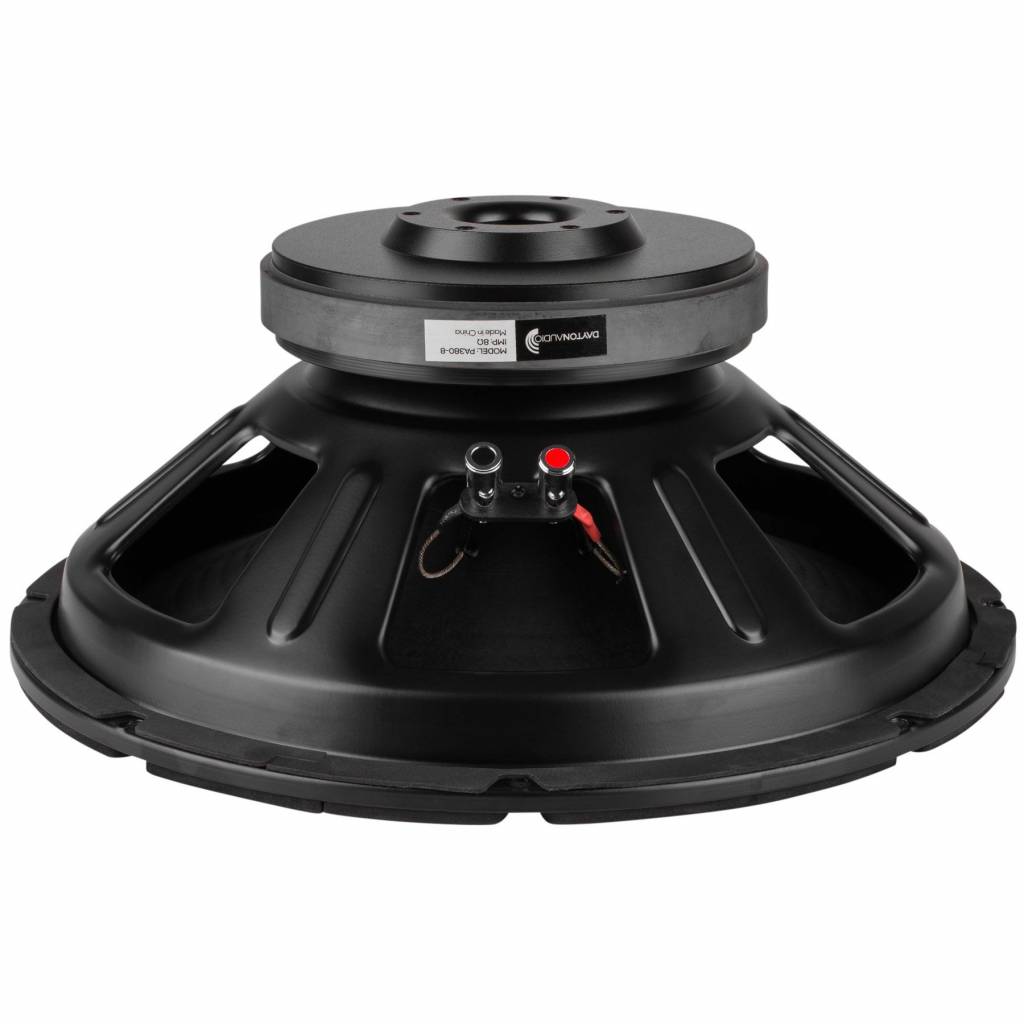

Dayton Audio PA380-8 15" Pro Woofer

€ 132,95 4 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €126,30 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.



Highlights

  • Strong, low-mass carbon fiber impregnated paper cone
  • I-beam rolled edge 1.5 mm steel frame
  • Low distortion motor system w/copper cap
  • Powerful 80 oz. ceramic ferrite magnet
  • Vented pole piece/vented voice coil gap improve thermal management
  • Black motor parts and black polyimide voice coil former dissipate heat
  • Bumped back plate for unrestricted excursion



Product details

Dayton Audio PA380-8 15" Pro Woofer



The Dayton Audio PA380-8 15" PA Series Pro Woofer is a powerful upgrade for guitar, bass guitar or sound reinforcement cabinets. The PA380-8 also excels in custom-built speaker system cabinets. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers – premium performance, but value priced.

Eigenschaften

Artikelnummer:
PA380-8
Woofer Series
Pro Audio Series
Woofer Type
Midwoofer
Nominal Diameter
15"
Power Handling (RMS)
500 watts
Power Handling (max)
1000 watts
Impedance
8 ohms
Sensitivity
96.1 dB @ 2.83V/1m
Frequency Response
28 - 3,500 Hz
Voice Coil Diameter
76 mm
Magnet Weight
80 oz.
DC Resistance (Re)
6.3 ohms
Voice Coil Inductance (Le)
4.12 mH @ 1 kHz
Resonant Frequency (Fs)
31.6 Hz
Mechanical Q (Qms)
12.20
Electromagnetic Q (Qes)
0.27
Total Q (Qts)
0.27
Diaphragm Mass Inc. Airload (Mms)
147g
Mechanical Compliance of Suspension (Cms)
0.17 mm/N
Surface Area of Cone (Sd)
845.0 cm²
Volume of Displacement (Vd)
422.5 cm³
BL Product (BL)
25.8 Tm
Compliance Equivalent Volume (Vas)
175 liters
Maximum Linear Excursion (Xmax)
5.0 mm
Cone / Diaphragm Material
Paper / Carbon Fiber Cone
Surround Material
Cloth
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
380 mm
Overall Depth
163 mm
Baffle Cutout Diameter
355 mm
# Mounting Holes
8
Sealed Volume
0.7 ft.³
Sealed F3
101 Hz
Vented Volume
1.55 ft.³
Vented F3
65 Hz
