Dayton Audio PA200-8 8" Pro Woofer Speaker

€ 59,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
Dayton Audio's PA200-8 PA Series 8" professional woofer is a great upgrade for musical instrument or sound reinforcement cabinets, and also excels in custom-built speaker systems.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €56,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's PA200-8 PA Series 8" professional woofer is a great upgrade for musical instrument or sound reinforcement cabinets, and also excels in custom-built speaker systems.



Highlights

  • Strong, low-mass carbon fiber impregnated paper cone
  • Low distortion motor system with copper cap
  • Vented pole piece and voice coil gap improve thermal management
  • Black motor parts and black polyimide voice coil former dissipate heat
  • Bumped back plate for unrestricted excursion



Product details

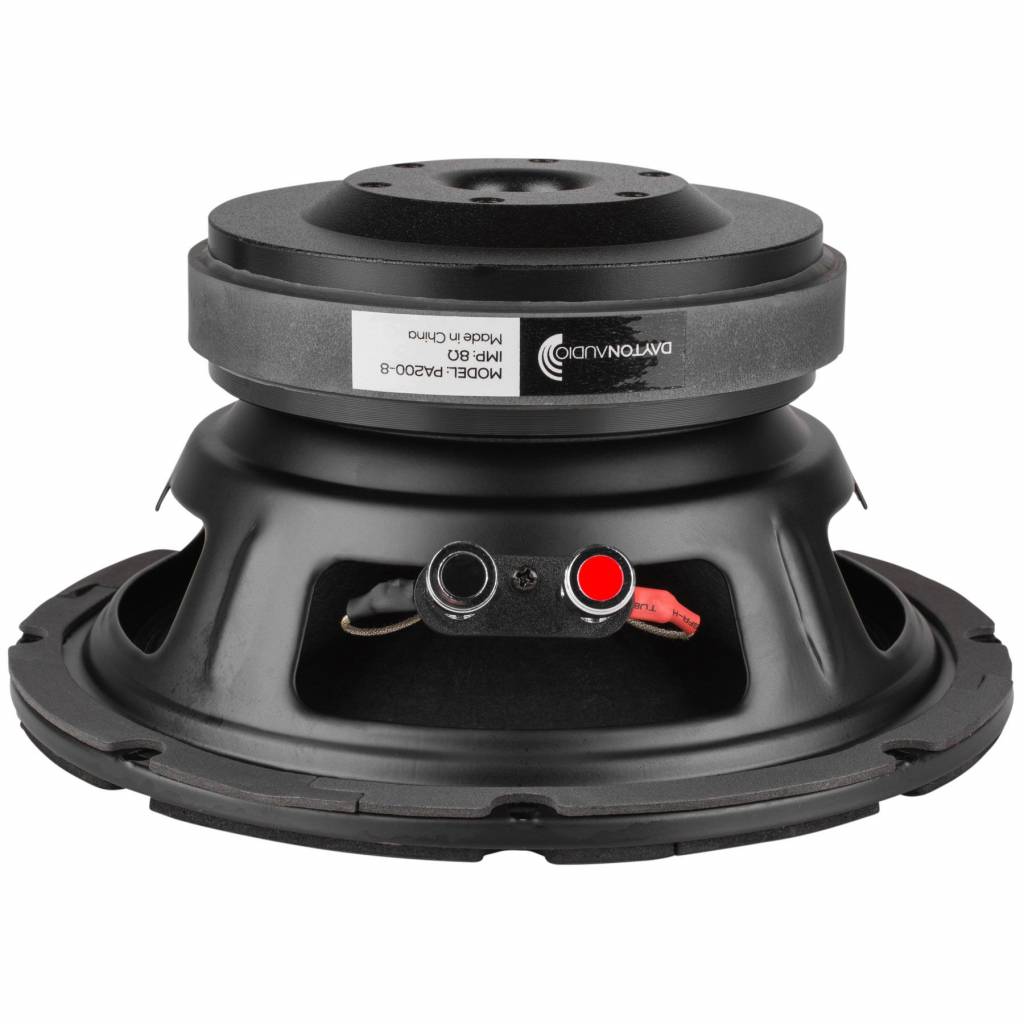

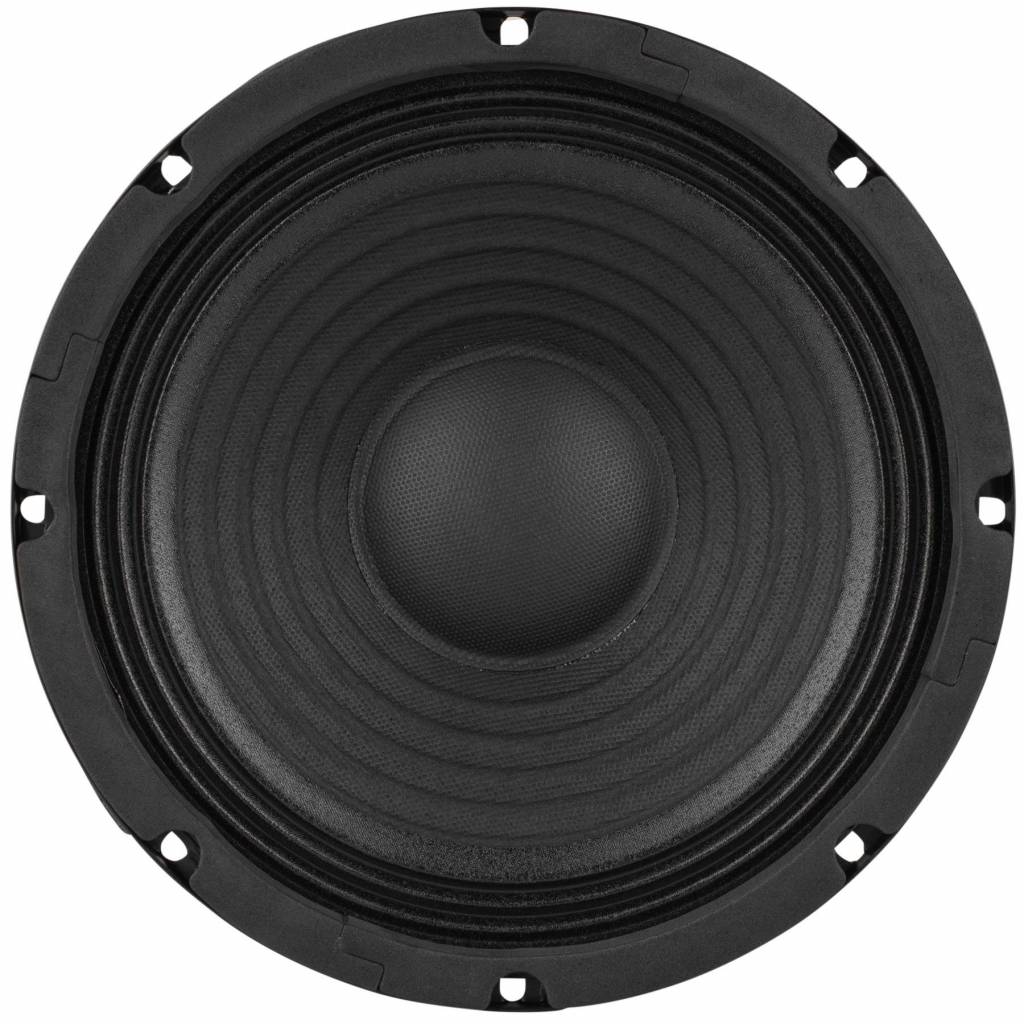

Dayton Audio PA200-8 8" Pro Woofer Speaker



The PA200-8 8" professional audio woofer, from Dayton Audio, features high power handling by using a vented pole piece and voice coil gap. Black motor parts (including a black polyimide voice coil) help dissipate heat away from the voice coil and help to minimize power compression.



Extended, smooth frequency response and low distortion are achieved through the use of a powerful 50 ounce ceramic ferrite magnet, combined with a copper cap on the pole piece to reduce stray eddy currents and minimize voice coil inductance.



A strong, low-mass, carbon fiber-impregnated paper cone, together with an I-beam rolled-edge 1.2 mm steel frame provides the rugged durability needed to handle the rigors of touring and for stage use, while still offering the sensitivity and punchy bass that you need.



Dayton Audio's PA Series woofer packs all of these premium features into a value-priced 8" driver that is great for use as an upgrade to sound reinforcement or musical instrument speakers. The PA200-8 also excels in custom-built speakers.



Eigenschaften

Artikelnummer:
PA200-8
Woofer Series
Pro Audio Series
Woofer Type
Midwoofer
Nominal Diameter
8"
Power Handling (RMS)
250 watts
Power Handling (max)
500 watts
Impedance
8 ohms
Sensitivity
92.4 dB 2.83V/1m
Frequency Response
70 - 9,000 Hz
Voice Coil Diameter
50 mm
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
1.09 mH
Resonant Frequency (Fs)
55.2 Hz
Mechanical Q (Qms)
6.17
Electromagnetic Q (Qes)
0.51
Total Q (Qts)
0.48
Diaphragm Mass Inc. Airload (Mms)
20.5g
Mechanical Compliance of Suspension (Cms)
0.4 mm/N
Surface Area of Cone (Sd)
210.4 cm²
Volume of Displacement (Vd)
0.631 cm³
BL Product (BL)
9.28 Tm
Compliance Equivalent Volume (Vas)
26.6 liters
Maximum Linear Excursion (Xmax)
3.0 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Cloth
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
210 mm
Overall Depth
108 mm
Baffle Cutout Diameter
182 mm
Sealed Volume
0.57 ft.³
Sealed F3
96 Hz
Vented Volume
1.1 ft.³
Vented F3
48 Hz
