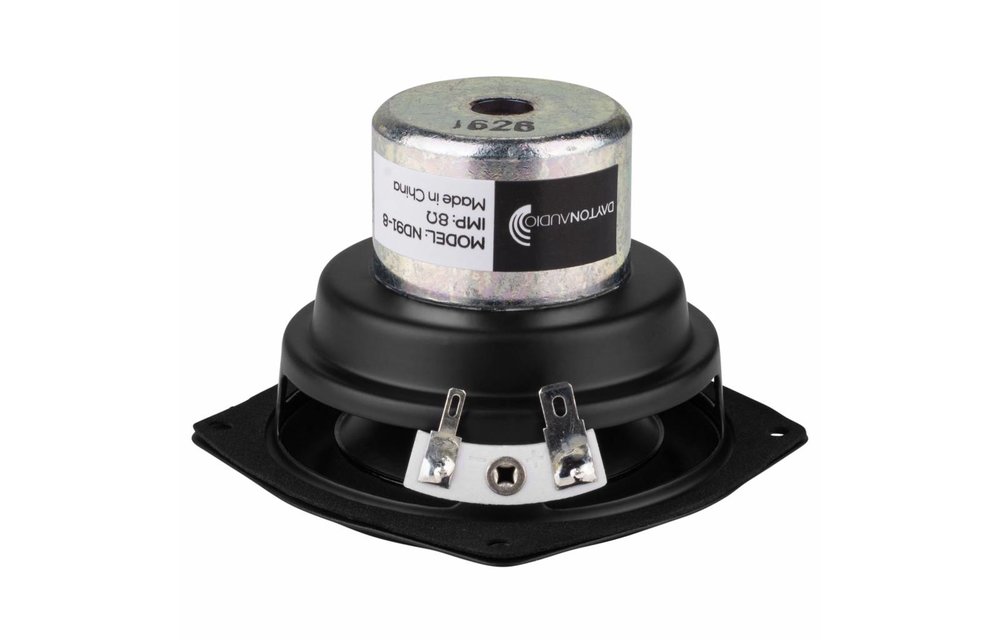

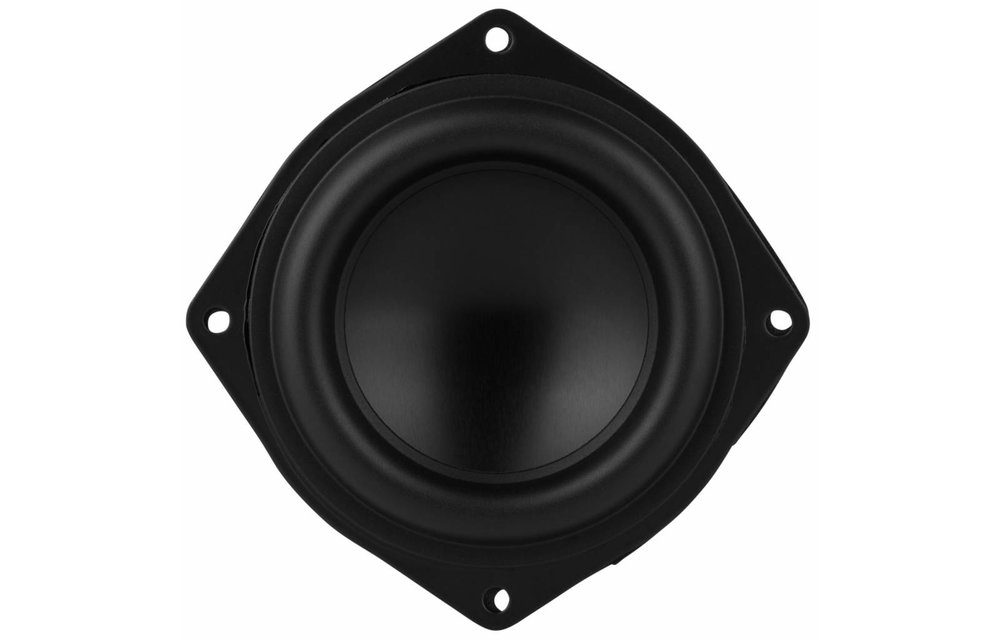

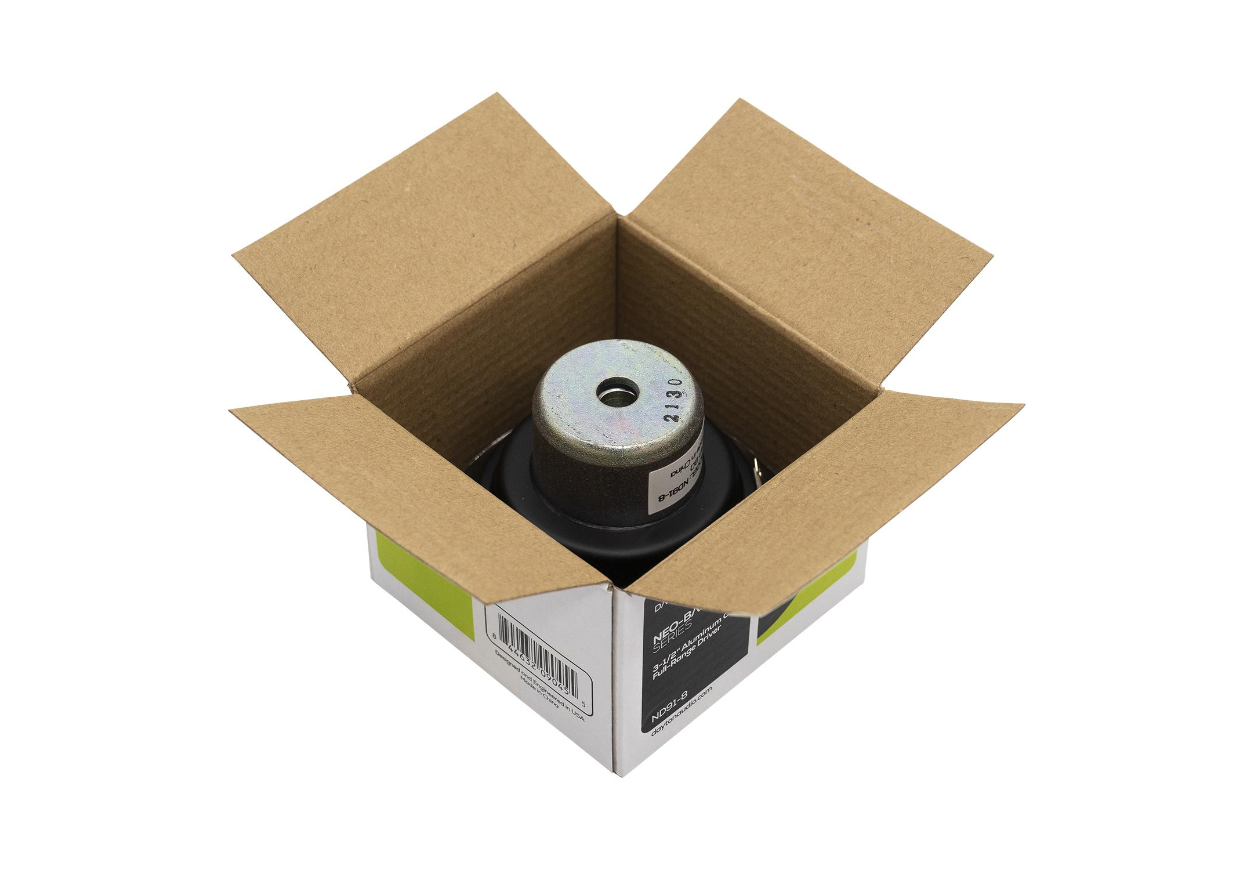

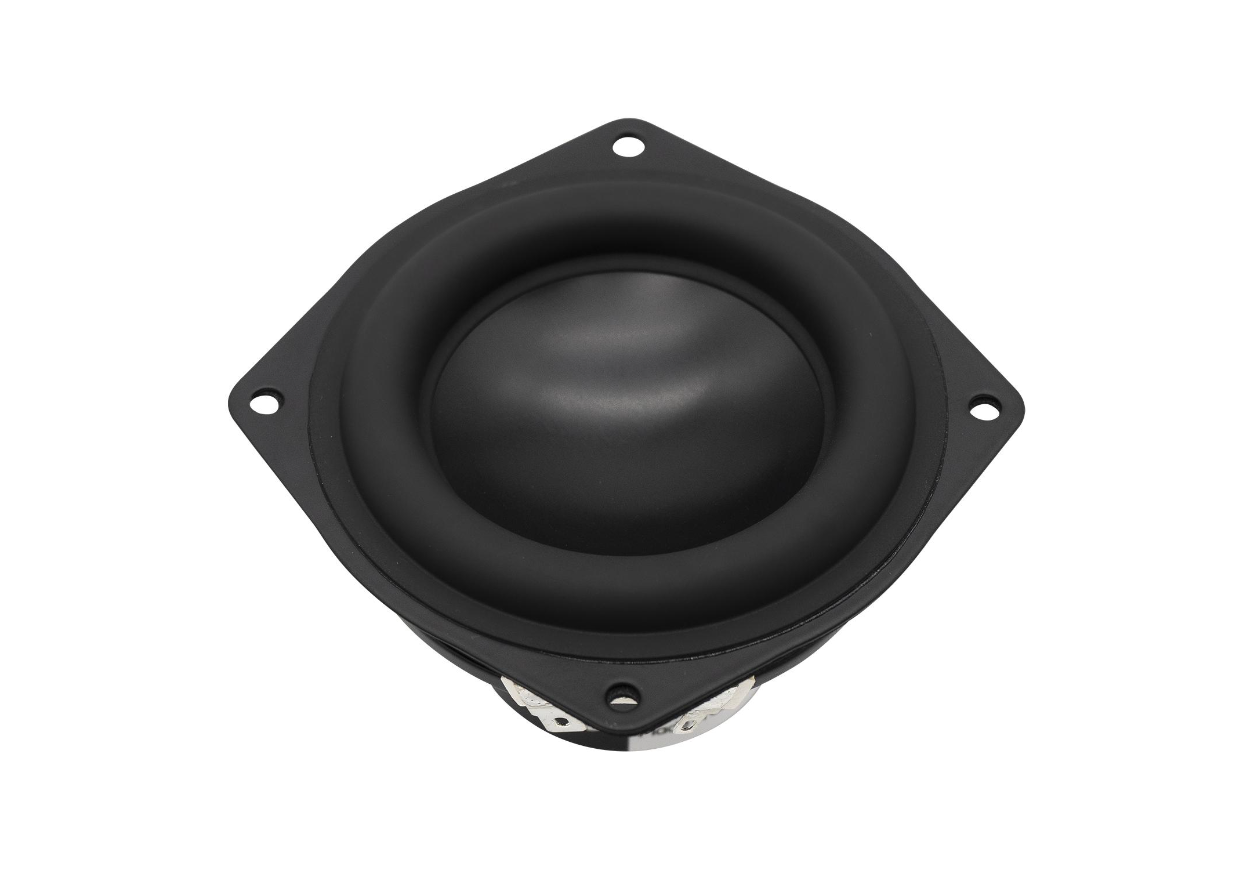

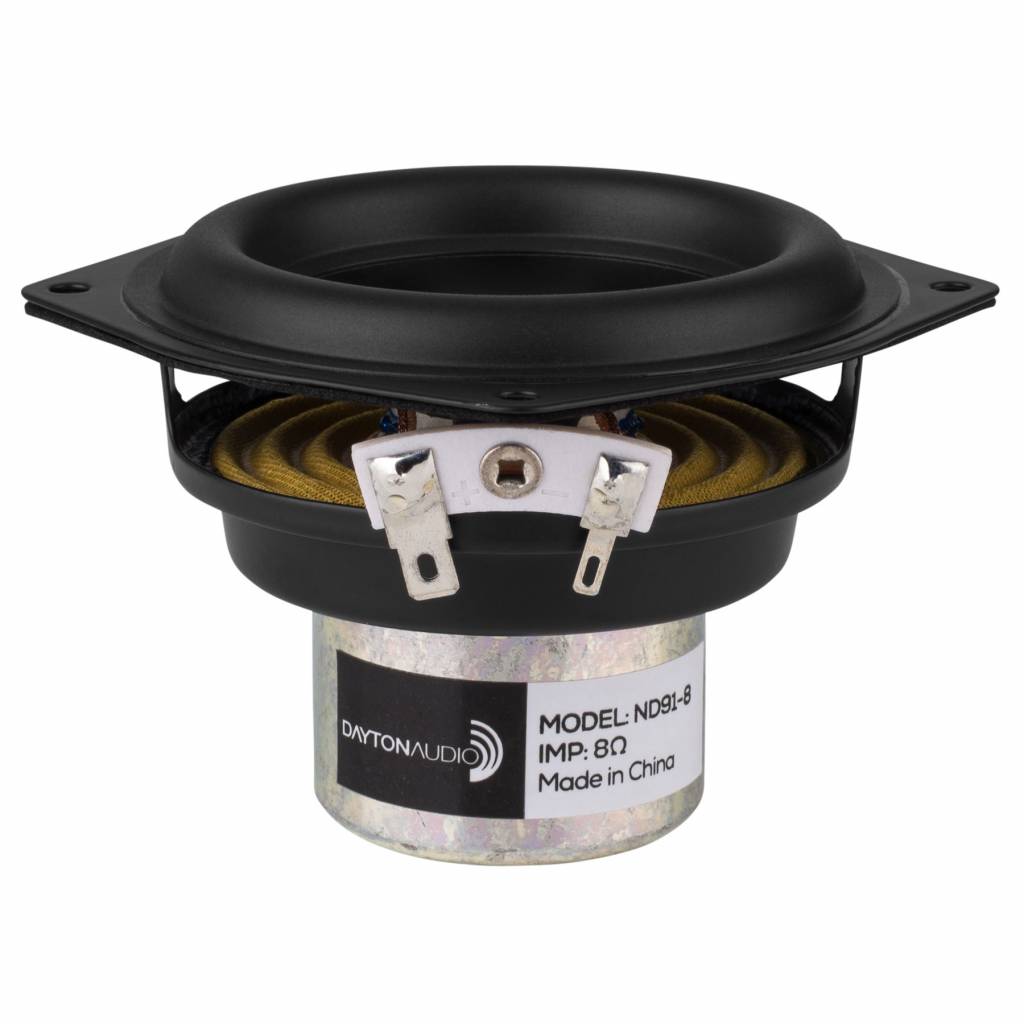

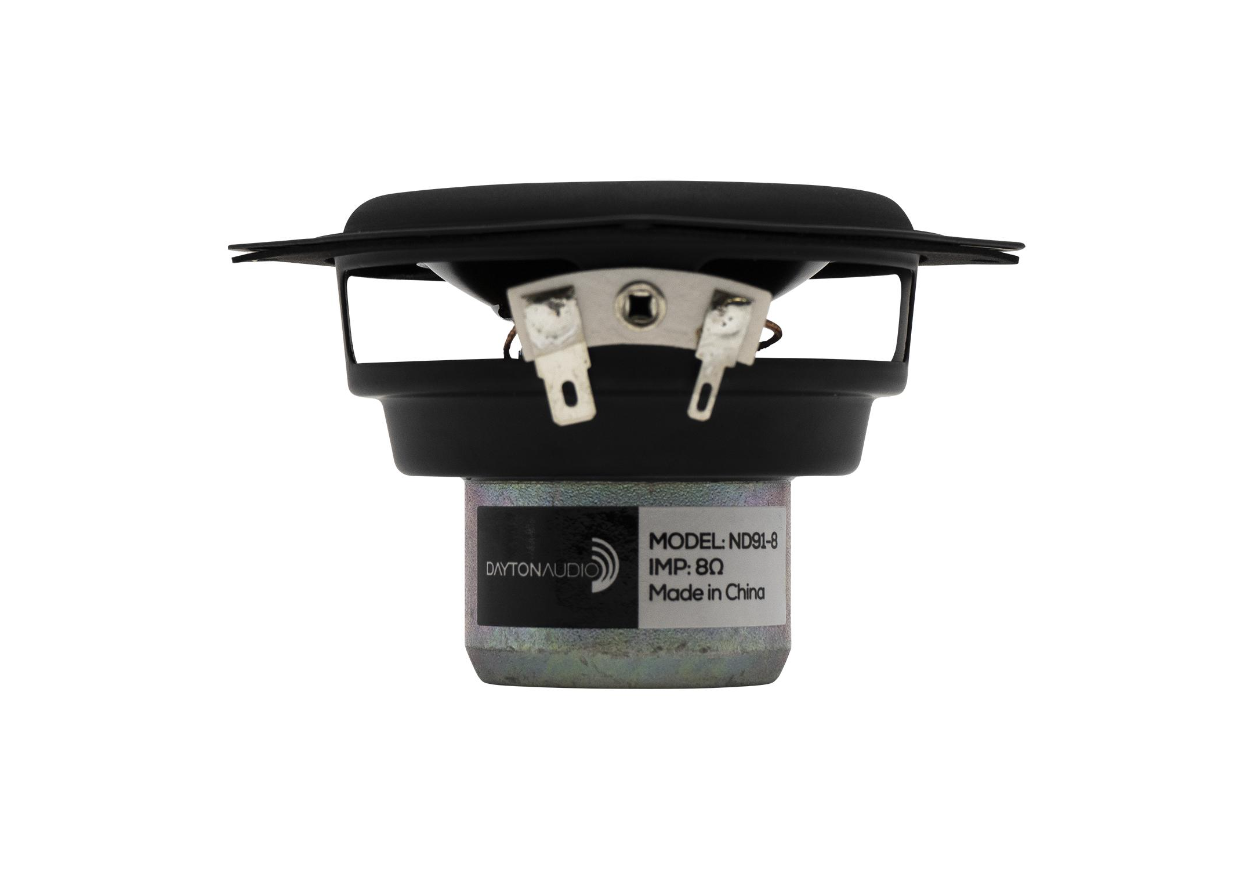

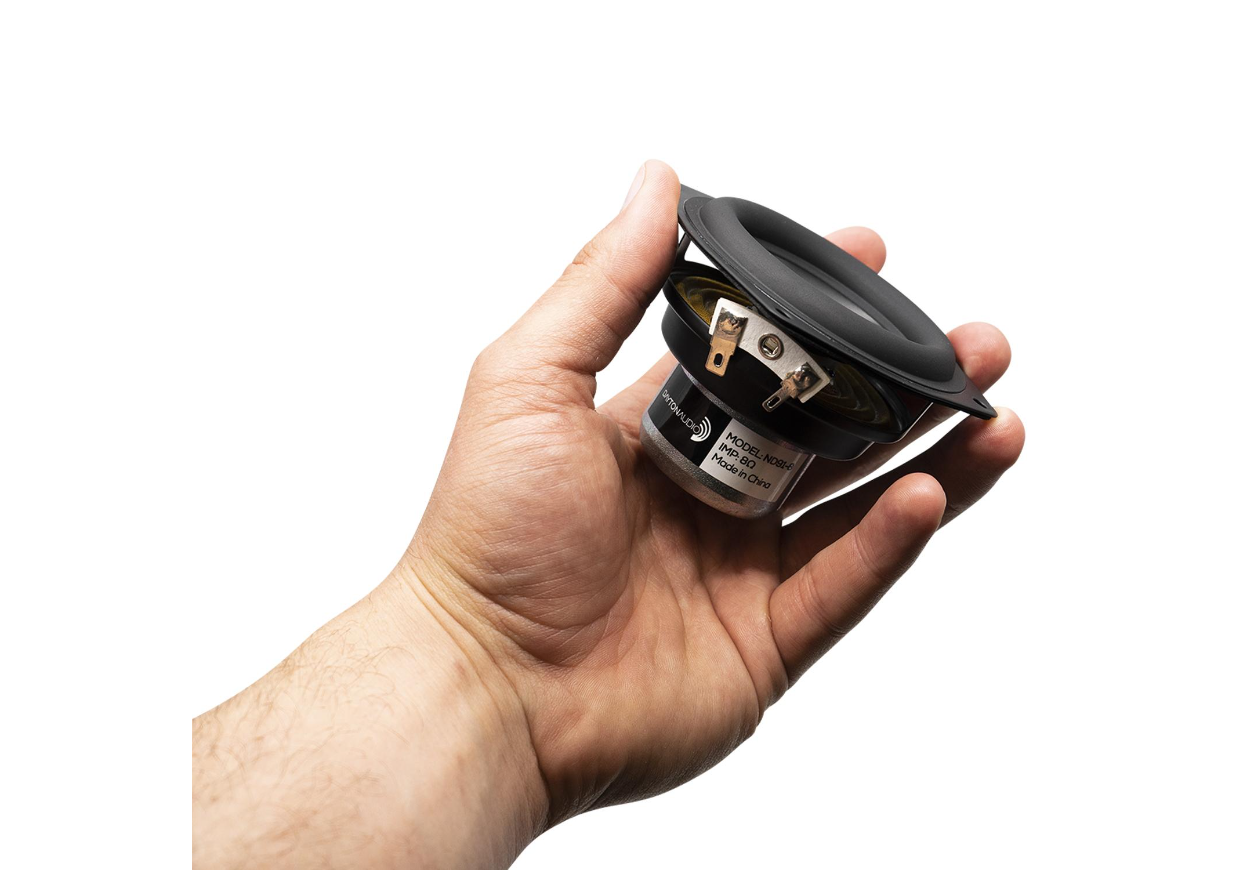

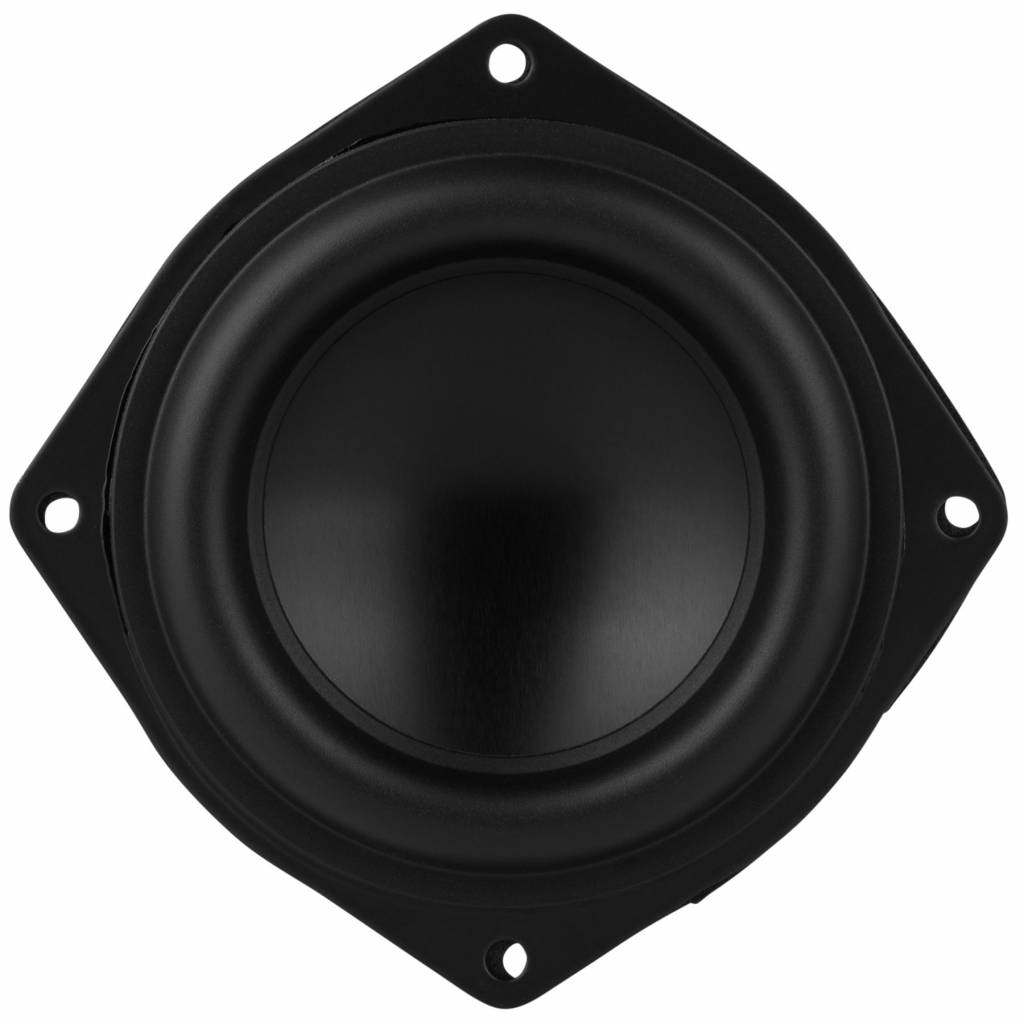

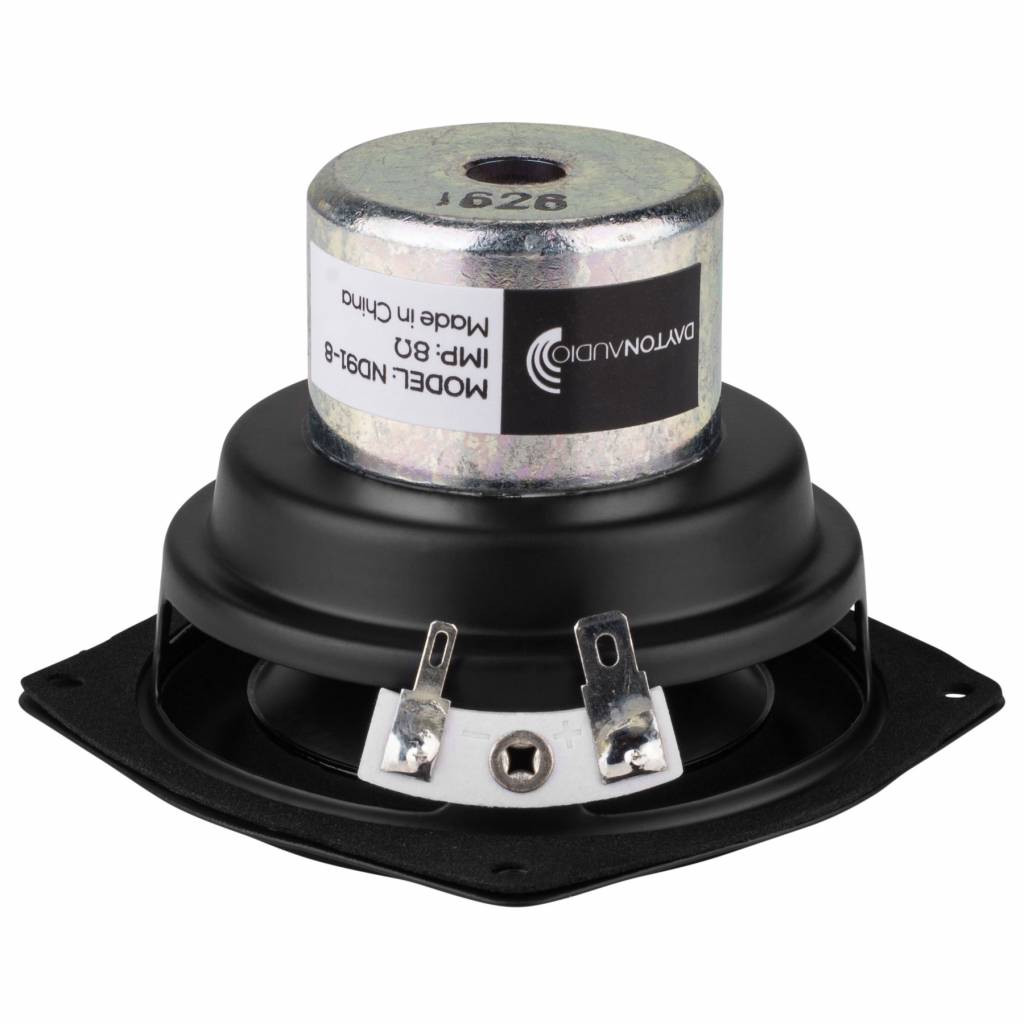

Dayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Driver 8 Ohm

5 reviews

Marke: Dayton Audio

Alle anzeigen Audio-Komponenten

Vergleichen

3.5" | 8 Ω

ND91-8 3-1/2" Aluminum Cone Full-Range Driver 8 Ohm

€ 25,58€ 30,95 >10 Auf Lager: Lieferzeit 1-3 Werktage

The Dayton Audio ND91-8 3-1/2" Neo-Balanced driver balances low distortion, extended range, and surprising bass impact. Its sophisticated motor design provides the underhung 1" voice coil with extended linear travel within the magnetic field.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Low distortion, full-range 65 Hz to 17 kHz performance
Rubber-edged black anodized aluminum alloy cone
Large excursion capability—5.1 mm Xmax, 25 mm peak
Self-shielded Neo-Balanced motor structure with copper alloy shorting ring
1" 4-layer underhung voice coil with polyimide former
30 watts RMS power handling
Great for line arrays and micro monitors

Product details

Dayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Driver 8 Ohm

Dayton Audio's ND91 aluminum cone full-range drivers are the latest addition to the acclaimed ND Series high output/low distortion neodymium transducers. By increasing the original ND90's voice coil diameter from 3/4" to 1" and adding a copper alloy shorting ring, the ND91-8 features even lower distortion and delivers better bass impact and dynamic range—with peak Xmax up to 25 mm!

This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motor's optimized magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.

Eigenschaften

Artikelnummer:: ND91-8
Woofer Series: ND Series
Woofer Type: Full-Range
Nominal Diameter: 3.50"
Power Handling (RMS): 30 watts
Power Handling (max): 60 watts
Impedance: 8 ohms
Sensitivity: 82.1 dB @ 2.83V/1m
Frequency Response: 70 - 17,000 Hz
Voice Coil Diameter: 25 mm
DC Resistance (Re): 7.8 ohms
Voice Coil Inductance (Le): 1.24 mH @ 1 kHz
Resonant Frequency (Fs): 70.7 Hz
Mechanical Q (Qms): 4.29
Electromagnetic Q (Qes): 0.53
Total Q (Qts): 0.47
Diaphragm Mass Inc. Airload (Mms): 4.8g
Mechanical Compliance of Suspension (Cms): 1.05 mm/N
Surface Area of Cone (Sd): 30.4 cm²
Volume of Displacement (Vd): 12.2 cm³
BL Product (BL): 5.63 Tm
Compliance Equivalent Volume (Vas): 1.53 liters
Maximum Linear Excursion (Xmax): 5.1 mm
Cone / Diaphragm Material: Aluminum Cone
Surround Material: Rubber
Voice Coil Wire Material: Aluminum
Voice Coil Former: Kapton® / Polyimide
Basket / Frame Material: Steel
Magnet Material: Ferrite
Shielded: Yes
Overall Outside Diameter: 103.5 mm
Overall Depth: 56.4 mm
Baffle Cutout Diameter: 85 mm
# Mounting Holes: 4
Sealed Volume: 0.02 ft.³
Sealed F3: 139 Hz
Vented Volume: 0.04 ft.³
Vented F3: 75 Hz

Data sheet

Bewertungen

5 reviews

5 from 5Based on 5 reviews

Produkt bewerten

5 van 5

I bought one ND91 driver and I used it in an portable speaker together with 2x DMA105 PR. Taking into account that the calculated enclosure volume is only 2 liter and the driver is built as a full-range, the bass is incredible. Both ND driver series and DMA PR series worth considering in your future projects!

Durch Cristian C. on 8 Dezember 2019

5 van 5

No description was given

Durch NIKOS K. on 11 September 2018

4 van 5

Solid bass performer for its size, will handle a lot of power. Audible flow noise from the ventilation at higher excursions. Nice, clean and punchy sound, but it's very directional at higher frequencies, so for HiFi applications it needs to be supported by a tweeter.

My measured TS:
Fs = 82.01 Hz
Re = 7.80 ohms[dc]
Le = 479.01 uH
Qt = 0.57
Qes = 0.64
Qms = 5.78
Mms = 5.18 grams
Cms = 0.000728 m/N
Vas = 0.82 liters
Sd= 28.27 cm^2
Bl = 5.755229 Tm

Durch Tomas on 22 Juli 2018

4 van 5

Dear Sirs,
For the moment I’ve only tested the ND91 for T/S parameters and frequency response and the conclusion is that the results are consistent for the 16 drivers tested, but both the impedance curve and the frequency responses downloaded from the official site are a little off, at least in the 2 ltr closed box where they were tested, one at a time.

Therefore I recommend that the files should be updated and/or rectified for this, perhaps, new batch.

For instance the average impedance in free air peaks at 88hz with 83.8 ohms, while the file for the ND91-8 impedance ‘says’ it should peak at a 70hz frequency with 70.6 ohms.

Best regards

Durch Edgar S. on 2 Juni 2018

5 van 5

No description was given

Durch kimmo m. on 24 April 2018
