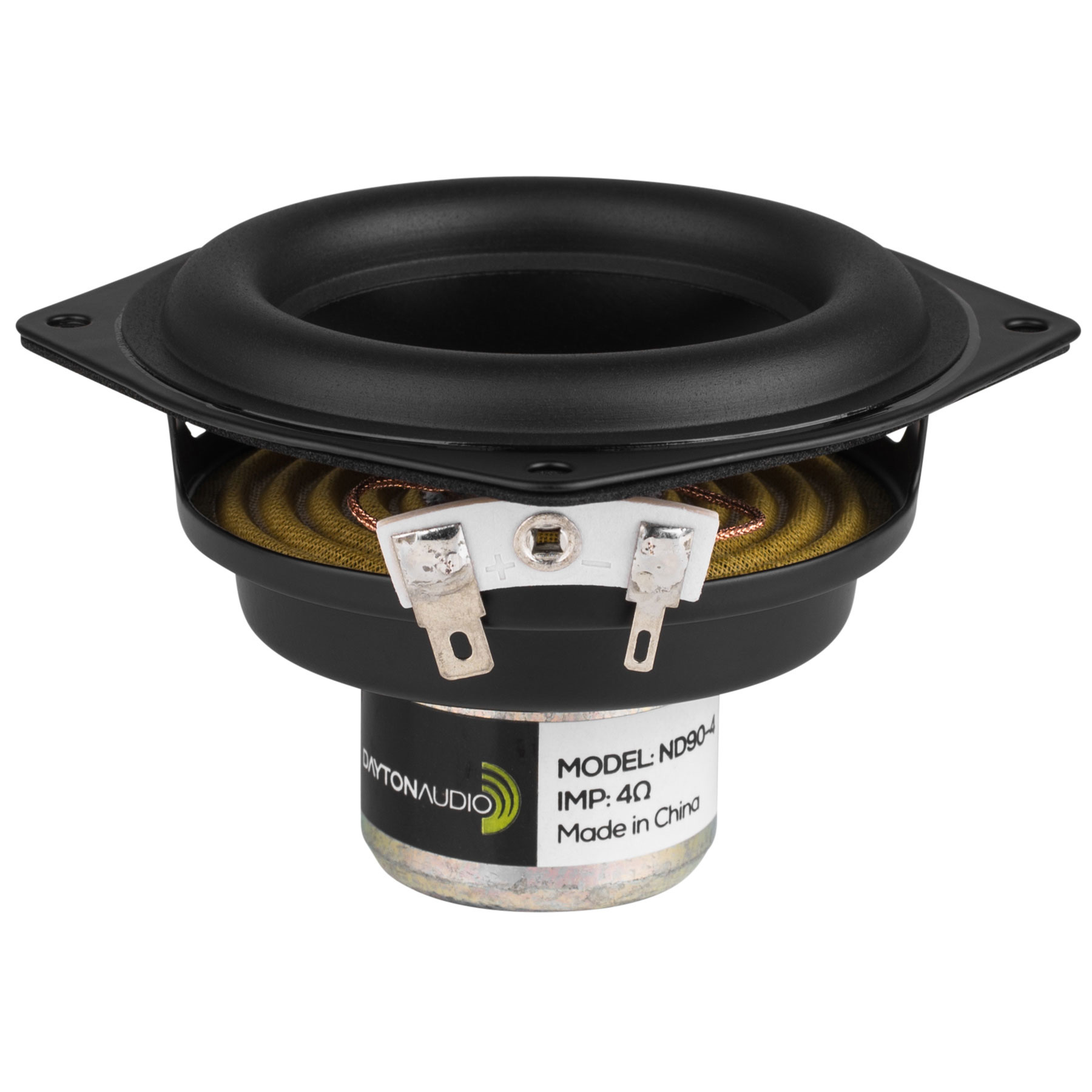

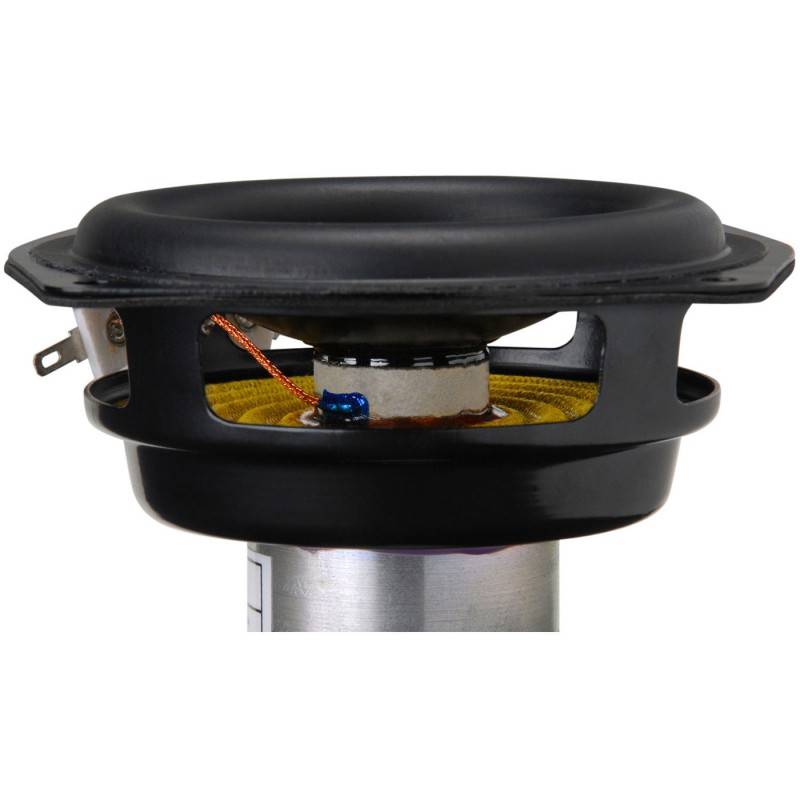

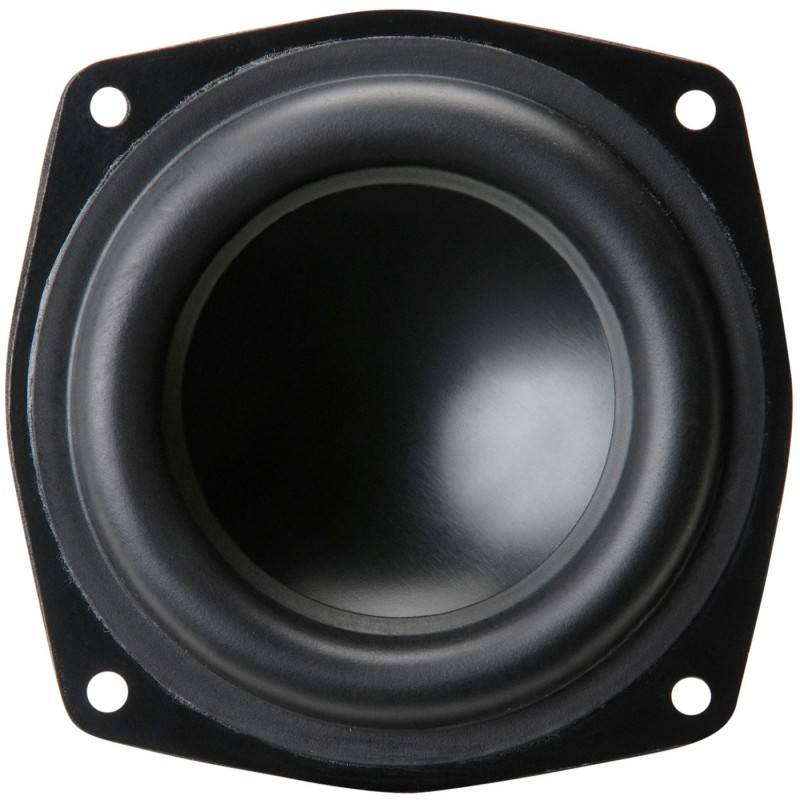

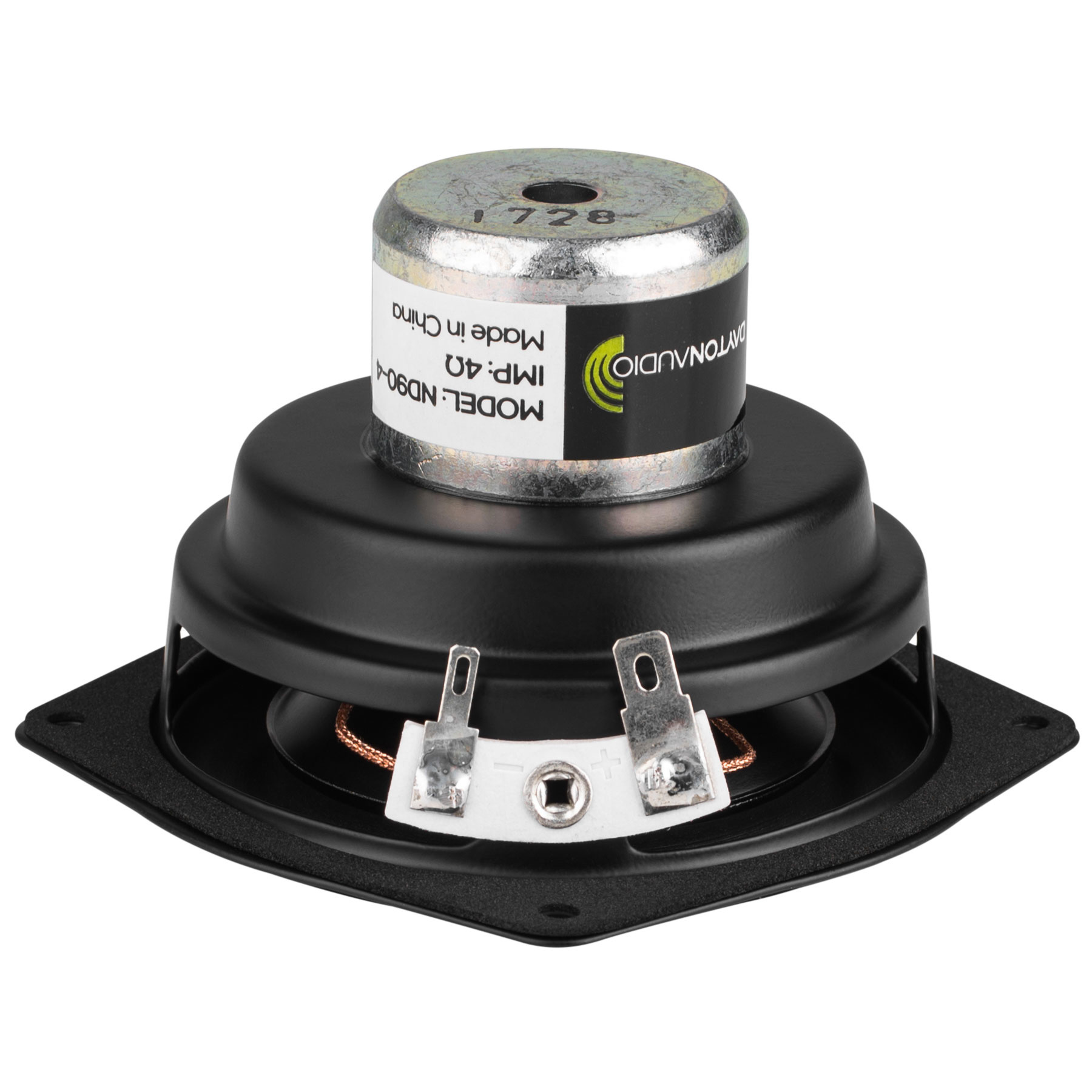

Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm

€ 21,86€ 26,45 3 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €25,13 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes.



Highlights

  • Full-range 80 Hz to 15 kHz performance
  • Rubber-edged aluminum alloy cone
  • Large excursion capability—4 mm Xmax, 20 mm peak
  • Self-shielded Neo-Balanced motor structure
  • 3/4" 4-layer underhung voice coil with polyimide former
  • 20 watts RMS power handling



Product details

Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm



Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

Eigenschaften

Artikelnummer:
ND90-4
Woofer Series
ND Series
Woofer Type
Full-Range
Nominal Diameter
3.50"
Power Handling (RMS)
20 watts
Power Handling (max)
40 watts
Impedance
4 ohms
Sensitivity
85.7 dB @ 2.83V/1m
Frequency Response
80 - 15,000 Hz
Voice Coil Diameter
19 mm
DC Resistance (Re)
3.6 ohms
Voice Coil Inductance (Le)
0.62 mH @ 1 kHz
Resonant Frequency (Fs)
90.2 Hz
Mechanical Q (Qms)
5.10
Electromagnetic Q (Qes)
0.72
Total Q (Qts)
0.63
Diaphragm Mass Inc. Airload (Mms)
4.3g
Mechanical Compliance of Suspension (Cms)
0.73 mm/N
Surface Area of Cone (Sd)
31.2 cm²
Volume of Displacement (Vd)
12.5 cm³
BL Product (BL)
3.47 Tm
Compliance Equivalent Volume (Vas)
1.06 liters
Maximum Linear Excursion (Xmax)
4.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Steel
Magnet Material
Neodymium
Shielded
Yes
Overall Outside Diameter
103.5 mm
Overall Depth
60.8 mm
Baffle Cutout Diameter
85 mm
# Mounting Holes
4
Sealed Volume
0.1 ft.³
Sealed F3
90 Hz
Vented Volume
0.16 ft.³
Vented F3
48 Hz

Bewertungen

5 from 5Based on 3 reviews
Produkt bewerten
5 van 5
Great quality! Great sound for 3 1/2 ". Absolutely recommended!
Durch Björn R. on 31 März 2021
4 van 5
For its size it reaches quite low frequency and a very wide range. Low distortion. Perhaps the aluminum cone colors too much sound at medium high frequencies
Durch Pedro C. on 18 April 2018
Mehr anzeigen
