      ND65-PR Passivradiator

      ND65-PR Passivradiator

      €16,45

      Dayton Audio ND65-PR Passivradiator

      1 reviews
      4 von 5
      1 reviews
      5 Sterne
      0%
      4 Sterne
      100%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      13,60 €16,45 € 10+ Auf Lager
      • -5% Bestelle 4 für nur 15,63 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung

      The Dayton Audio ND65-PR 2-1/2" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output.



      Highlights

      • Rigid black anodized aluminum alloy cone
      • High excursion capability: 10 mm peak to peak
      • Same "family look" as ND Series woofers
      • Mass adjustable for a vast range of tuning frequencies



      Product details

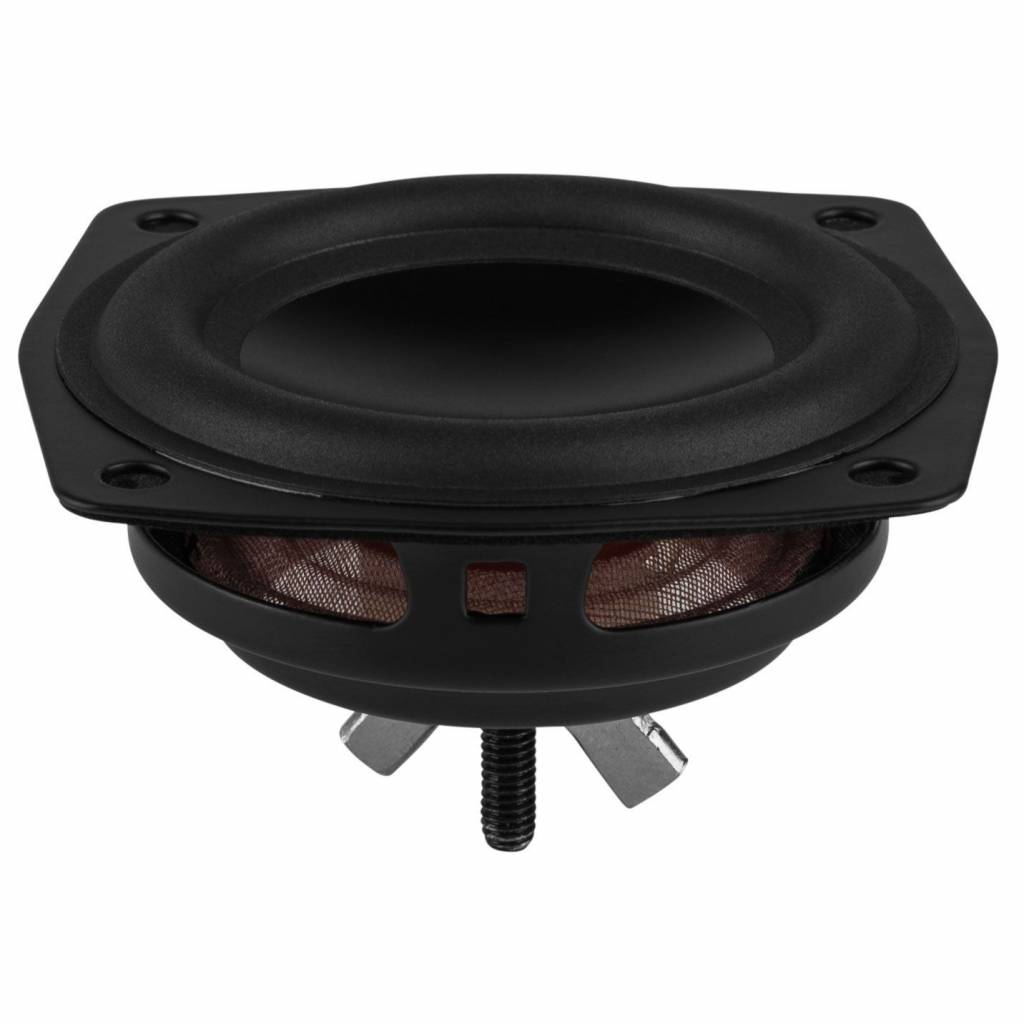

      Dayton Audio ND65-PR 2-1/2" Aluminum Cone Passive Radiator

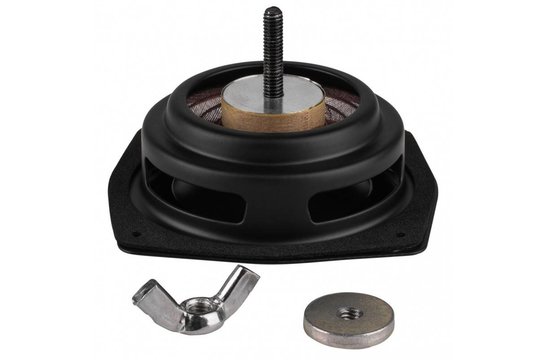

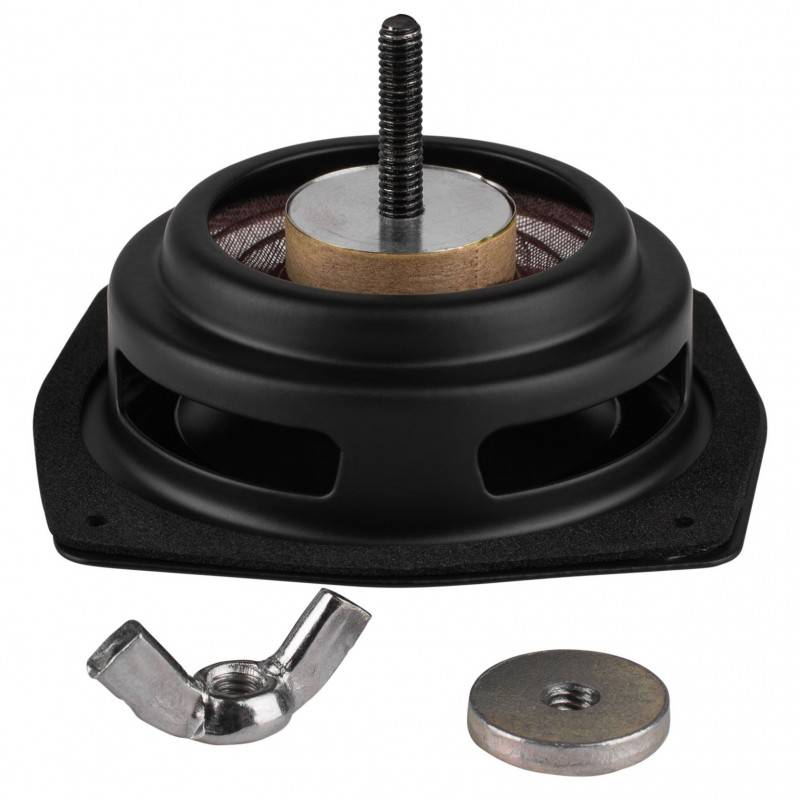

      Tune small enclosures with Dayton Audio's ND65-PR 2-1/2" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND65-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND65-PR introduces a new range of possibilities.



      The ND65-PR 2-1/2" passive radiator includes:

      (1) Passive radiator

      (1) 4.3 gram disk weight

      (1) Wing nut



      Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      ND65-PR
      Tieftöner-Serie
      ND Series
      Tieftönertyp
      Passive Radiator
      Nenndurchmesser
      2.50"
      Resonanzfrequenz (Fs)
      73 Hz
      Mechanische Güte (Qms)
      2.69
      Bewegliche Masse (Mms)
      3.2g
      Nachgiebigkeit der Aufhängung (Cms)
      1.45 mm/N
      Membranfläche (Sd)
      15.6 cm²
      Äquivalentvolumen (Vas)
      0.5 liters
      Maximale Auslenkung (Xmax)
      5 mm
      Driver's Mechanical Losses (Rms)
      0.56 kg/s
      Cone / Diaphragm Material
      Aluminum Cone
      Sicke-Material
      Rubber
      Korb- / Rahmenmaterial
      Steel
      Außendurchmesser
      2.52"
      Gesamttiefe
      1.89"
      Ausschnittdurchmesser
      2.05"
      # Befestigungsbohrungen
      4

      Mehr anzeigen

      4 von 5
      Es wurde keine Beschreibung gegeben.
      Durch Daniel E. on 19 Februar 2021
