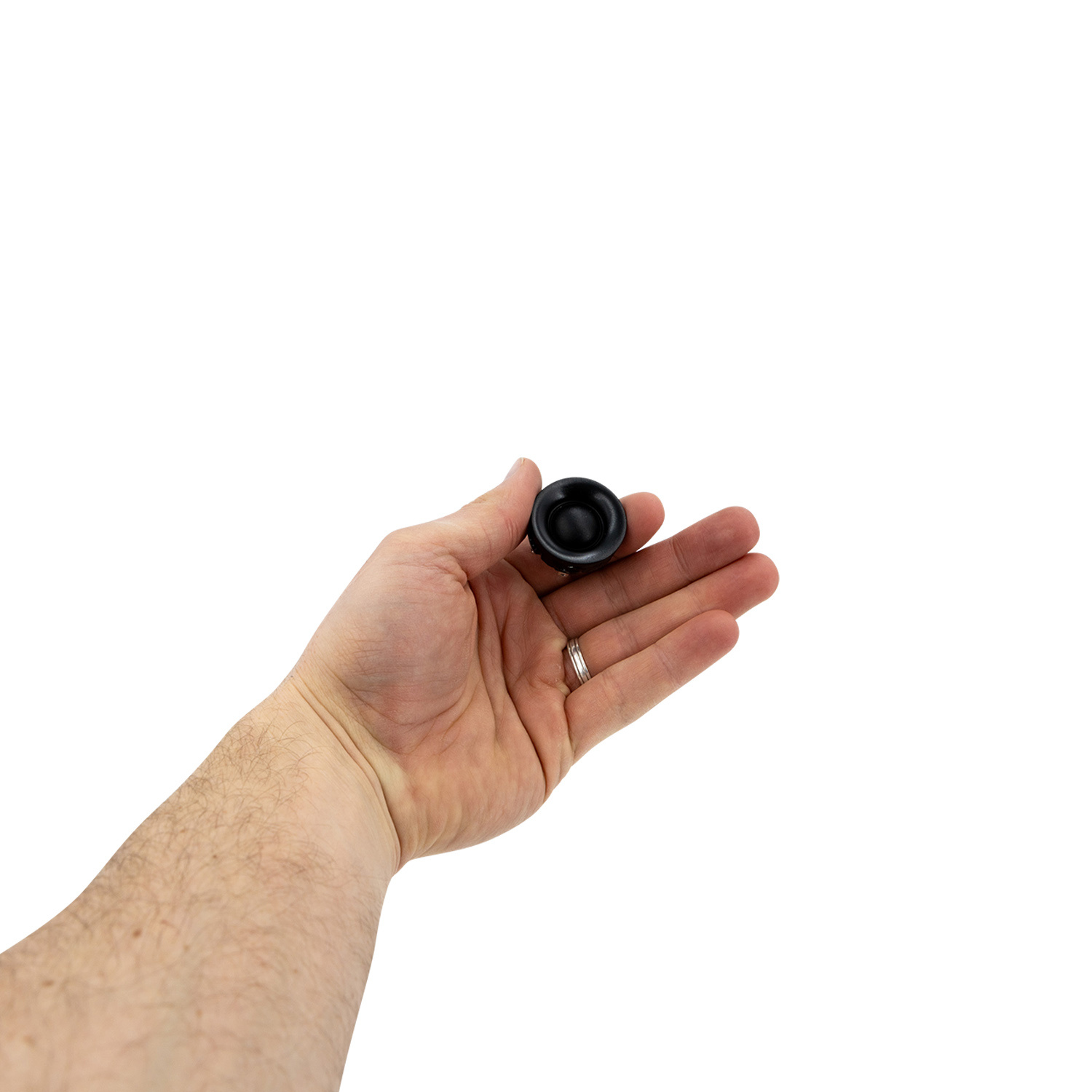

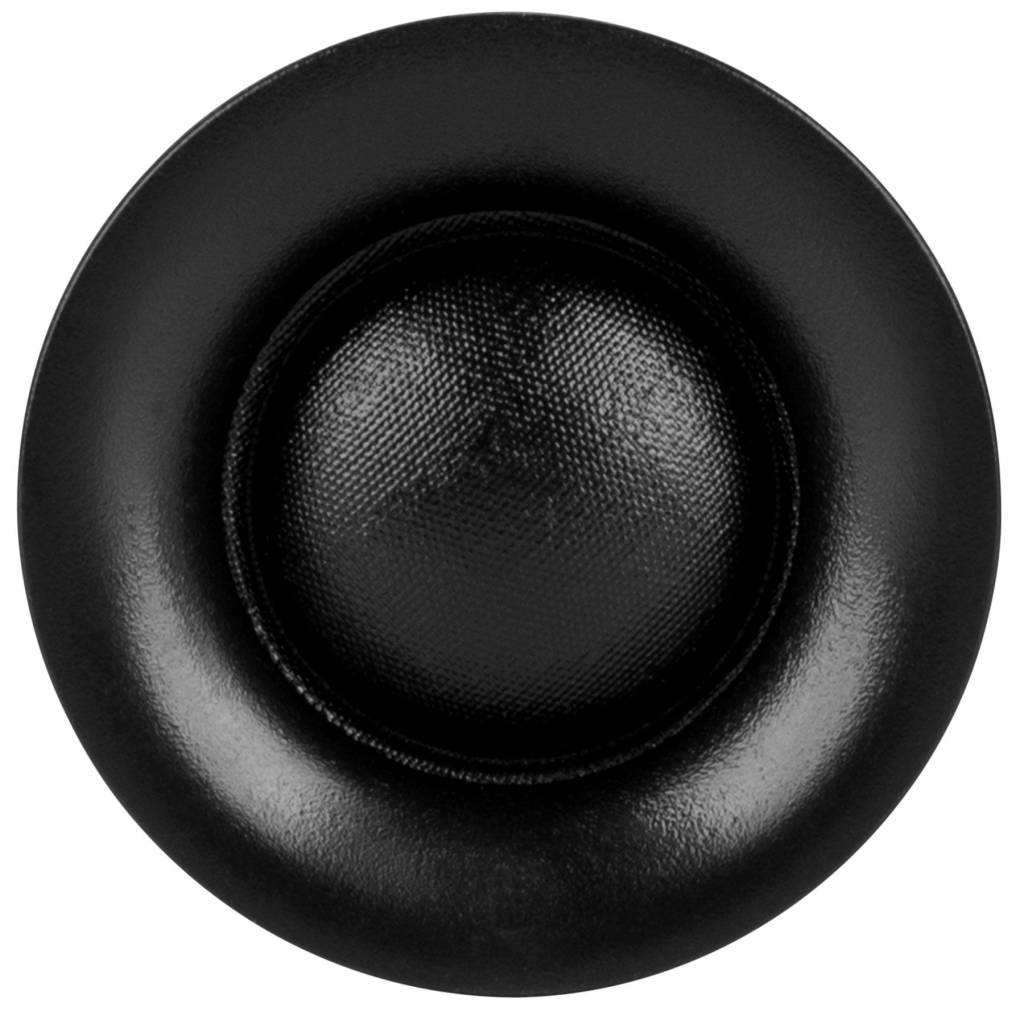

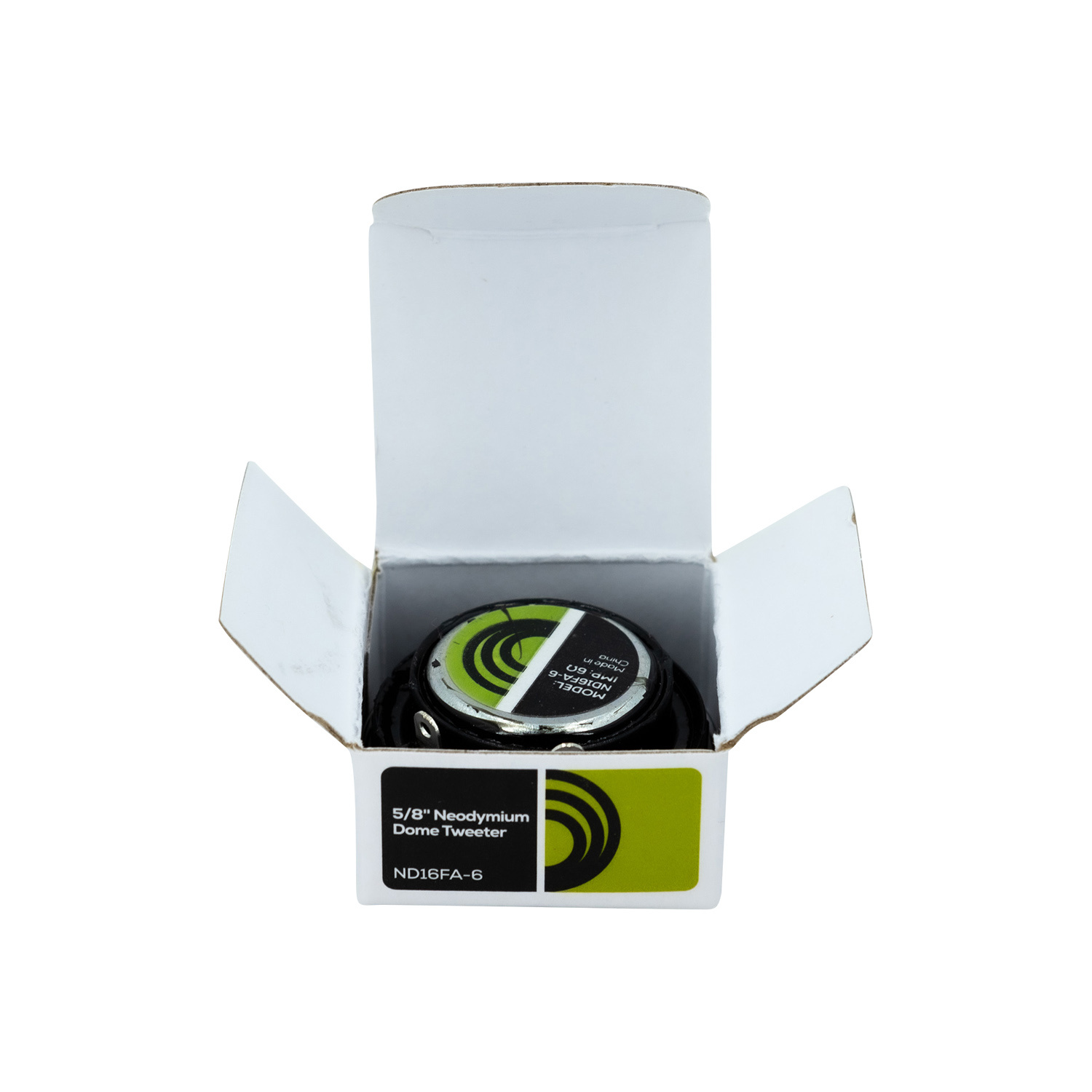

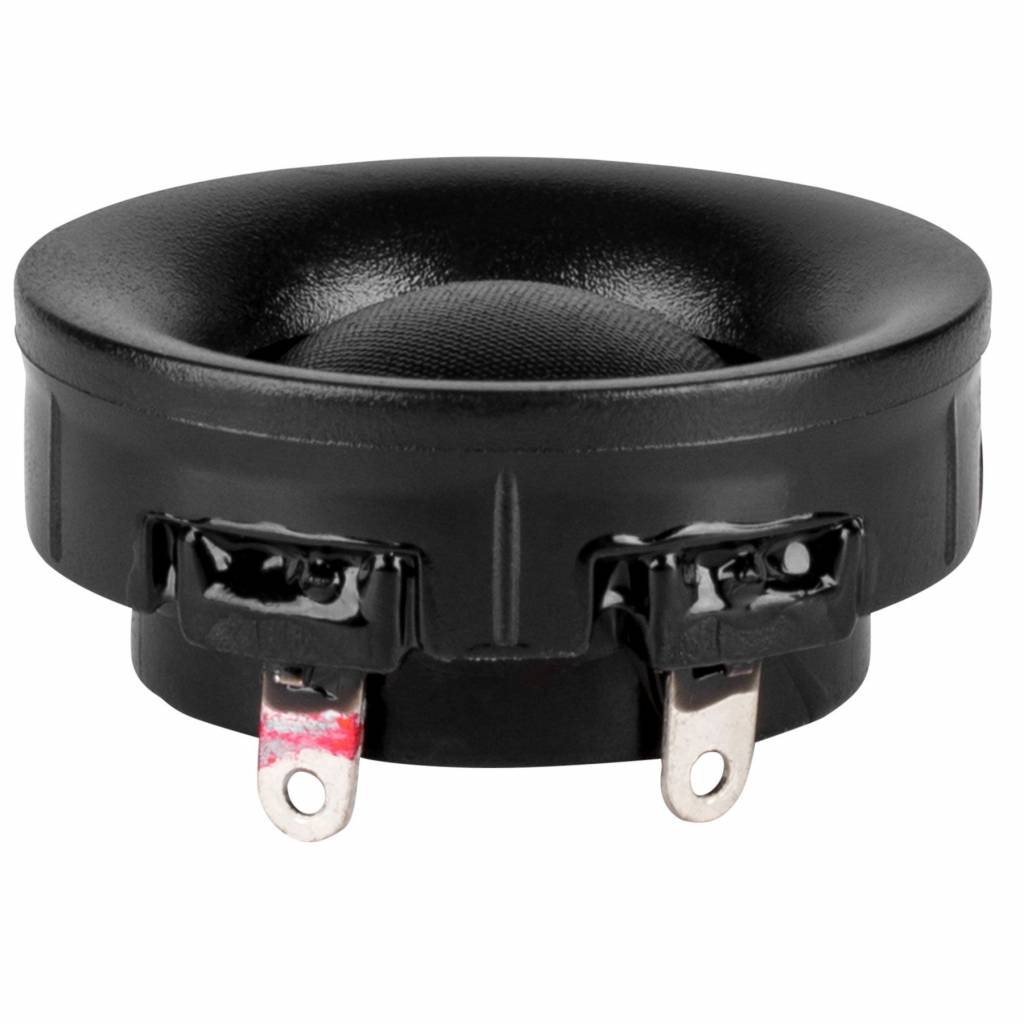

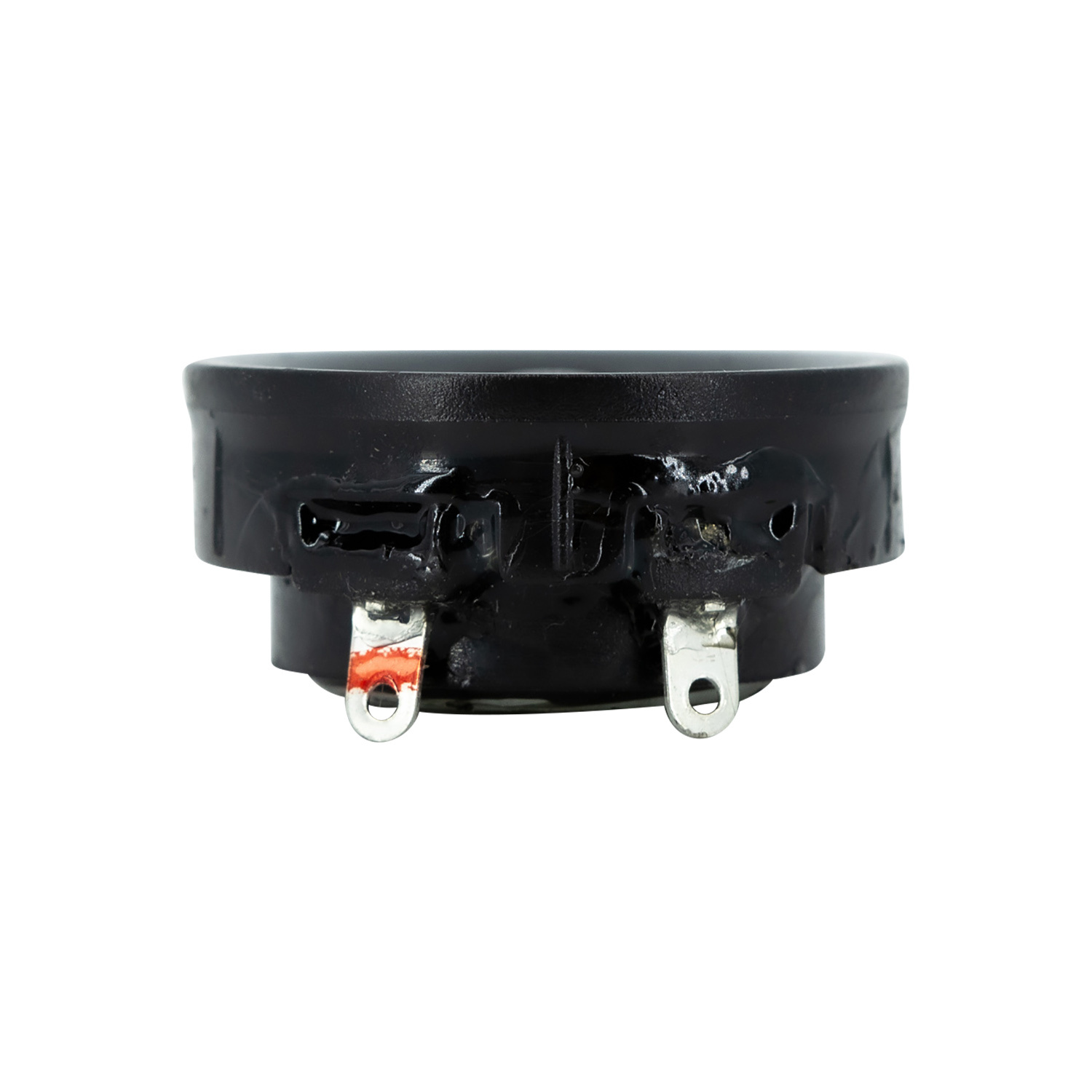

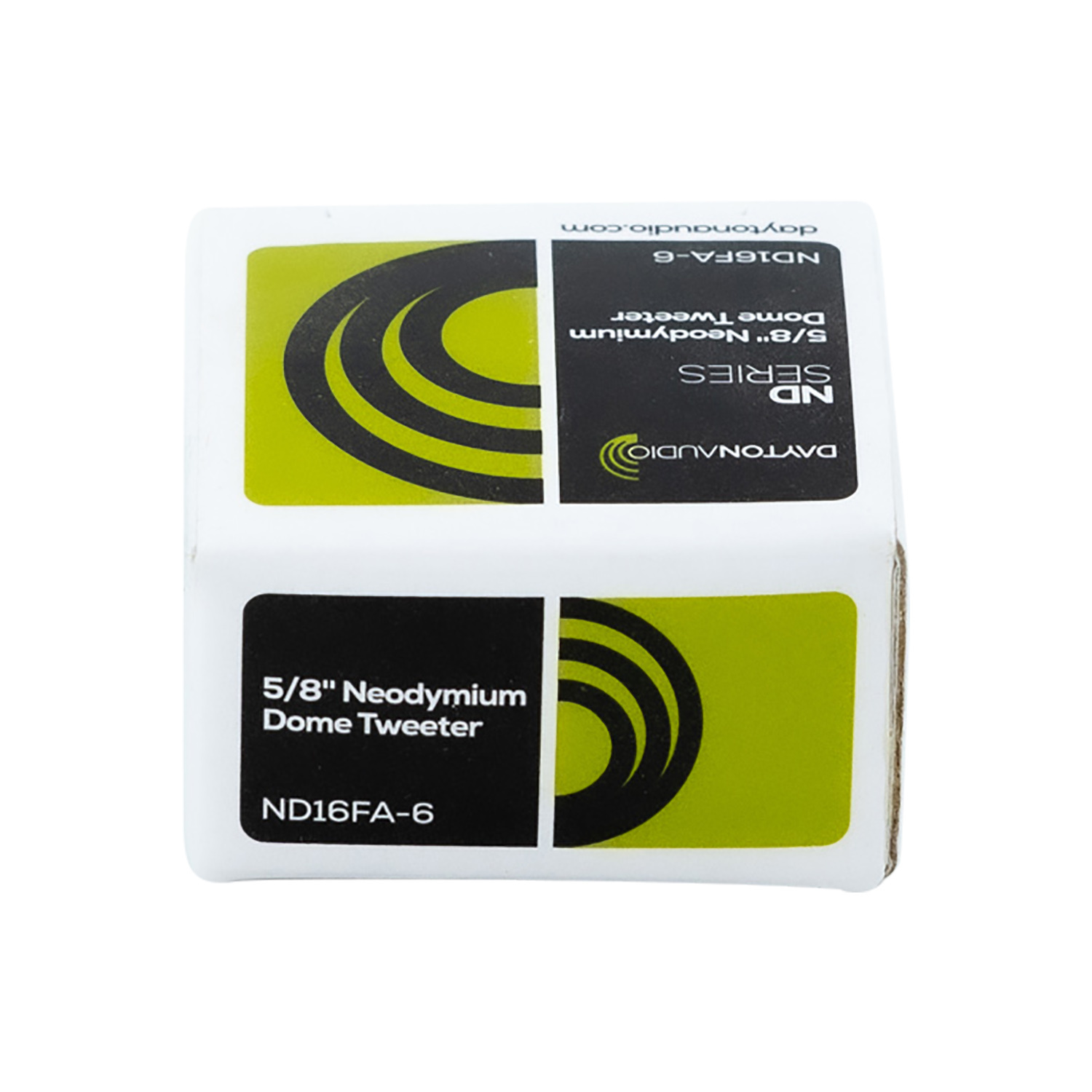

Dayton Audio ND16FA-6 Kalotten-Hochtöner

4 reviews

Marke: Dayton Audio

Alle anzeigen Kalotten-Hochtöner

Vergleichen

5/8" | 6 Ω

9,05 €10,95 € 10+ Auf Lager: Lieferzeit 1-3 Werktage

Kostenloser Versand ab 149 € (DE & A)
Versicherter Versand am selben Tag
Hausinterner technischer Support
45 Tage Widerrufsrecht

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter.

Highlights

Unique front pressfit, flush-mount design
Center-to-center spacing as low as 1-3/8"
Extended response with superior off-axis dispersion
Compact neodymium motor is effectively self-shielded
Ferrofluid enhances power handling and helps damp resonance

Product details

Dayton Audio ND16FA-6 5/8" Neodymium Dome Tweeter

Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays-- they have the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!

Eigenschaften

Artikelnummer:: ND16FA-6
Hochtönertyp: Soft Dome
Hochtöner-Serie: ND Series
Cone / Dome Diameter: 16 mm | 5/8"
Belastbarkeit (QMW): 10 Watts
Impedanz (Z): 6 Ω
Empfindlichkeit: 89 dB 1W/1m
Frequenzgang: 3,500 to 27,000 Hz
Resonanzfrequenz (Fs): 2,283 Hz
Gleichstromwiderstand (Re): 5.00 ohms
Voice Coil Inductance (Le): 0.05 mH
Außendurchmesser: 1.28"
Ausschnittdurchmesser: 1"
Tiefe: 0.57"

Data sheet

Bewertungen

4 reviews

5 from 5Based on 4 reviews

Produkt bewerten

5 von 5

I used two of these tweeters with two Dayton audio tcp115-4 and a crossover frequency around 4400Hz (look for "Dayton 4" and you'll find a scheme of the crossover I got the inspiration from). The size was perfect for me as I had very little space to fit them, and the sound is crystal clear and enjoyable. Considering price and size I am really satisfied.

Durch Compact but great sounding on 9 Dezember 2020

5 von 5

This is a very good tweeter with crystal clear sound.

Durch NIKOS K. on 10 September 2018
