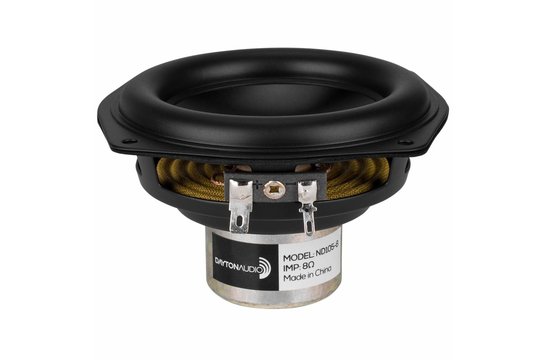

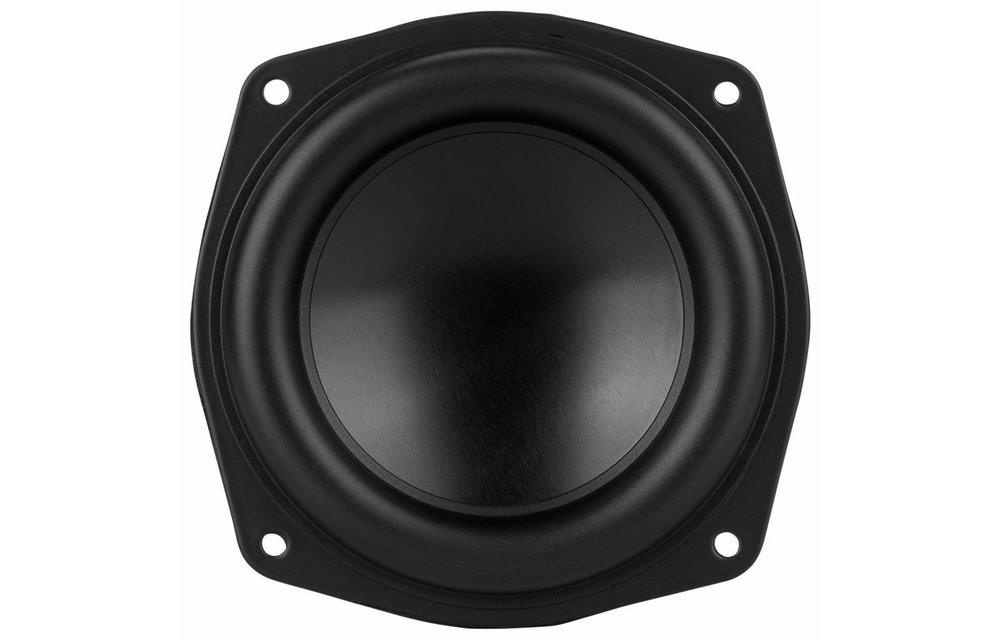

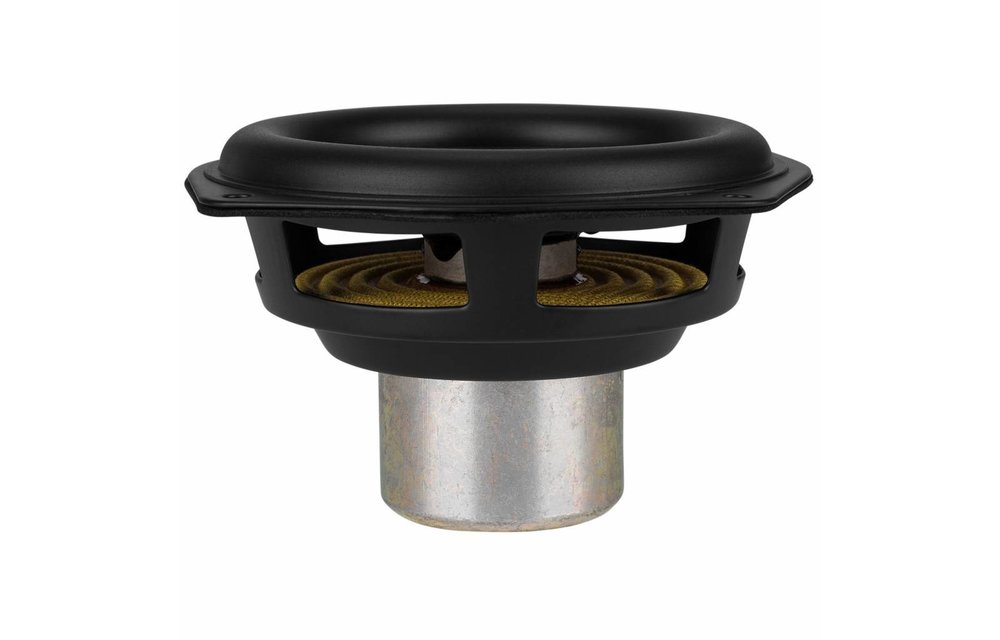

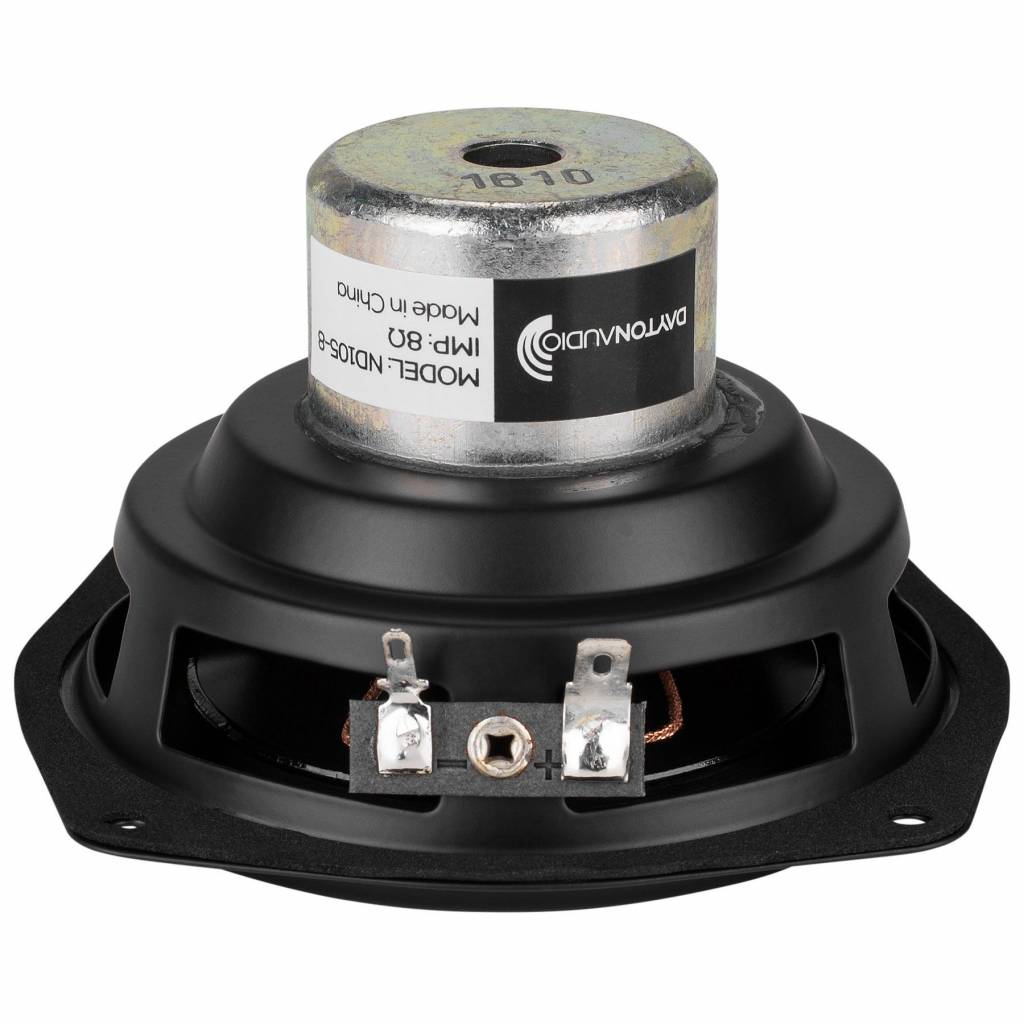

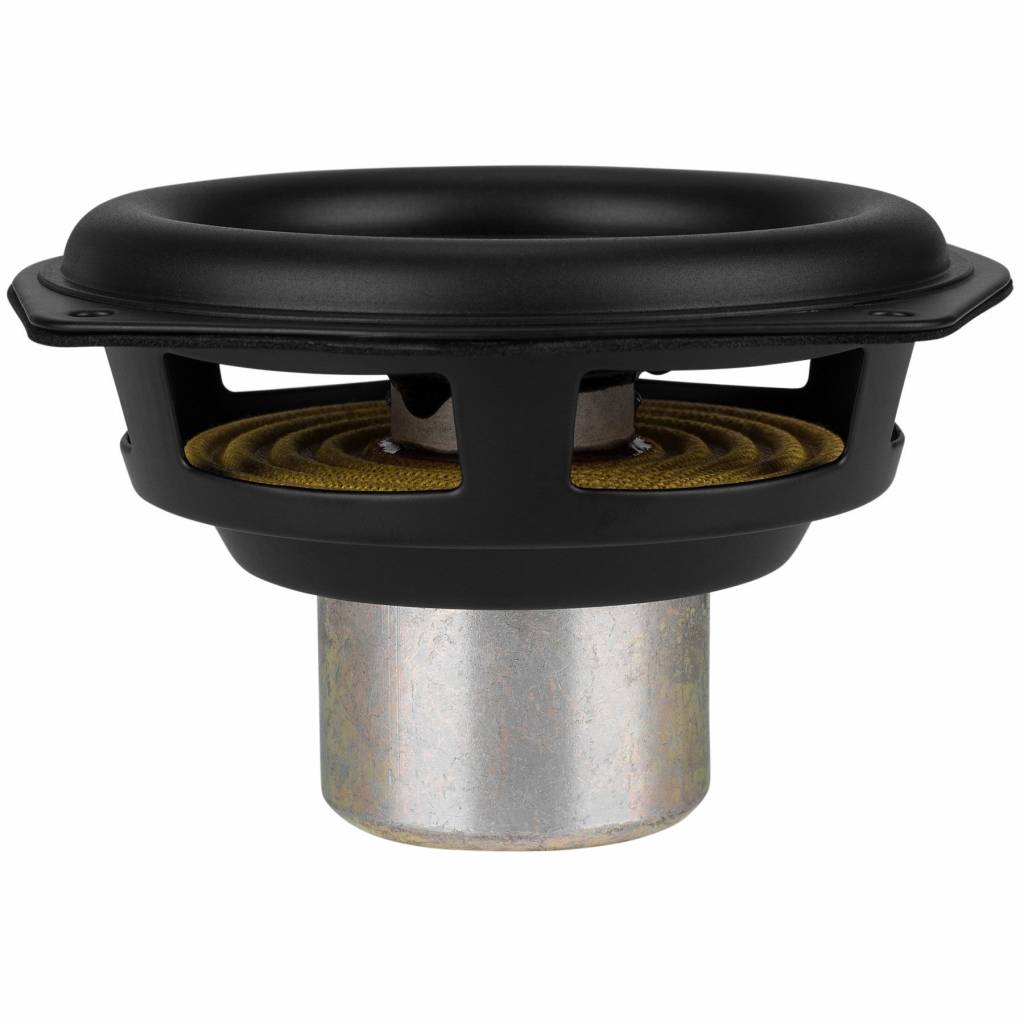

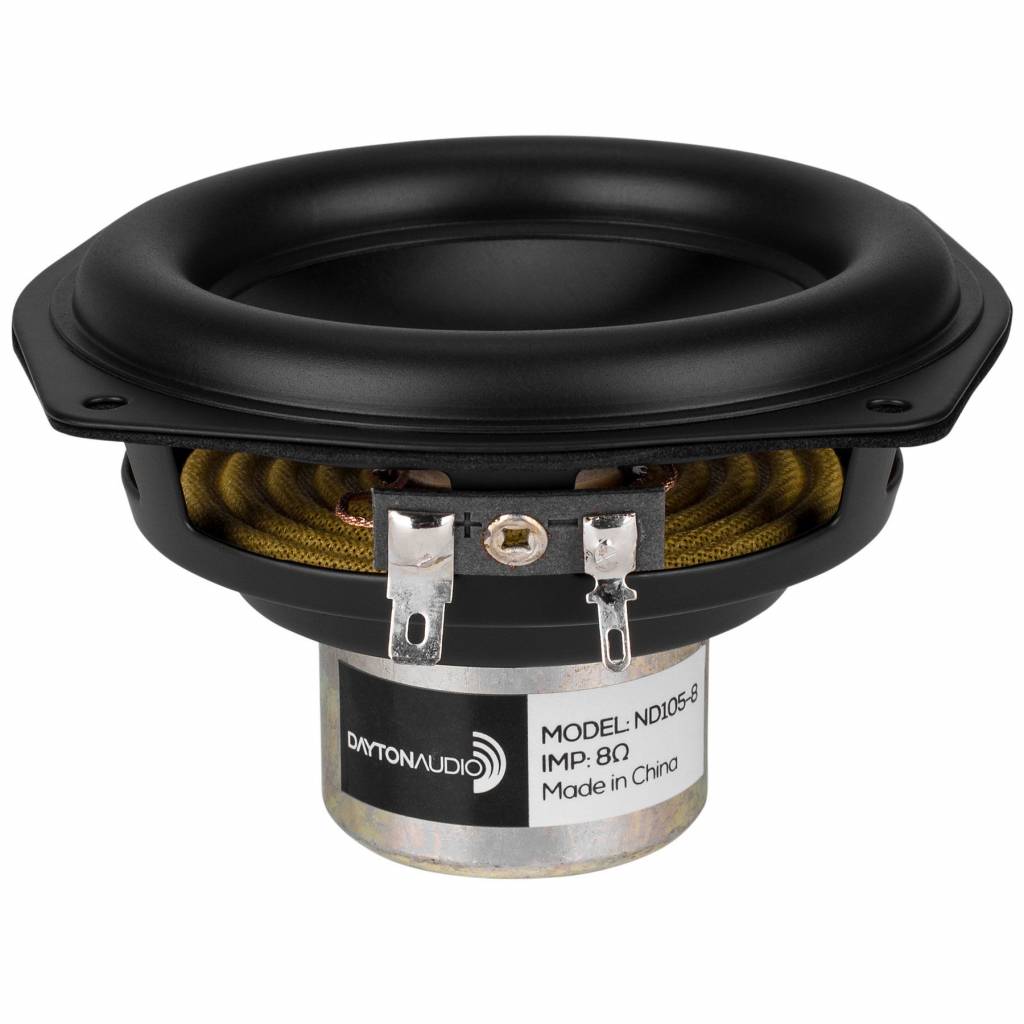

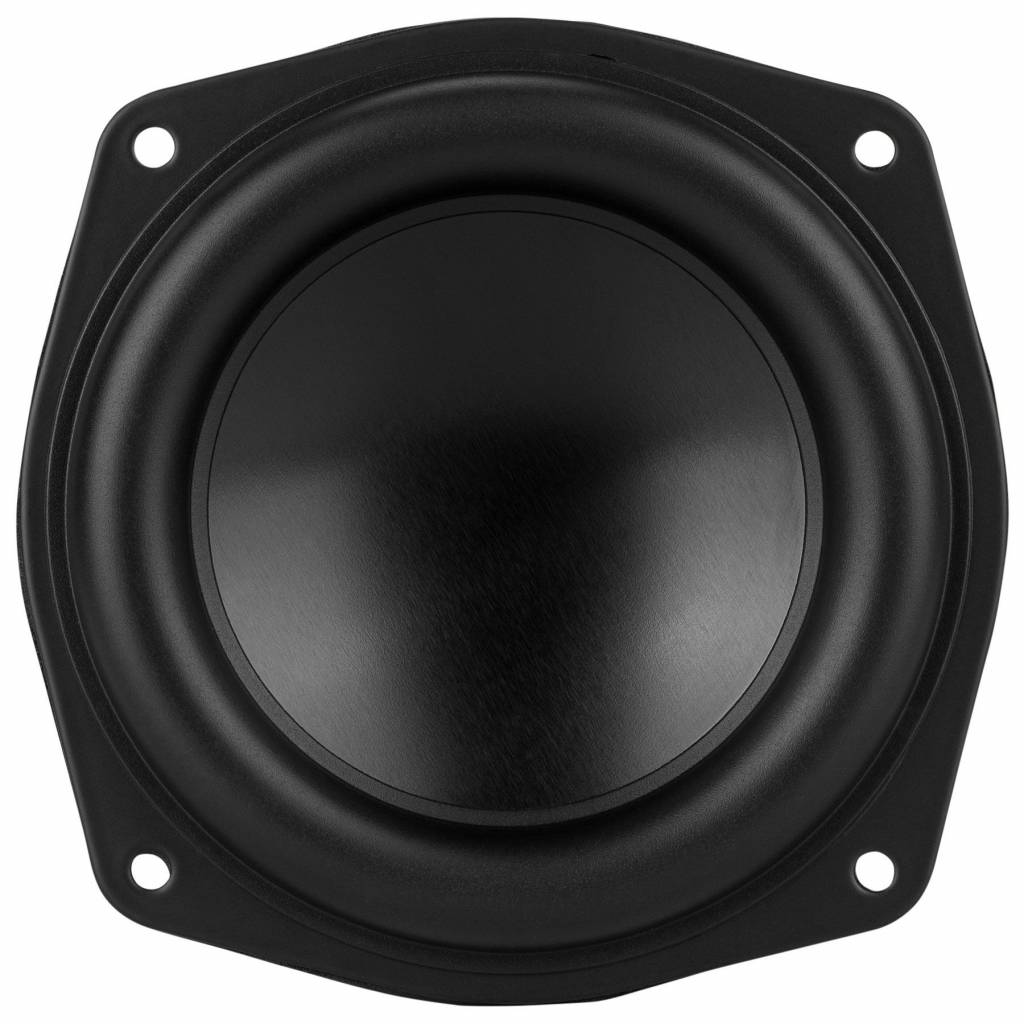

Dayton Audio ND105-8 4" Aluminum Cone Midbass Driver 8 Ohm

€ 24,75€ 29,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €28,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes.



Highlights

  • Extended-range 60 Hz to 10 kHz performance
  • Rubber-edged aluminum alloy cone
  • Large excursion capability—4 mm Xmax, 20 mm peak
  • Self-shielded Neo-Balanced motor structure
  • 1" 4-layer underhung voice coil with polyimide former
  • 30 watts RMS power handling



Product details

Dayton Audio ND105-8 4" Aluminum Cone Midbass Driver 8 Ohm



Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

Eigenschaften

Artikelnummer:
ND105-8
Woofer Series
ND Series
Woofer Type
Midwoofer
Nominal Diameter
4"
Power Handling (RMS)
30 watts
Power Handling (max)
60 watts
Impedance
8 ohms
Sensitivity
82.7 dB @ 2.83V/1m
Frequency Response
60 - 10,000 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
7.7 ohms
Voice Coil Inductance (Le)
1.25 mH @ 1 kHz
Resonant Frequency (Fs)
66.6 Hz
Mechanical Q (Qms)
5.57
Electromagnetic Q (Qes)
0.74
Total Q (Qts)
0.66
Diaphragm Mass Inc. Airload (Mms)
6.8g
Mechanical Compliance of Suspension (Cms)
0.84 mm/N
Surface Area of Cone (Sd)
51.5 cm²
Volume of Displacement (Vd)
20.6 cm³
BL Product (BL)
0.84 Tm
Compliance Equivalent Volume (Vas)
2.97 liters
Maximum Linear Excursion (Xmax)
4.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Steel
Magnet Material
Neodymium
Shielded
Yes
Overall Outside Diameter
105 mm
Overall Depth
67 mm
Baffle Cutout Diameter
93 mm
# Mounting Holes
4
Sealed Volume
0.18 ft.³
Sealed F3
85 Hz
Vented Volume
0.35 ft.³
Vented F3
43 Hz

Bewertungen

5 from 5Based on 7 reviews
Produkt bewerten
5 van 5
Absolutely great little drivers. I am using 2 of them in a MTM formation (with ND20FA Tweeters) and the sound reproduction is brilliant.
Depth of bass from such a small driver surprised me but the long travel excursion really helps it shine.
Rear mounted in an 18mm (1/2") thick baffle, I had to recess then from the back slightly to bring them forward as they sat too deep and sounded stifled otherwise.
Recommend these to anyone looking for a great priced set of small mid-bass woofers.
Durch Greig Mitchell on 6 April 2021
5 van 5
Für diese Größe sind die Lautsprecher wirklich super. In dem richtigen Gehäuse können sie auch sehr tiefe Frequenzen spielen.
Durch Frank S. on 7 Januar 2020
