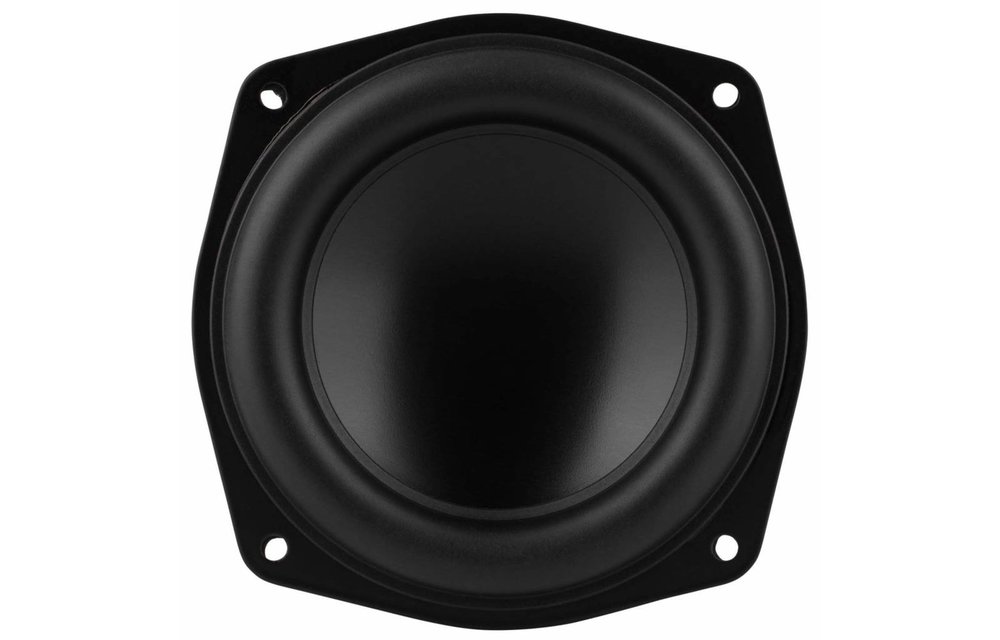

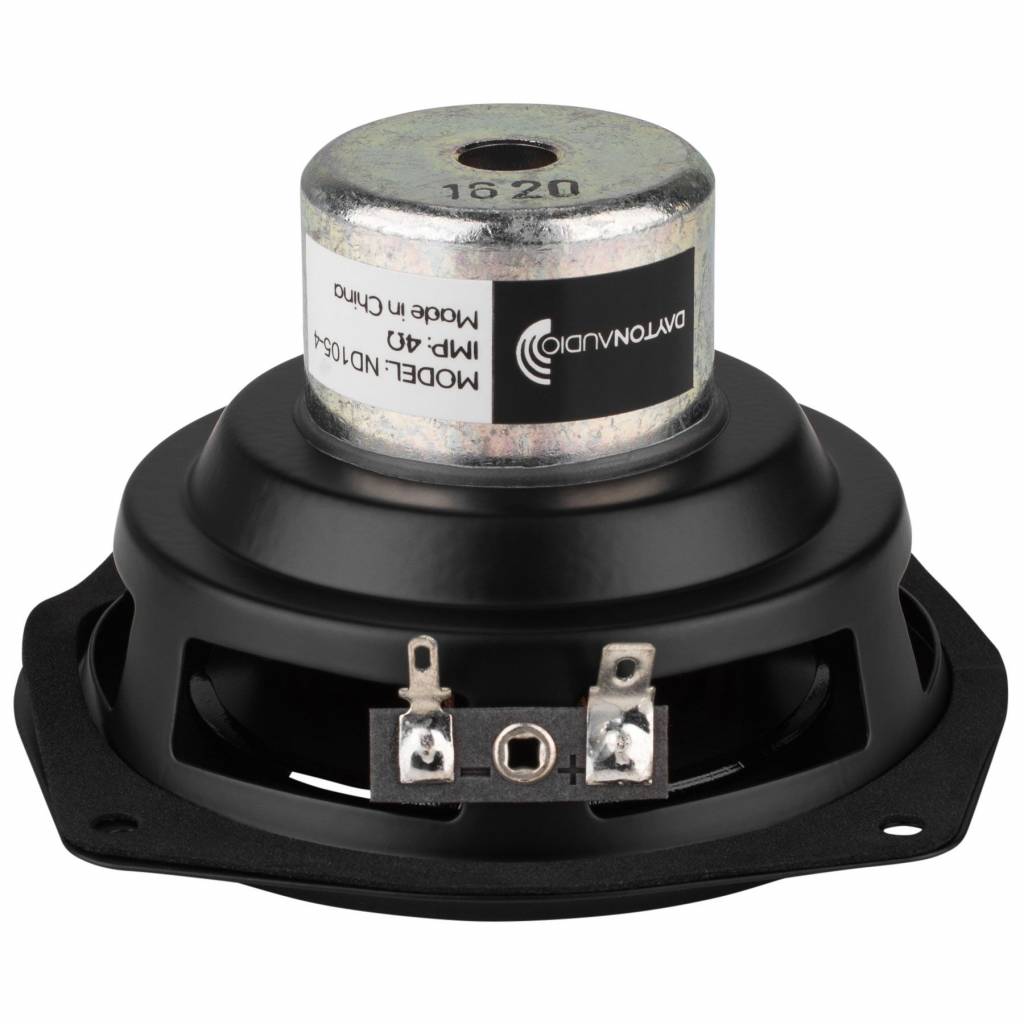

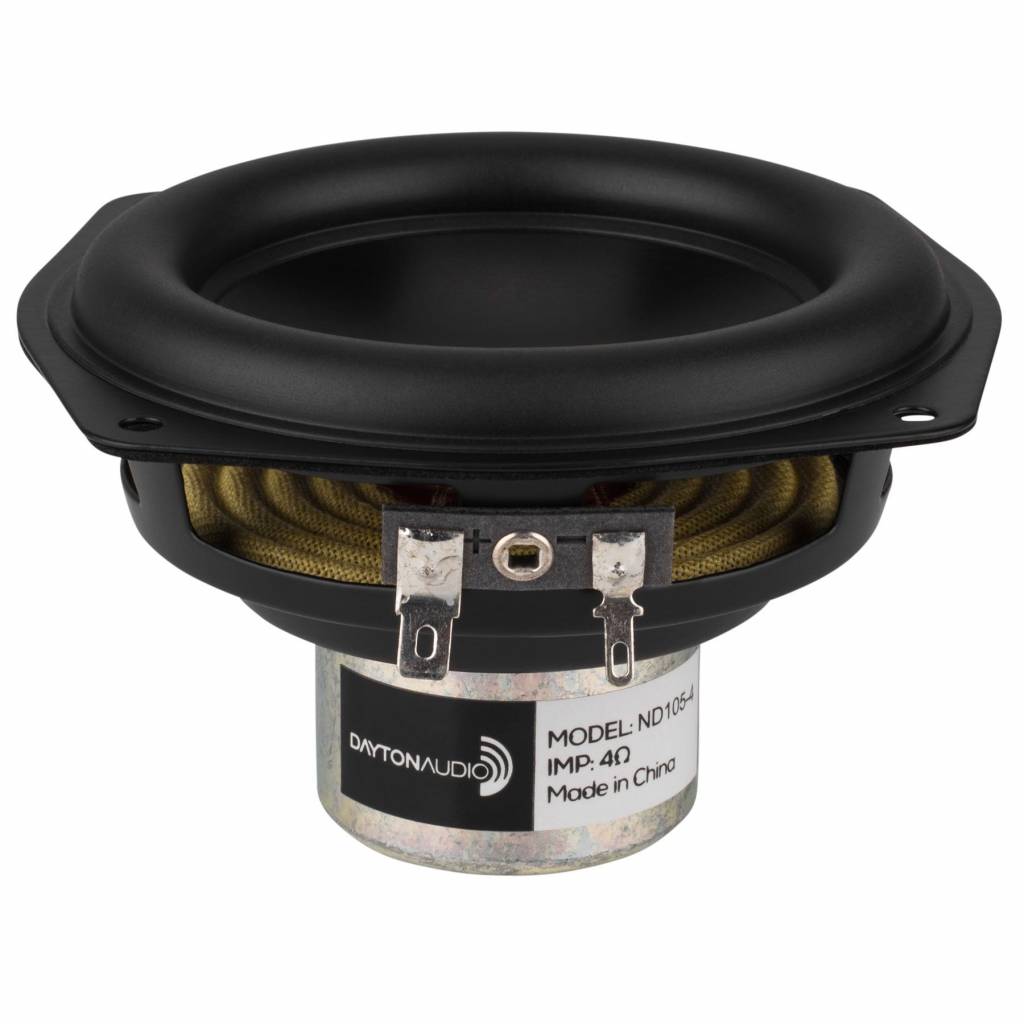

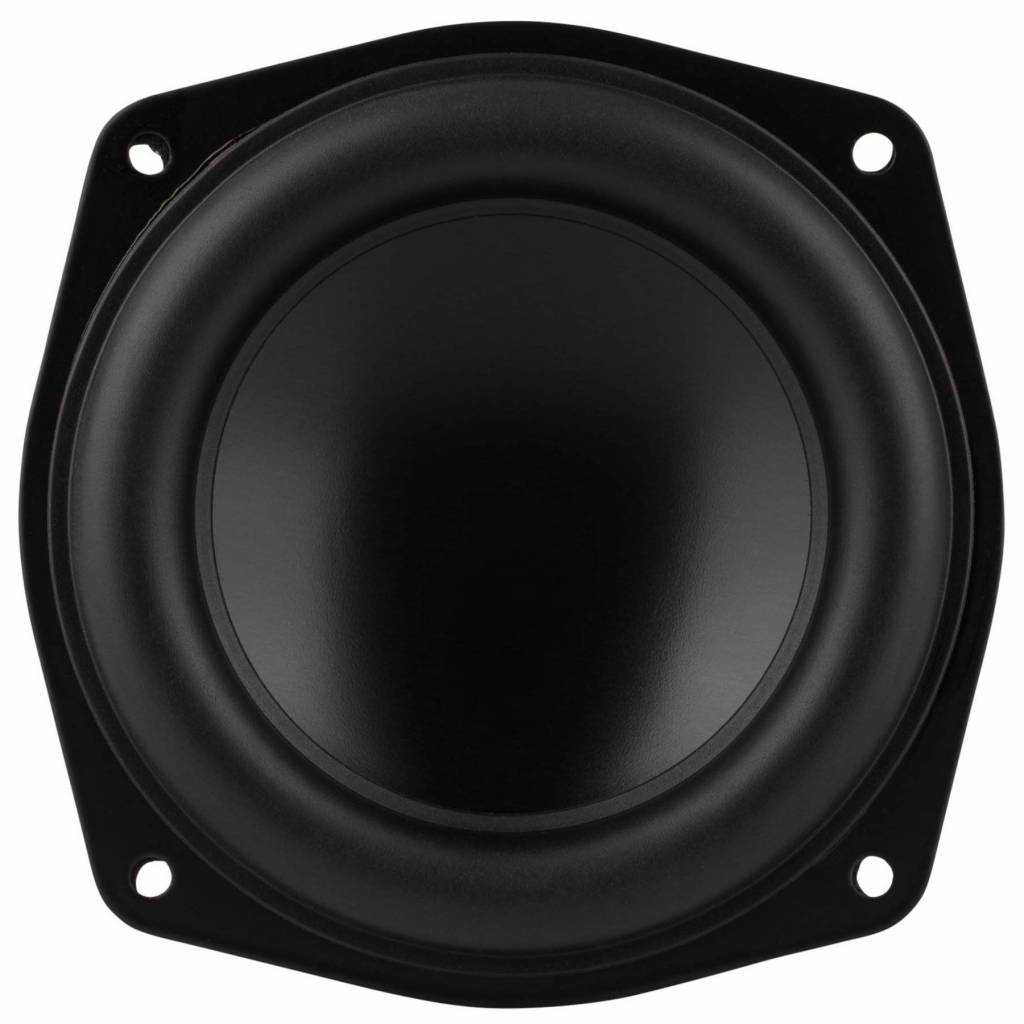

Dayton Audio ND105-4 4" Aluminum Cone Midbass Driver 4 Ohm

€ 24,75€ 29,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio's ND105-4 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €28,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio's ND105-4 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes.



Highlights

  • Extended-range 60 Hz to 10 kHz performance
  • Rubber-edged aluminum alloy cone
  • Large excursion capability—4 mm Xmax, 20 mm peak
  • Self-shielded Neo-Balanced motor structure
  • 1" 4-layer underhung voice coil with polyimide former
  • 30 watts RMS power handling



Product details

Dayton Audio ND105-4 4" Aluminum Cone Midbass Driver 4 Ohm



Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.



Eigenschaften

Artikelnummer:
ND105-4
Woofer Type
Midwoofer
Volume of Displacement (Vd)
20.6 cm³
BL Product (BL)
4.52 Tm
Compliance Equivalent Volume (Vas)
1.97 liters
Maximum Linear Excursion (Xmax)
4.0 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Steel
Magnet Material
Neodymium
Shielded
Yes
Overall Outside Diameter
105 mm
Overall Depth
67 mm
Baffle Cutout Diameter
93 mm
# Mounting Holes
4
Sealed Volume
0.1 ft.³
Sealed F3
84 Hz
Vented Volume
0.3 ft.³
Vented F3
41 Hz

Bewertungen

5 from 5Based on 6 reviews
Produkt bewerten
5 van 5
No description was given
Durch Jaroslav K. on 11 Februar 2021
4 van 5
I used it in MTM with two matching PRs. Very very nice low end, however there's an ugly dip at 4kHz, which complicates crossover design a little bit. It's interesting its smaller brother (ND90) doesn't have this problem and is more or less linear up to 8kHz. ND90 and 91 are better drivers.
Durch tk. on 19 Oktober 2019
Mehr anzeigen
