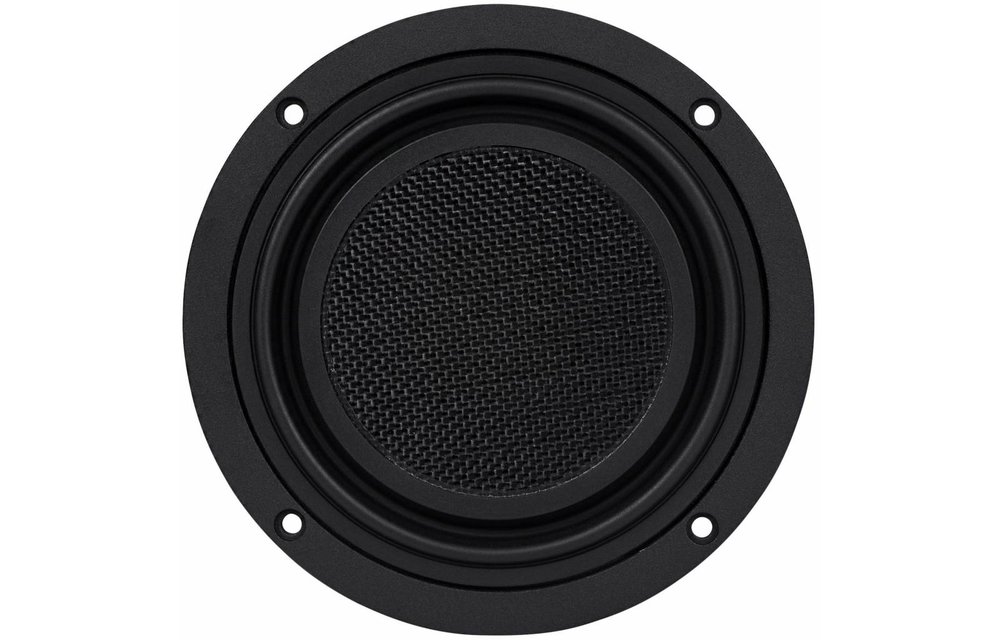

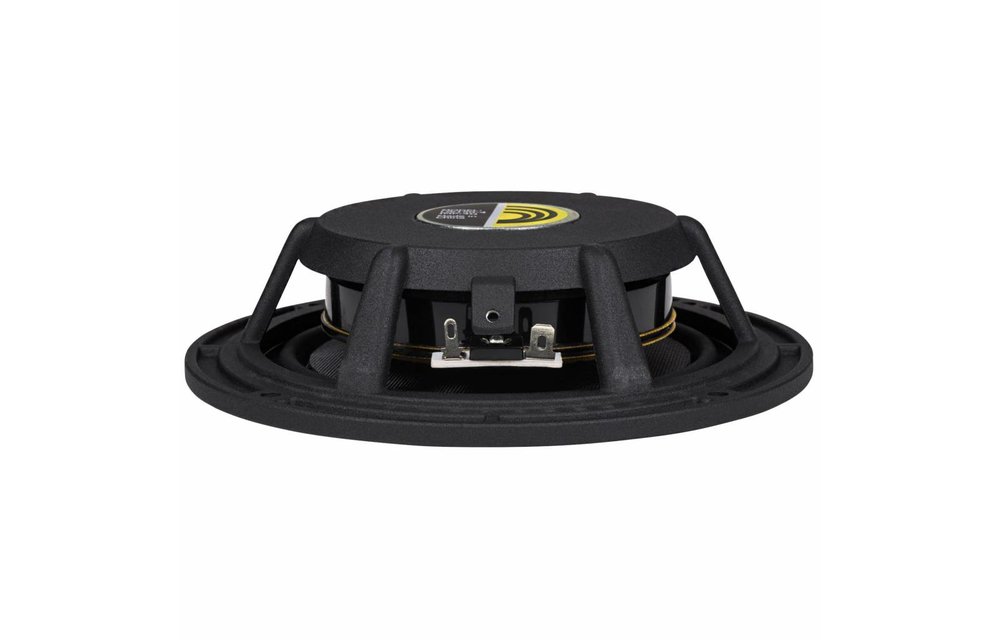

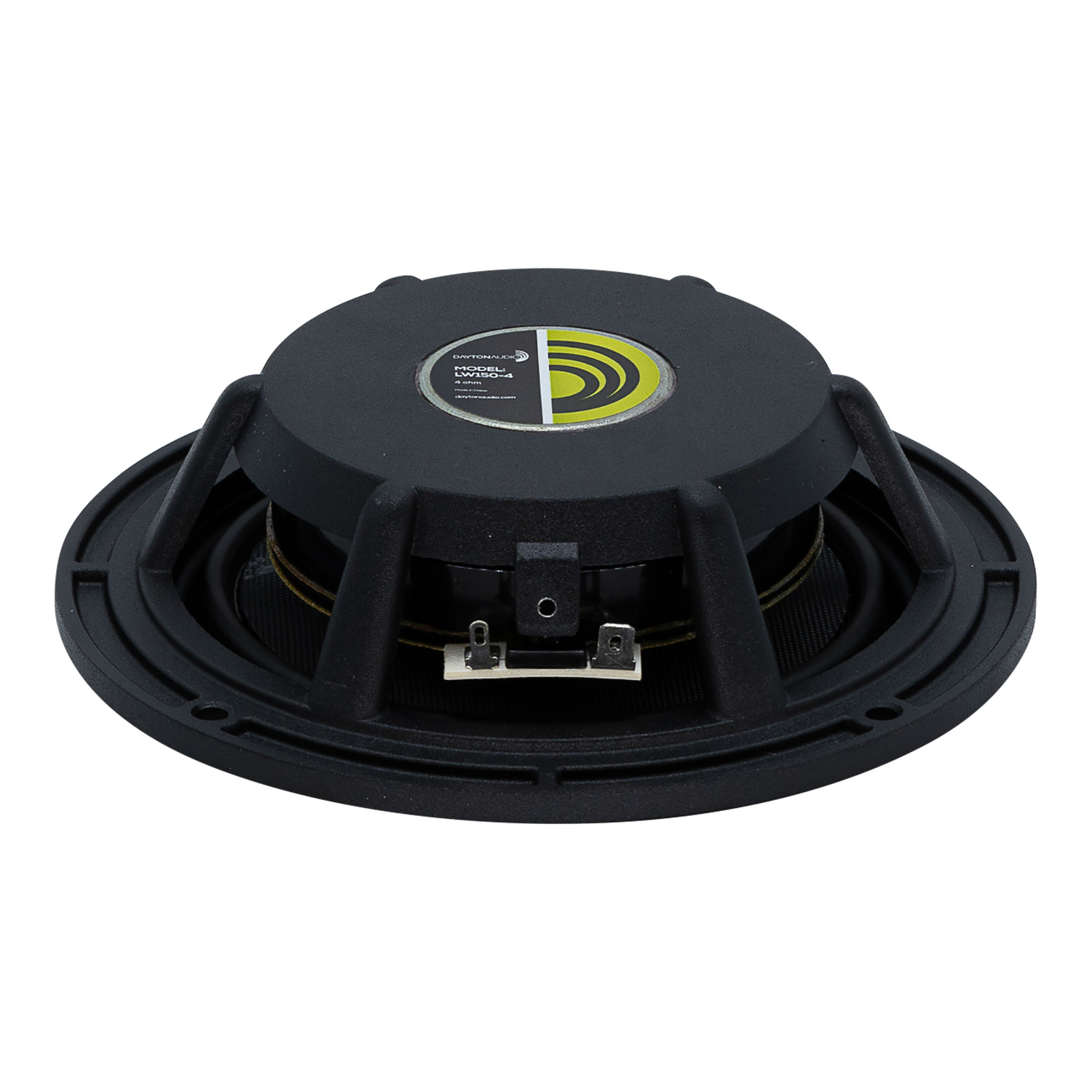

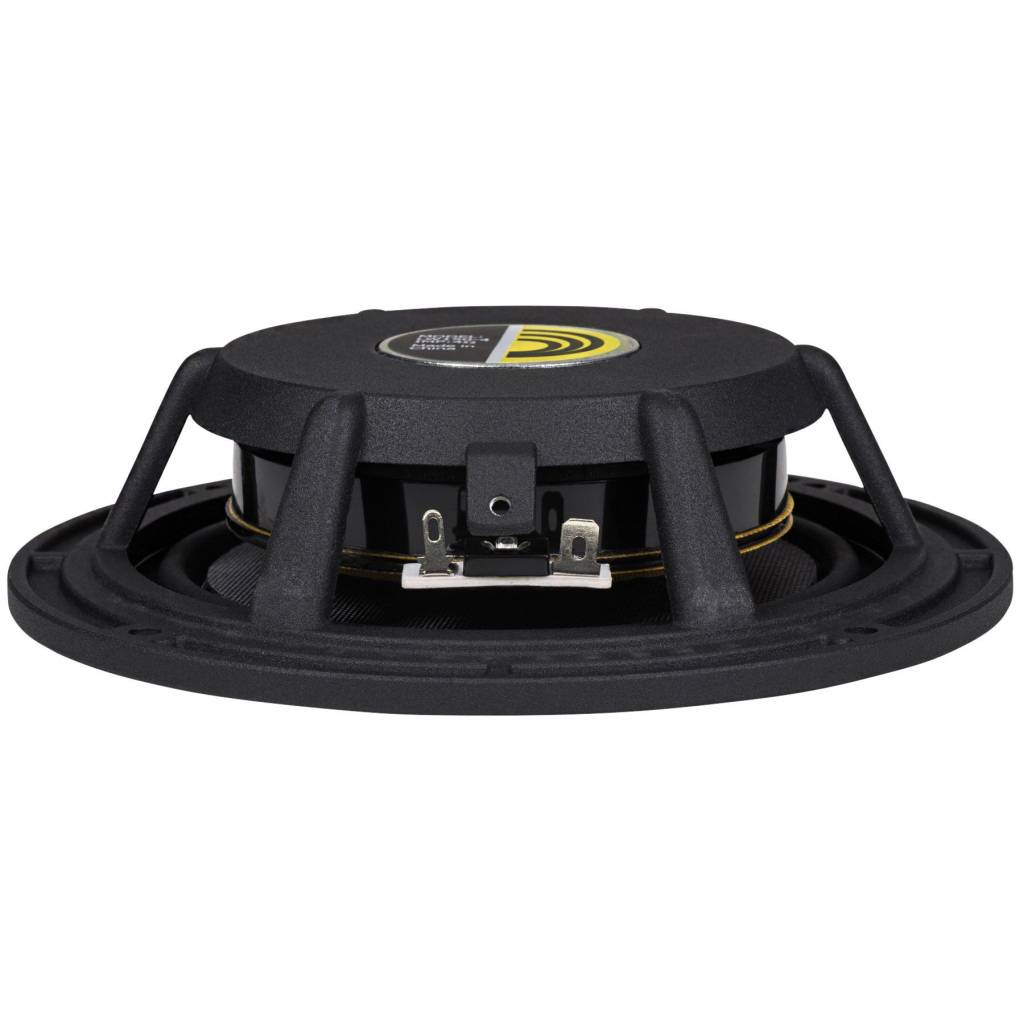

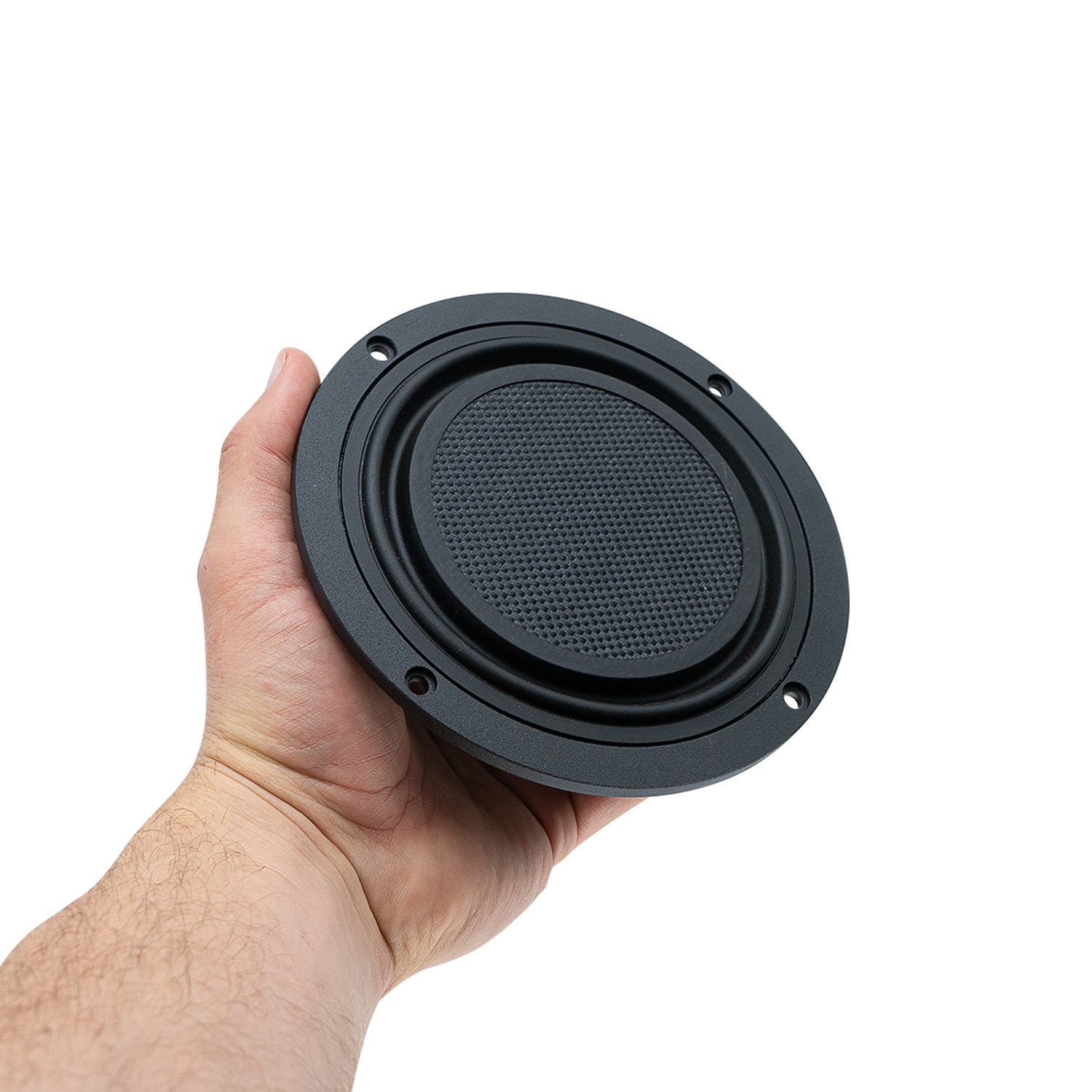

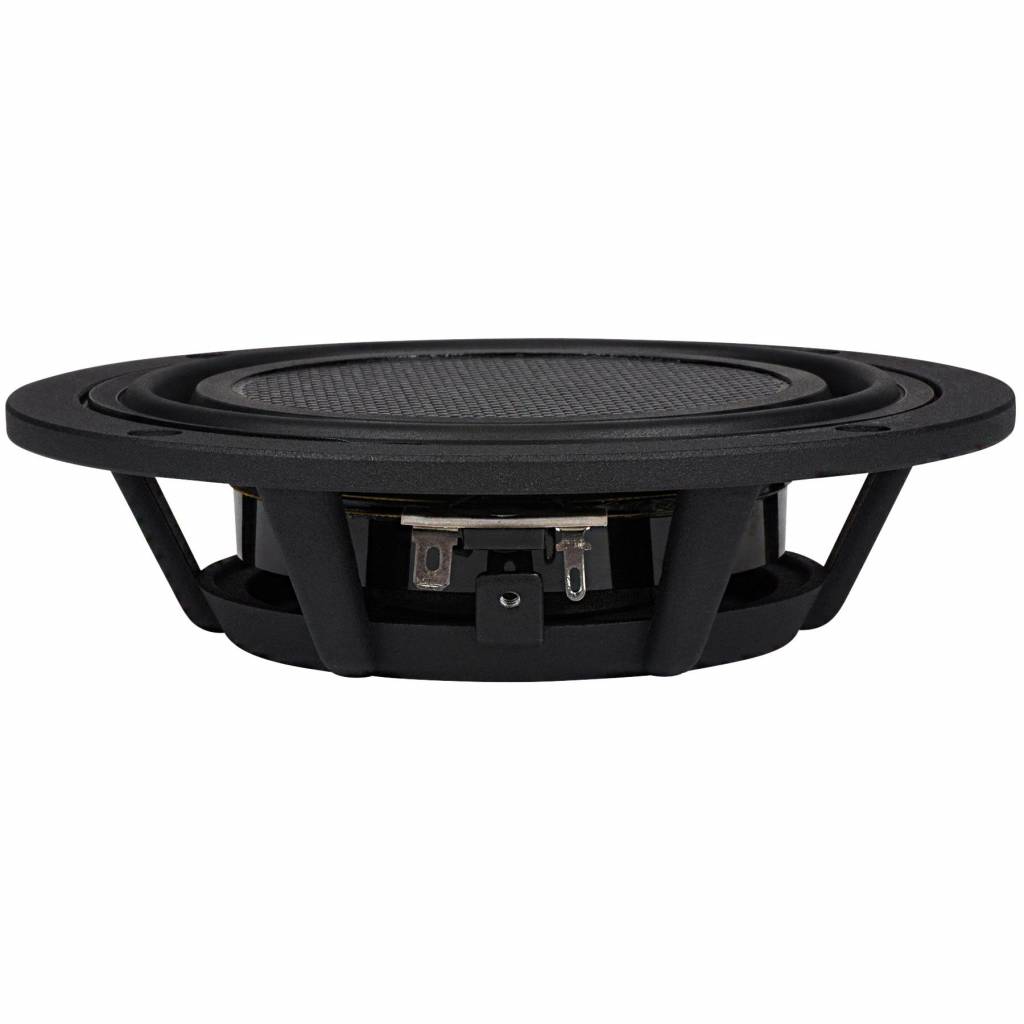

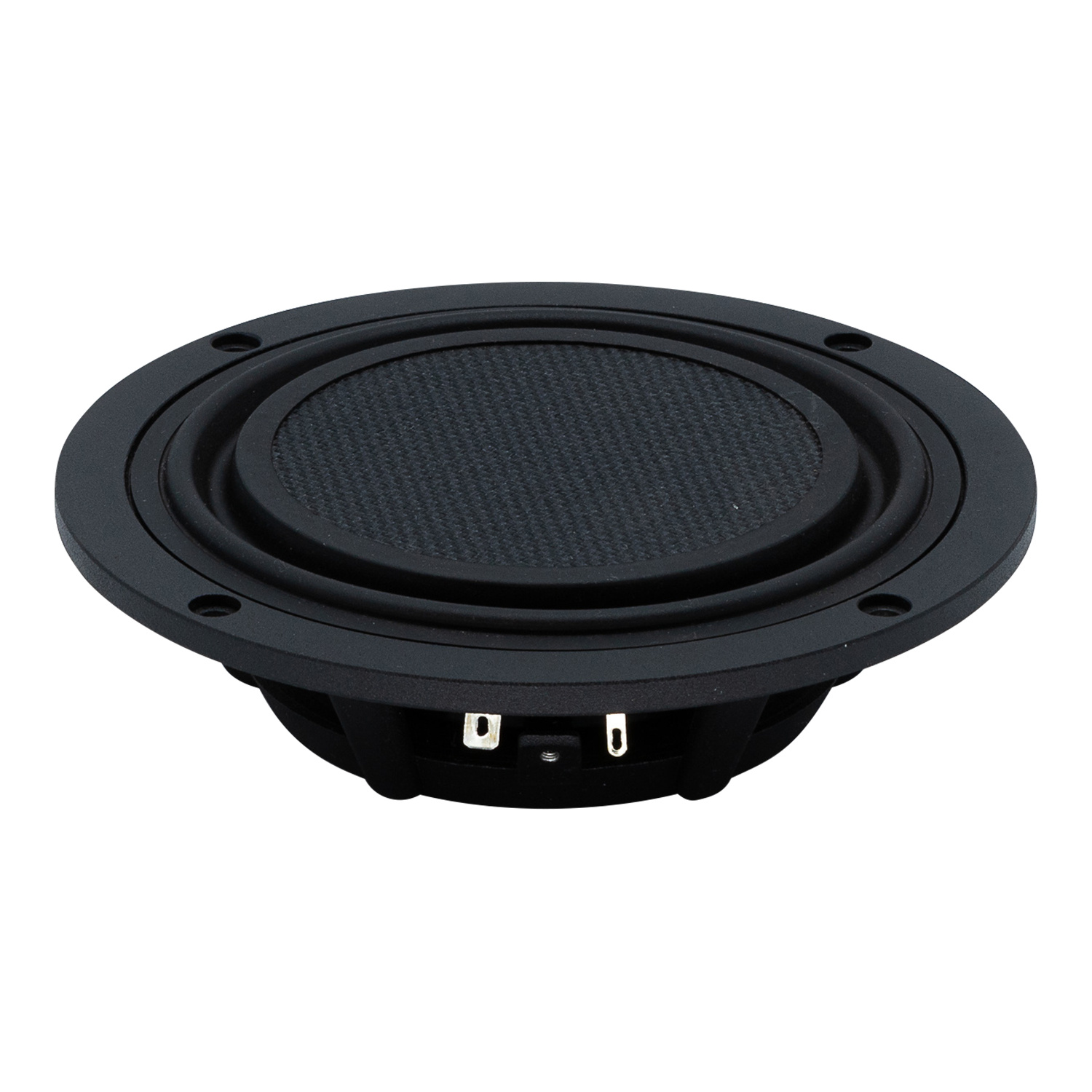

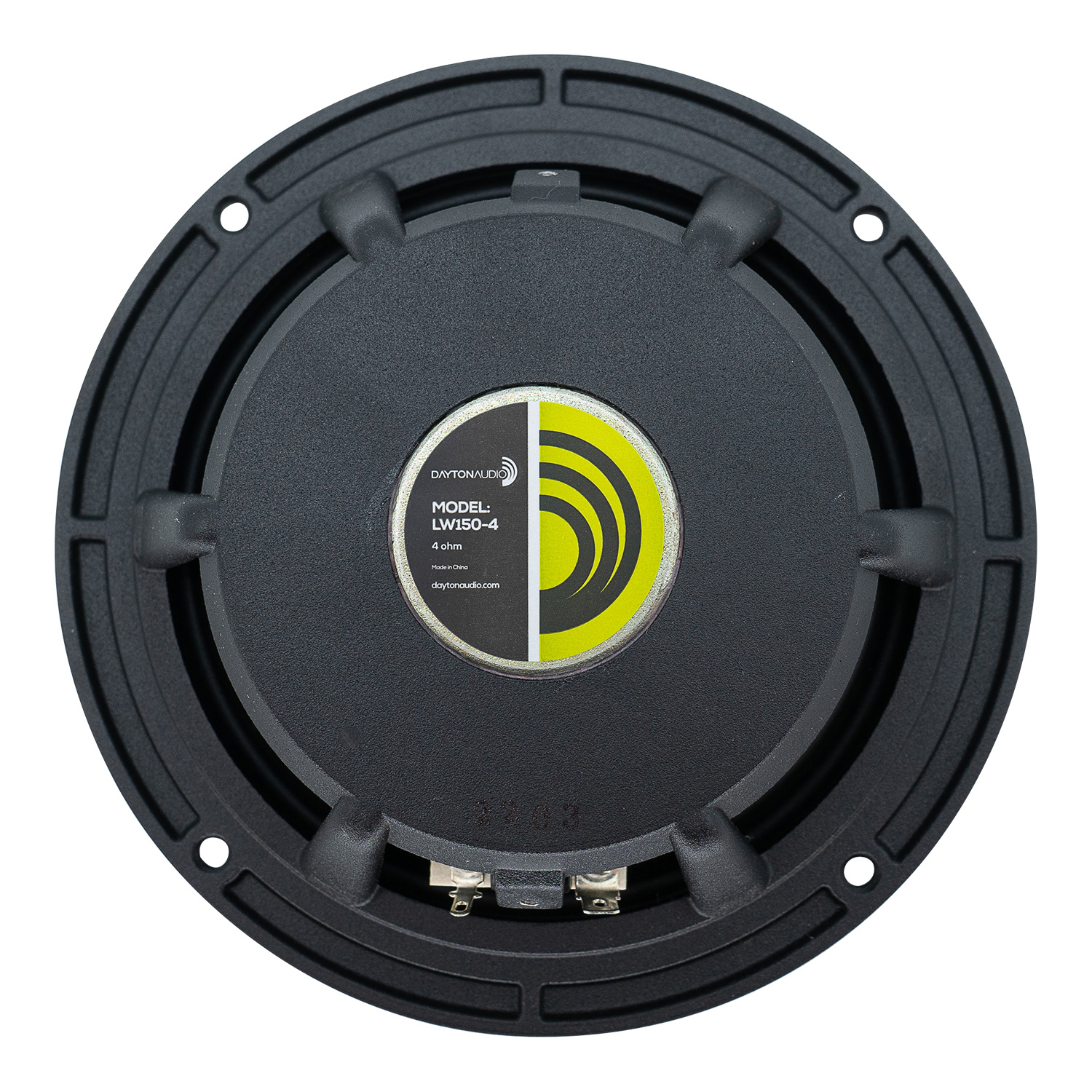

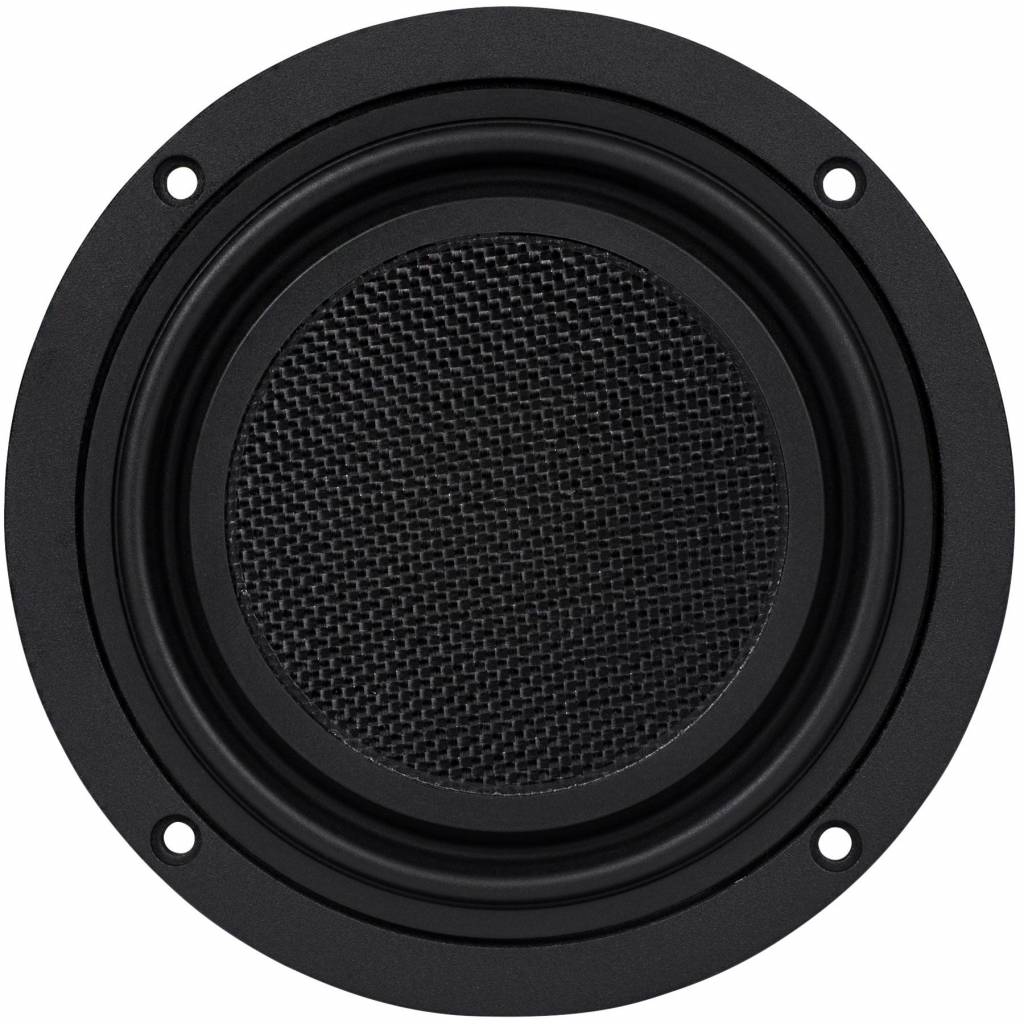

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

€ 49,95 1 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio LW150-4 6" woofer's unique venting allows zero-clearance installation in ultra-low profile applications. Solid bass output can be produced from spaces never thought possible.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €47,45 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The Dayton Audio LW150-4 6" woofer's unique venting allows zero-clearance installation in ultra-low profile applications. Solid bass output can be produced from spaces never thought possible.



Highlights

  • Very low profile woofer fits in tight spots
  • Flat woven glass-fiber/honeycomb aluminum composite cone
  • Dual sandwiched spiders and S-shaped surround enhance linear travel capability
  • Large 1-1/4" 4-layer voice coil and optimized T-pole gap geometry
  • Peripheral holes in spider landing enable zero-clearance venting in shallow enclosures
  • Great for on-wall, in-wall, or car audio applications



Product details

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms



The unique and versatile Dayton Audio LW150-4 6" woofer was designed for space limited, minimum depth applications. Its low-profile frame and unique venting permit the back of the woofer to be placed directly against cabinet walls or even embedded (countersunk) into the cabinet, resulting in an enclosure less than 1-1/2" deep. Great match for today's ultra-thin TVs or use as a down firing subwoofer in a low powered system, low-frequency down-firing driver in a center channel/monitor stand, or bookshelf stand.

Eigenschaften

Artikelnummer:
LW150-4
Woofer Series
Low Profile Series
Woofer Type
Subwoofer
Nominal Diameter
6"
Power Handling (RMS)
40 watts
Power Handling (max)
80 watts
Impedance
4 ohms
Sensitivity
86.1 dB @ 2.83V/1m
Frequency Response
60 - 1,800 Hz
Voice Coil Diameter
31.8 mm
DC Resistance (Re)
3.6 ohms
Voice Coil Inductance (Le)
0.86 mH @ 1 kHz
Resonant Frequency (Fs)
62.6 Hz
Mechanical Q (Qms)
6.01
Electromagnetic Q (Qes)
0.72
Total Q (Qts)
0.64
Diaphragm Mass Inc. Airload (Mms)
21.9g
Mechanical Compliance of Suspension (Cms)
0.3 mm/N
Surface Area of Cone (Sd)
91.6 cm²
Volume of Displacement (Vd)
36.6 cm³
BL Product (BL)
6.52 Tm
Compliance Equivalent Volume (Vas)
3.49 liters
Maximum Linear Excursion (Xmax)
4 mm
Overall Outside Diameter
6"
Overall Depth
1-3/8"
Baffle Cutout Diameter
5-1/8"
Sealed Volume
0.24 ft.³
Sealed F3
77 Hz
Vented Volume
0.33 ft.³
Vented F3
40 Hz

Bewertungen

4 from 5Based on 4 reviews
Produkt bewerten
5 van 5
This project called for a 60mm high vented enclosure with f3 below 60Hz.
What other woofer could do that?
Quality is good, same as the other Dayton drivers purchased so far.
Durch Gary S. on 5 Februar 2019
3 van 5
Perfect formfactor. Still not sure about the bass performance
Durch Ole Steen L. on 4 August 2018
