Dayton Audio LBB-AB L-type Aluminum Bracket for LBB-5v2 Series Battery Holders

Name: Dayton Audio LBB-AB L-type Aluminum Bracket for LBB-5v2 Series Battery Holders
Brand: Dayton Audio
SKU: LBB-AB
Price: 7.95 EUR
Availability: InStock

0 reviews

Marke: Dayton Audio

Alle anzeigen Batterieplatinen

Vergleichen

LBB-AB L-type Aluminum Bracket for LBB-5v2 Series Battery Holders

€ 6,57€ 7,95 1 Auf Lager: Lieferzeit 1-3 Werktage

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

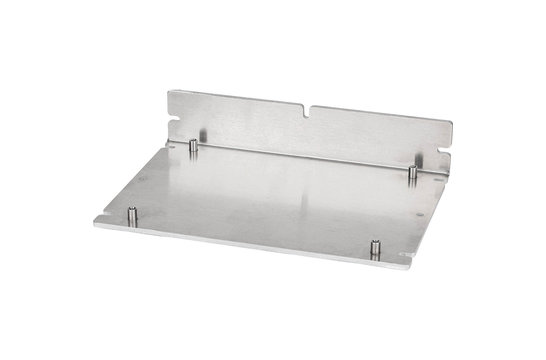

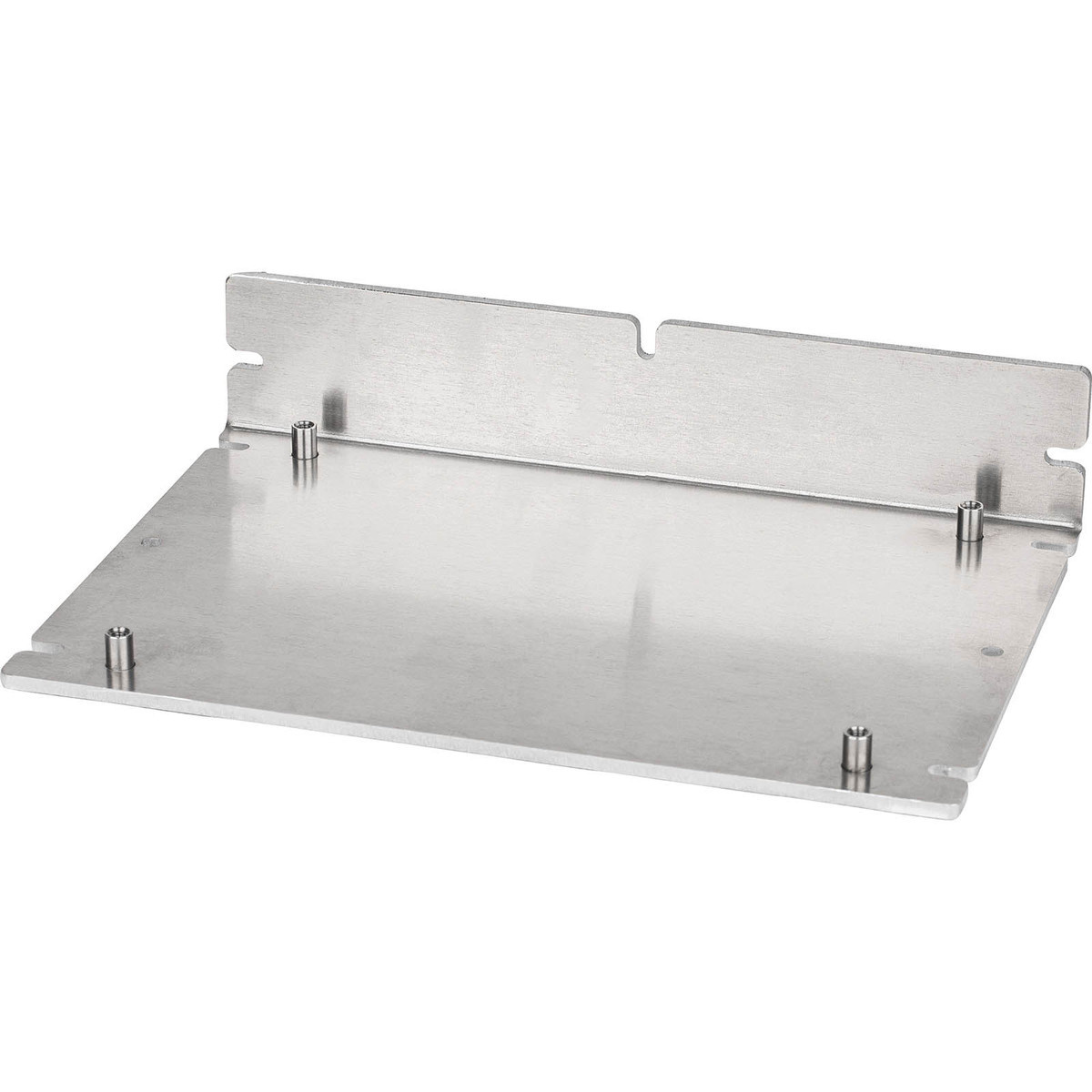

The LBB-AB L-type aluminum bracket is ready to protect and mount the Dayton Audio LBB-5v2 Bluetooth amp board.

Highlights

Heavy-duty aluminum bracket will not crack or bend
Four included security screws mount the board to the bracket
Seven precut slots in the aluminum for horizontal or vertical mounting

Product details

Dayton Audio LBB-ABS L-type Aluminum Bracket for LBB-5S Series Battery Holders

It can be quite difficult to install the audio amplifier board into tight spaces such as portable sound applications. To securely mount the LBB-5v2 boards and improve space efficiency Dayton Audio offers the LBB-AB; an L-type aluminum bracket. This aluminum bracket supports vertical and horizontal mounting configurations to satisfy different installation requirements. The dimensions are 7-3/16" x 4-7/8" x 1-1/2" (183 x 124 x 38 mm) on the "L" side. Two 0.15" (3.73mm) holes and seven slots give you the versatility to mount the L-type bracket to your project as needed. Built-in threaded standoffs with the required PC Board M3 Standoff Kit (sold separately) provide a sturdy foundation for mounting to the LBB-5v2 in either direction. Standoff spacing is 5-5/8" x 4-1/8" (143 x 104.5 mm) to center
