Dayton Audio LBB-5 5 x 26650 Lithium Battery Charger Board / Module

Lieferzeit: 1-3 Werktage

  • Artikelnummer: LBB-5
  • Vorrat: 4 Auf Lager

Lithium battery power is your best option when building high power portable sound projects. This battery holder charges five 26650 Li-Ion batteries when used with a 5 to 24 VDC power supply (not included). Enjoy prolonged listening with this 21 VDC output

€ 34,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €33,20 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte


Dayton Audio LBB-5 5 x 26650 Lithium Battery Charger Board / Module


  • 21 VDC output power for amplified speakers and other portable projects
  • Works with 5 to 24 VDC power supplies for versatility
  • Common 2.1 x 5.5 mm input power jack

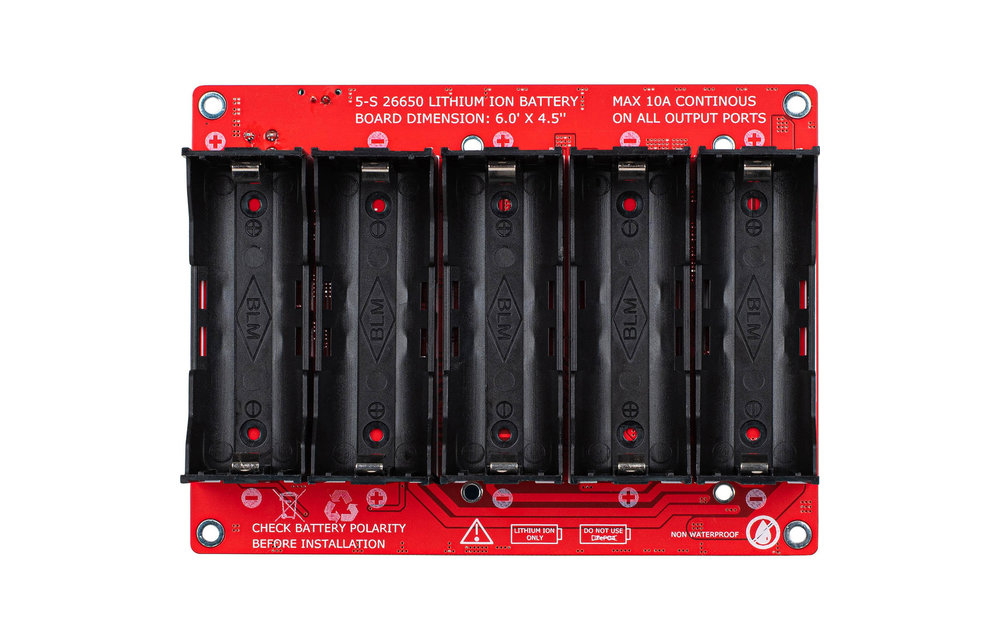

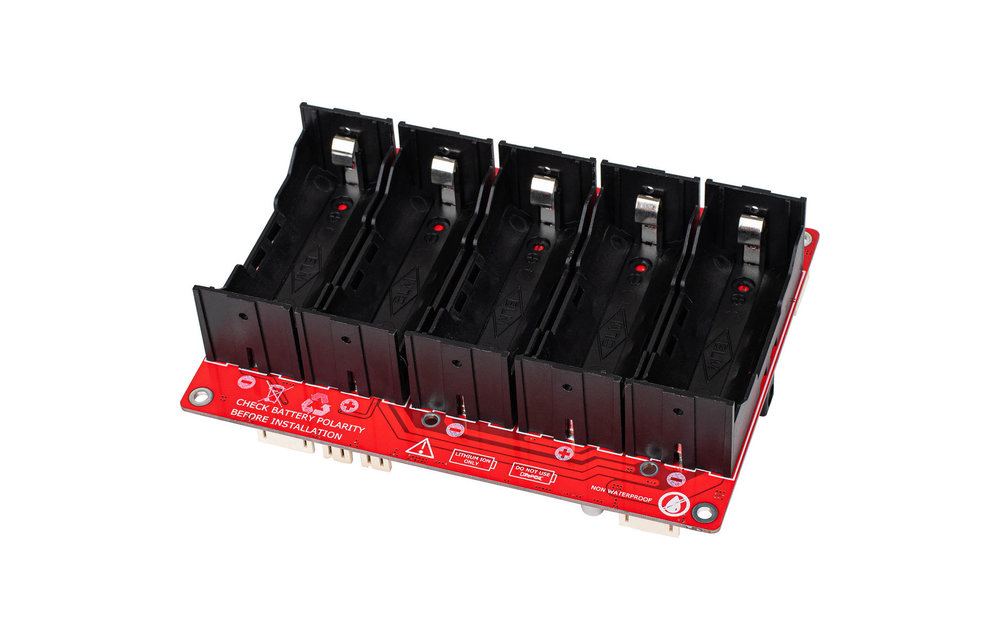

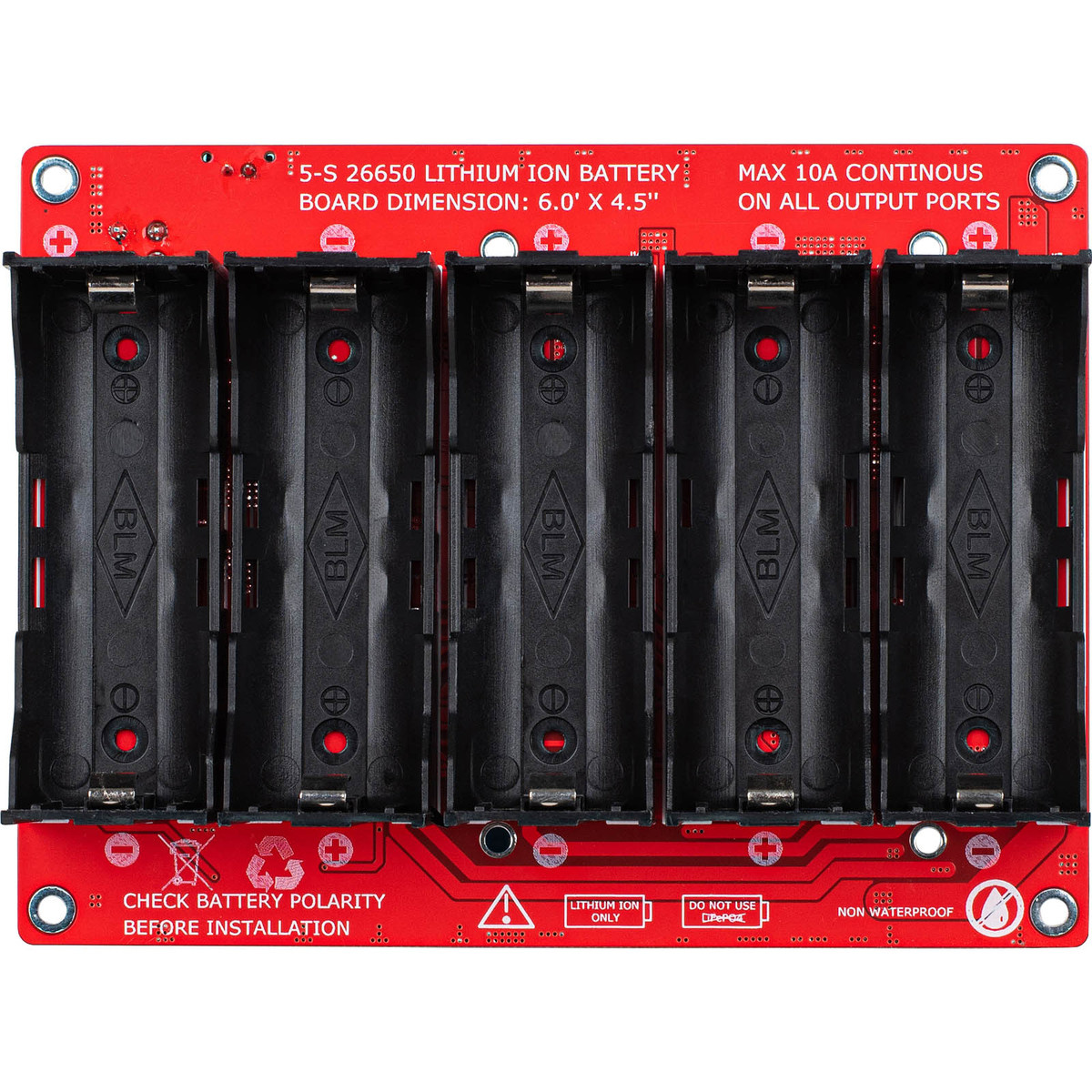

  • Uses five standard 26650 3.7 VDC Li-Ion batteries (not included)


Product details

Dayton Audio LBB-5 5 x 26650 Lithium Battery Charger Board / Module


Dayton Audio's LBB-5 battery holder board delivers high current portable power to small amplifiers, 200W amp boards, or other 21 VDC projects by combining the voltage from five 26650 Li-Ion batteries (not included). It's small enough to fit inside a portable speaker and has multiple 21 VDC outputs to power an amp, tone control, Bluetooth, and other preamp component boards. It also has one output socket for 5 VDC devices. Enjoy the extended listening time you get from Li-Ion batteries on a single charge. 26650 Li-Ion batteries come in a variety of amperages, and to get the longest playtime from a 200W amplifier or amp board use at least 5000mAh batteries.

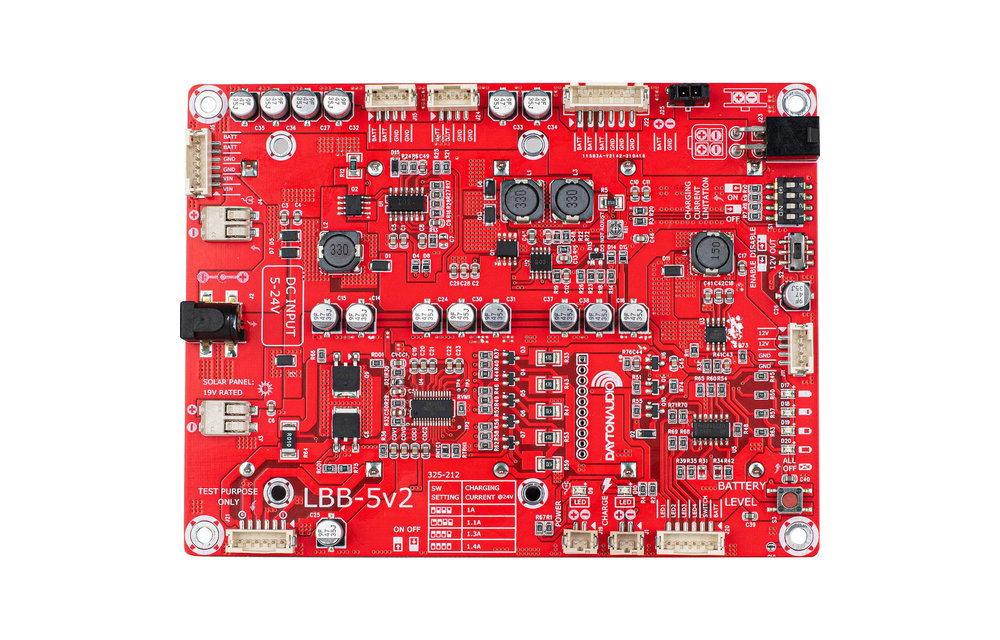

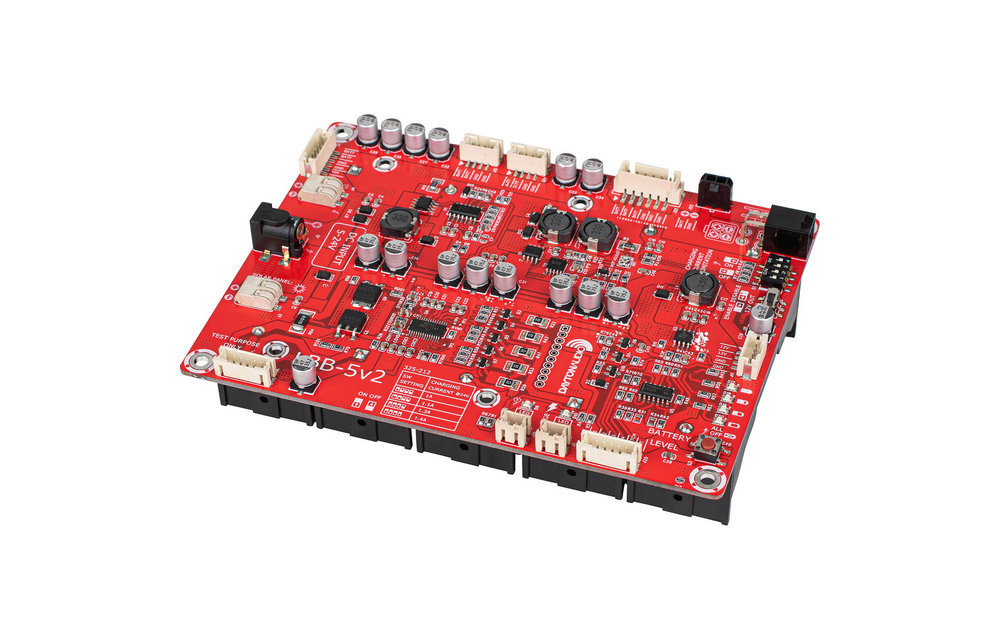

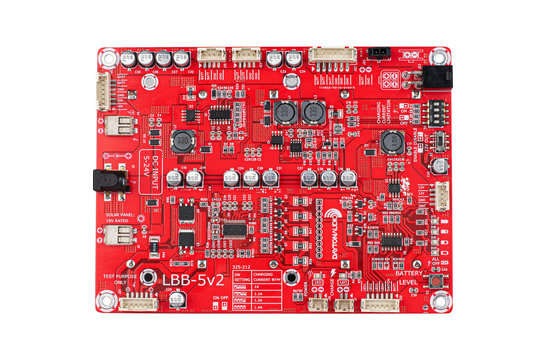

There's no need to remove the batteries from the holder because the Dayton Audio LBB-5 has a built-in charge circuit. Just plug in a power supply and the over/under charge circuit prevents correctly installed batteries from overcharging and fully discharging, shortening their life. The LBB-5 battery board needs a 5 to 24 VDC power supply (Not included) to start the charging process and to start its output power. This enables you to listen to music while the batteries are charging with this amazing battery holder. To view charging and battery status press the push button on the battery board. If you remove a battery, the power supply must be plugged into the holder for the battery board to start working again when the battery or batteries are reinstalled. The polarity of the batteries must match the polarity of the battery holder to prevent damage.


Note: The Dayton Audio LBB-5 is an independent battery holder board and its design does not work with Dayton Audio KAB board's built-in charge circuit. Use Dayton Audio battery board KAB-BE with Dayton Audio KAB Bluetooth amp boards.


Specifications: Output voltage: 21 VDC @ 10A Max and 5 VDC @ 2A • Input voltage required: 5 to 24 VDC at least 2A recommended • DC coax jack size: 2.1 x 5.5 mm center (+) polarity • Batteries: Five x 26650 Li-Ion (not included) • Dimensions: 6" W x 4.5" D x 1.71" H (152 x 114.5 x 43.5 mm) • Charge times to 90% capacity: 5V 2A 32 hrs., 12V 2A 6.5 hrs., 19V 2A 3.5 hrs., 24V 2A 3 hrs.



Erfahrungsberichte 3.35 / 5 Bewertungen: (3)

  • JG Durch Johan Gustafsson an 09-08-2020 23:52

    5 / 5

    UPDATE on my previous review.

    I feel like I need to do this product justice. There was nothing wrong with my board. I simply made a mistake. But regardless if you got s faulty product, ALWAYS check the polarity (+ -) carefully before putting in the batteries. On to the review: it’s a really good product. Does exactly what it should. Lots of connections makes this fit every high power portable build you can think of. Only bad thing is the mounting holes are postioned a bit akward, very high up. I had to build a tiny wood platform underneath to avoid having to use very long screws. I recommend doing this. I also recommend padding the screw heads with some soft material to prevent rattling of the metal surfaces. The LED kit for this is a must have. I hope Soundimports can make it a regular product among their other items.

  • JG Durch Johan Gustafsson an 02-08-2020 13:16

    2 / 5

    It’s a great product when it works. Problem is it has so many built in defects that it shouldn’t even be allowed to be on the market in my opinion. One of my biggest gripes with the product is the faulty labeling of the + and - on the battery holders. Making it easy to missplace a battery. Which happend to me. Now I’m not sure if my batteries are damaged, if my board is damaged or both... it’s super frustrating cause batteries are very expensive.

  • UT Durch Unable to use protected 26650 batteries. an 16-06-2020 23:55

    3 / 5

    I was not able to use protected 26650 batteries as these are 5mm longer than normal, I assumed these would fit as no measurement for the batteries were noted on the website or other any information regarding the batteries either. Utterly disappointing as I now have 5 pretty expensive 26650 batteries with no use.
