Dayton Audio KAB-PMV3 Panel Mount for KAB-v3 Boards with Function, LED, and Installation Kit

Lieferzeit: 1-3 Werktage

  • Artikelnummer: KAB-PMV3
  • Vorrat: >10 Auf Lager

Add a professional finish to your Dayton Audio KAB amp board projects with this KAB panel accessory kit.

€ 24,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €23,70 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio KAB-PMV3 Panel Mount for KAB-v3 Boards with Function, LED, and Installation Kit

Add a professional finish to your Dayton Audio KAB amp board projects with this KAB panel accessory kit.



Highlights

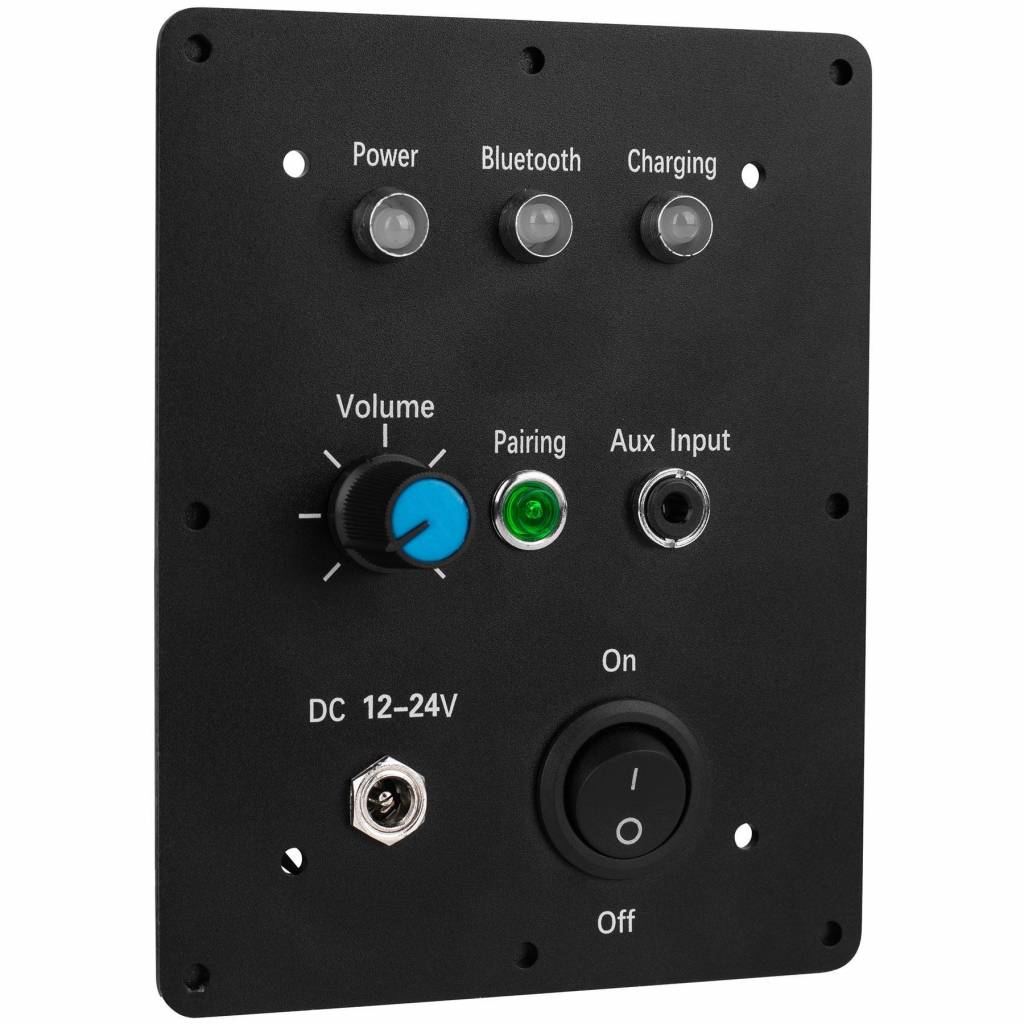

  • Silk screen labels identify each function for ease of use and a professional finish
  • Predrilled holes save time mounting each component

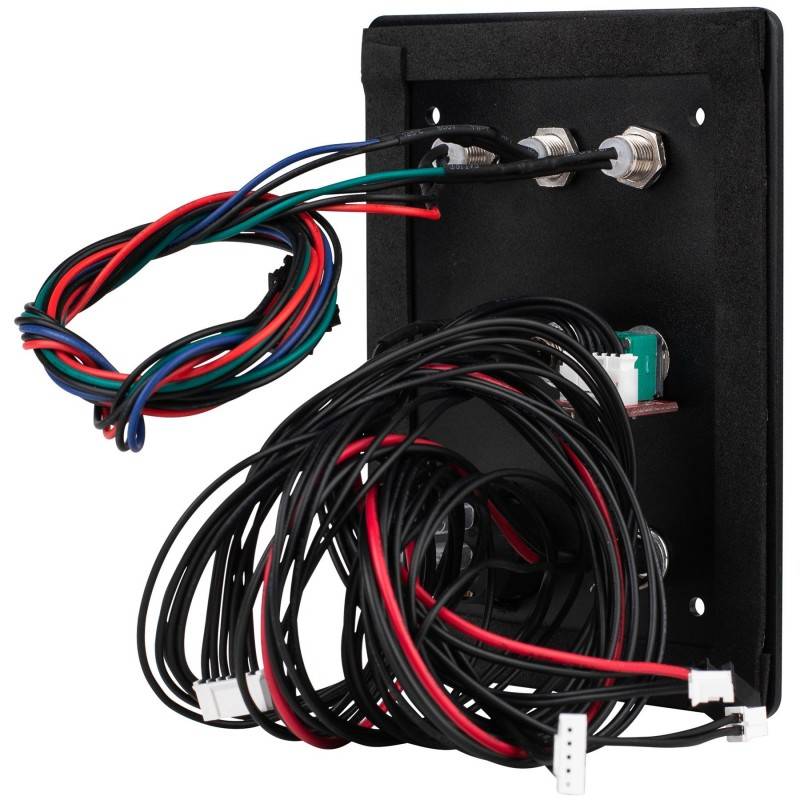

  • Standoffs attach the KAB board to the KAB panel for one piece installation
  • Gasket tape and wood screws for a secure fit
  • Included components plug directly into the board without soldering



Product details

Dayton Audio KAB-PMV3 Panel Mount for KAB-v3 Boards with Function, LED, and Installation Kit

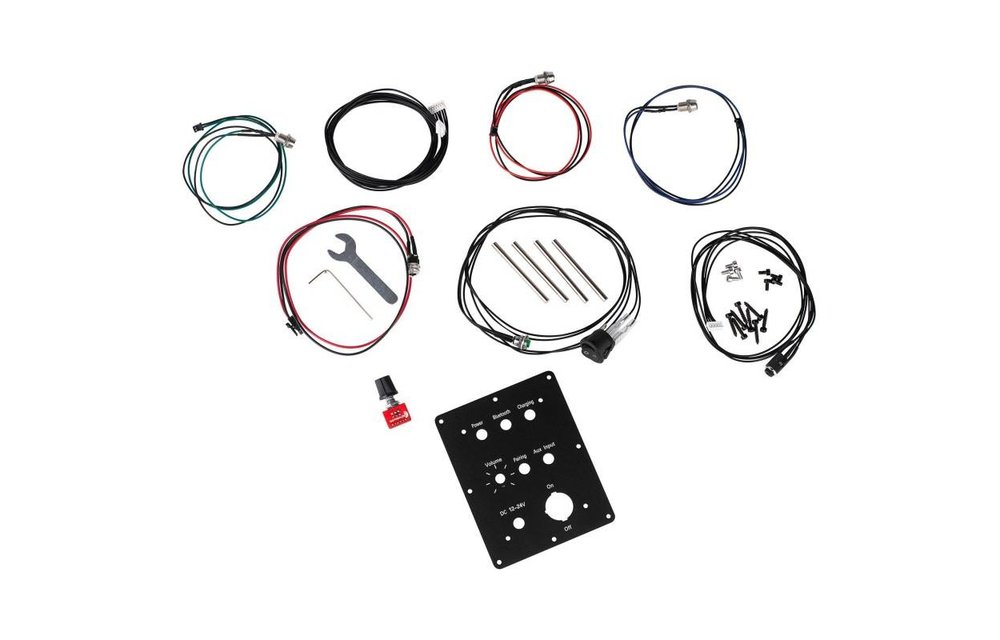

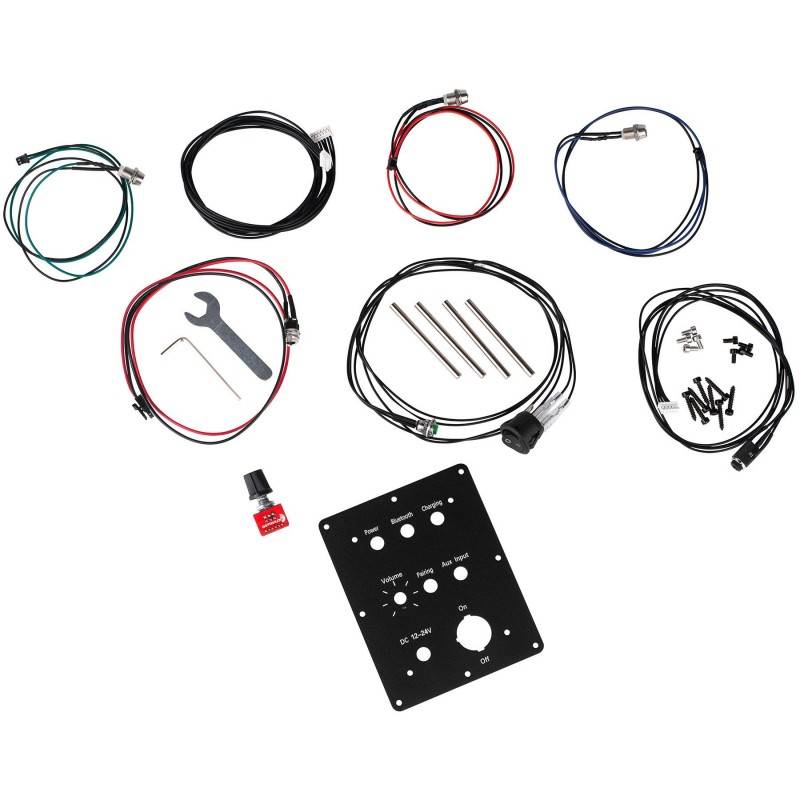

Give your Dayton Audio KAB sound projects a professional finish with the KAB-PMV3 Panel Mount Kit. It includes the function and LED light kit needed to get your KAB amp board ready for power. It also includes a DC coax 2.1 x 5.5 mm power jack, a rocker switch, standoffs, gasket tape and mounting screws to help complete the project. Each component plugs directly in the board without having to solder. Predrilled holes make installation a breeze with silk screen white labels to identify each components location and function. The standoffs hold the panel and the KAB board firmly together for one piece mounting. Gasket tape and screws securely mount the panel to your project.



Parts

Description

Specification

Qty

Panel

Black metal

4.75" H x 3.76" W x 0.09" D (120 x 95 x 2.3 mm) with screw hole spacing 4.37" and 3.39" (111 x 86 mm) apart for mounting

1

Screws

Black for front of standoff

M3 x 6 mm

4

Screws

Silver for rear of standoff

M3 x 6 mm

4

Standoffs

Silver

M3 x 60 mm

4

Screws

Black wood screws for mounting

M3 x 16 mm

8

LEDs

Red, green, and blue with metal socket and cables

5 mm with 20" (500 mm) leads

3

Potentiometer

Volume control, knob, and cable

1K ohm with 20" (500 mm) leads

1

Push button switch

Push button and cable for Bluetooth pairing

SPST mementary N.O. with 20" (500 mm) leads

1

Stereo phone Jack

Aux input and cable

3-conductor 3.5 mm with 20" (500 mm) leads

1

DC coax jack

DC input and cable

2.1 x 5.5 mm with 20" (500 mm) leads

1

Rocker Switch

On-Off switch and cable

SPST with 20" (500 mm) leads

1

Gasket tape

Gasket tape for underneath the outer diameter of the panel

4.61" L x 0.39" W (117 x 10 mm)

2

Gasket tape

Gasket tape for underneath the outer diameter of the panel

3.47" L x 0.39" W (88 x 10 mm)

2
