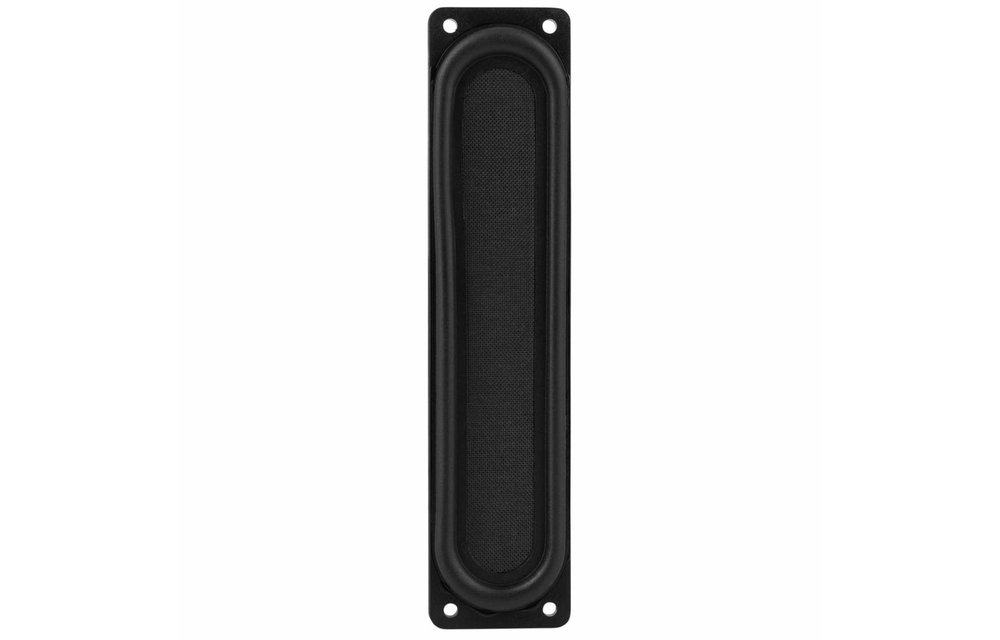

Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT Speaker Driver 8 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: HARB252-8
  • Vorrat: 6 Auf Lager

The Dayton Audio HARB252-8 1"x 5" full-range driver features a uniquely narrow form factor whose shape is implemented by employing tandem magnetic assemblies.

€ 17,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €16,58 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT Speaker Driver 8 Ohm

The Dayton Audio HARB252-8 1"x 5" full-range driver features a uniquely narrow form factor whose shape is implemented by employing tandem magnetic assemblies.



Highlights

  • High Aspect Ratio transducer fits in unconventional enclosures
  • Dual neodymium magnet motors maintain narrow mounting profile
  • Amazing off-axis frequency response
  • Great for use in line arrays and low profile bar speakers



Product details

Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT Speaker Driver 8 Ohm



The unique shape and full frequency range of Dayton Audio's HARB252-8 1"x 5" dual motor full-range driver permits applications where other drivers simply won’t fit. Place it horizontally as the mid or full-range driver for a center channel/monitor stand, or vertically as a desk-top/computer speaker.

Eigenschaften

Spezifikationen für: HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT Speaker Driver 8 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers.
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch.
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 10 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 20 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 77 dB @ 2.83V/1m
  • Frequency Response 150 - 17,000 Hz
  • Voice Coil Diameter 0.63 mm
  • Magnet Weight
  • DC Resistance (Re) 7.2 ohms
  • Voice Coil Inductance (Le) 0.09 mH @ 1 kHz
  • Resonant Frequency (Fs) 172.11 Hz
  • Mechanical Q (Qms) 4.23
  • Electromagnetic Q (Qes) 2.98
  • Total Q (Qts) 1.74
  • Diaphragm Mass Inc. Airload (Mms) 3.2g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.3 mm/N
  • Surface Area of Cone (Sd) 21.2 cm²
  • Volume of Displacement (Vd) 2.6 cm³
  • BL Product (BL) 3.04 Tm
  • Compliance Equivalent Volume (Vas) 0.19 liters
  • Maximum Linear Excursion (Xmax) 1.3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 5.16"
  • Overall Depth 1.14"
  • Baffle Cutout Diameter 0.82"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.026 ft.³
  • Sealed F3 128 Hz
  • Vented Volume
  • Vented F3
