Name: Dayton Audio Epique Ceramic EC30-4 30mm Kalotten-Hochtöner
Brand: Dayton Audio
SKU: EC30-4
Price: 89.95 EUR
Availability: BackOrder

1" | 4 Ω

Epique Ceramic EC30-4 30mm Kalotten-Hochtöner

74,34 €89,95 € Nicht auf Lager

Backorder

Wir versenden nach
Bald wieder auf Lager
Fünf Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Dayton Audio Epique EC30-4 Kalotten-Hochtöner

Premium high-frequency performance meets rugged design in the Dayton Audio Epique EC30MP-4. This 30mm ceramic dome tweeter offers ultra-low distortion, a wide frequency response, and an elegant, durable faceplate, making it a top choice for audiophiles and speaker builders seeking uncompromised treble clarity.

Highlights of the Dayton Audio Epique EC30-4

30mm aluminum dome with vapor-deposited ceramic coating for enhanced stiffness and detail
Extended frequency response beyond 40 kHz—ideal for high-resolution audio applications
Advanced motor design with copper cap and Kapton former for reduced distortion

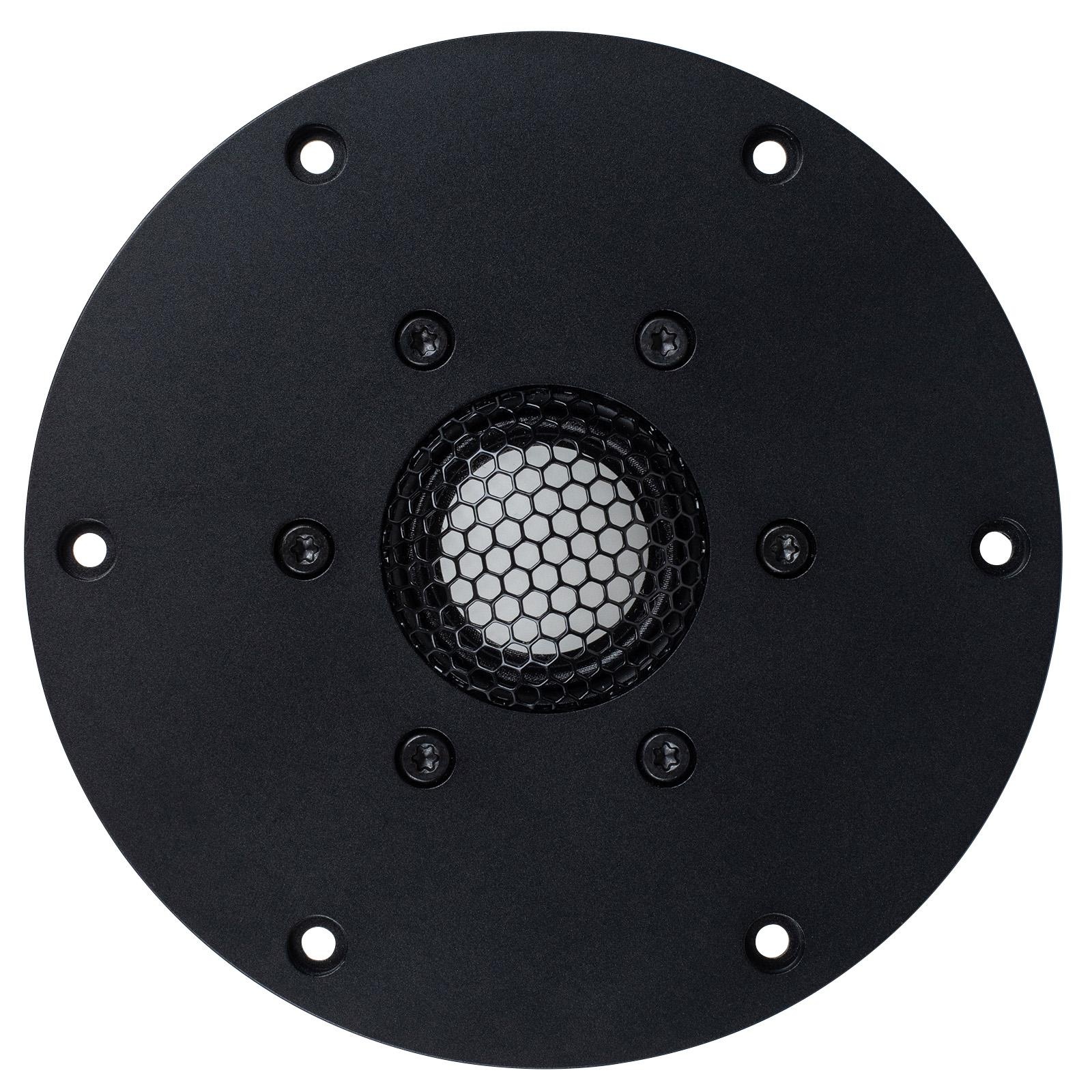

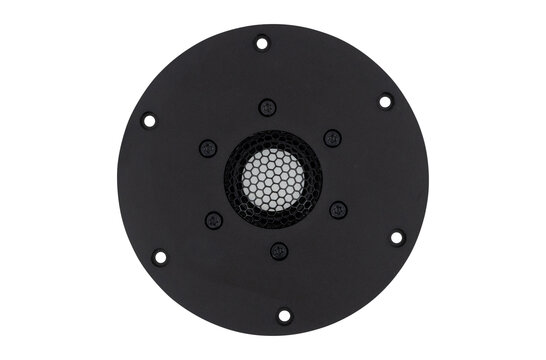

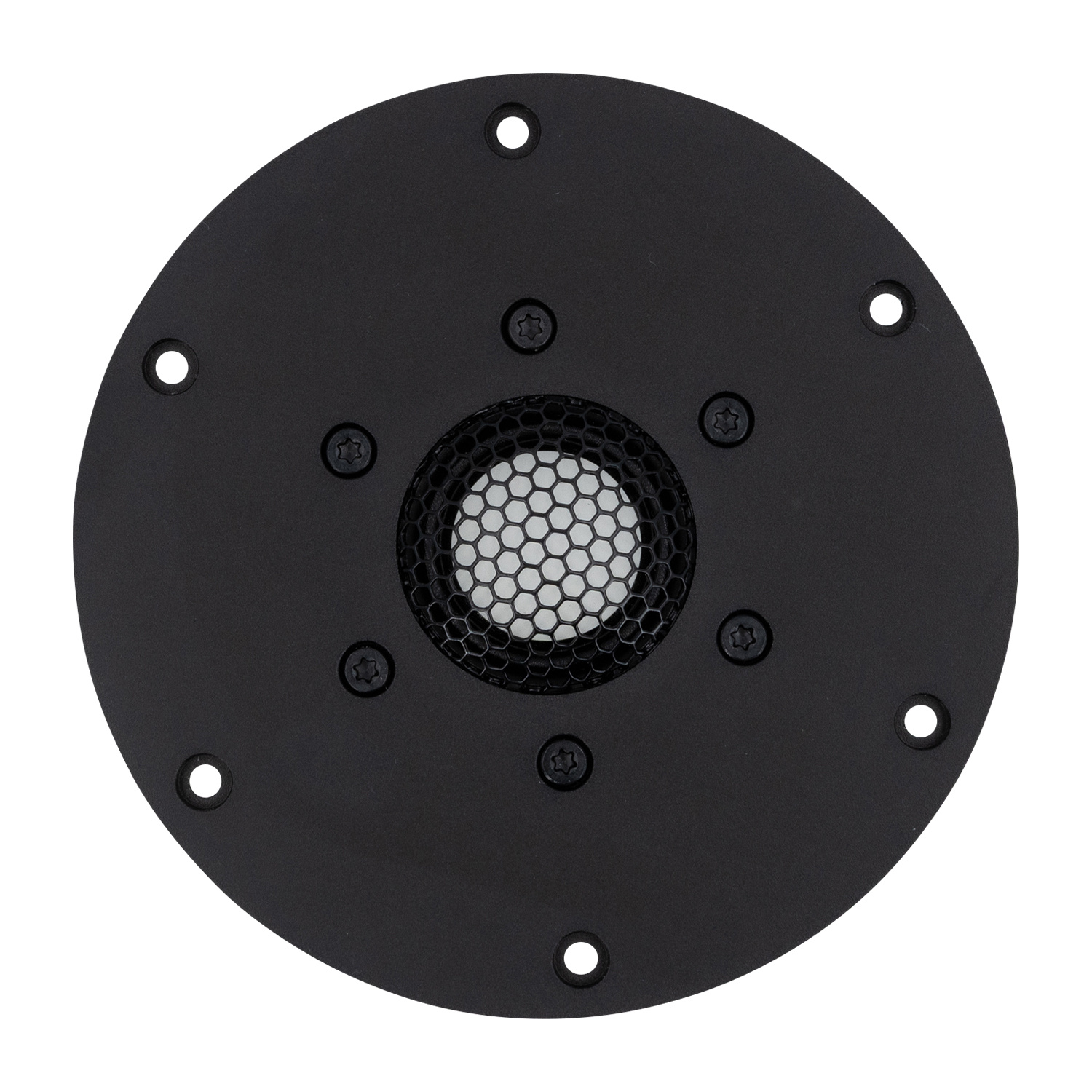

Durable 3.6mm aluminum faceplate with honeycomb mesh grill for protection and aesthetics

Product details Dayton Audio Epique EC30-4

Dayton Audio Epique EC30-4 Ceramic Dome Tweeter

The Dayton Audio Epique EC30-4 ceramic dome tweeter sets a new standard in high-frequency transducer performance. Its 30mm aluminum dome is reinforced with a precision-applied ceramic coating, offering exceptional rigidity and accurate piston motion for highly detailed and natural treble reproduction. The tweeter delivers a smooth, transparent sound extending well beyond the 40 kHz mark, making it perfectly suited for modern high-resolution audio systems.

Built for the Long-Haul

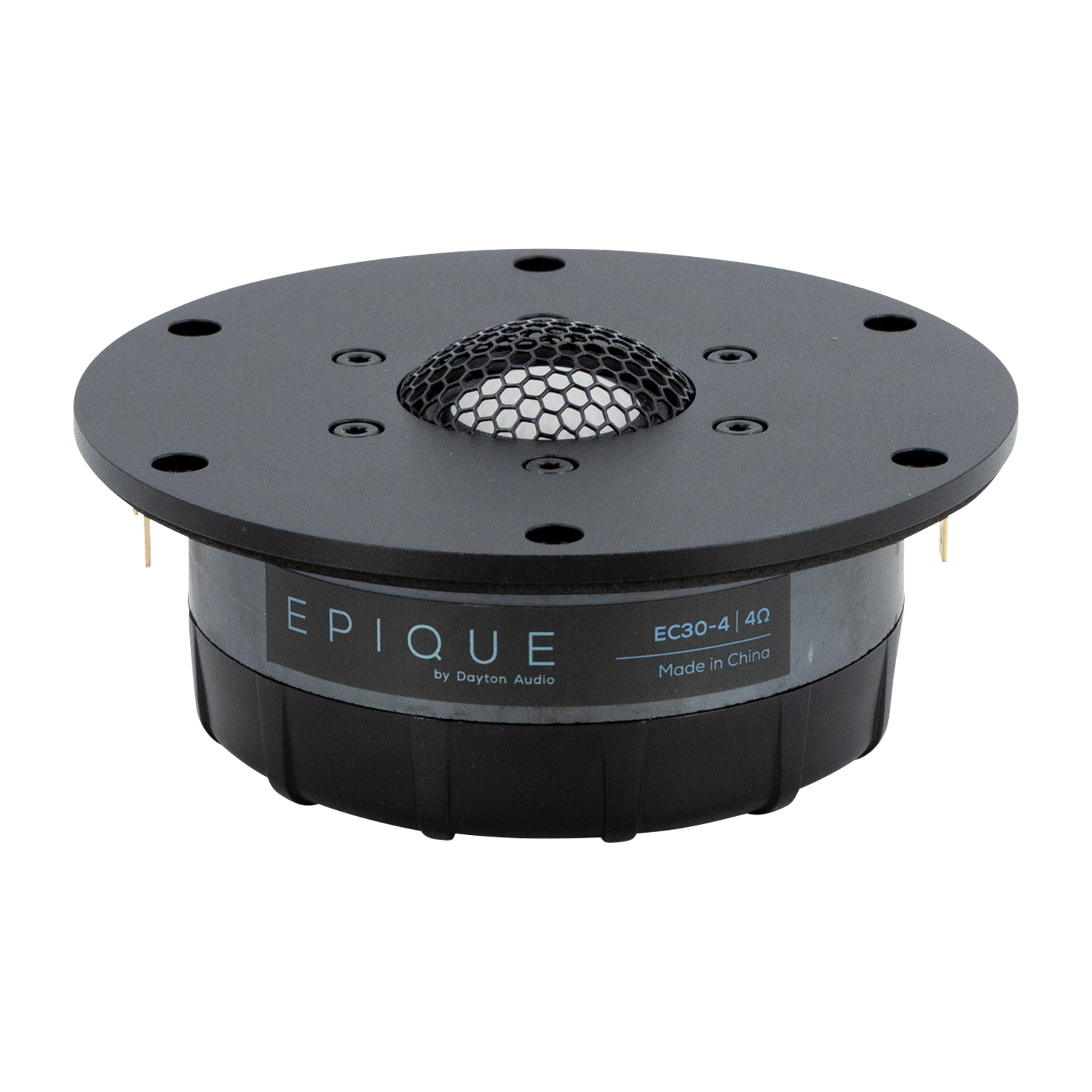

With a weight approaching 3 pounds, the EC30-4 combines robust engineering with refined design. A 3.6 mm aluminum faceplate and honeycomb-style grille provide both structural strength and acoustic transparency. Optimized for demanding applications such as studio monitoring, high-fidelity home systems, or custom loudspeaker builds, this tweeter delivers extended high-frequency response with precision and clarity.

Internally, the tweeter benefits from a carefully engineered motor structure that includes a copper cap and Kapton voice coil former, effectively lowering inductance and minimizing harmonic distortion. The oversized Y35-grade magnet adds power and control, while damping materials and a specialized back plate further suppress internal resonances.

Visually and structurally, the EC30-4 impresses with a 3.6mm thick aluminum faceplate and integrated honeycomb mesh grill, which not only enhances durability but also maintains a sleek, professional look. Rated at 80 watts RMS and 92 dB sensitivity, with a usable frequency range from 1,000 Hz to 40,000 Hz, this tweeter excels in high-end home audio, studio monitors, and custom speaker projects demanding pristine treble performance.
