Dayton Audio DTA-2.1BT2 100W 2.1 Class D Bluetooth Amplifier with Sub Frequency Adjustment

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DTA-2.1BT2
  • Vorrat: >10 Auf Lager

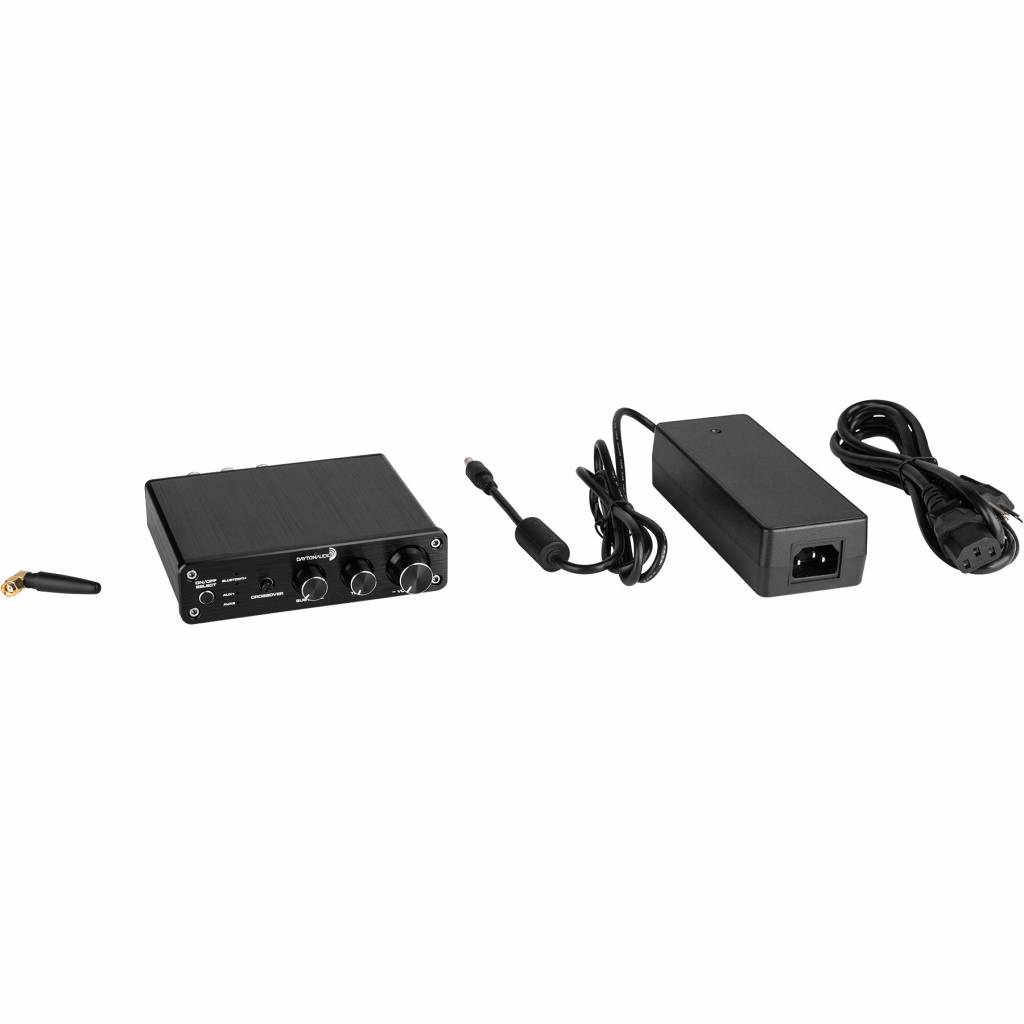

The DTA-2.1BT2 amplifier provides clean Class D power from an extremely compact and lightweight design. When used with the included power supply, this amplifier can adequately power most speakers and power a small passive subwoofer as well.

€ 134,95 Inkl. MwSt.

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DTA-2.1BT2 100W 2.1 Class D Bluetooth Amplifier with Sub Frequency Adjustment

The DTA-2.1BT2 amplifier provides clean Class-D power from an extremely compact and lightweight design. It is able to adequately power most speakers, and is also able to power a passive subwoofer. This allows you to create an inexpensive and high-performance 2.1 set up for any office, bedroom, or small home theater.



Highlights

  • Perfect to power an entire 2.1 system
  • User selectable sub crossover frequency knob
  • High-quality binding posts to ensure a solid connection and a professional look
  • Volume, tone, and sub level control via the front panel for easy attenuation
  • Bluetooth, RCA, and 3.5 mm inputs for a wide selection of inputs



Product details

Dayton Audio DTA-2.1BT2 100W 2.1 Class D Bluetooth Amplifier with Sub Frequency Adjustment



The DTA-2.1BT2 is a discrete whole system amplifier that provides output for 2 speakers and a passive subwoofer. This design allows you to create a compact 2.1 setup for virtually any room whether it be an office, bedroom, or even a small home theater. The 2 x 50W output power is more than enough for most bookshelf speakers, and the subwoofer output of 100W is ideal for a small subwoofer.



The reason the DTA-2.1BT2 is able to produce this exceptional power in such a small package is the Class D topology that is being utilized. This amplifier technology also provides high-efficiency for a low power draw on your electrical system.

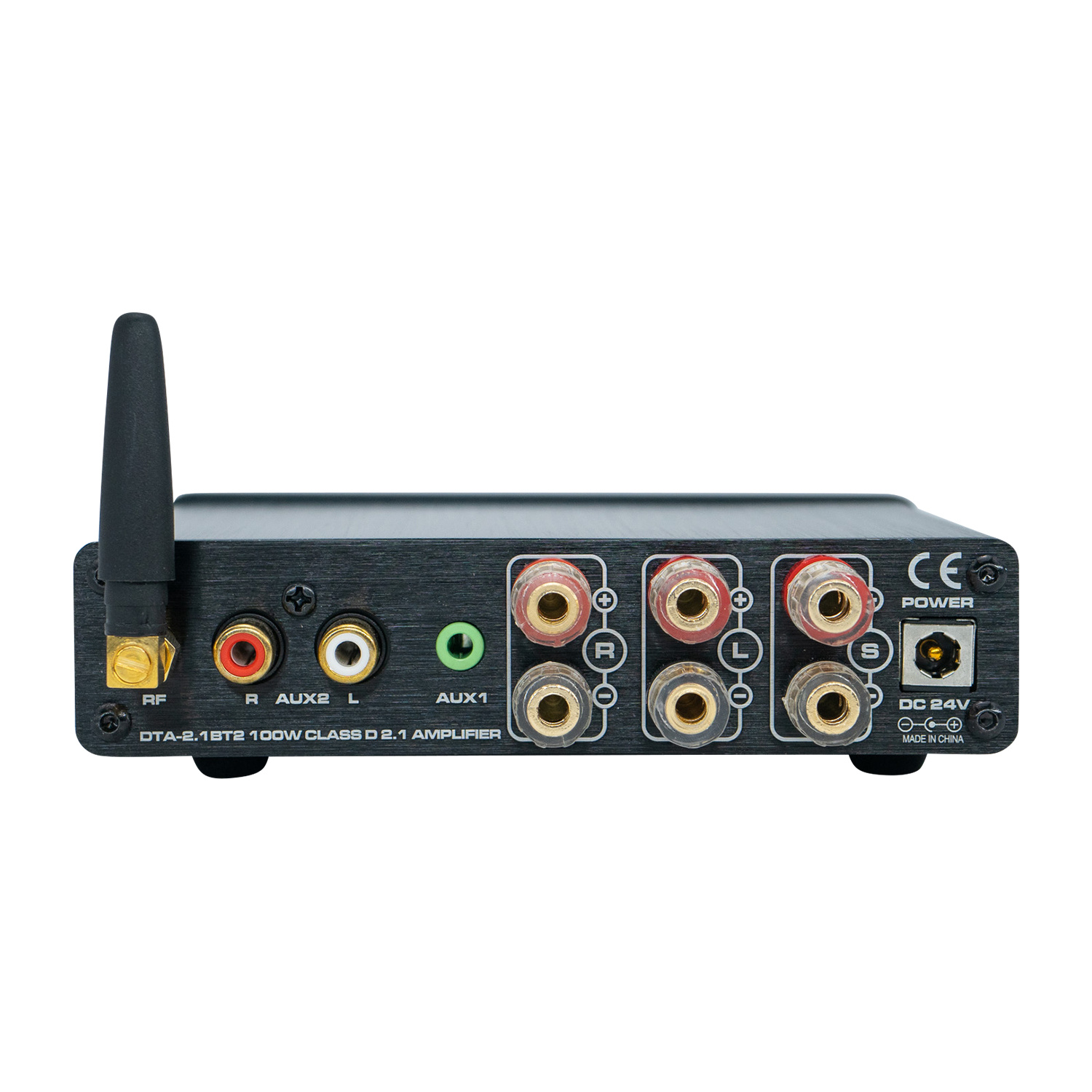

The DTA-2.1BT2 features the three most popular audio inputs: 3.5 mm, stereo RCA, and of course Bluetooth. The 3.5 mm and RCA inputs are found on the rear of the unit labeled Aux 1 and Aux 2, respectively. The Bluetooth connectivity is extremely convenient for wireless audio playback and is a key feature for any audio enthusiast.

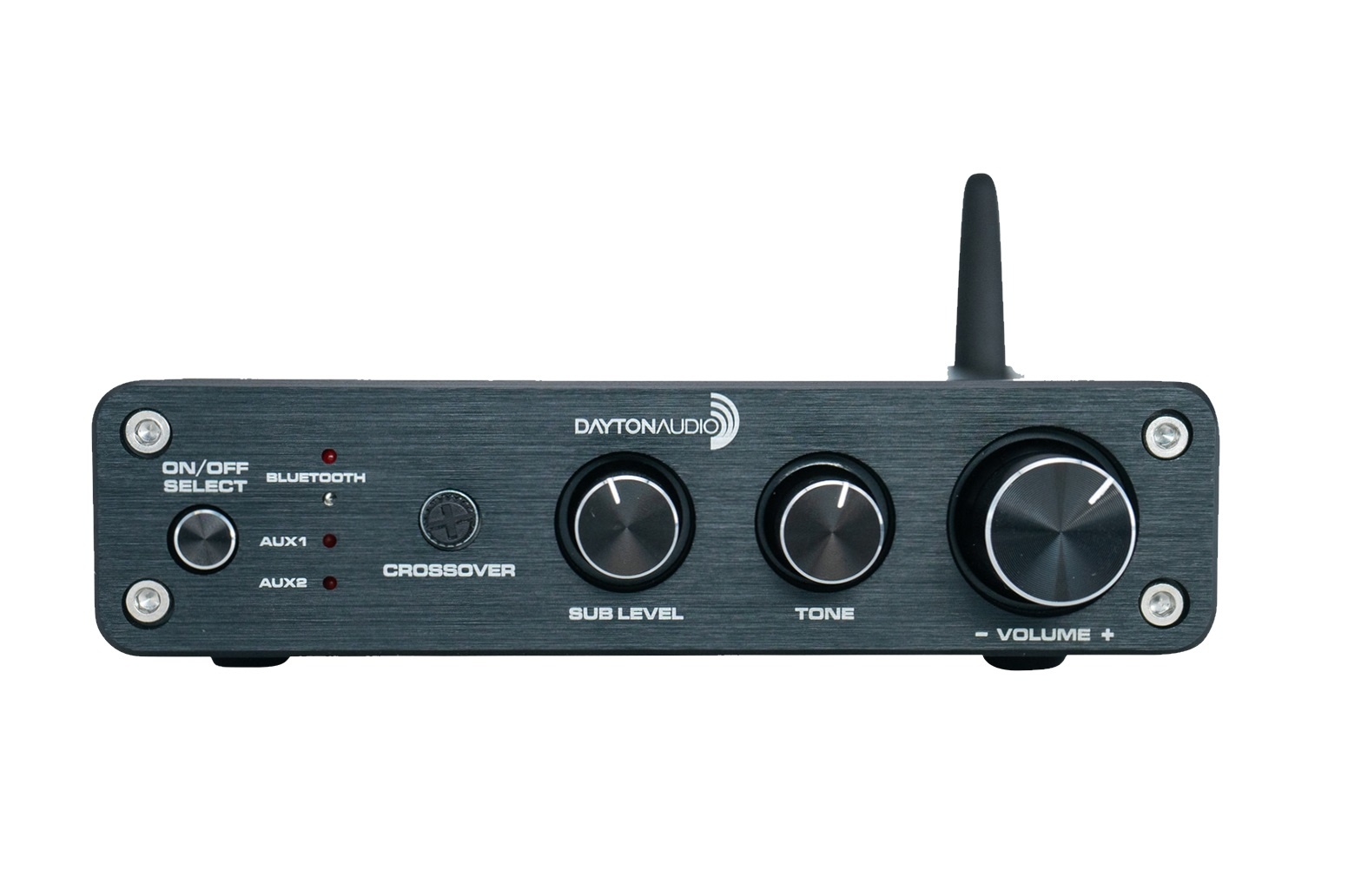

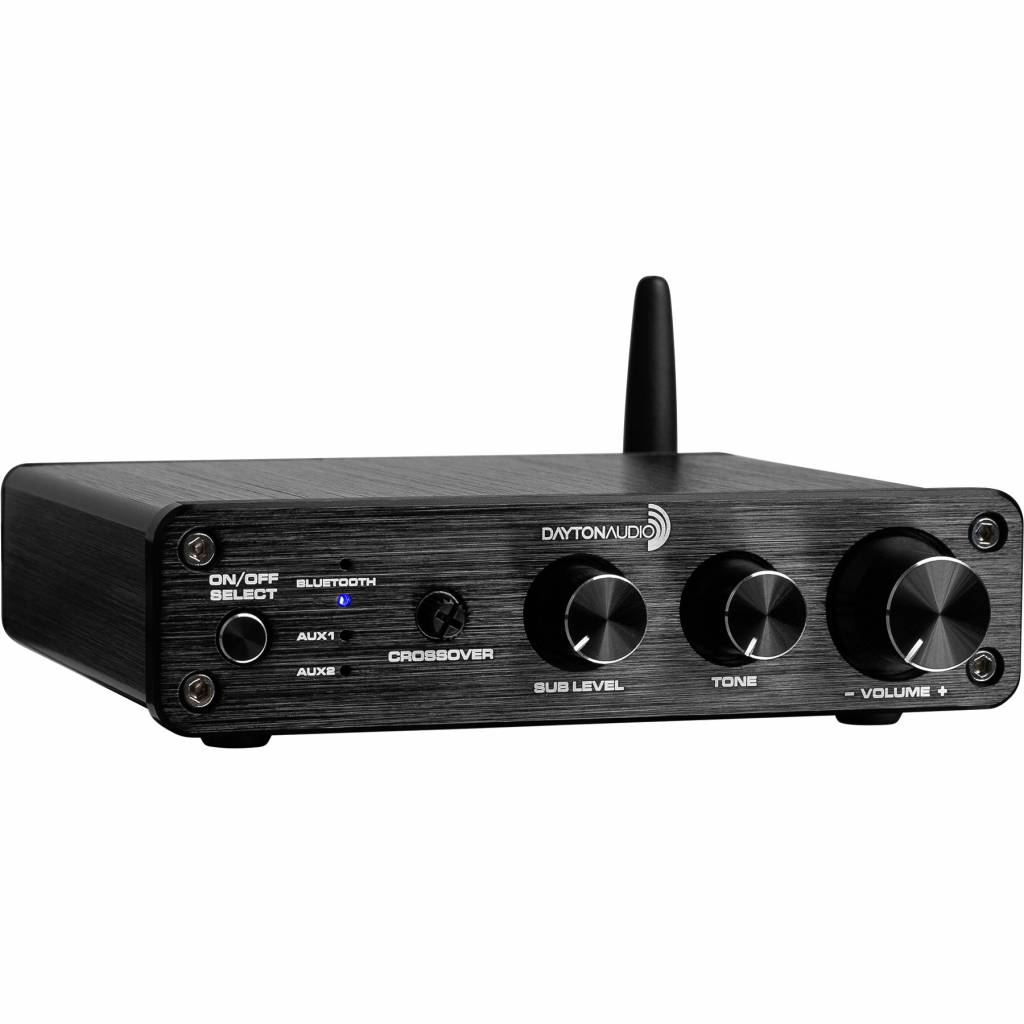

The front plate of the DTA-2.1BT2 features 3 knobs providing a gentile tactile feel. The first knob on the left provides control over the subwoofer output. The second knob is a tone control that allows you to attenuate the sonic signature of your speakers. The final and largest knob is the volume control located on the right of the faceplate. The front plate also features an adjustable crossover frequency to fine tune your system (50-120 Hz). There is a discrete push button power switch/source selector located on the front of the unit on the left-hand side. The DTA-2.1BT aesthetics offer you an attractive black aluminum case that can easily be the focal point of your 2.1 system.



Eigenschaften

Spezifikationen für: DTA-2.1BT2 100W 2.1 Class D Bluetooth Amplifier with Sub Frequency Adjustment

  • Rated power output (RMS) Die elektrische Leistung, gemessen in Watt, die ein Verstärker pro ausgangskanal erzeugen kann, ohne dass der Verstärker beschädigt wird oder das Ausgangssignal begrenzt wird. RMS=Root Mean Square 2 x 50 Watts at 4 ohms + 1 x 100 Watts at 4 ohms
  • Bridged power output (RMS) Die elektrische Leistung, gemessen in Watt, die ein Verstärker pro Brücken ausgangskanalkanal (2 x Stereo nach 1 x Mono Output), erzeugen kann, ohne dass der Verstärker beschädigt wird oder das Ausgangssignal begrenzt wird. RMS=Root Mean Square -
  • Minimum load Bezeichnet die minimale Belastung, in Ohm, die ein Verstärker kontrollieren kann. Von einer geringeren Belastung ist abzuraten, wenn diese geringer ist als die minimale Impedanz des Verstärkers. Ein Verstärker funktioniert am besten, wenn die Impedanz des Lautsprechers in den vom Verstärker vorgegebenen Impedanzbereich fällt (zum Beispiel 4 bis 8 ohm) 4 ohm
  • Signal-to-noise ratio (SNR) Gibt die Stärke des Signals im Verhältnis zum Schallleistungspegel an. Allgemein gilt: je höher der Wert desto besser. 86 dB
  • Distortion SPEC Distortion 0.06%
  • View all specifications
  • Distortion bridged -
  • Efficiency -
  • Frequency response 20 - 20,000 Hz
  • Input impedance -
  • Input sensitivity -
  • Auto turn-on sensitivity -
  • DSP -
  • DAC -
  • Maximum sampling rate -
  • Circuit Topology TPA3116
  • Amplifier classification Class D
  • Speaker output channels 2
  • Subwoofer output channel 1
  • Analog in/out -/-
  • Optical S/PDIF in/out -/-
  • Coaxial in/out -/-
  • RCA in/out 1/-
  • AUX in/out 1/-
  • Bus in/out -/-
  • XLR in/out -/-
  • USB -
  • Memory card slot -
  • Network connection -
  • Headphone jack -
  • Subwoofer pre-out -
  • Bluetooth 4.0
  • NFC -
  • Wi-Fi -
  • Banana plug compatible
  • Remote control -
  • App control -
  • Auto turn-on -
  • Accepted file formats -
  • Equalizer (EQ) adjustment
  • Equalizer (EQ) profiles -
  • Multi zone/room -
  • Crossover frequency adjustment 50-120 Hz
  • Bridge mode -
  • Power requirements 24 VDC
  • Power inlet connector -
  • Power consumption -
  • Stand-by power consumption -
  • Dimensions (D x W x H) 152 x 130 x 38 mm
  • Case material Aluminum

Documenten

Bewertungen

Erfahrungsberichte 4.85 / 5 Bewertungen: (12)

  • PV Durch Peter V. an 17-07-2020 20:37

    4 / 5

    mini versterker met maximum mogelijkheden beantwoordt aan verwachtingen

  • HA Durch H A J S. an 02-05-2020 13:51

    5 / 5

    Top versterker!!!!!

  • PS Durch pete s. an 06-03-2019 15:15

    5 / 5

    Gggggreat

  • VV Durch Valeri V. an 21-02-2019 12:36

    5 / 5

    Koper heeft geen omschrijving achtergelaten.

  • RC Durch Richard C. an 01-02-2019 16:05

    5 / 5

    -

  • ES Durch Erol S. an 24-01-2019 11:15

    5 / 5

    Nice amp. I have connected with a Bose 2.1 speaker system. I had to connect the sub output to left and right on the sub, working great so far. Bluetooth also works great.

  • PK Durch petri k. an 15-01-2019 11:38

    5 / 5

    No description was given

  • RC Durch Rickard C. an 07-10-2018 18:28

    4 / 5

    No description was given

  • ZN Durch Zoltan an 30-09-2018 22:42

    5 / 5

    I bought this amp to replace my cheap Chinese TPA3118 2.1 amp for my boombox project.
    This amp has a good quality case, brushed metal box, nicely painted. The dials are turned with a silent "click", it is a joy to play with them. It is important to note that it has a 24V 4A PSU, that is enough for nearly 90W continuous power.

    I use it with BT connection, using it with a Samsung Galaxy phone. Sound is clear, no background noise during playback. The phone BT input is really powerful at max volume, it easily makes the amp clipping at 66-75% of the volume dial, so I keep my phone BT volume around 80%, allowing me a more granular volume control on the amp.

    I made some measurements in stereo mode (not 2.1) with 2*4 Ohm dummy loads, with its default PSU, in BT mode. I have a cheap DSO150 Oscope, so it might not be 100% accurate, but hope it helps.

    Clean power @1KHz (before visible clipping on the sine wave): 13.5-14V, =45-48W clean power / channel (<1%), that is excellent, knowing that the maximum power is 50W. The power supply is probably capable to deliver far beyond its specs, as 100W clean power would require at least 4.5-4.8A, that it can surely produce, at least for a short time. The PSU became only slightly warm during this, no overload protection kicked at maximum clean power at least not during the stress test (1-2 minutes).

    Frequency response is pretty flat vs. 1kHz, though it fades by -3dB above 16kHz:
    @30Hz -1.1dB,
    @40Hz -0.6dB
    @5kHz -0.3dB
    @10kHz -1.6dB
    @14kHz -2,4dB
    @20kHz -4.6dB

    Overall, I like this amp for the price (it is more pricey in Europe, unfortunately).
    It costs more than its noname cousins, but every piece of it tells about the many hours of engineer efforts, to make a decent product overall.

  • AR Durch ALAN ROBERT P. an 27-05-2018 10:34

    5 / 5

    Good clean sound.

  • TK Durch Tomi K. an 11-05-2018 17:11

    5 / 5

    No description was given

  • KW Durch Kári W. an 07-05-2018 17:40

    5 / 5

    Amazing lil fella, great sound in a tiny package! Blown away by the build quality as well.
