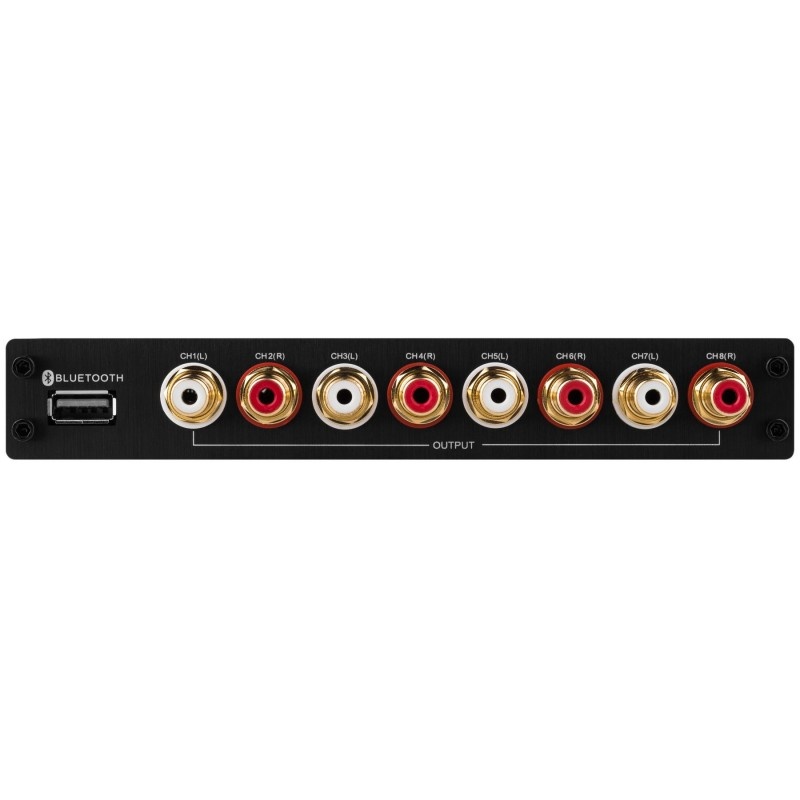

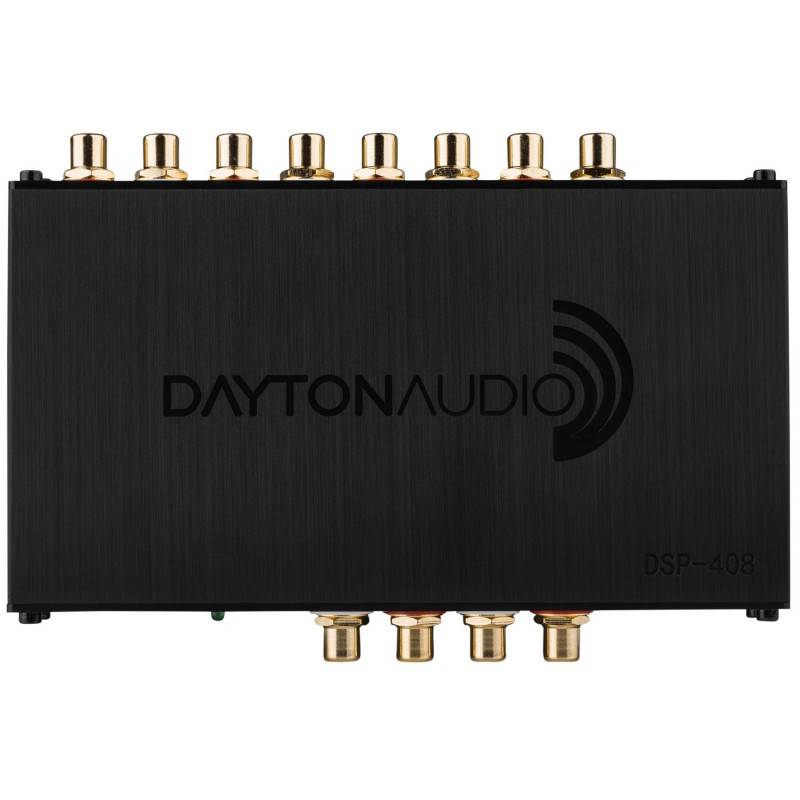

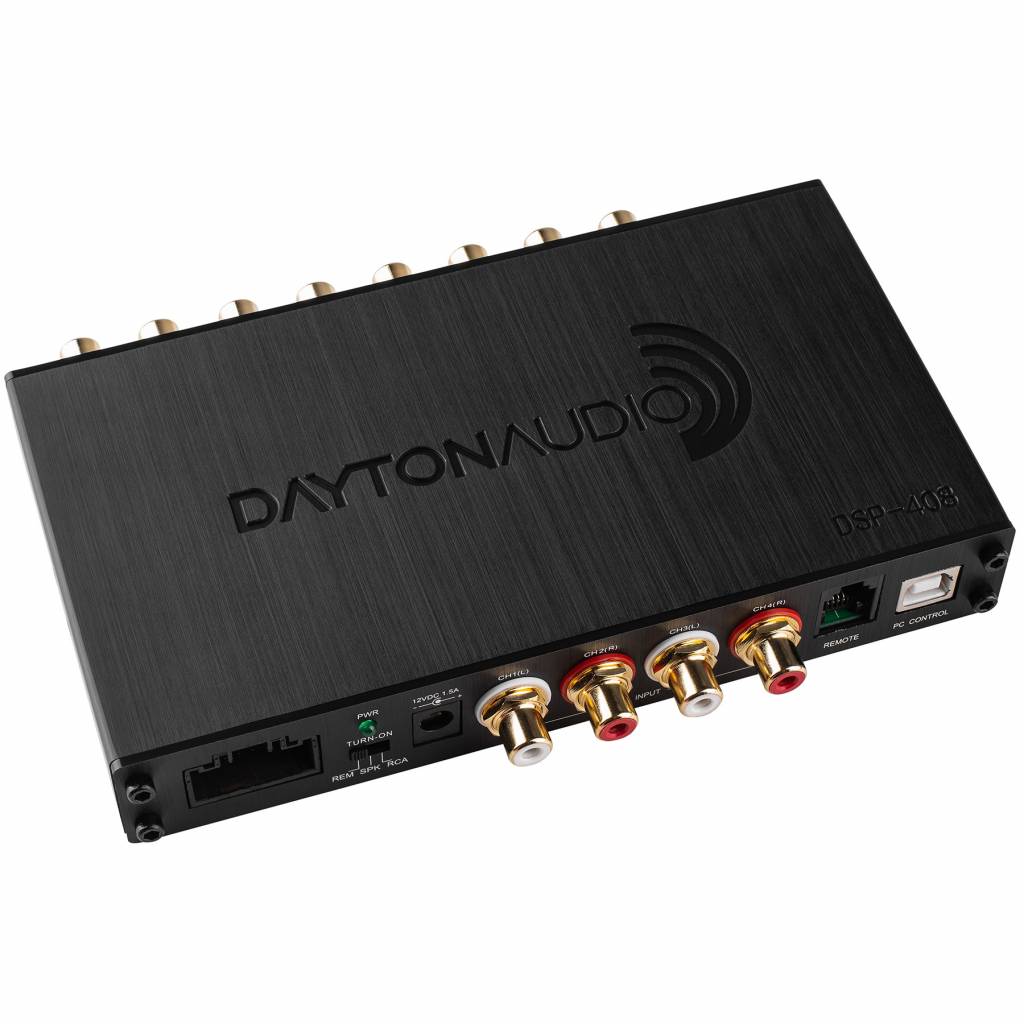

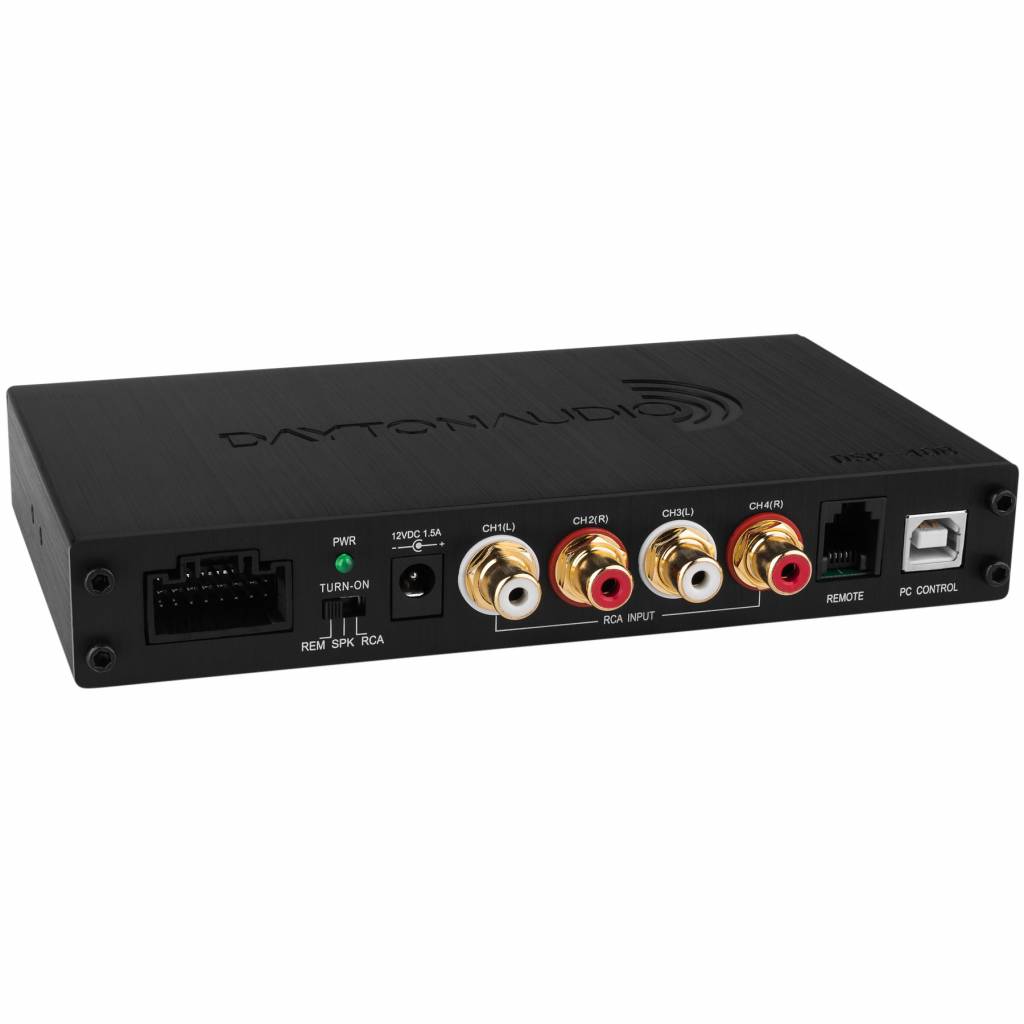

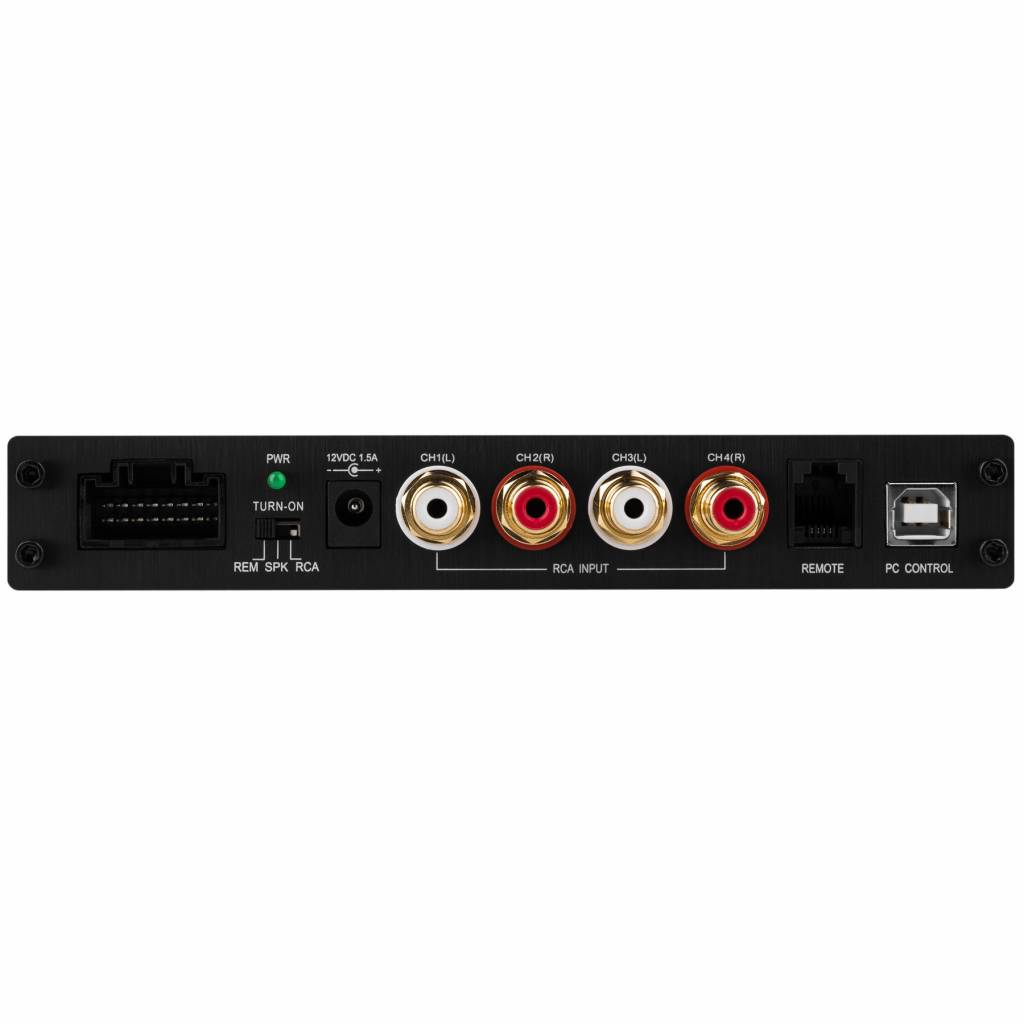

Dayton Audio DSP-408 4x8 DSP Digital Signal Processor for Home and Car Audio

€ 148,72€ 179,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The DSP-408 features built-in EQ, crossovers, time alignment, and input/output mixing. The most alluring feature of the DSP-408 is the ability to be used in a home or car right out of the box, which makes it the perfect addition to your home or car audio... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €170,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Take control of your audio system with the Dayton Audio DSP-408, a feature-rich 4 input/8 output digital signal processor. The DSP-408 features built-in EQ, crossovers, time alignment, and input/output mixing. The most alluring feature of the DSP-408 is the ability to be used in a home or car right out of the box, which makes it the perfect addition to your home or car audio system.



Highlights

  • Real-time signal processing for ultimate control
  • Complete audio customization for application specific installations
  • Easy-to-use Graphical User Interface (GUI)
  • All eight output channels have a fully adjustable 10-band parametric EQ
  • Optional Bluetooth dongle (for streaming and app control) and wired remote available



Product details

Take Control of Your Sound

Dayton Audio DSP-408 4x8 DSP Digital Signal Processor for Home and Car Audio

Ease of use has always had its place in the consumer electronics industry. Dayton Audio has now brought to market a digital signal processor (DSP) that combines versatility, incredible sound quality, and ergonomic graphical user interfaces (GUI).

The most unique feature of the DSP-408 is the ability to use it in a vehicle or home audio system right out of the box. This adaptation allows users to use a single model of DSP for all their audio processing needs.

For many individuals, the pursuit of perfect sound quality is a never-ending quest. When utilizing all the features the DSP-408 offers, the ability to manipulate and improve the sound quality of your audio system is simply astonishing. With access to all the following features, perfecting your audio system is just a matter of time. Connect to your DSP-408 and get to work!



Software Features

10-band parametric equalizer per channel

High and low shelf EQ per channel

Variable crossovers: High/Low/Band-Pass slopes 0-24 dB, Linkwitz Riley/Butterworth/Bessel

Time delay: 0 to 277 cm or 8.1471 ms adjustable in 1 cm steps

Input/Output mixing to customize the signal path

Phase adjustment

Customizable name/ID for each of the 6 presets

Load, save, recall, or delete preset files

Software controllable level attenuation on the preamp and high-level inputs

Minimum/maximum voltage protection

Reverse voltage protection

Mute circuit and delay



Windows-Based GUI

The DSP-408 is easily controlled via a Windows application developed by Dayton Audio. This application features all the tools you could need to make your audio system sound its very best, while still being easy to use.





Windows-Based GUI Android App with Bluetooth Connectivity (Optional)

In the modern age of mobile devices, breaking out the bulky laptop to make modifications to your sound system can seem like a chore. That's why Dayton Audio has given you the option to connect to your DSP via your Android mobile device using the DSP-BT4.0. This Bluetooth 4.0 dongle allows users to completely tune their DSP via the mobile DSP-408 app. In addition, the user can also use their mobile Bluetooth device as an audio source!





Wired Remote Control (Optional)

The allure of a wired remote control is obvious when installing in a mobile environment. Being able to effortlessly control the volume and which preset you are using is an invaluable feature. To satisfy the need for the customers installing the DSP-408 in a mobile environment, Dayton has offered the DSP-RC as an optional accessory.

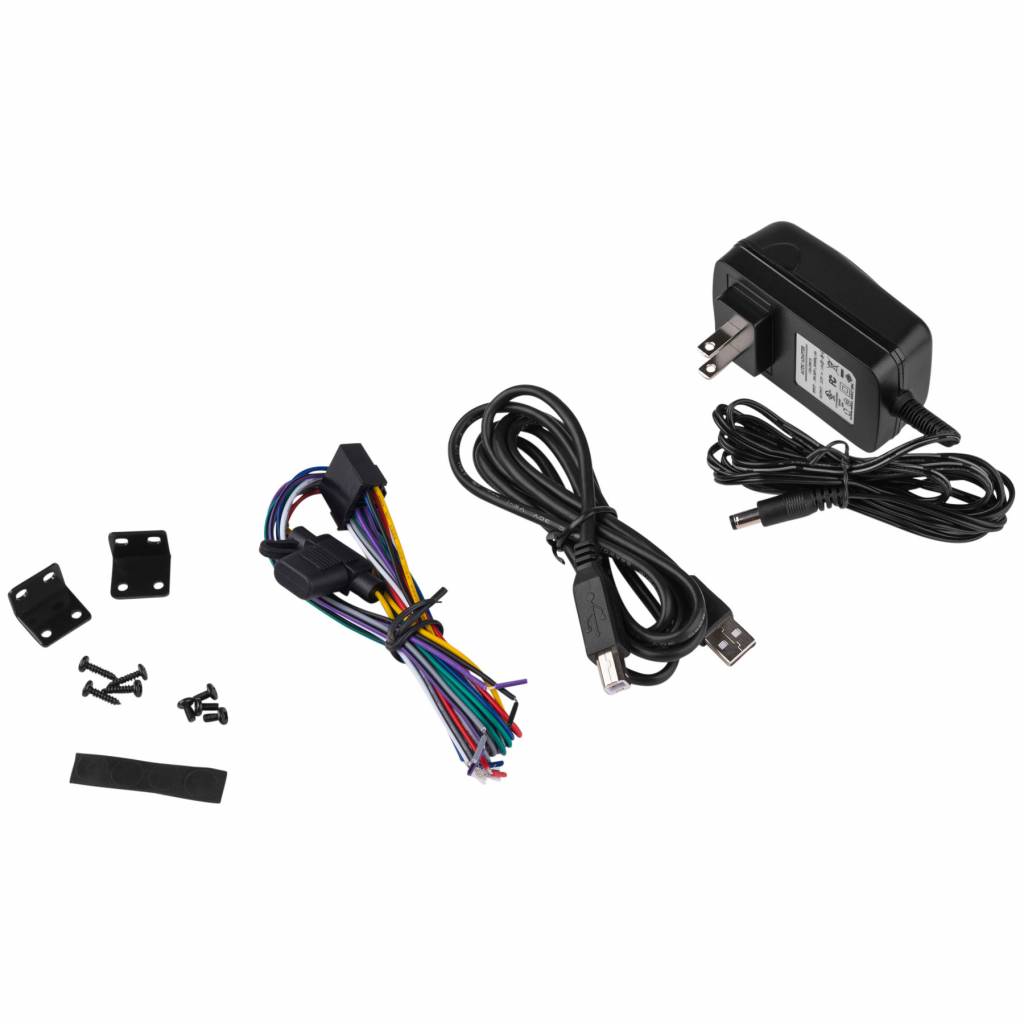

Package Contents

1 x DSP-408 Processor
1 x Power Adapter (12V, 1.5A)
1 x High-Level/Power Input Harness (16-pin)
1 x USB A to B Cable (10')
2 x Mounting Brackets
4 x Mounting Bracket Machine Screws
4 x Mounting Screws
4 x Rubber Cushion Pads
1 x Introduction Card



Note: To update your DSP's firmware and software, please watch the video below for instructions.

Note: after you download the new software, do not upload presets from a previous software version. Write out your settings and recreate them in the new software.





Eigenschaften

Artikelnummer:
DSP-408
Device type
Boxed
Device serie
-
DSP chip
Analog Devices ADAU1701
Internal processing resolution & sample rate
24 bit / 48 kHz
Input / ouput configuration
4 / 8
Audio input connectivity
RCA (low-level)
16 pin wiring harnas (high-level)
Audio output connectivity
RCA
Max input level
3.2 V (RCA)
8 V (high-level)
Max output level
3.5 V
Input impedance
20k ohms (RCA)
180 ohms (high level)
Output impedance
50 ohms
Calibration software
DSP-408 Windows software
Android and iOS App (optional)
IIR
check
FIR
-
Dirac Live®
-
DSP presets
-
Impulse response correction
-
Infrared remote learning
-
Windows / Mac compatible
check / -
UMIK-1 included
-
Room EQ wizard support
-
Dimensions
166 x 116 x 26 mm
Power
9 - 17 VDC

Bewertungen

5 from 5Based on 11 reviews
Produkt bewerten
5 van 5
Die Ware wurde schnell geliefert. Leider liegt kein deutsches Manual bei und es bedarf einiges an mehr Zeit, den DSP 408 einzustellen. Ansonsten sehr gutes Gerät!
Durch Andreas O. on 29 April 2021
4 van 5
For the price it is actually a 5 star product, but it could easy be made better.

I use this filter for a 3 way horn system, LCR in a hometheater, with 8 outputs i am almost there.

Bugs:
It looses the USB connection to a windows PC, replug it and you are good to go.
More serously, if you set the high pass filter to defeat, there is still a filter function present, so set the filter function to 6dB/octave, and then Defeat for best case scenario. I could not grasp why my speakers suddenly rolled of sooner with this component.

Be carefull with the link function it copies settings, so if you linc a tweeter to a sub/midrange setting it could be last tweet... It is a smart function when you want a stereo setup or other speakers with same settings.

There is no LR 48dB/octave settings, 24dB/octave is max.

What i miss most is the posibilty of importing PEQ filters, that is a manual proces with this device.

There is a bit of noise issues, it is better in some aspect than the ballanced minidsp...but in my horn system with 110dB sensitivity it is quit audible...It helps alot to connect unused RCA terminals with a cable to your amp, that lowers the humm noise by 6dB or so...

For the price it is a great product, nothing on the market comes close, and for most people it is plenty good. I think the humming issue will not be audible for most people, and maybe i need to check for better RCA cables....
Durch Jan Alstrup on 4 Oktober 2020
