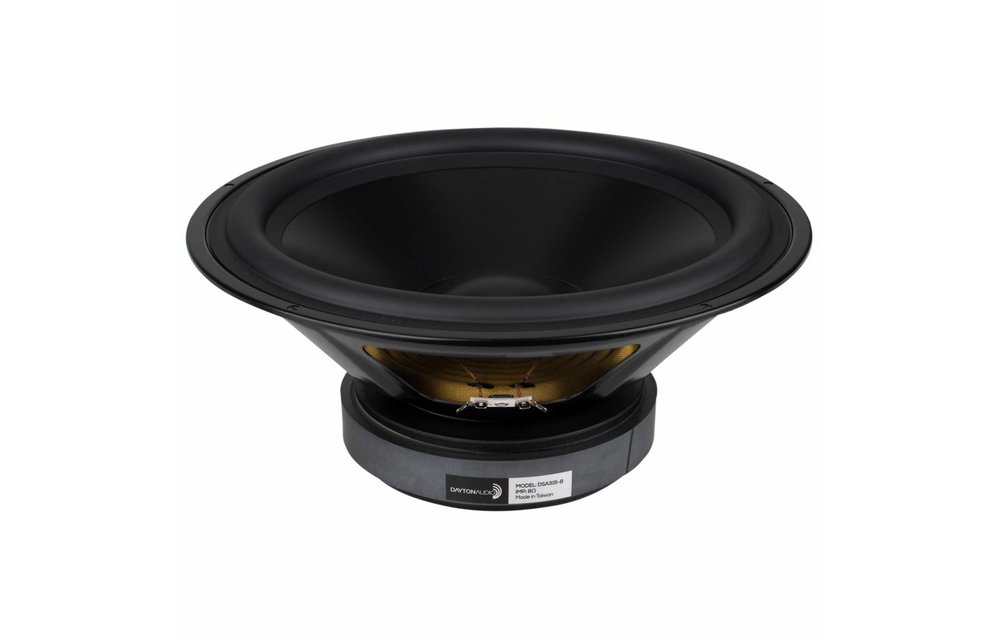

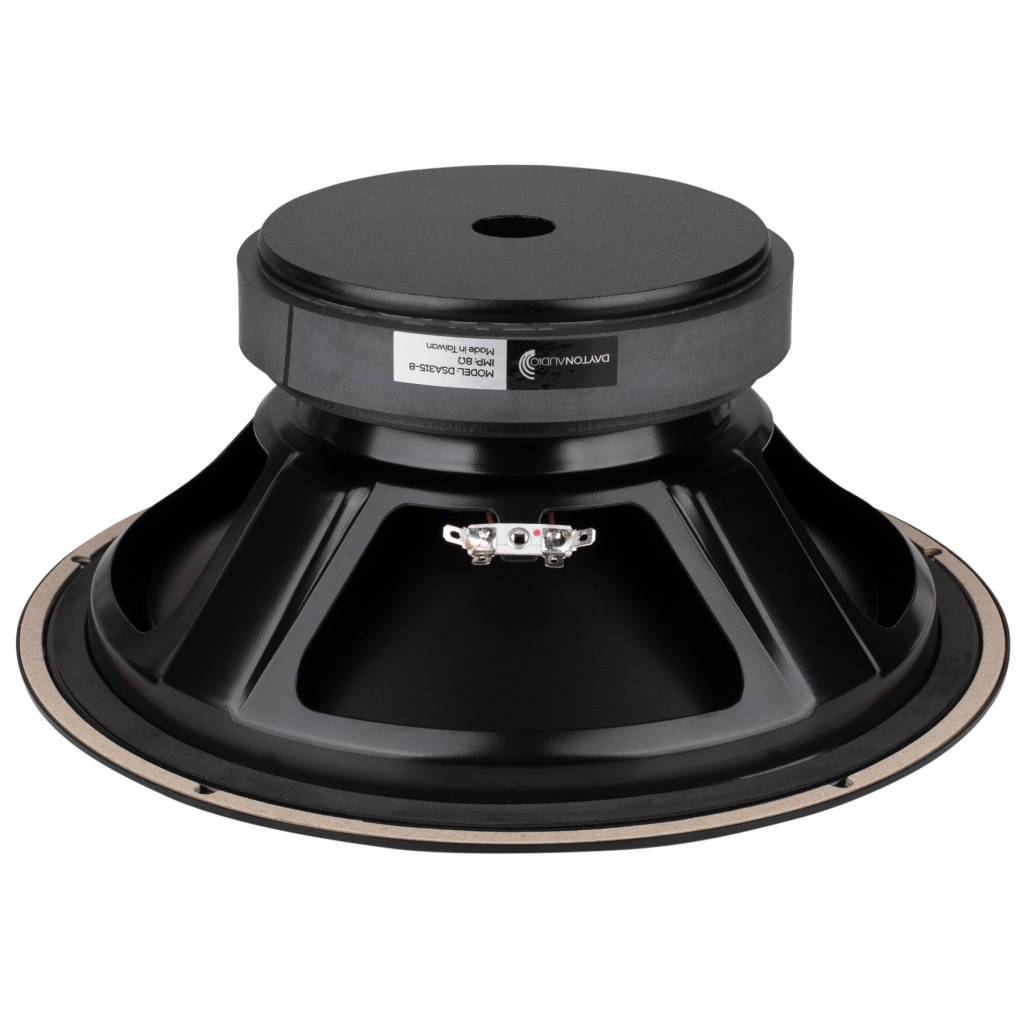

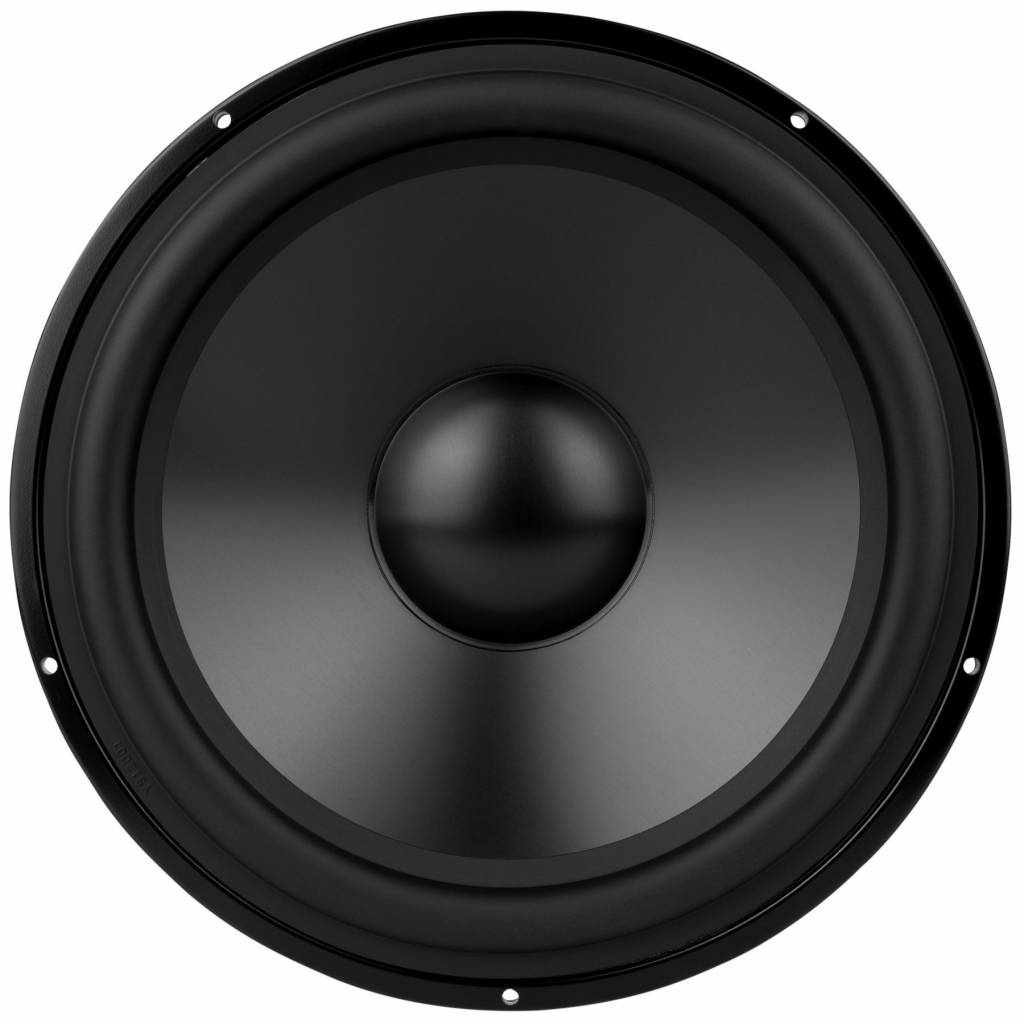

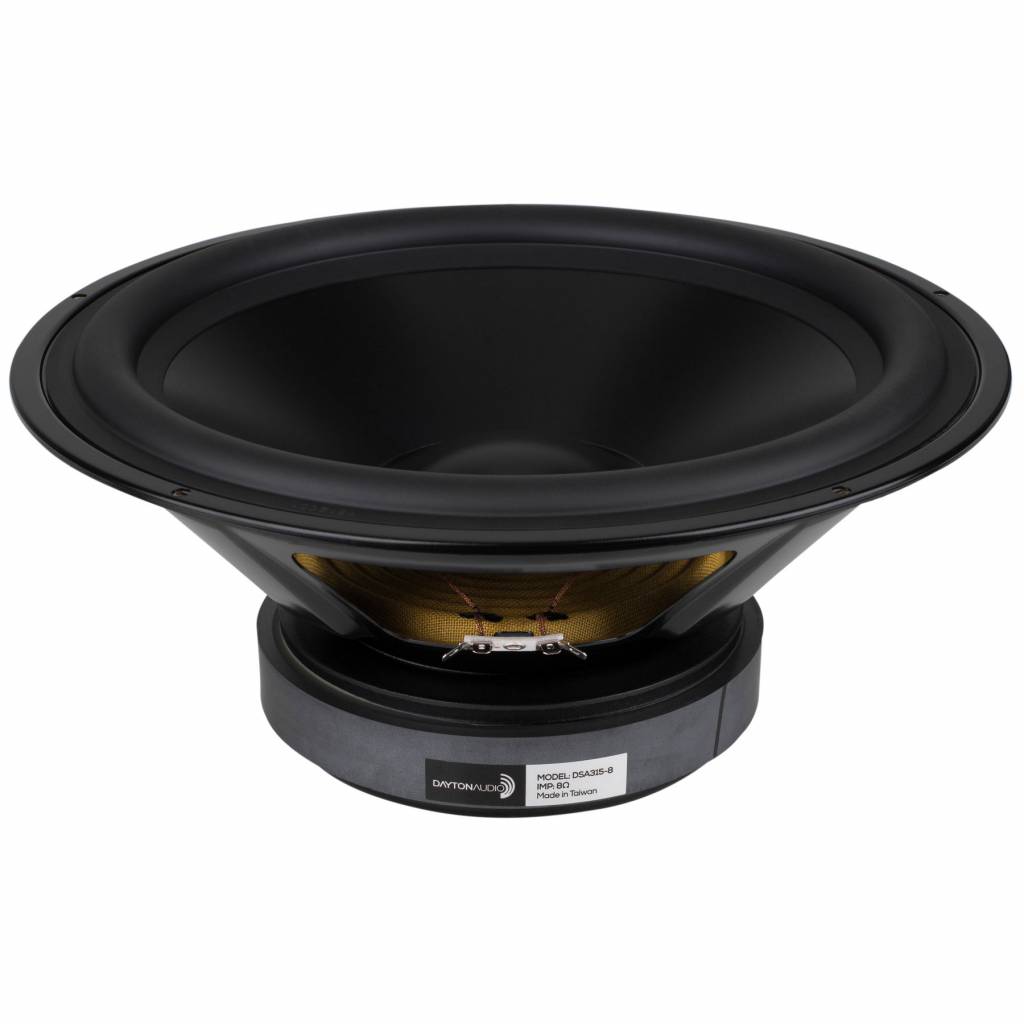

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer

€ 103,26€ 124,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DSA315-8 12" woofer.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €118,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DSA315-8 12" woofer.



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response



Product details

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Eigenschaften

Artikelnummer:
DSA315-8
Woofer Series
Designer Series
Woofer Type
Midwoofer
Nominal Diameter
12"
Power Handling (RMS)
120 watts
Power Handling (max)
240 watts
Impedance
8 ohms
Sensitivity
90.3 dB @ 2.83V/1m
Frequency Response
24 - 2,000 Hz
Voice Coil Diameter
49.5 mm
Magnet Weight
77 oz.
DC Resistance (Re)
6 ohms
Voice Coil Inductance (Le)
1.11 mH @ 1 kHz
Resonant Frequency (Fs)
24.23 Hz
Mechanical Q (Qms)
1.89
Electromagnetic Q (Qes)
0.40
Total Q (Qts)
0.33
Diaphragm Mass Inc. Airload (Mms)
113.1g
Mechanical Compliance of Suspension (Cms)
0.38 mm/N
Surface Area of Cone (Sd)
506.7 cm²
Volume of Displacement (Vd)
276.7 cm³
BL Product (BL)
16.1 Tm
Compliance Equivalent Volume (Vas)
147 liters
Maximum Linear Excursion (Xmax)
5.5 mm
Cone / Diaphragm Material
Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
314 mm
Overall Depth
130 mm
Baffle Cutout Diameter
272 mm
# Mounting Holes
5
Sealed Volume
0.86 ft.³
Sealed F3
62 Hz
Vented Volume
2.11 ft.³
Vented F3
27 Hz
