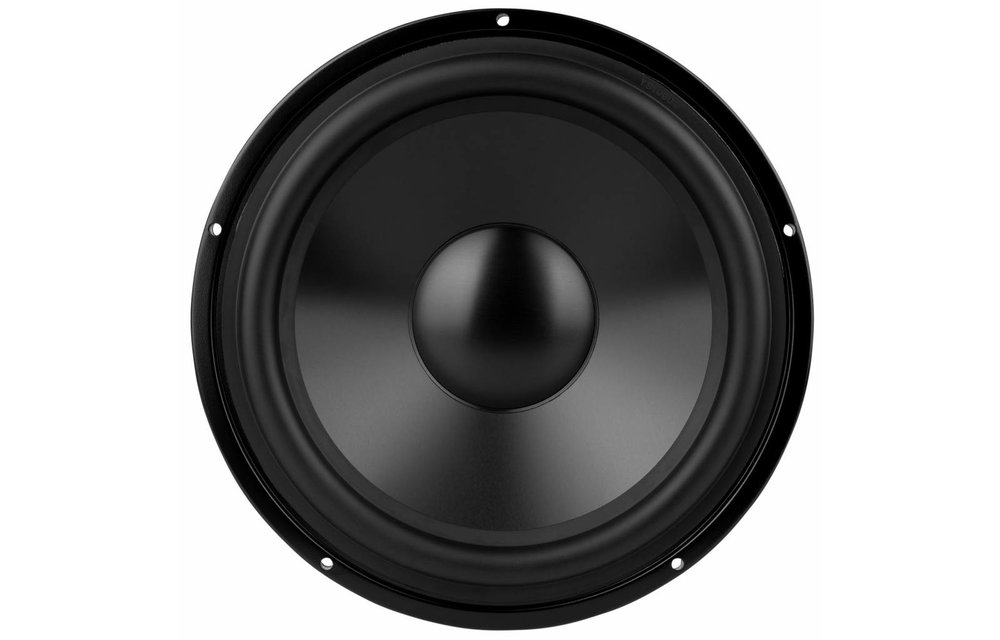

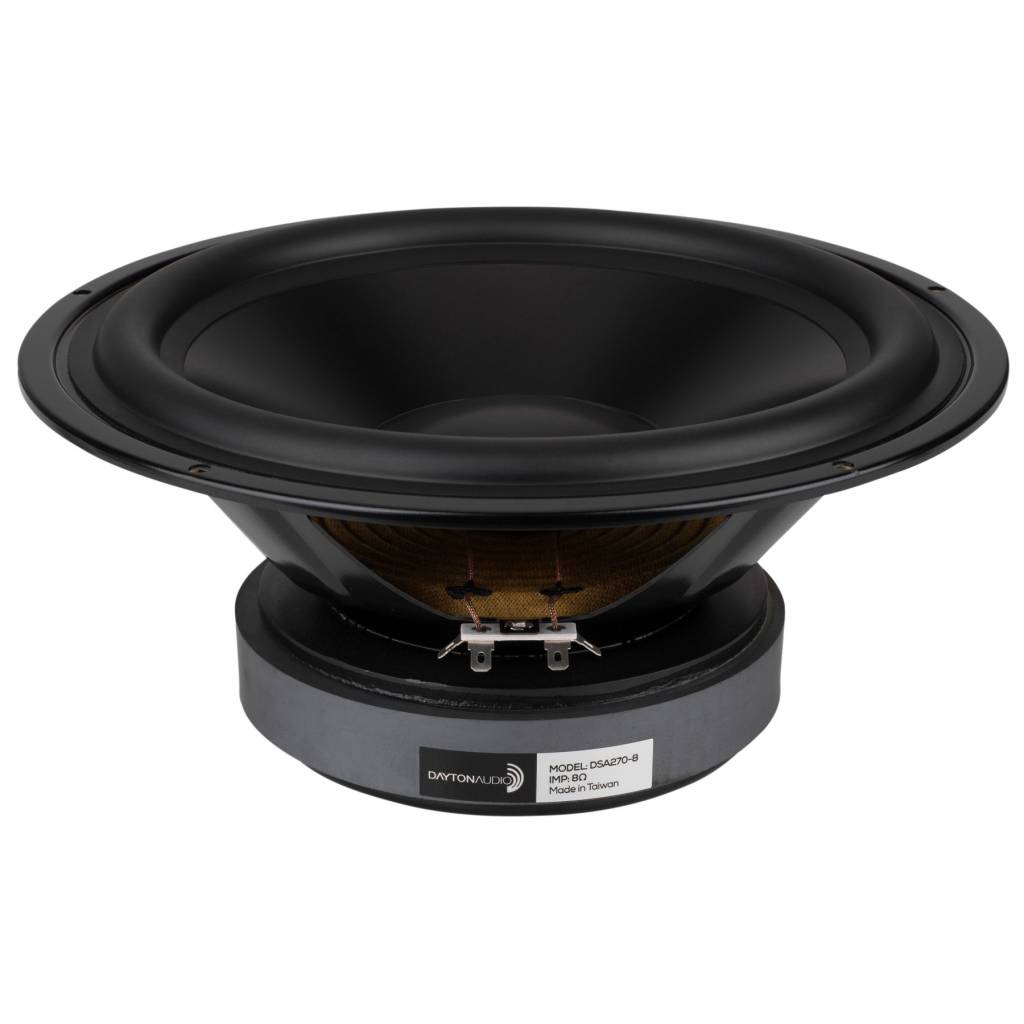

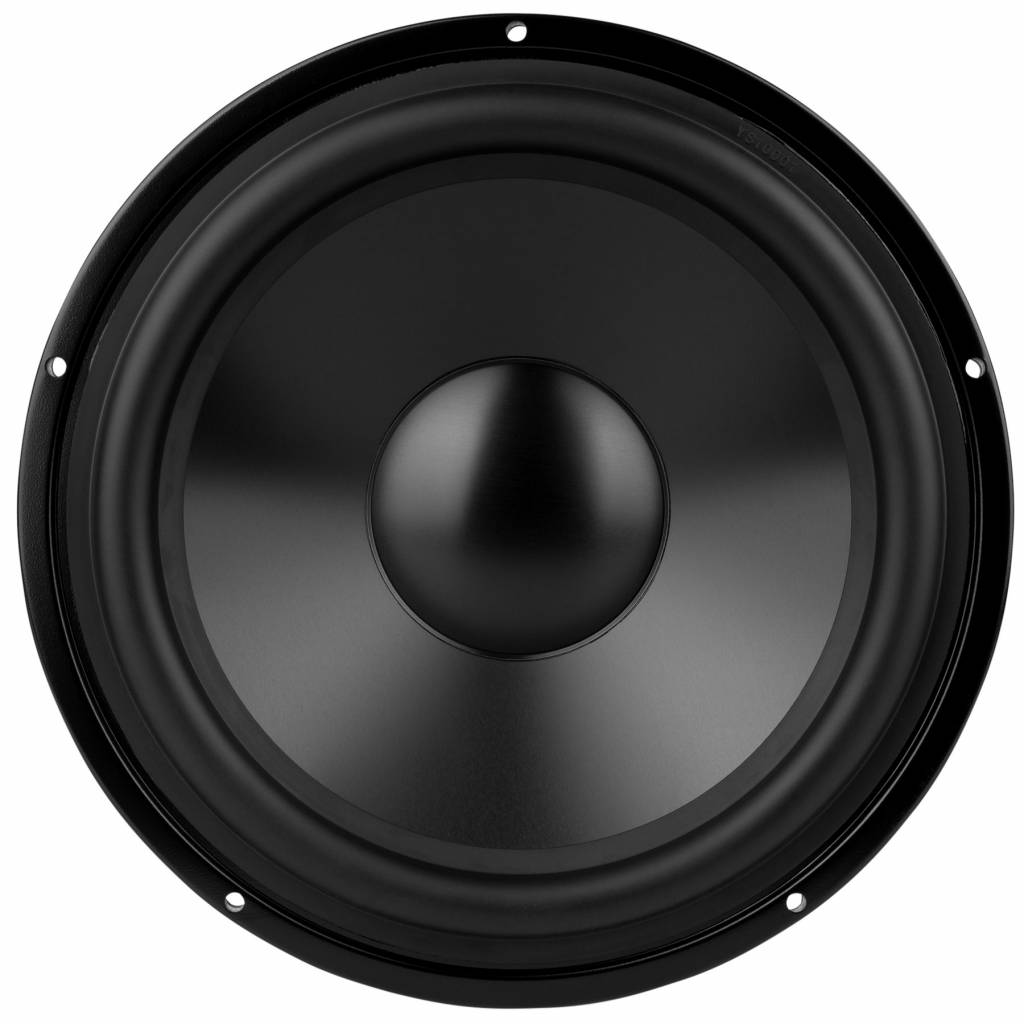

Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DSA270-8
  • Vorrat: 1 Auf Lager

The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!

€ 92,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €87,83 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer

The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response



Product details

Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Eigenschaften

Spezifikationen für: DSA270-8 10" Designer Series Aluminum Cone Woofer

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Designer Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 10"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 100 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 200 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 90.4 dB @ 2.83V/1m
  • Frequency Response 29 - 6,000 Hz
  • Voice Coil Diameter 38.5 mm
  • Magnet Weight 62 oz.
  • DC Resistance (Re) 5.4 ohms
  • Voice Coil Inductance (Le) 1.07 mH @ 1 kHz
  • Resonant Frequency (Fs) 29.61 Hz
  • Mechanical Q (Qms) 2.09
  • Electromagnetic Q (Qes) 0.47
  • Total Q (Qts) 0.39
  • Diaphragm Mass Inc. Airload (Mms) 59.6g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.49 mm/N
  • Surface Area of Cone (Sd) 353 cm²
  • Volume of Displacement (Vd) 194.1 cm³
  • BL Product (BL) 11.2 Tm
  • Compliance Equivalent Volume (Vas) 88.1 liters
  • Maximum Linear Excursion (Xmax) 5.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum Cone
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 270 mm
  • Overall Depth 112 mm
  • Baffle Cutout Diameter 227 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3 65 Hz
  • Vented Volume 2.13 ft.³
  • Vented F3 37 Hz

Documenten

Bewertungen

Erfahrungsberichte 5 / 5 Bewertungen: (1)

  • FC Durch Frank C. an 26-11-2020 12:03

    5 / 5

    Met de Specs van deze luidspreker in de juiste kast en aan deze prijs, zeker een aanrader. Verwacht uiteraard geen highend ,maar doet prima zijn ding.
