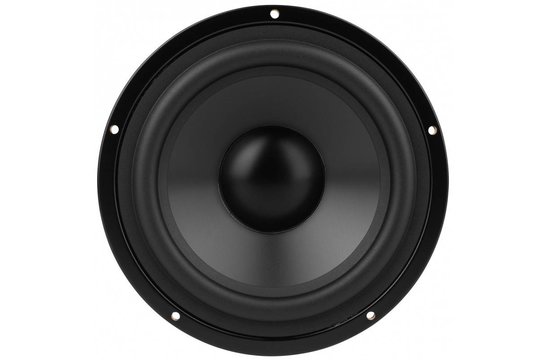

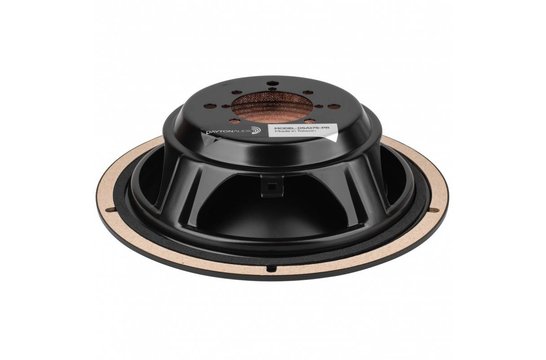

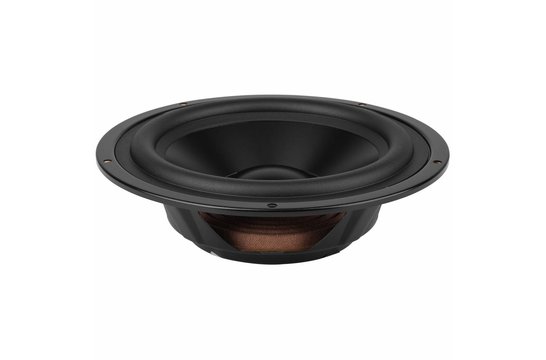

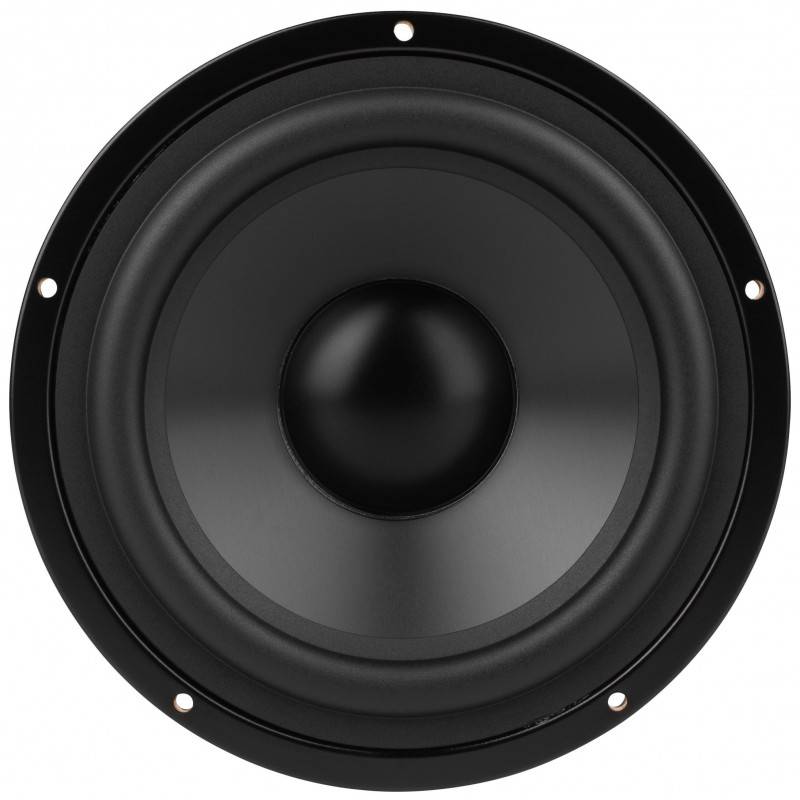

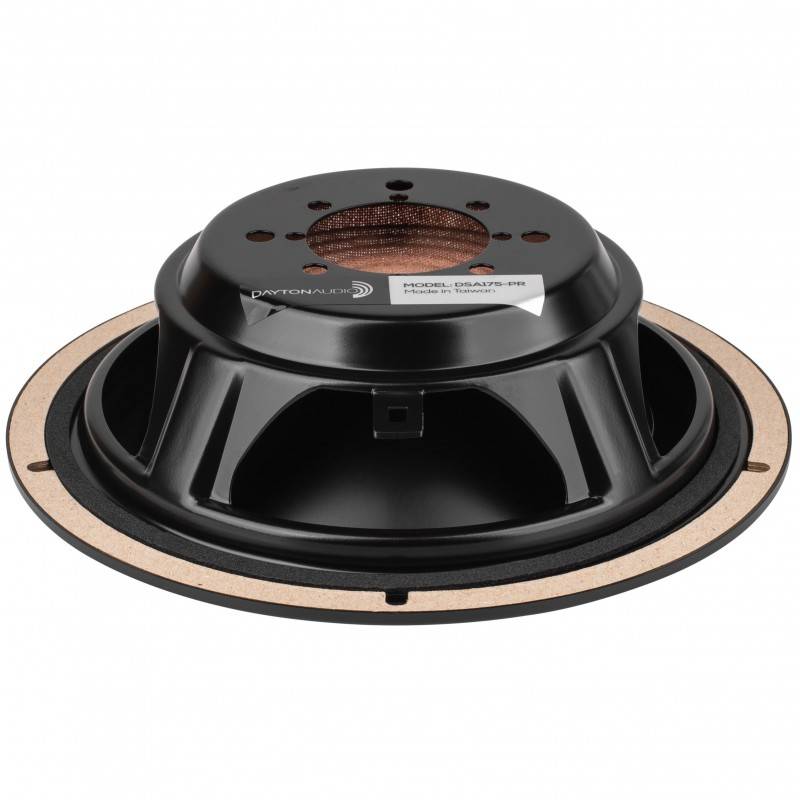

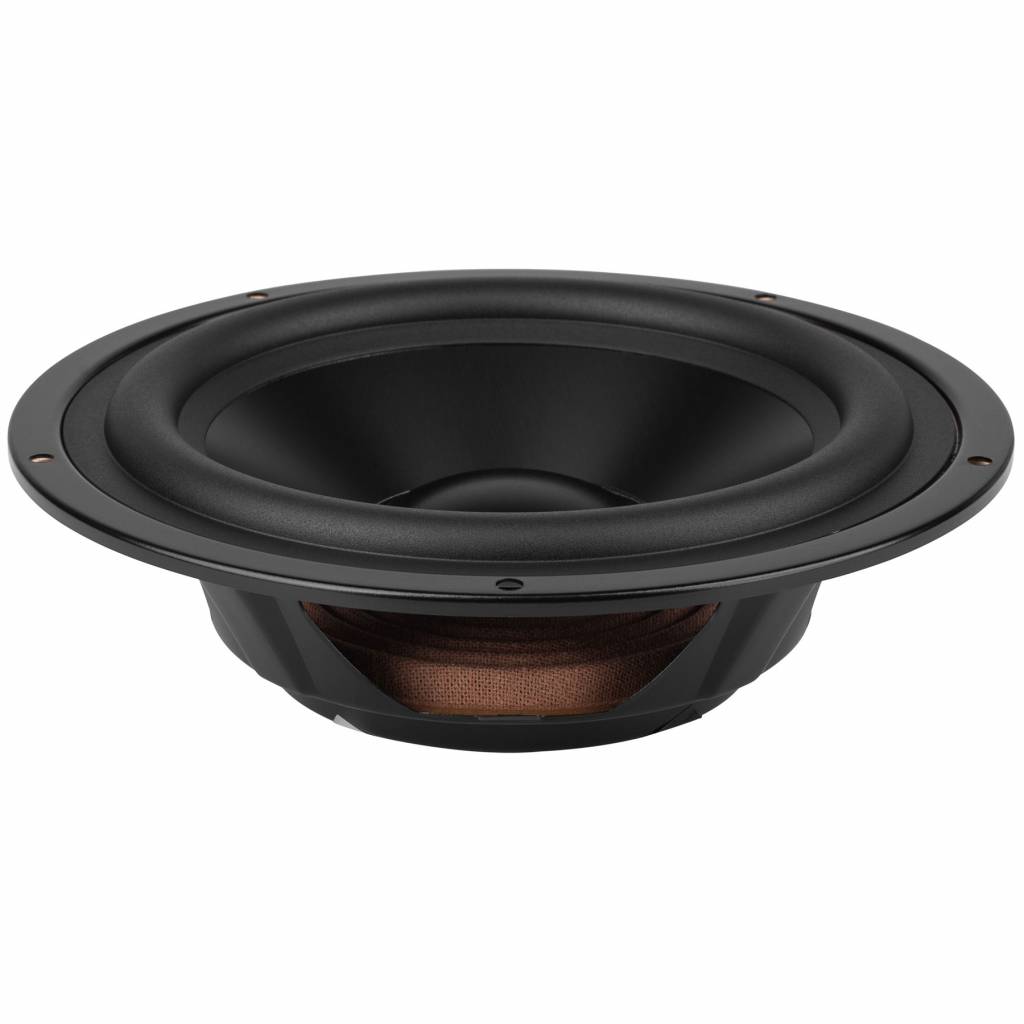

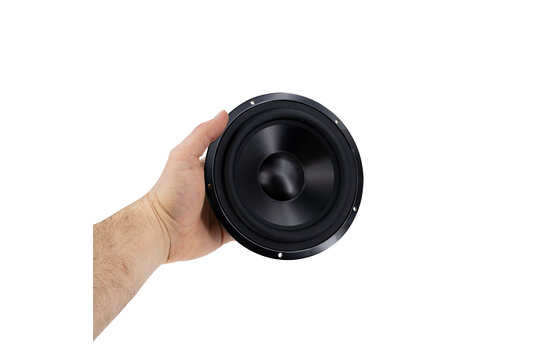

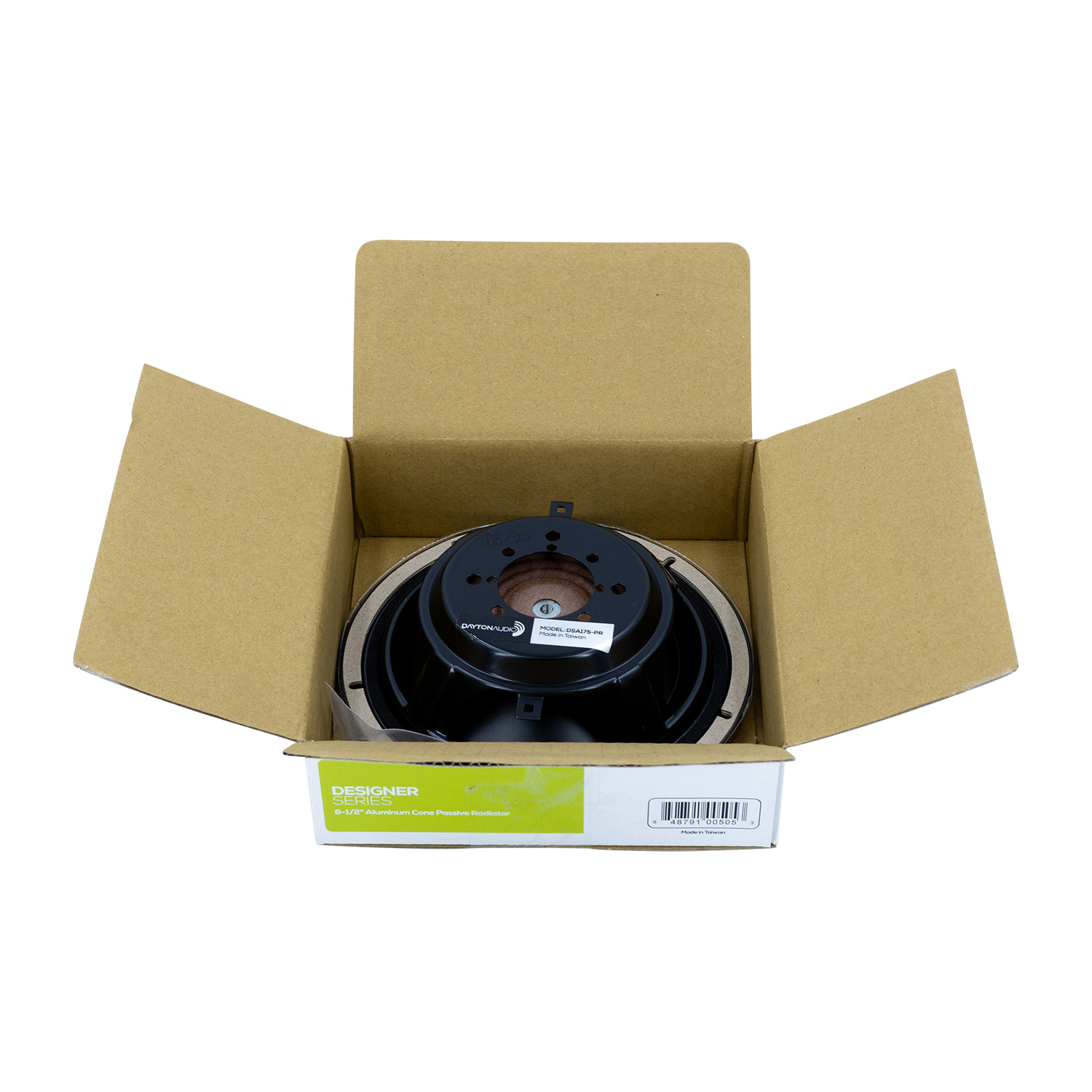

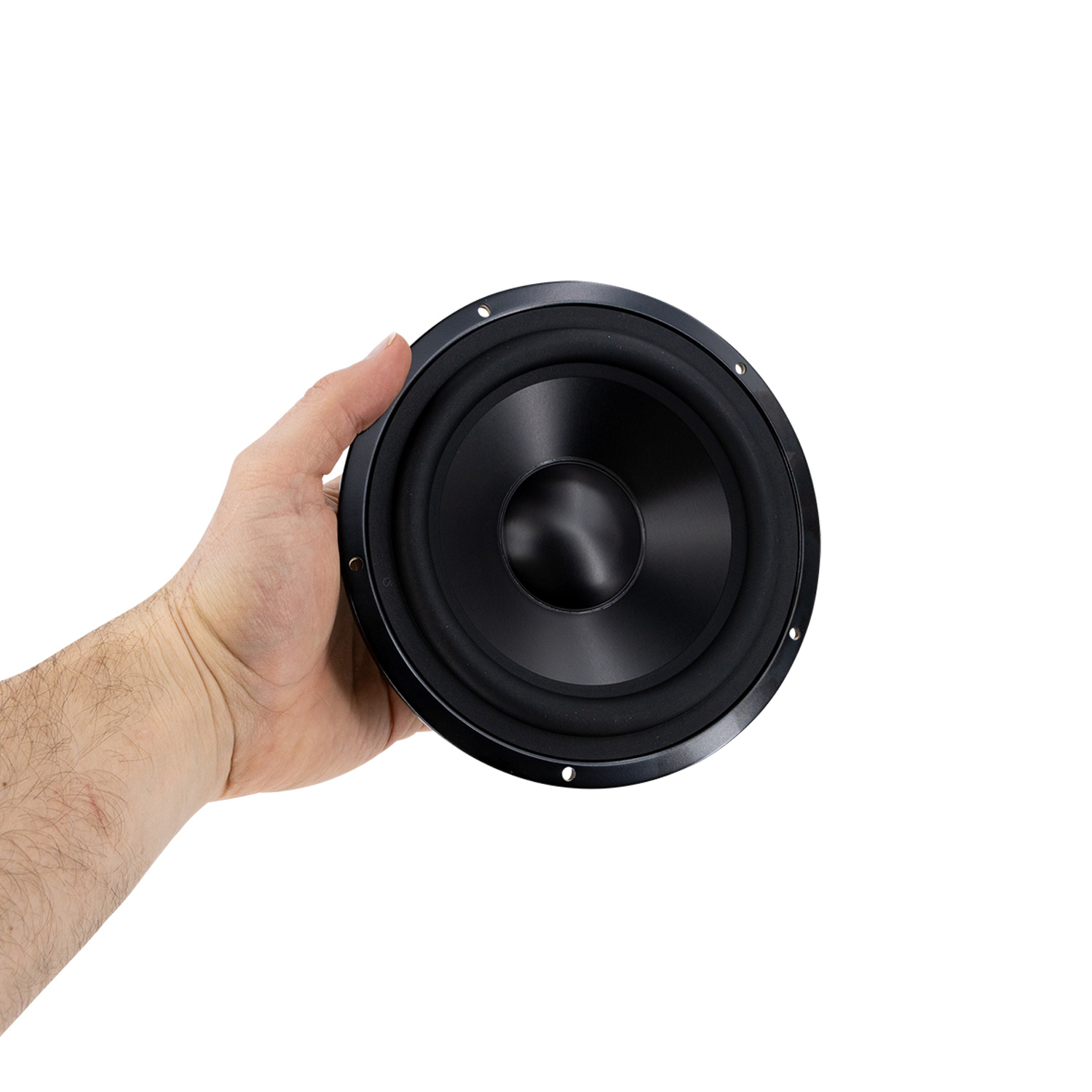

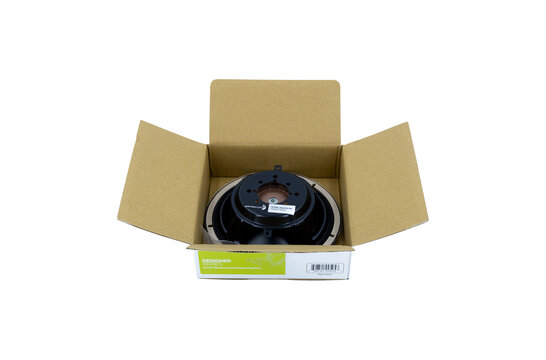

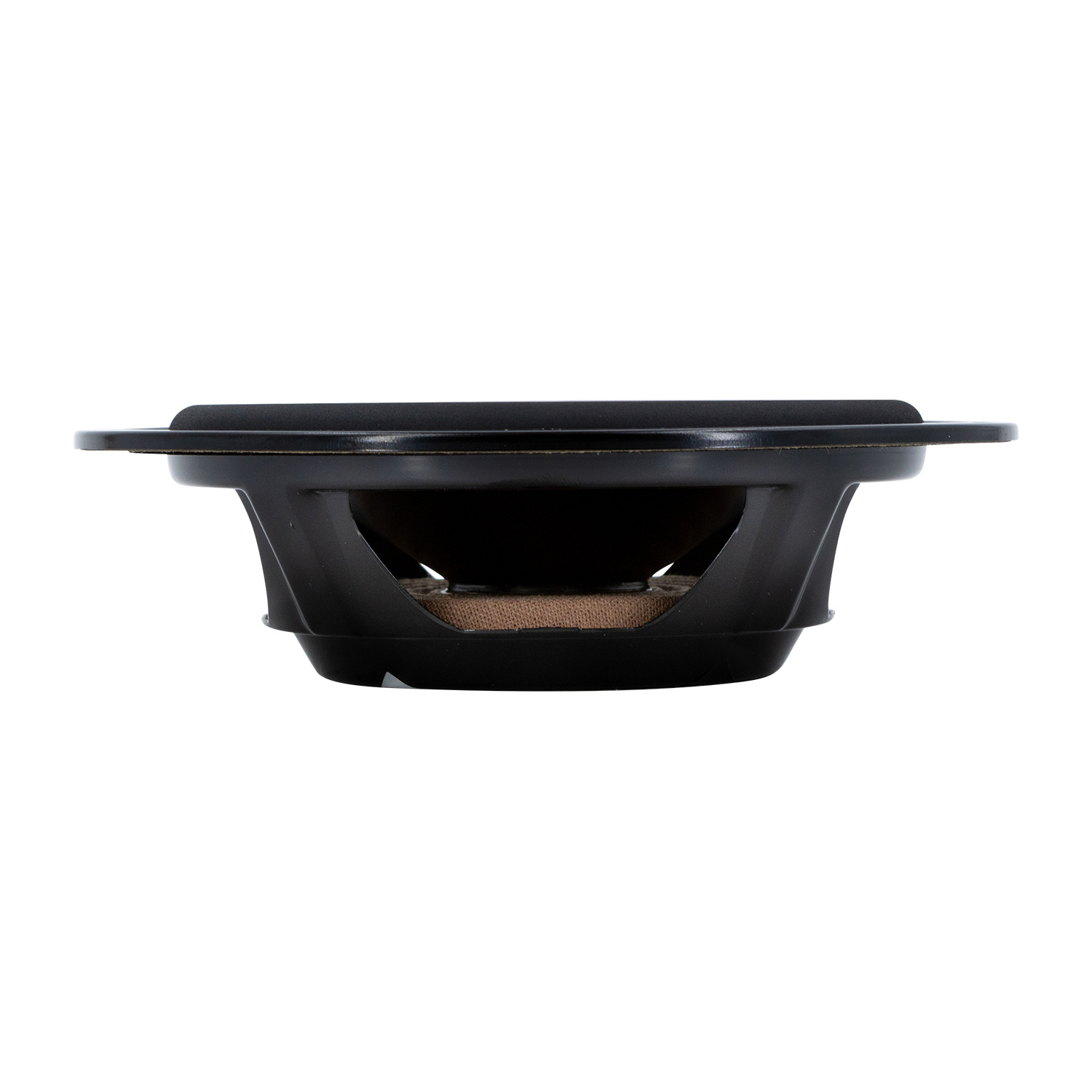

Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator

  • Artikelnummer: DSA175-PR
  • Vorrat: >10 Auf Lager

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame,

€ 24,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €23,70 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.



Highlights

  • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
  • Allows tuning small enclosures lower than using conventional ports
  • Rear mounted screw allows easy mass adjustment for custom tuning
  • Cosmetic frame edge looks great even when surface mounted



Product details

Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems.



Specifications: • Fs: 26.8 Hz • Vas: 0.95 cu. ft. • Qms: 4.30 • Cms: 1.15 mm/N • Rms: 1.2 kg/s • Mms: 30.7 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 6.91", Cutout diameter: 5.67", Depth: 1.85".



Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

To calculate Vd: Sd x Xmax = Vd

Eigenschaften

Spezifikationen für: DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Designer Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Passive Radiator
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 6-1/2"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square.
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 26.8 Hz
  • Mechanical Q (Qms) 4.30
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 30.7g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.15 mm/N
  • Surface Area of Cone (Sd) 128.7 cm²
  • Volume of Displacement (Vd) 103 cm³
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 0.95 ft.³
  • Maximum Linear Excursion (Xmax) 8 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 6.91"
  • Overall Depth 1.85"
  • Baffle Cutout Diameter 5.67"
  • Bolt Circle Diameter 6.54"
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3

Documenten

Bewertungen

Erfahrungsberichte 5 / 5 Bewertungen: (1)

  • SF Durch Stephan F. an 28-05-2019 17:46

    5 / 5

    I like the DSA175 alot.
    I use them with an SB15CAC and it matches perfect without any additional weight. F3/45Hz.
    No mechanical noise on high excursion. Well build quality as the most Dayton Audio products.
    The only thing i don't like is outher Basket, it could have a better,aspecally the thickness, material. Would i buy it again? Yes i would. Is it worth the money? Hmm half the price would be a bestbuy , at the actual price i think its a bit expensive. 5€ less would be great price / quality performance.
