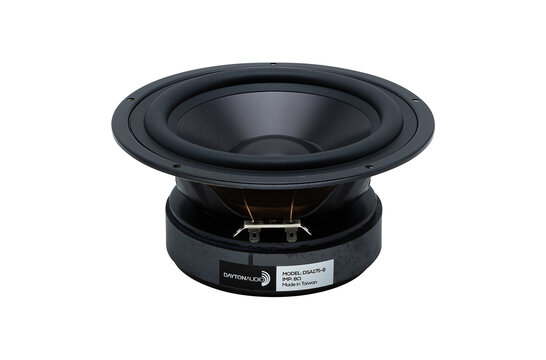

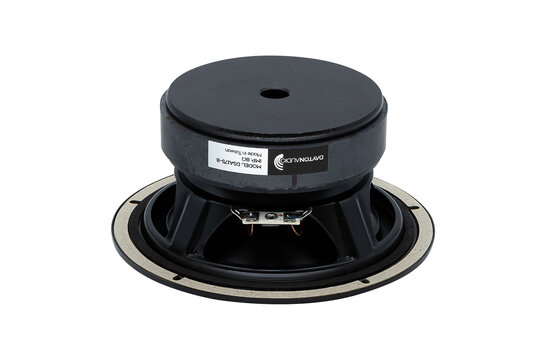

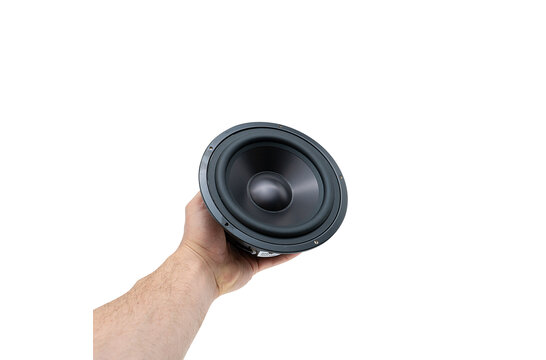

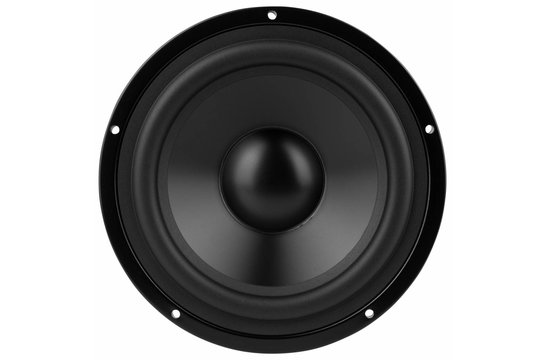

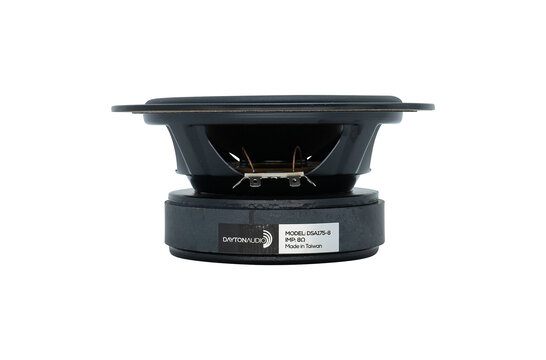

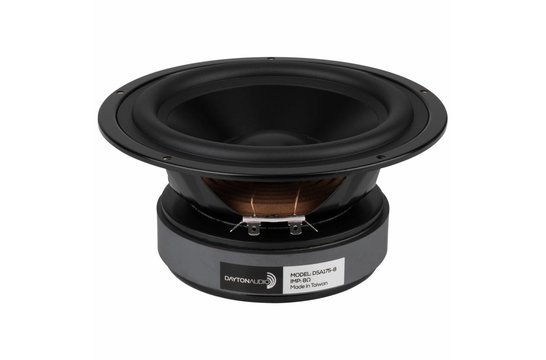

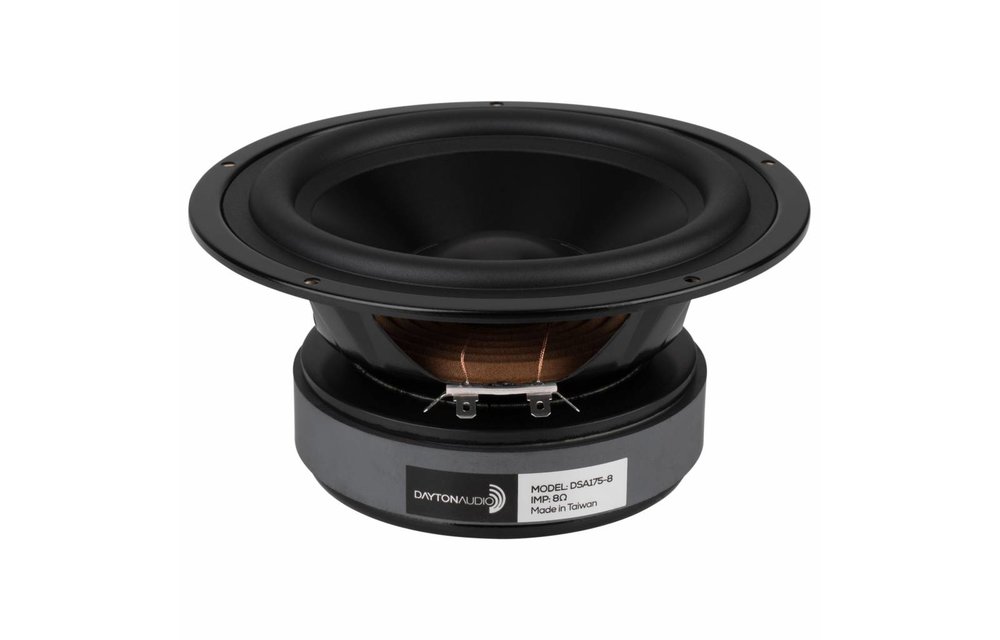

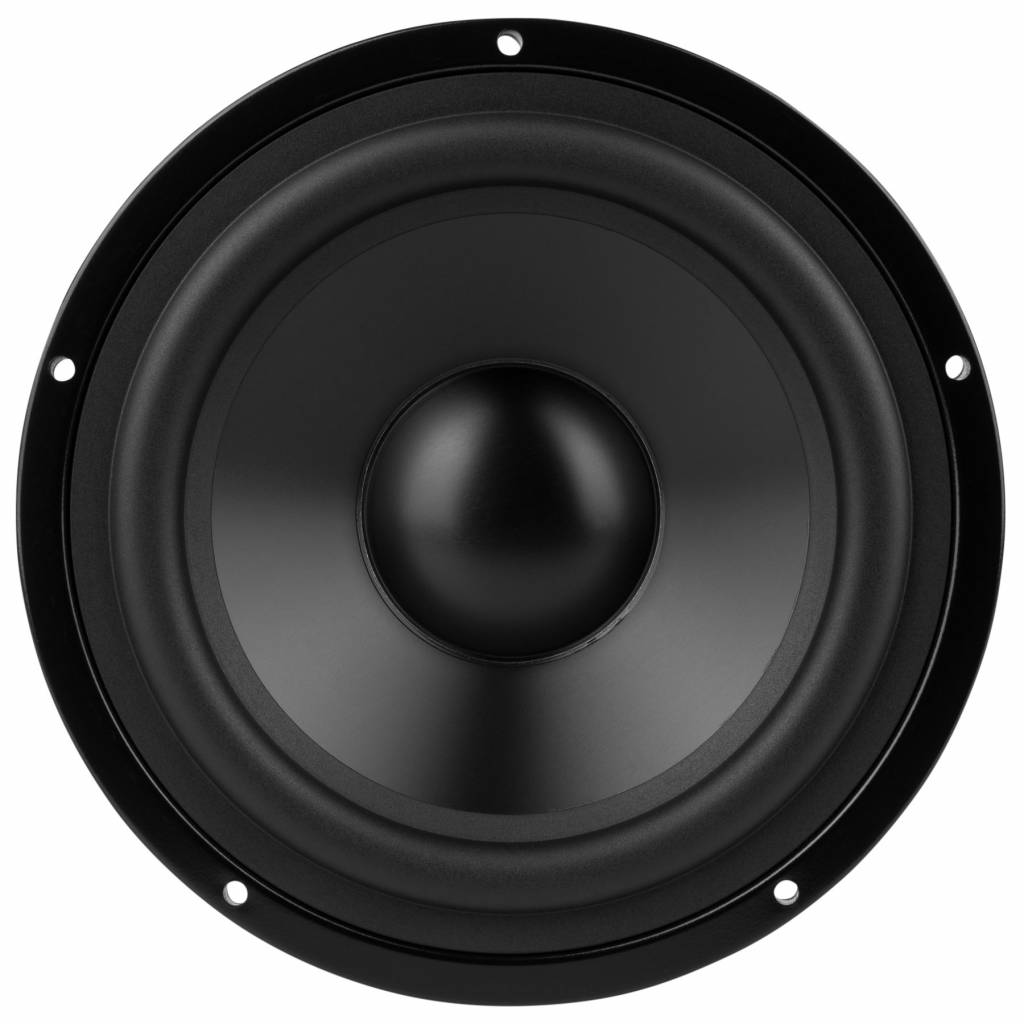

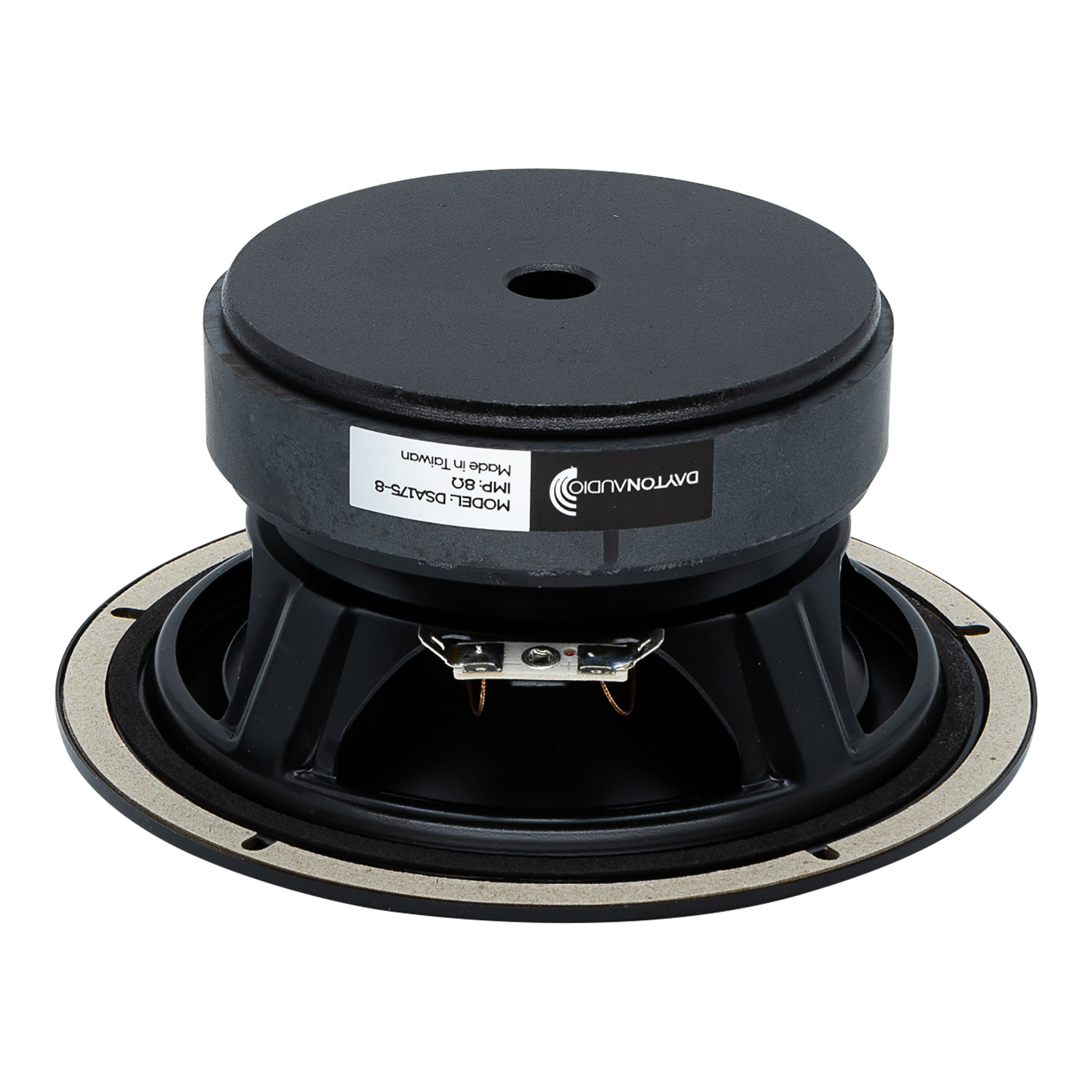

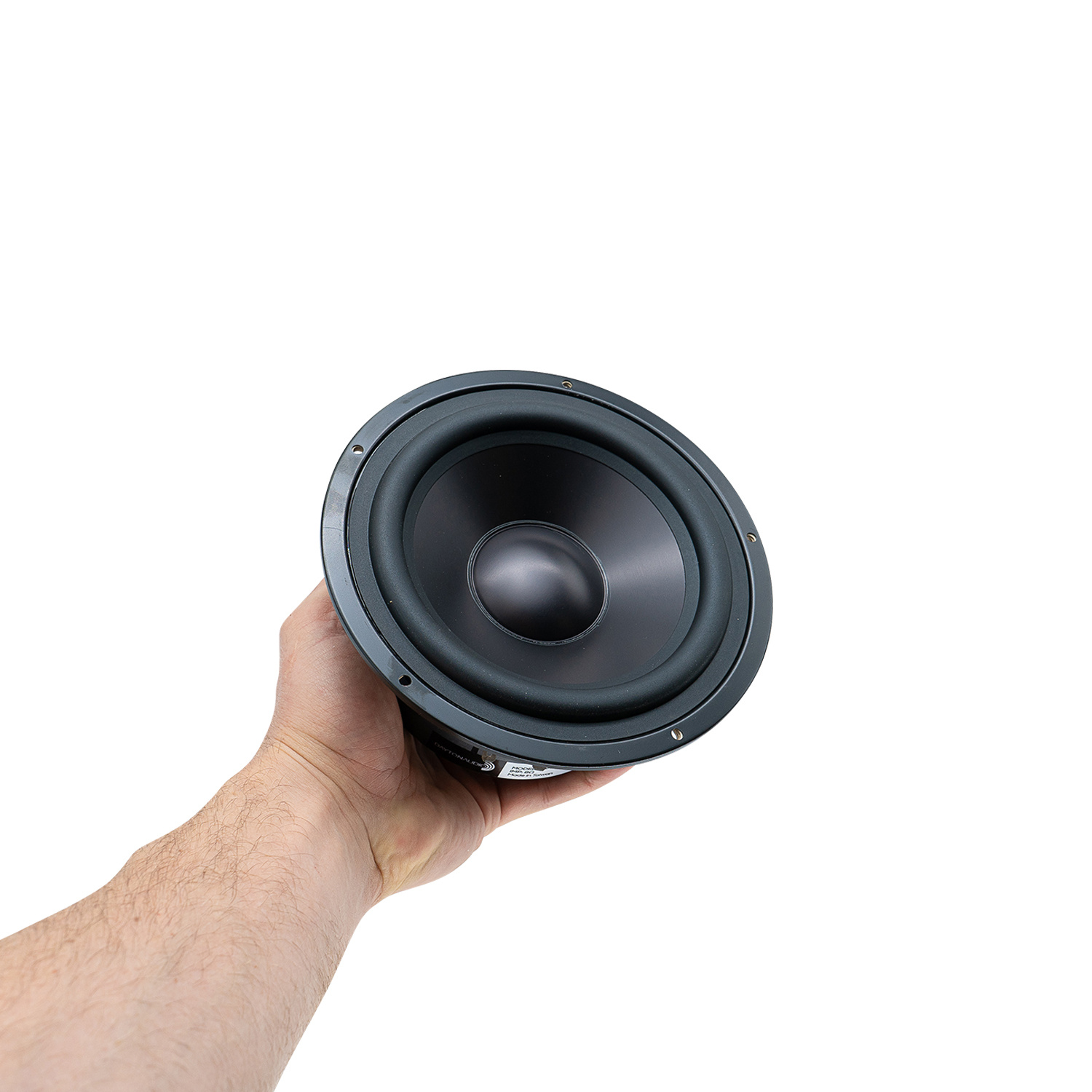

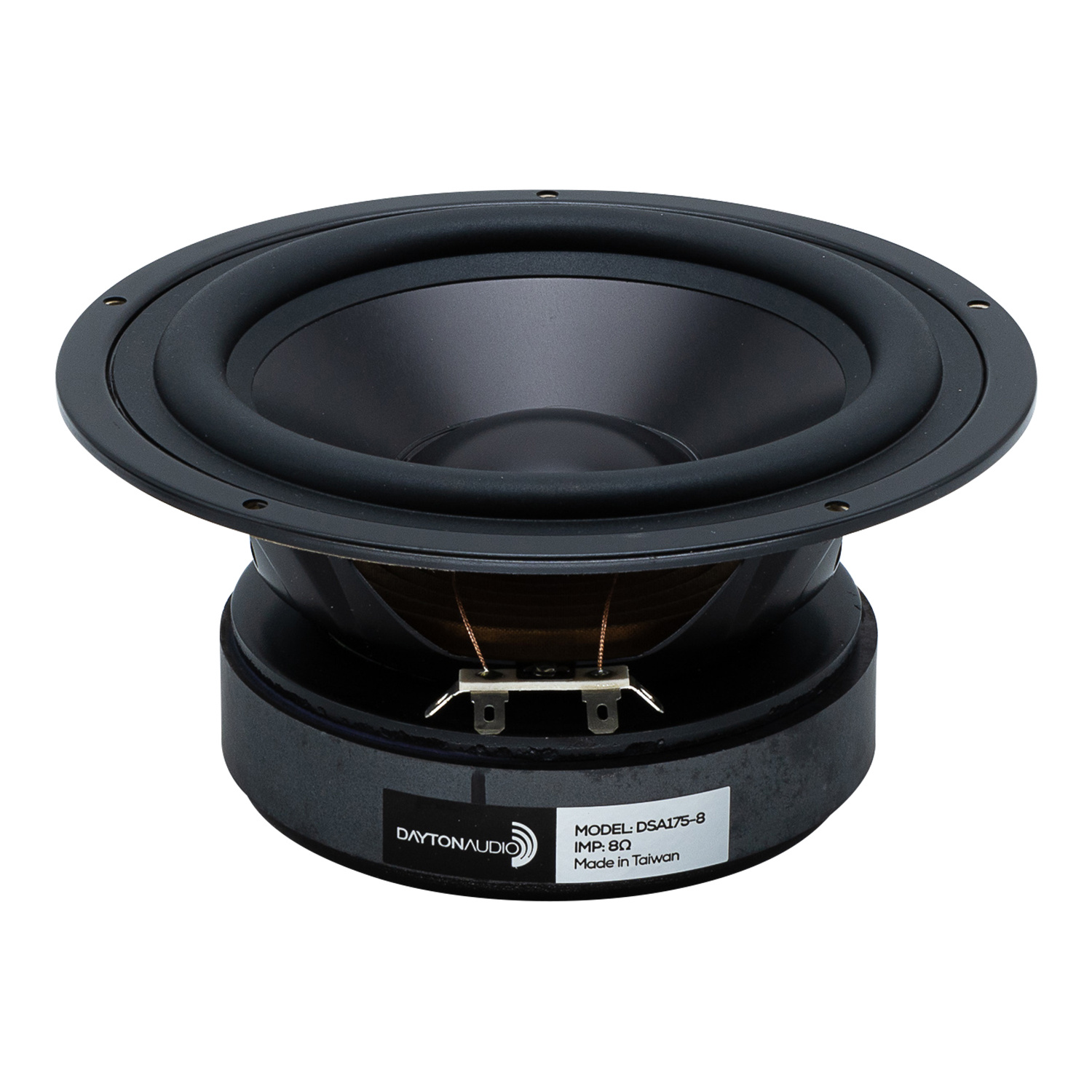

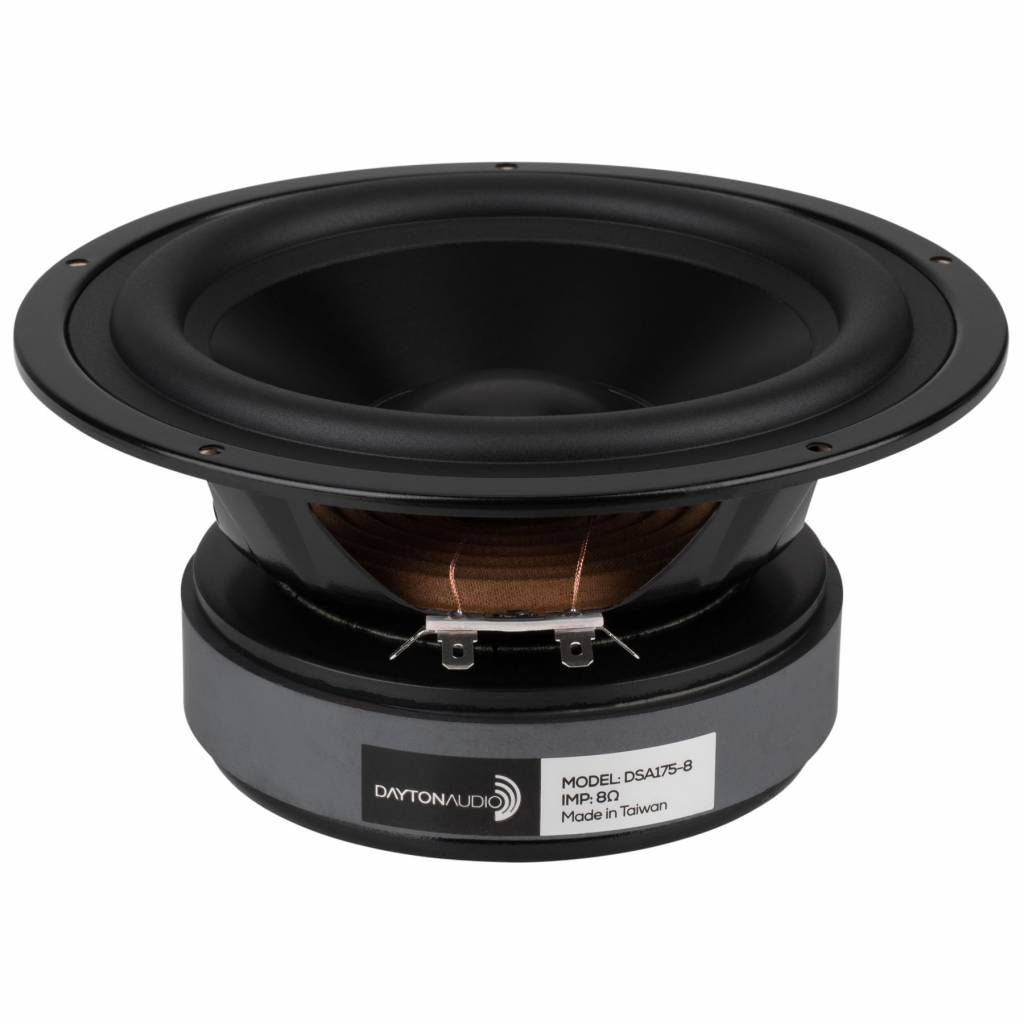

Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer

€ 48,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
Although it's true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €46,03 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Although it's true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response



Product details

Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Eigenschaften

Artikelnummer:
DSA175-8
Woofer Series
Designer Series
Woofer Type
Midwoofer
Nominal Diameter
6.50"
Power Handling (RMS)
70 watts
Power Handling (max)
140 watts
Impedance
8 ohms
Sensitivity
88.1 dB @ 2.83V/1m
Frequency Response
38 - 7,500 Hz
Voice Coil Diameter
35.5 mm
Magnet Weight
33 oz.
DC Resistance (Re)
5.8 ohms
Voice Coil Inductance (Le)
0.85 mH @ 1 kHz
Resonant Frequency (Fs)
38.36 Hz
Mechanical Q (Qms)
1.66
Electromagnetic Q (Qes)
0.35
Total Q (Qts)
0.29
Diaphragm Mass Inc. Airload (Mms)
24.2g
Mechanical Compliance of Suspension (Cms)
0.71 mm/N
Surface Area of Cone (Sd)
128.7 cm²
Volume of Displacement (Vd)
67.6 cm³
BL Product (BL)
9.75 Tm
Compliance Equivalent Volume (Vas)
18.7 liters
Maximum Linear Excursion (Xmax)
5.3 mm
Cone / Diaphragm Material
Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
175.6 mm
Overall Depth
80.6 mm
Baffle Cutout Diameter
144 mm
# Mounting Holes
5
Sealed Volume
0.17 ft.³
Sealed F3
112 Hz
Vented Volume
0.19 ft.³
Vented F3
71 Hz

Bewertungen

5 from 5Based on 4 reviews
Produkt bewerten
5 van 5
This mid/bass unit was used in a two way speaker combo. 22 wide 33 height and 35 deep.
Previous was used a Fenton audio unit which I felt 'moved' to slowly and great steps had to taken in order to get a nice low end. The Dayton audio didn't require any it moves fast and is really really smooth. Great value for money. But it requires good quality crossover parts then it will shine. It will play beautiful with sand-cast resistor and electrolytic caps but gives it some mundorf and it will shine.
Durch Anders J. on 23 Dezember 2020
5 van 5
No description was given
Durch Boris R. on 4 September 2020
