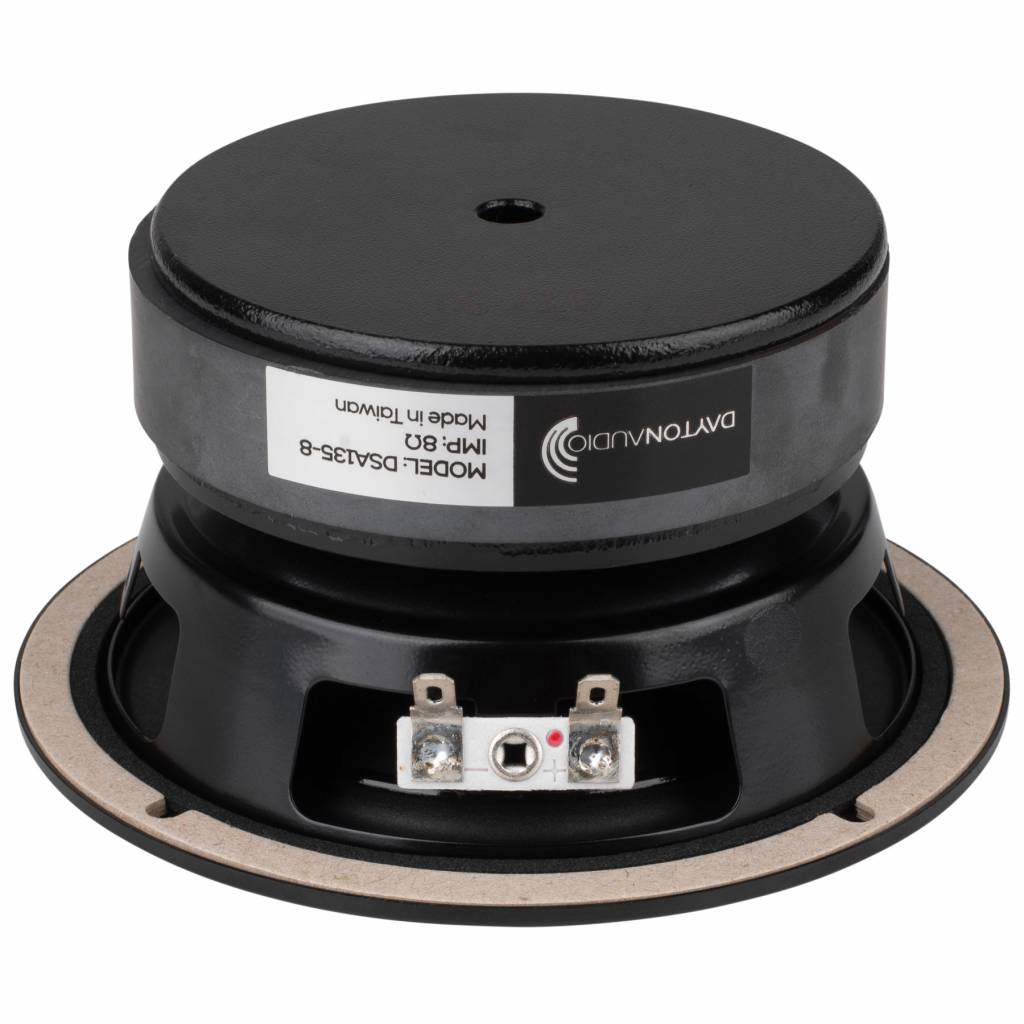

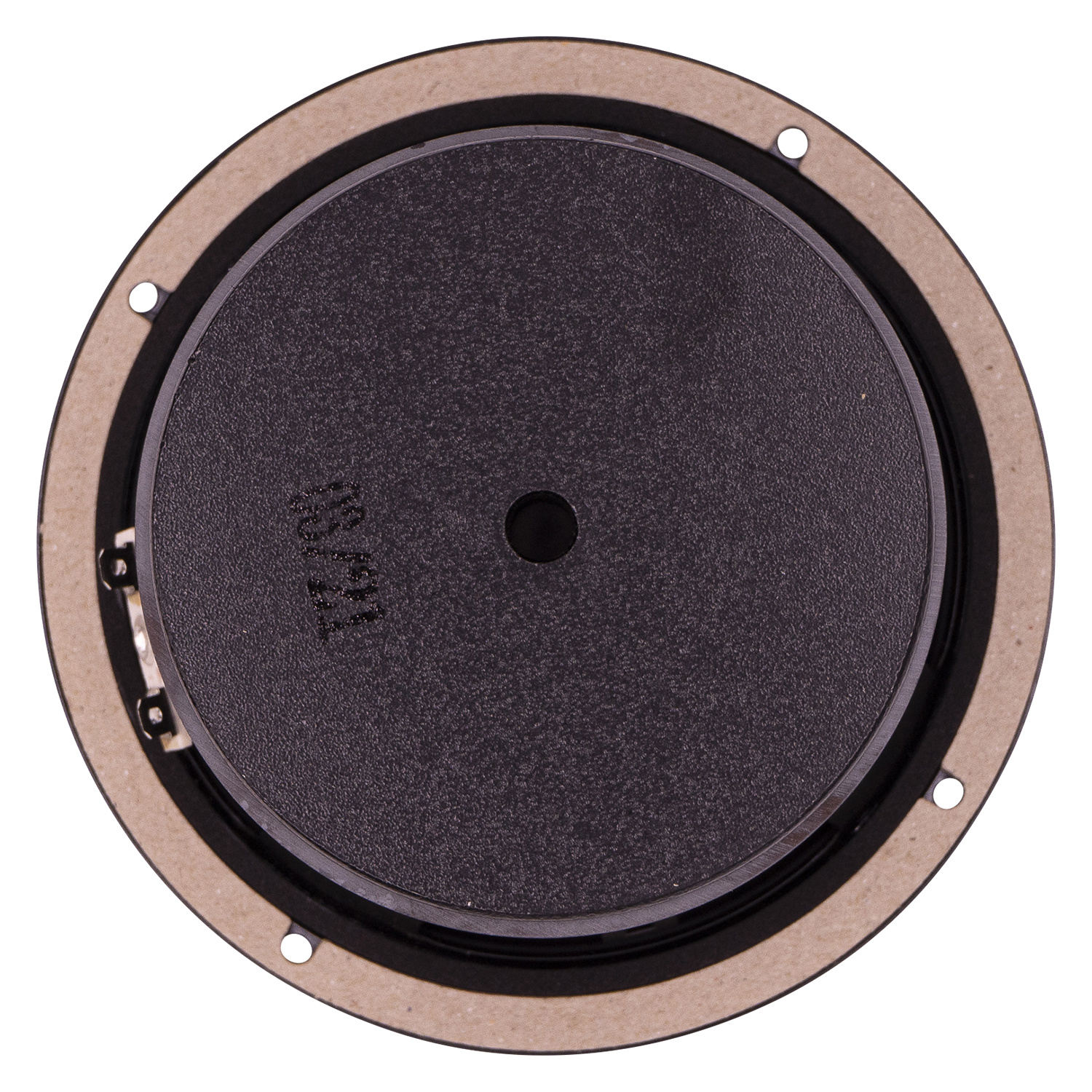

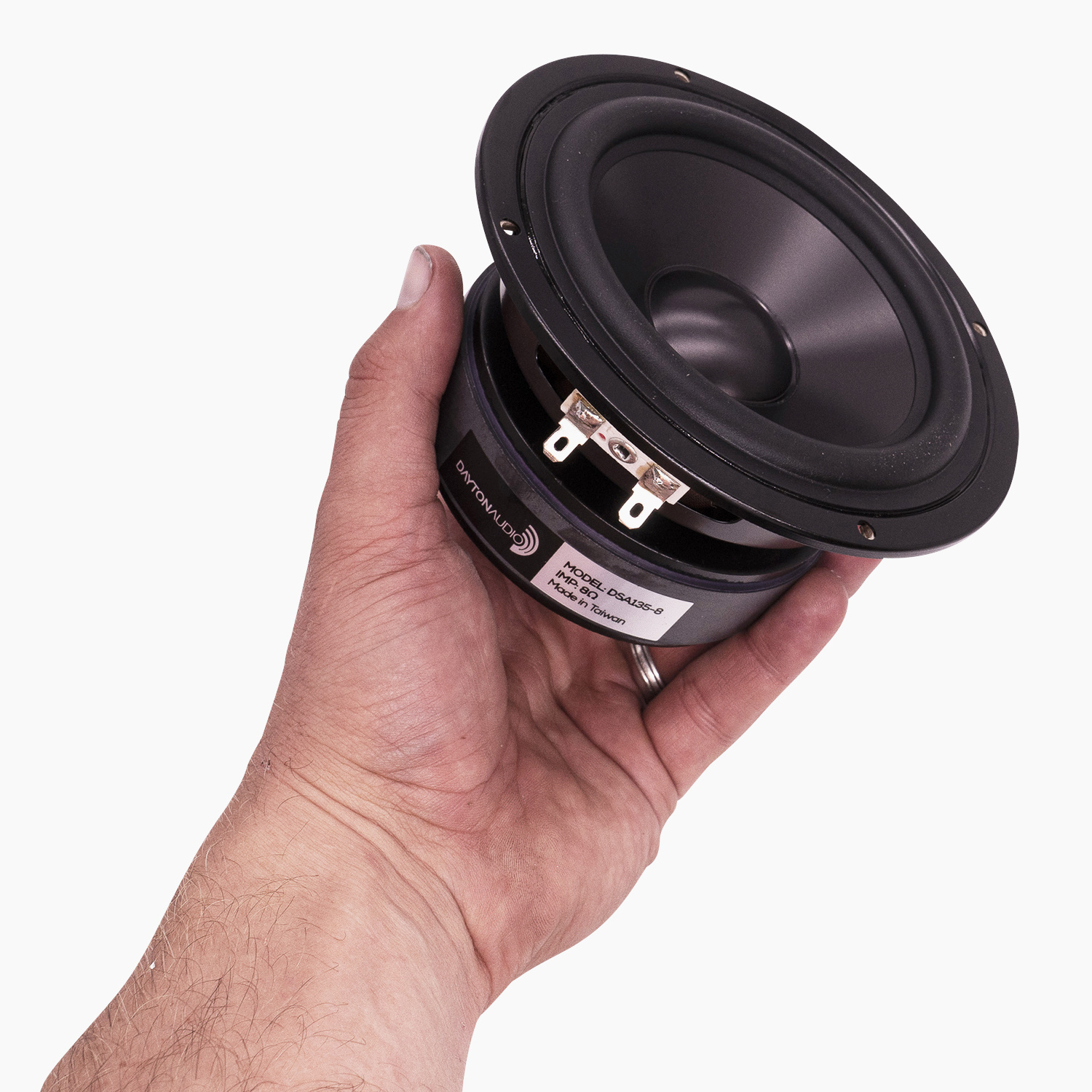

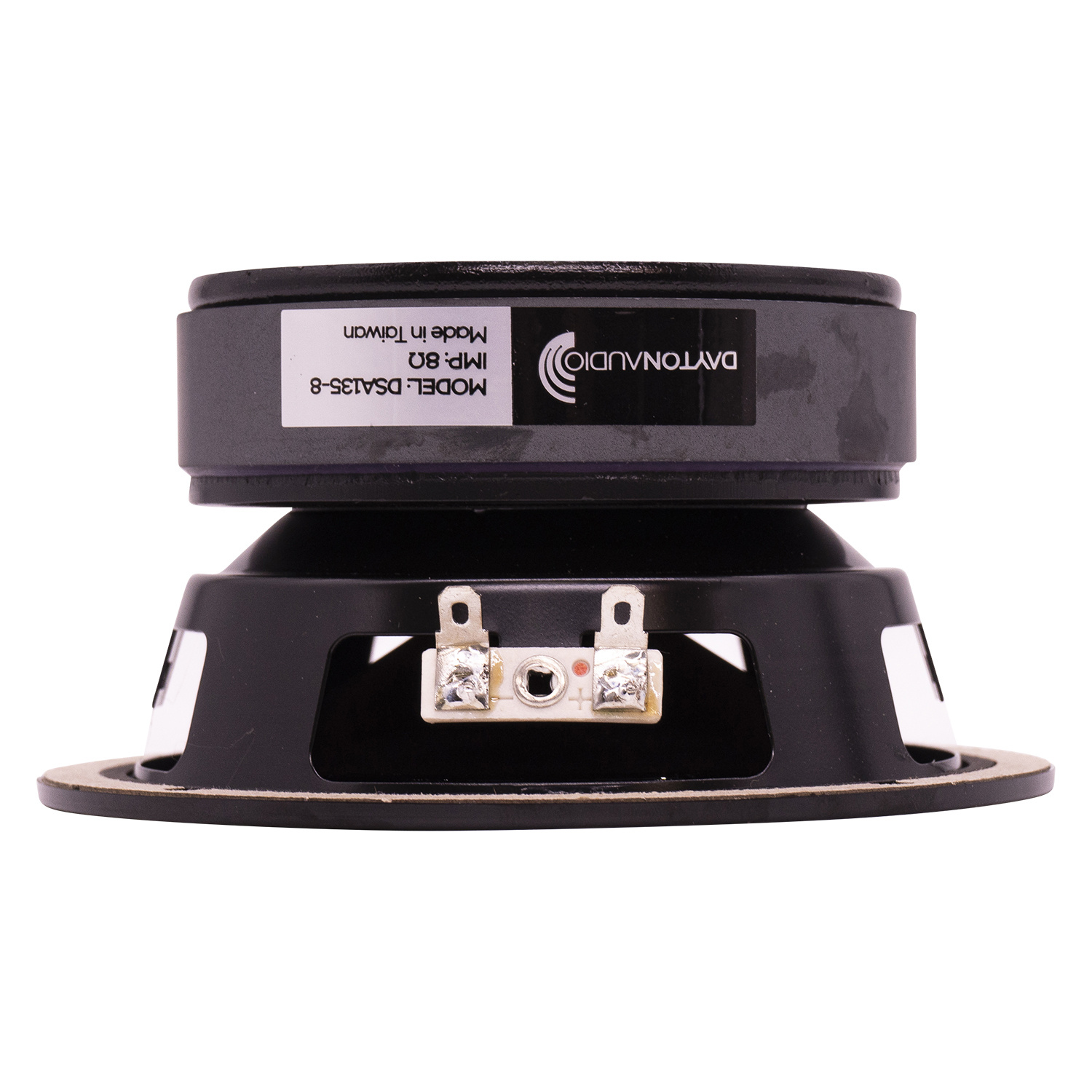

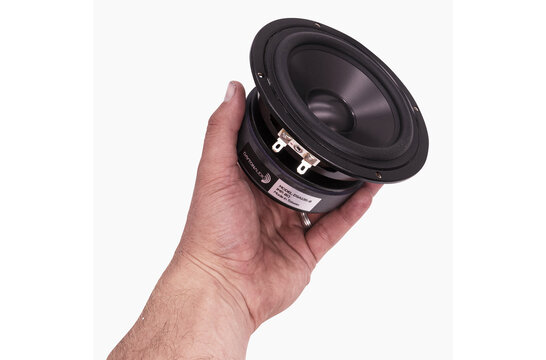

Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer

€ 26,82€ 32,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €30,83 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support


The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.



  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring

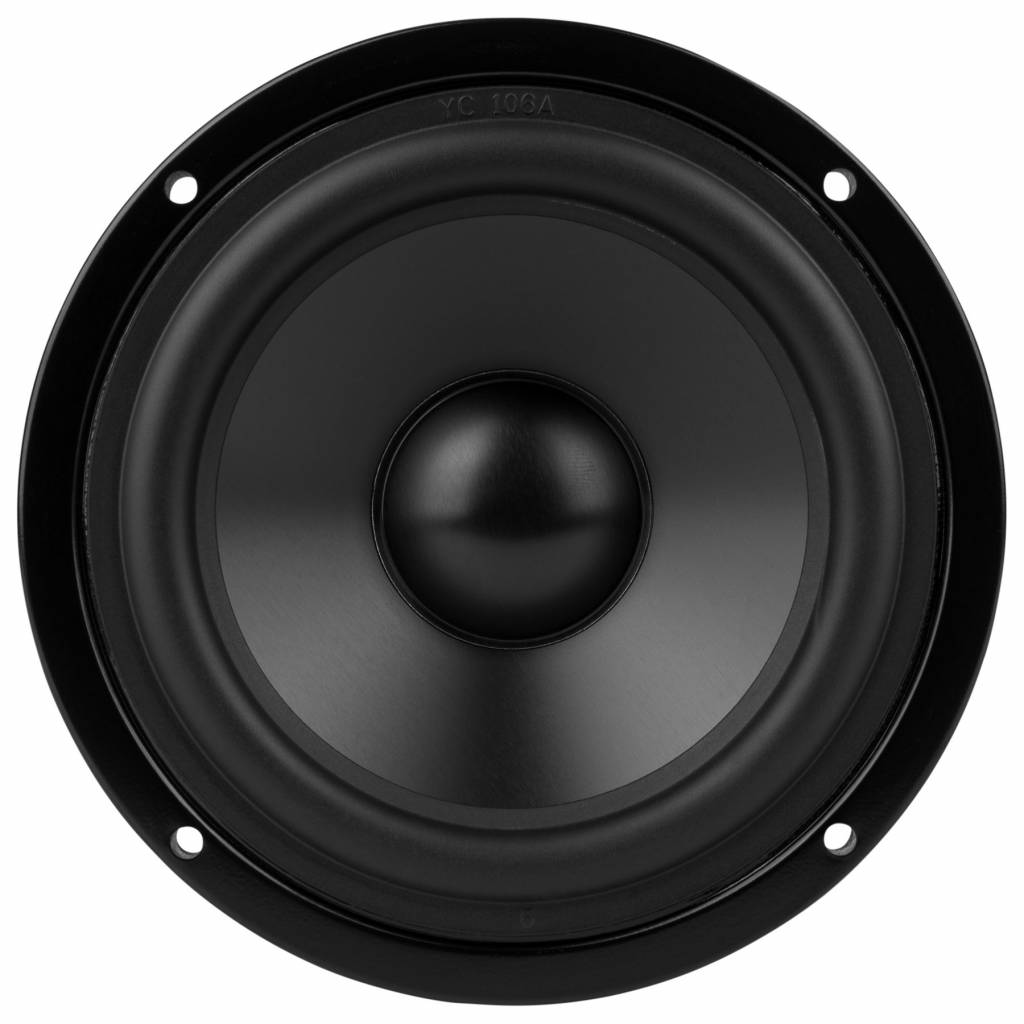

  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response


Product details

Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer


The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.


These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.


Woofer Series
Specialty Drivers Series
Woofer Type
Nominal Diameter
Power Handling (RMS)
30 watts
Power Handling (max)
100 watts
8 ohms
85 dB @ 1W/1m
Frequency Response
50 - 15,000 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
6.4 ohms
Voice Coil Inductance (Le)
0.97 mH
Resonant Frequency (Fs)
56.5 Hz
Mechanical Q (Qms)
Electromagnetic Q (Qes)
Total Q (Qts)
Diaphragm Mass Inc. Airload (Mms)
Mechanical Compliance of Suspension (Cms)
0.93 mm/N
Surface Area of Cone (Sd)
75.4 cm²
Volume of Displacement (Vd)
22.6 cm³
BL Product (BL)
5.32 Tm
Compliance Equivalent Volume (Vas)
7.4 liters
Maximum Linear Excursion (Xmax)
3.0 mm
Cone / Diaphragm Material
Aluminum Cone
Surround Material
Voice Coil Wire Material
Voice Coil Former
Basket / Frame Material
Magnet Material
Overall Outside Diameter
135 mm
Overall Depth
63.1 mm
Baffle Cutout Diameter
111.5 mm
# Mounting Holes
Sealed Volume
0.16 ft.³
Sealed F3
89 Hz
Vented Volume
0.47 ft.³
Vented F3
44 Hz
