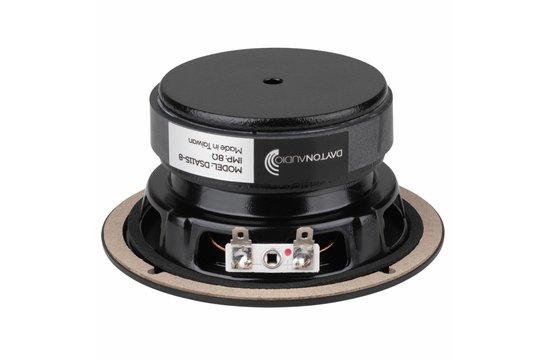

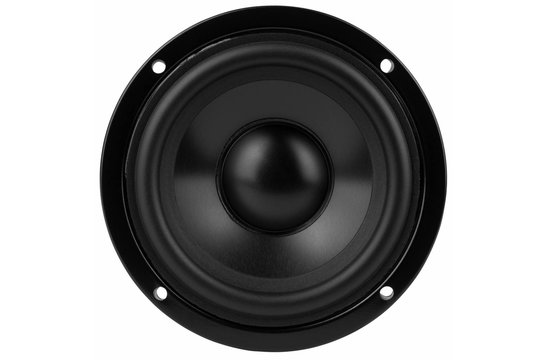

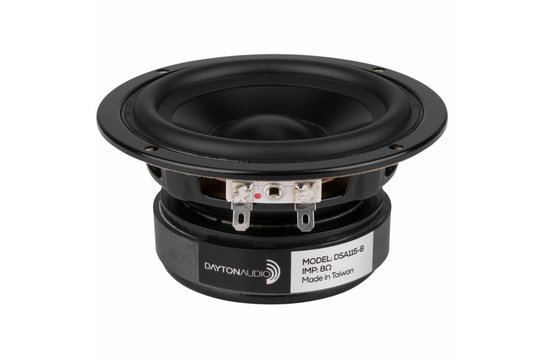

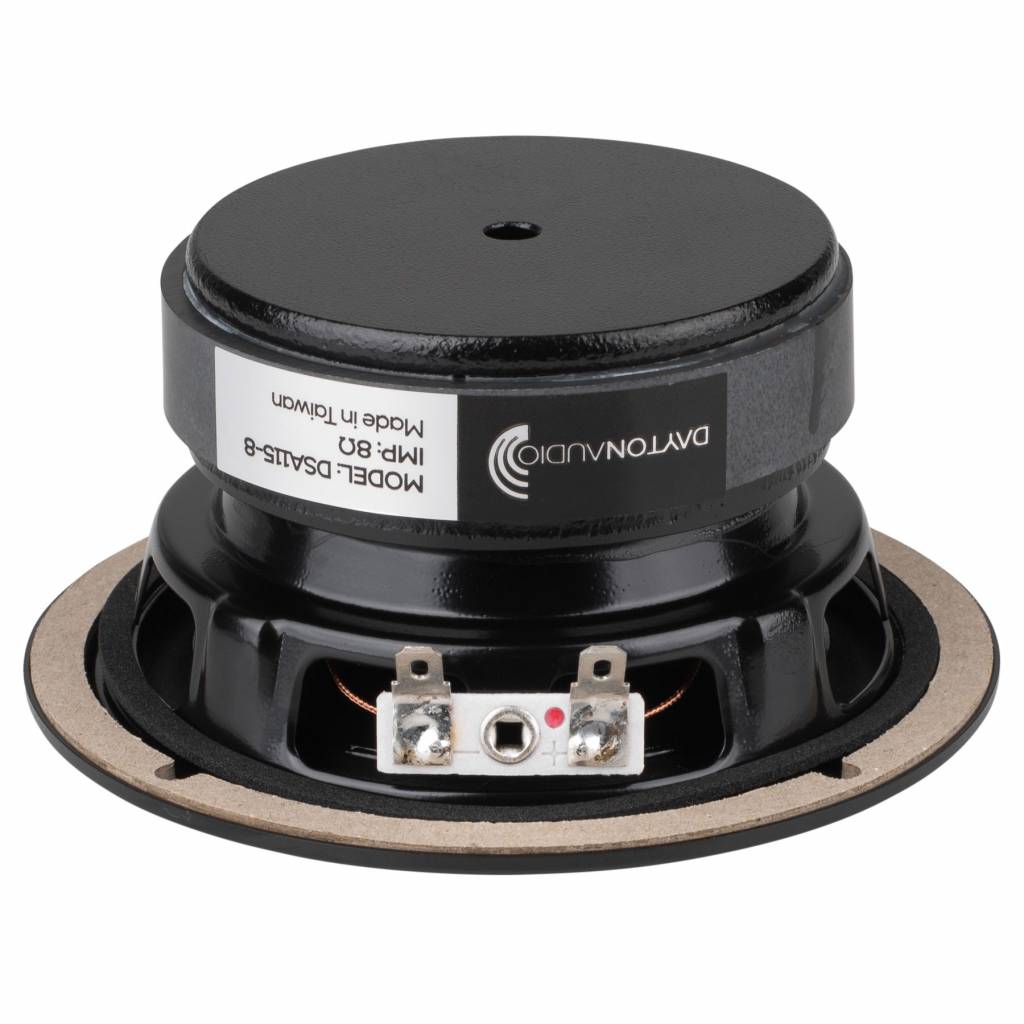

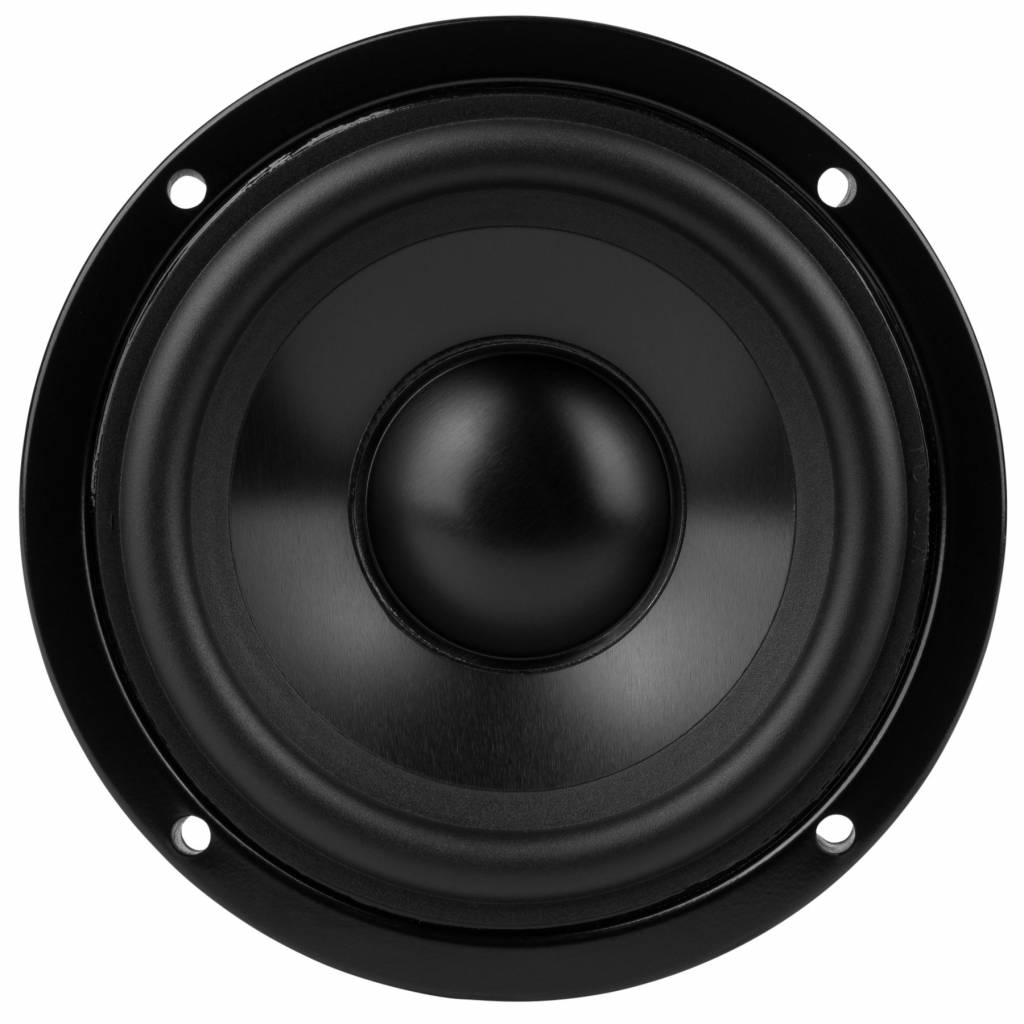

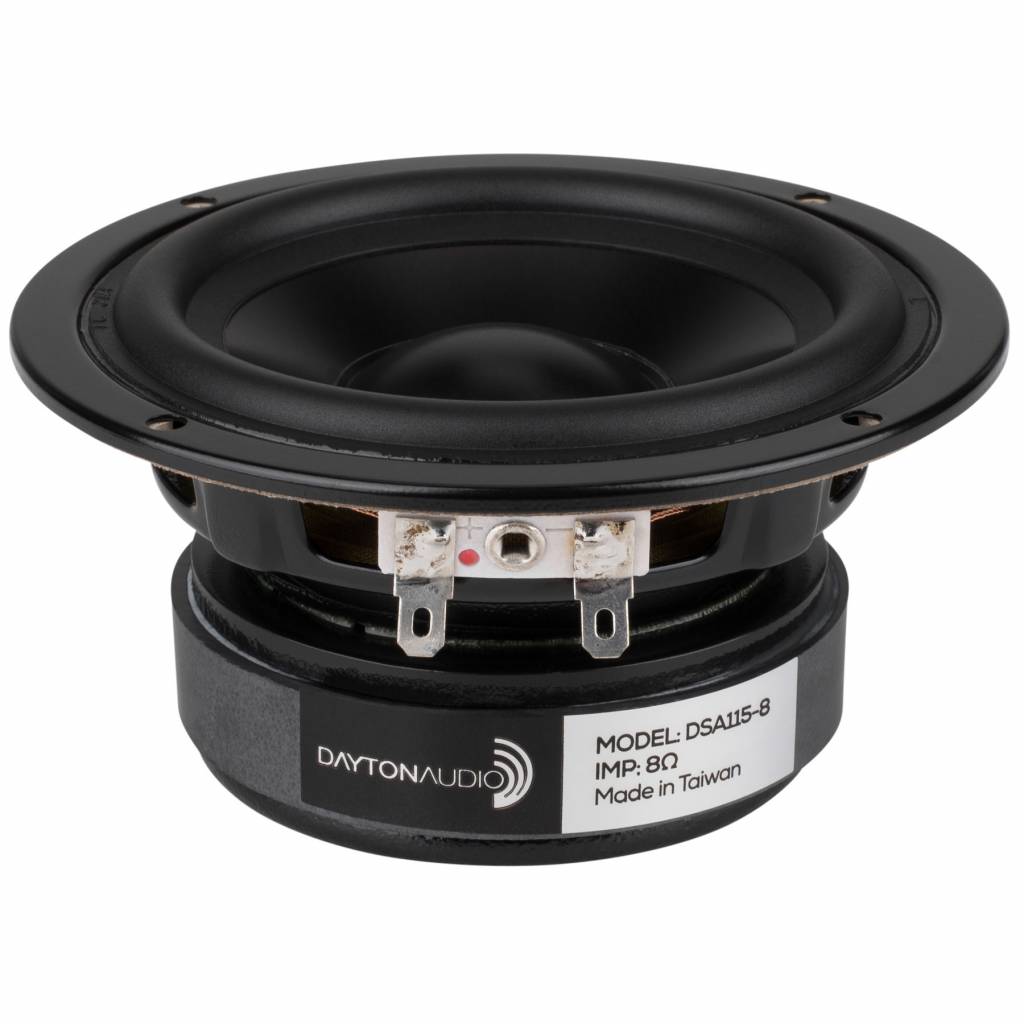

Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer

€ 21,86€ 26,45 8 Auf Lager: Lieferzeit 1-3 Werktage
More than just a pretty speaker, the Dayton Audio Designer Series DSA115-8 4" woofer features an extremely neutral response and high Xmax capability.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €25,13 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

More than just a pretty speaker, the Dayton Audio Designer Series DSA115-8 4" woofer features an extremely neutral response and high Xmax capability.



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response



Product details

Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Eigenschaften

Artikelnummer:
DSA115-8
Woofer Series
Designer Series
Woofer Type
Midwoofer
Nominal Diameter
4"
Power Handling (RMS)
35 watts
Power Handling (max)
70 watts
Impedance
8 ohms
Sensitivity
86.1 dB @ 2.83V/1m
Frequency Response
63 - 11,000 Hz
Voice Coil Diameter
25.4 mm
Magnet Weight
11 oz.
DC Resistance (Re)
5.9 ohms
Voice Coil Inductance (Le)
0.63 mH @ 1 kHz
Resonant Frequency (Fs)
63.25 Hz
Mechanical Q (Qms)
2.00
Electromagnetic Q (Qes)
0.53
Total Q (Qts)
0.42
Diaphragm Mass Inc. Airload (Mms)
6.7g
Mechanical Compliance of Suspension (Cms)
0.94 mm/N
Surface Area of Cone (Sd)
54.1 cm²
Volume of Displacement (Vd)
22.2 cm³
BL Product (BL)
5.44 Tm
Compliance Equivalent Volume (Vas)
3.96 liters
Maximum Linear Excursion (Xmax)
4.1 mm
Cone / Diaphragm Material
Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
115.6"
Overall Depth
54.7"
Baffle Cutout Diameter
93.6"
# Mounting Holes
4
Sealed Volume
0.06 ft.³
Sealed F3
127 Hz
Vented Volume
0.13 ft.³
Vented F3
70 Hz

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
Gekocht ter vervanging van de TCP
115-8 vanwege het groter frekwentie-
bereik van de DSA. Uitstekende spea-
ker, echt waar voor geld.
Durch HJJM j. on 11 Oktober 2019
5 van 5
Is een goede allround. Samen met kab-250v3 gebruikt, en werkt perfect. Klinkt goed. Heb nu een mooie en goed klinkende bt speaker
Durch Marco R. on 2 April 2019
