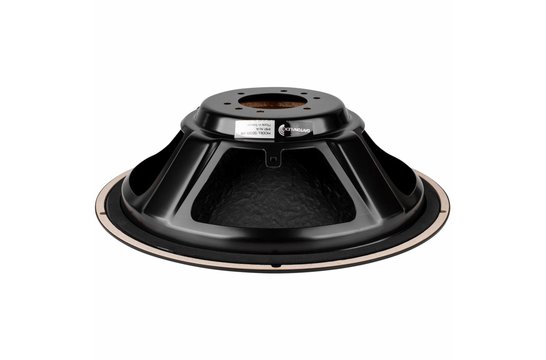

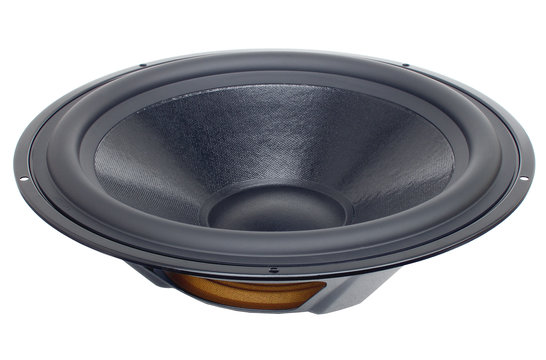

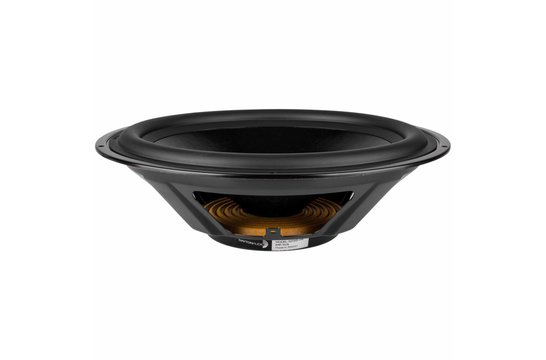

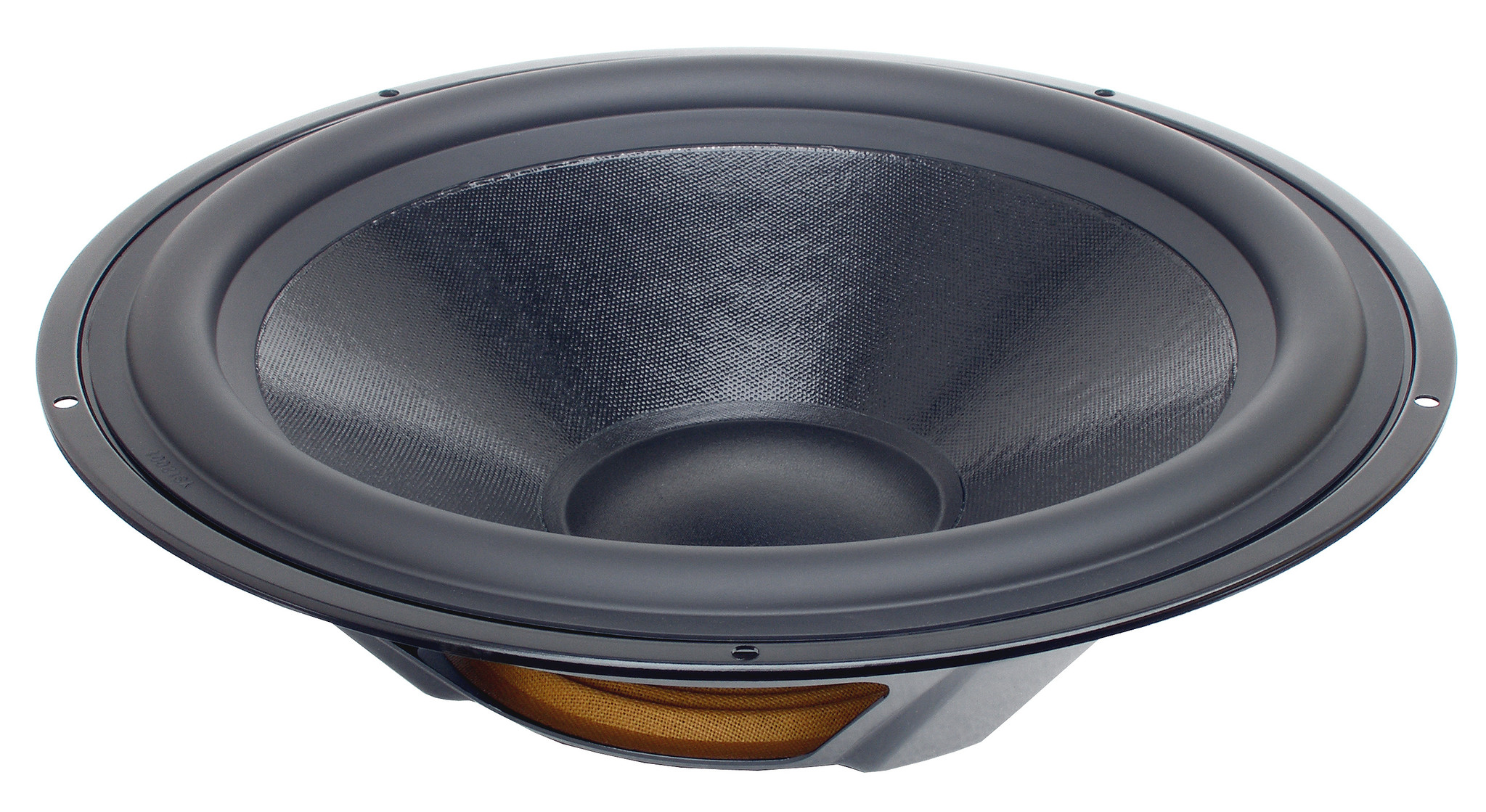

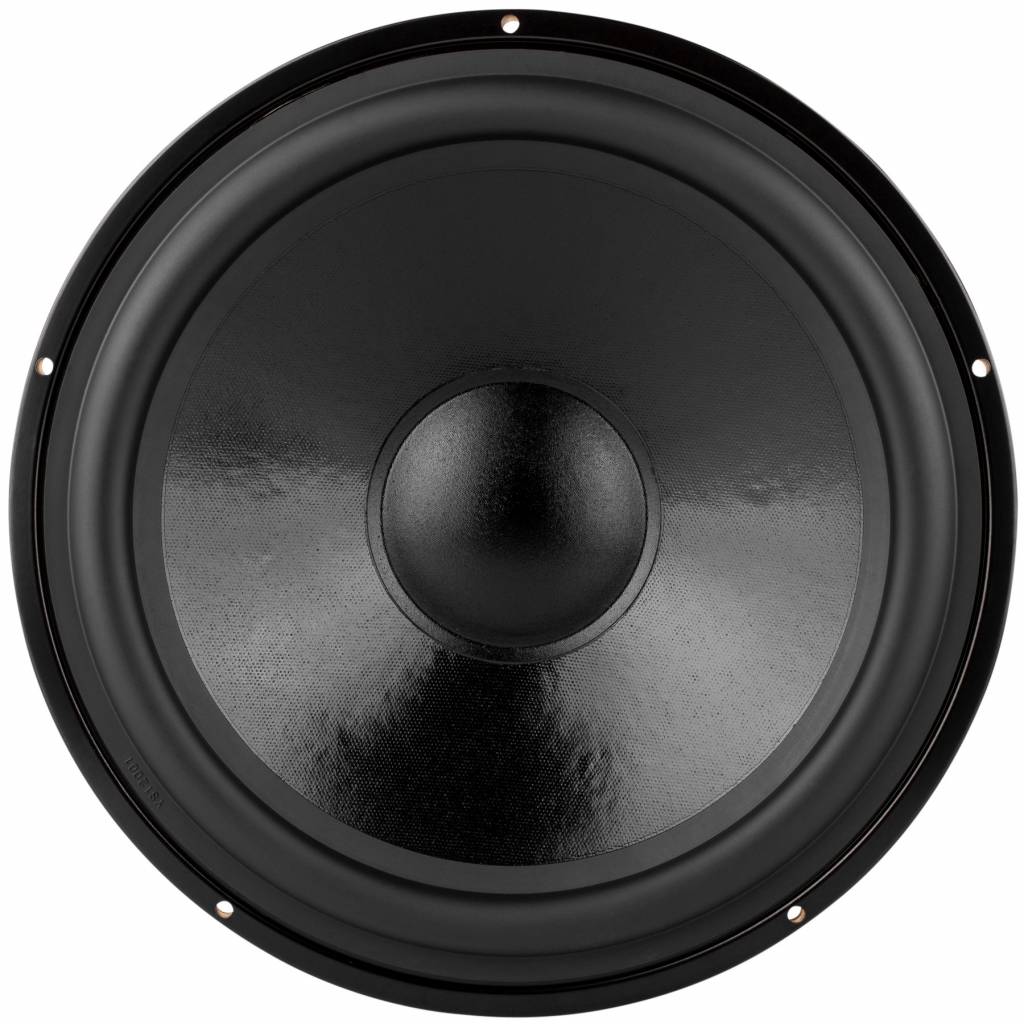

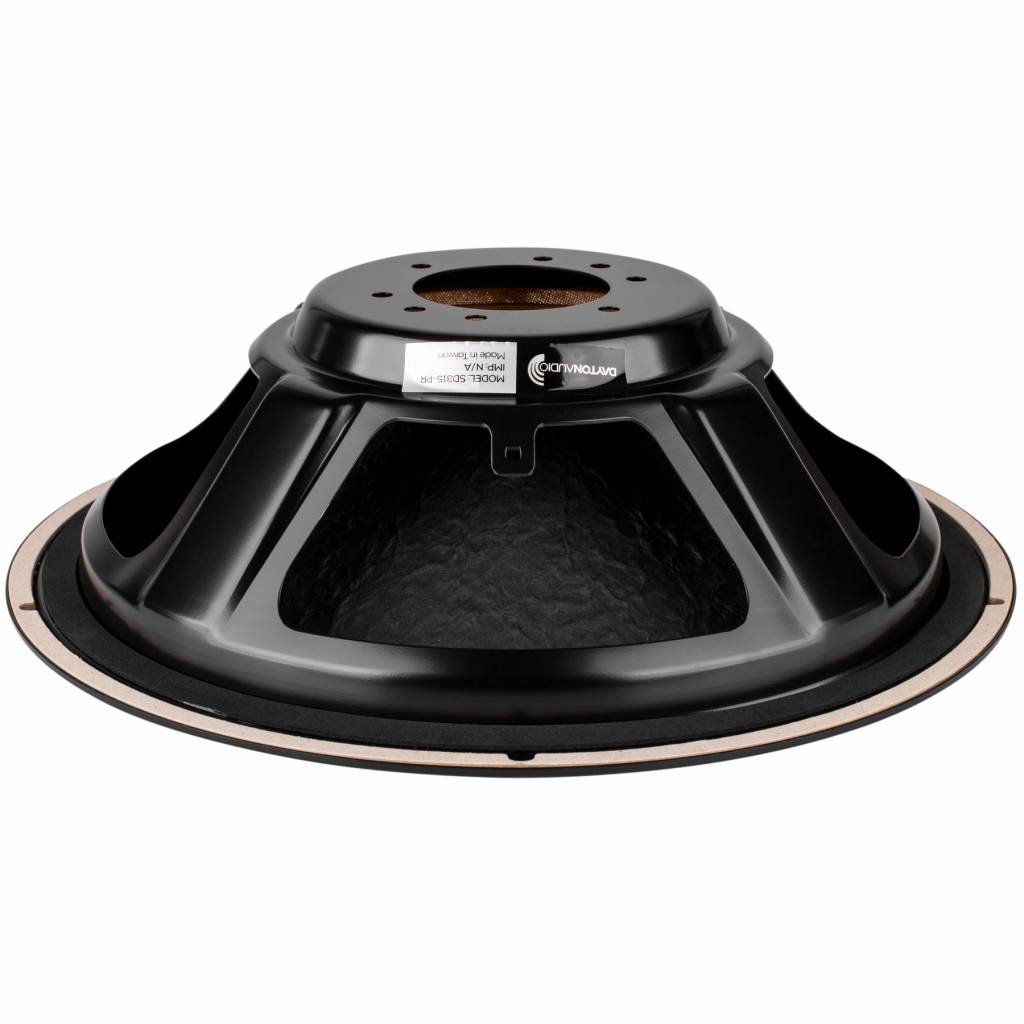

Dayton Audio DS315-PR 12" Passive Radiator

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DS315-PR
  • Vorrat: 9 Auf Lager

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.

€ 48,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €46,03 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DS315-PR 12" Passive Radiator

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.



Product details

Dayton Audio DS315-PR 12" Passive Radiator



The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.



Specifications: • Fs: 17 Hz • Vas: 5.20 cu. ft. • Qms: 3.00 • Cms: 0.45 mm/N • Mms: 200 g • Rms: 7.03 kg/s • Sd: 480 sq. cm. • Xmax: 10 mm • Dimensions: Overall diameter: 12.36", Cutout diameter: 10.71", Depth: 3.50".



Note: Adding mass to the passive radiator will decrease Fs and increase Qms.



Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 12" woofer/subwoofer that has 10mm of X-max would require 2-12" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

Eigenschaften

Spezifikationen für: DS315-PR 12" Passive Radiator

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers.
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Passive Radiator
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 12"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square.
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 16.8 Hz
  • Mechanical Q (Qms) 3
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 200.00 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.45 mm/N
  • Surface Area of Cone (Sd) 480.0 cm²
  • Volume of Displacement (Vd) 480.0 cm³
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 147.30 liters
  • Maximum Linear Excursion (Xmax) 10.0 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil Yes
  • Basket / Frame Material Steel
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 314 mm
  • Overall Depth 89 mm
  • Baffle Cutout Diameter 272 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
