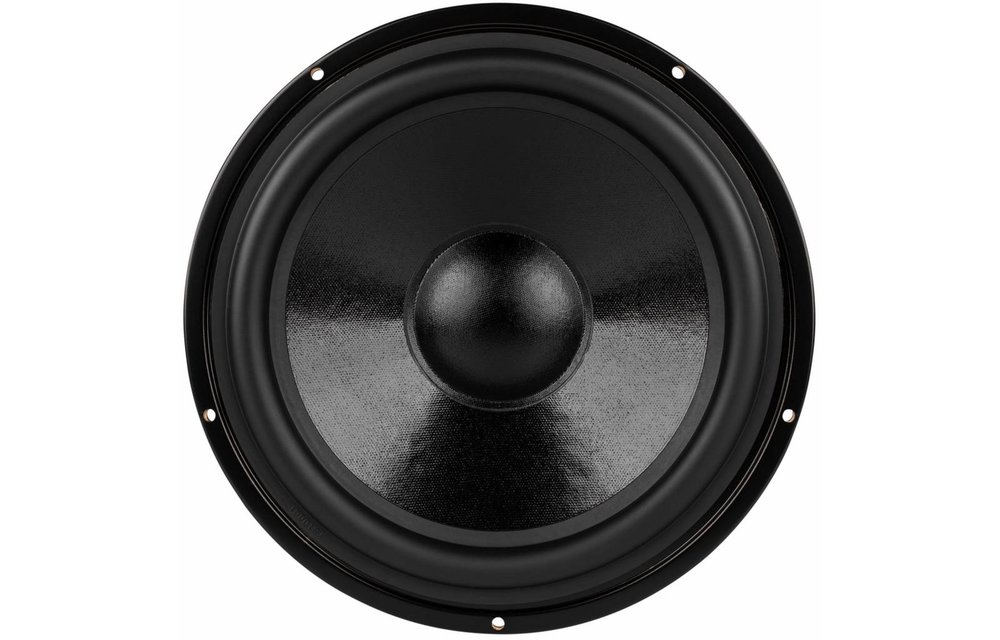

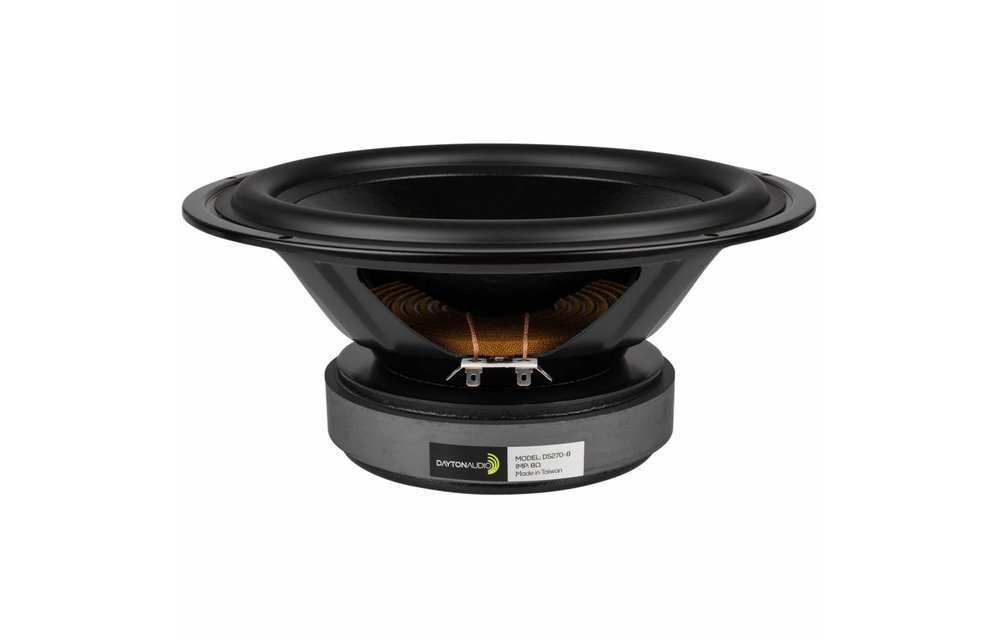

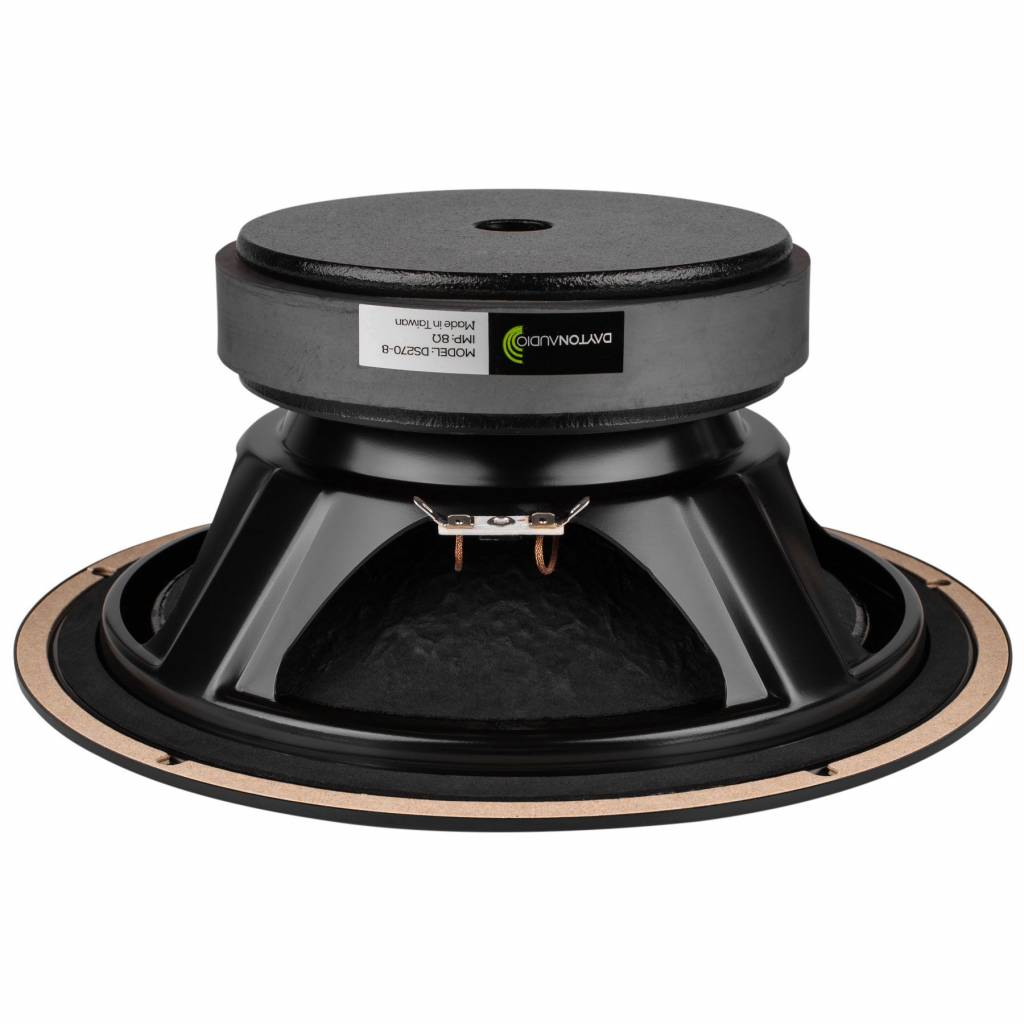

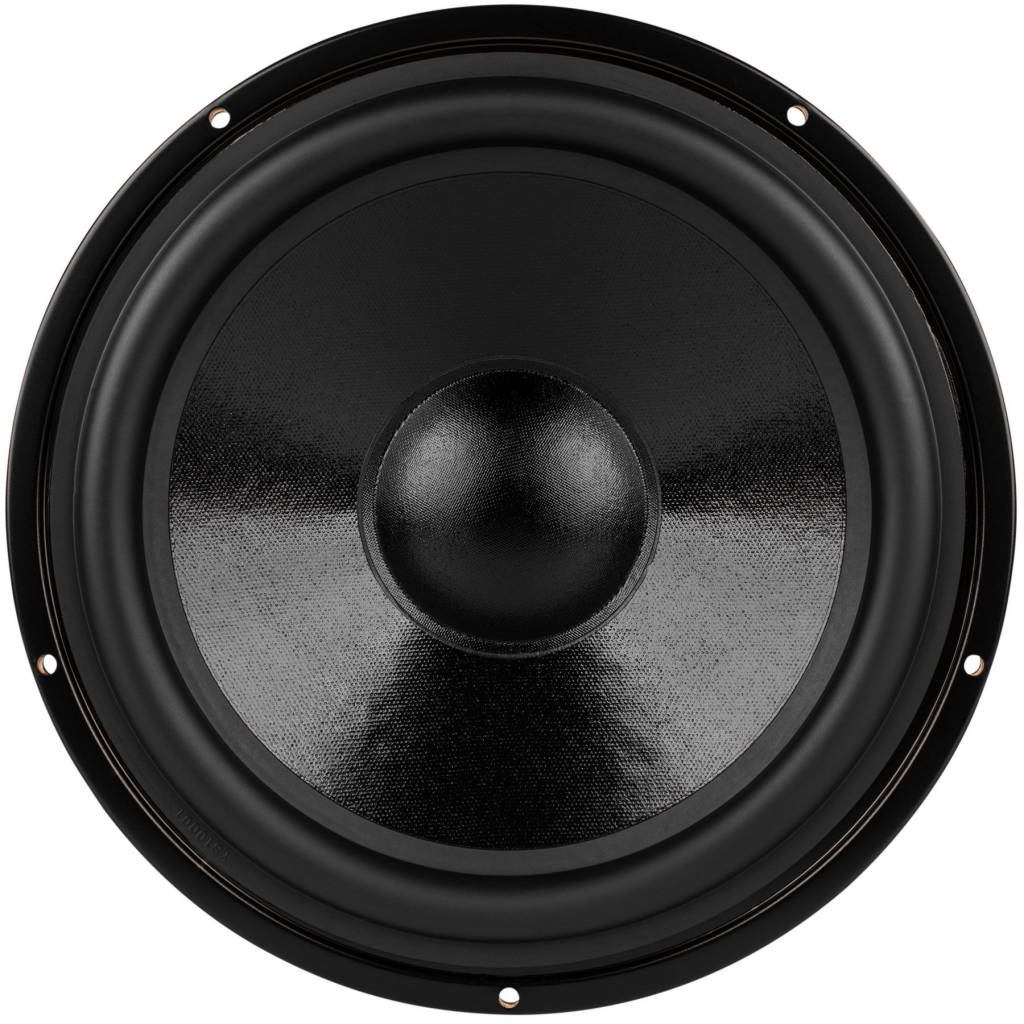

Dayton Audio DS270-8 10" Designer Series Woofer Speaker

€ 68,97€ 83,45 7 Auf Lager: Lieferzeit 1-3 Werktage
The Dayton Audio Designer Series DS270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €79,28 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support


The Dayton Audio Designer Series DS270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!



  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators


Product details

Dayton Audio DS270-8 10" Designer Series Woofer Speaker


The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.


These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



Woofer Series
Designer Series
Woofer Type
Nominal Diameter
Power Handling (RMS)
100 watts
Power Handling (max)
200 watts
8 ohms
90.7 dB @ 2.83V/1m
Frequency Response
30 - 3,000 Hz
Voice Coil Diameter
38.5 mm
Magnet Weight
62 oz.
DC Resistance (Re)
5.4 ohms
Voice Coil Inductance (Le)
1.25 mH @ 1 kHz
Resonant Frequency (Fs)
31.6 Hz
Mechanical Q (Qms)
Electromagnetic Q (Qes)
Total Q (Qts)
Diaphragm Mass Inc. Airload (Mms)
Mechanical Compliance of Suspension (Cms)
0.49 mm/N
Surface Area of Cone (Sd)
353.0 cm²
Volume of Displacement (Vd)
194.1 cm³
BL Product (BL)
10.1 Tm
Compliance Equivalent Volume (Vas)
87.7 liters
Maximum Linear Excursion (Xmax)
5.5 mm
Cone / Diaphragm Material
Coated Paper
Surround Material
Voice Coil Wire Material
Voice Coil Former
Basket / Frame Material
Magnet Material
Overall Outside Diameter
270 mm
Overall Depth
112 mm
Baffle Cutout Diameter
227 mm
# Mounting Holes
Sealed Volume
1.28 ft.³
Sealed F3
55 Hz
Vented Volume
3.38 ft.³
Vented F3
28 Hz


5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
I bought these as a replacement for some old Peerless woofers whose foam surround had worn out. They are a huge improvement and provide really clear bass with lots of punch. This is despite being installed in a 1 cubic foot sealed cabinet which is smaller than recommended so they would probably sound even better in a larger or ported cabinet. I highly recommend these woofers!
Durch Mike C. on 24 September 2018
5 van 5
very nice woofer for its money, with rubber instead of foam. The right specs to replace old Akai woofers with worn foam. The big magnet compensates the rubber and makes the sensivity just right.
Durch Gerrie V. on 31 August 2018
