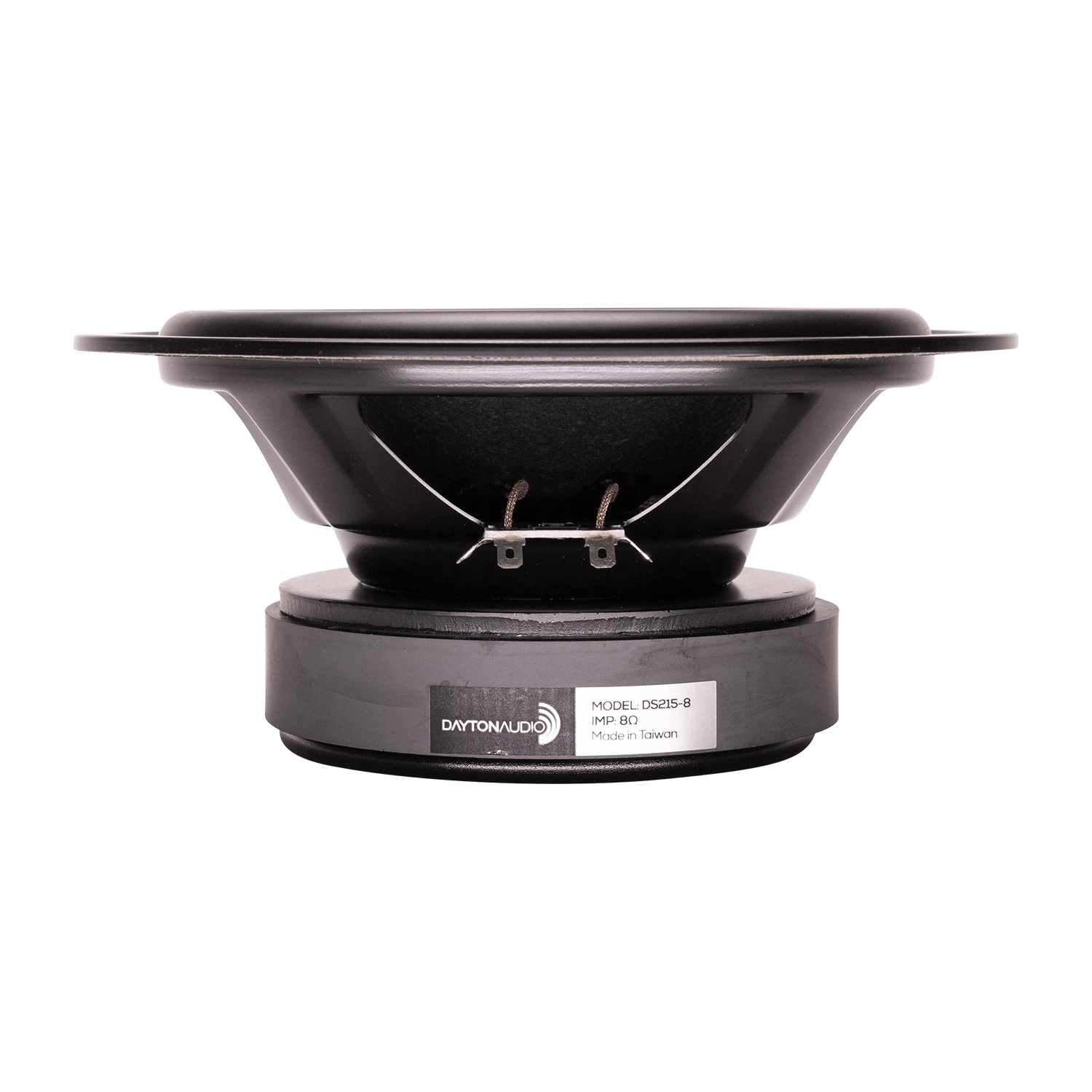

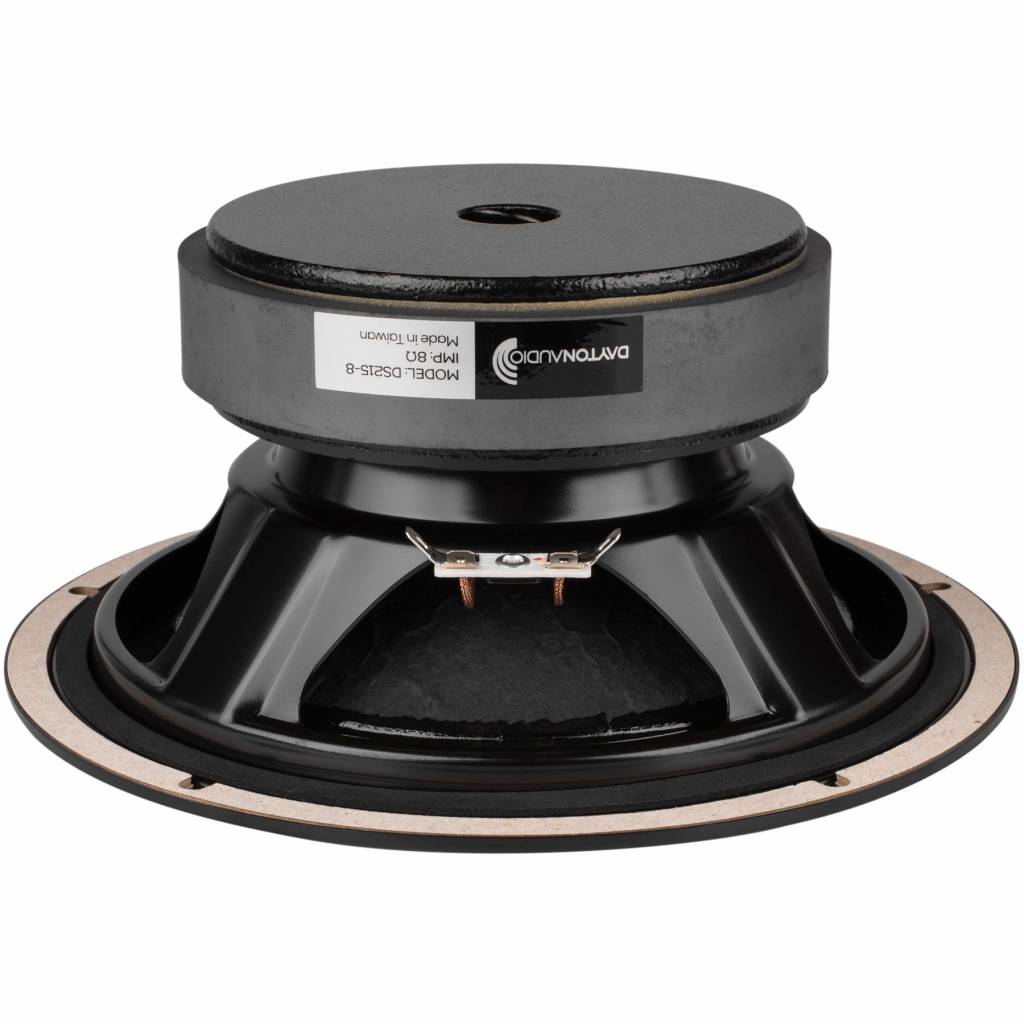

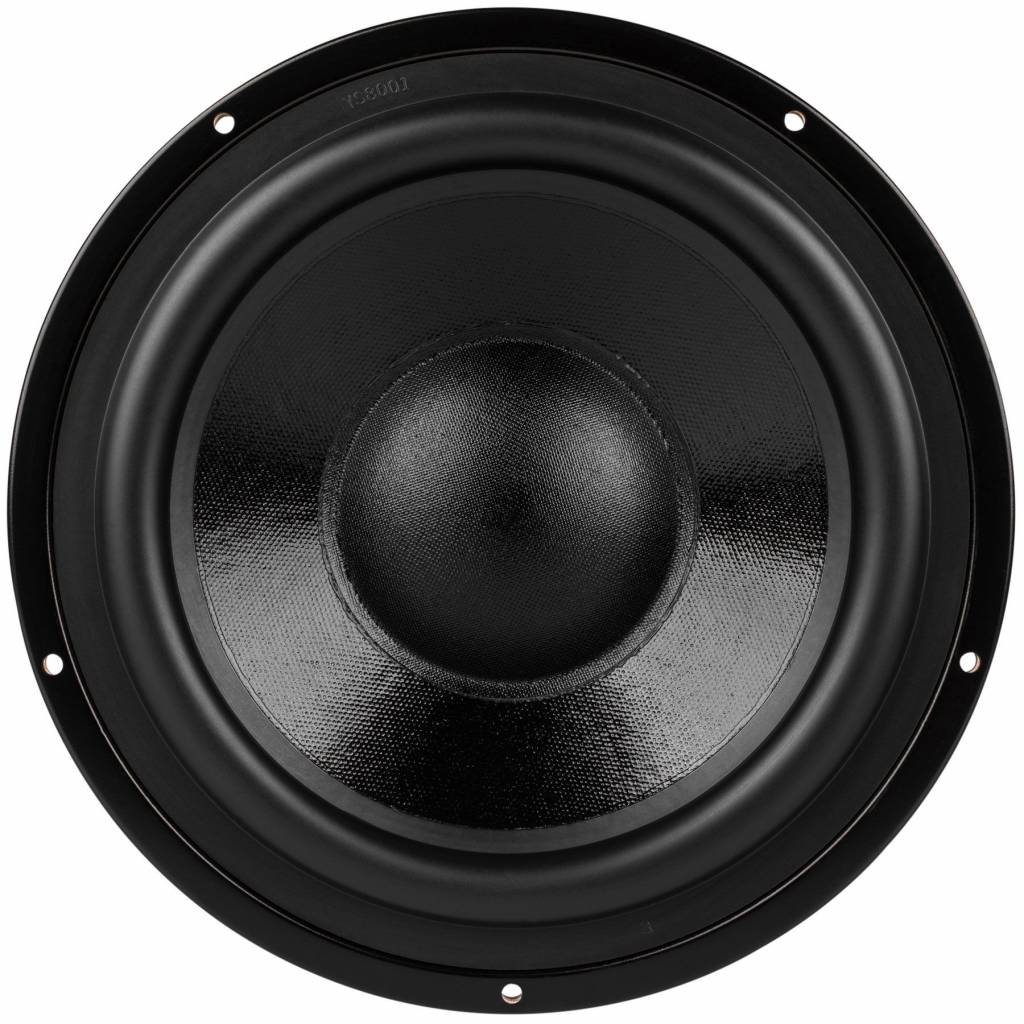

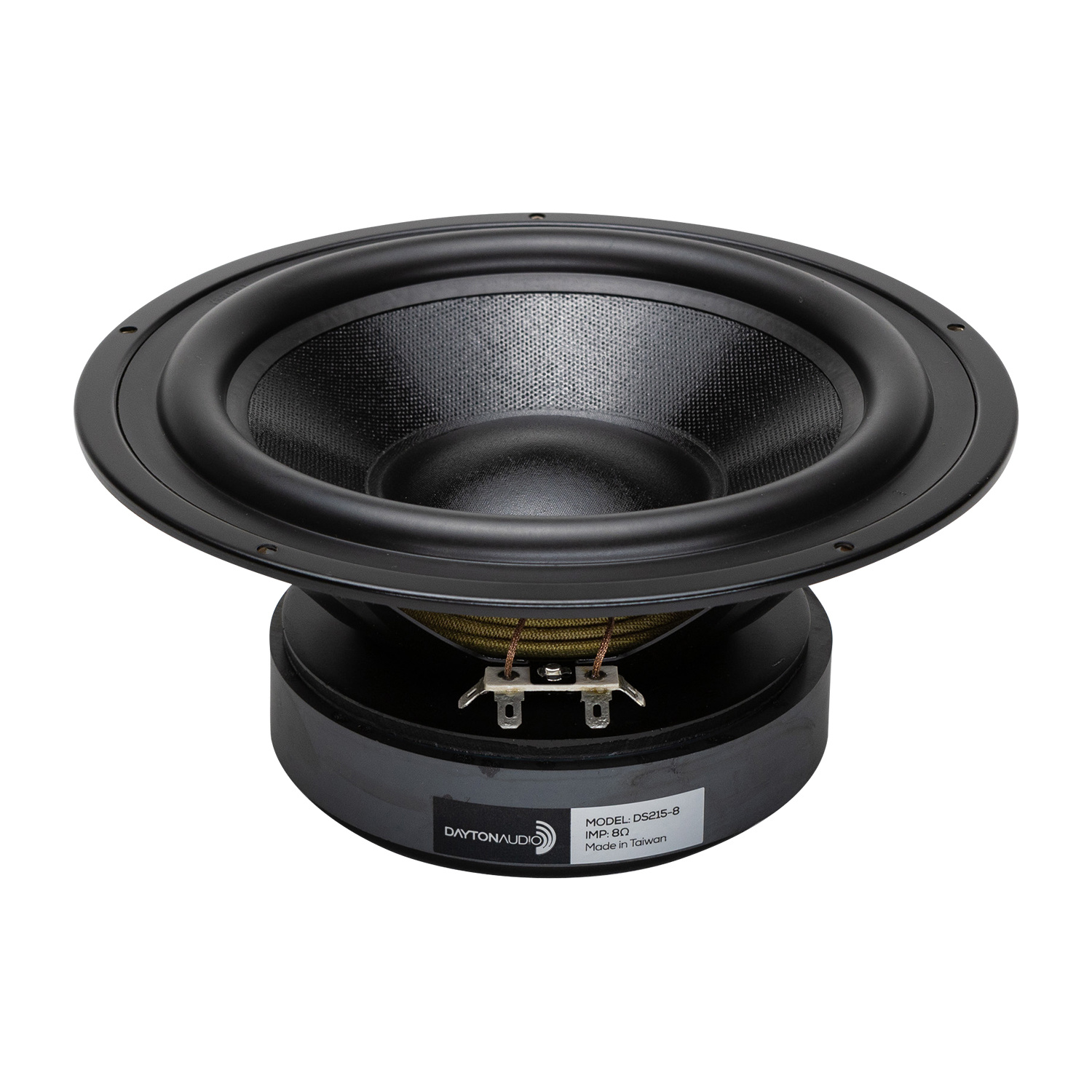

Dayton Audio DS215-8 8" Designer Series Woofer Speaker

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DS215-8
  • Vorrat: >10 Auf Lager

Dayton Audio's Designer Series DS215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation.

€ 58,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €55,53 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte


Dayton Audio DS215-8 8" Designer Series Woofer Speaker

Dayton Audio's Designer Series DS215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation.



  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators


Product details

Dayton Audio DS215-8 8" Designer Series Woofer Speaker


The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.


These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



Spezifikationen für: DS215-8 8" Designer Series Woofer Speaker

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Designer Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 8"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 80 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 160 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 89.9 dB @ 2.83V/1m
  • Frequency Response 35 - 4,000 Hz
  • Voice Coil Diameter 38.5 mm
  • Magnet Weight 49 oz.
  • DC Resistance (Re) 5.8 ohms
  • Voice Coil Inductance (Le) 1.25 mH @ 1 kHz
  • Resonant Frequency (Fs) 34.3 Hz
  • Mechanical Q (Qms) 1.75
  • Electromagnetic Q (Qes) 0.38
  • Total Q (Qts) 0.31
  • Diaphragm Mass Inc. Airload (Mms) 29.7g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.72 mm/N
  • Surface Area of Cone (Sd) 211.2 cm²
  • Volume of Displacement (Vd) 116.2 cm³
  • BL Product (BL) 9.89 Tm
  • Compliance Equivalent Volume (Vas) 43.1 liters
  • Maximum Linear Excursion (Xmax) 5.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 216 mm
  • Overall Depth 95.5 mm
  • Baffle Cutout Diameter 180 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume 0.28 ft.³
  • Sealed F3 87 Hz
  • Vented Volume 0.6 ft.
  • Vented F3 52 Hz



Erfahrungsberichte 5 / 5 Bewertungen: (2)

  • WI Durch Werner I. an 03-12-2019 10:47

    5 / 5

    Mooie degelijke luidspreker, heb hem 4 x gebruikt in een Wersi Orgel.

  • DT Durch Donatas T. an 08-01-2018 07:29

    5 / 5

    Perfect woofer for reasonable price - bass is punchy and soft, in a 15Ltr ported enclosure, plenty of power headroom.
