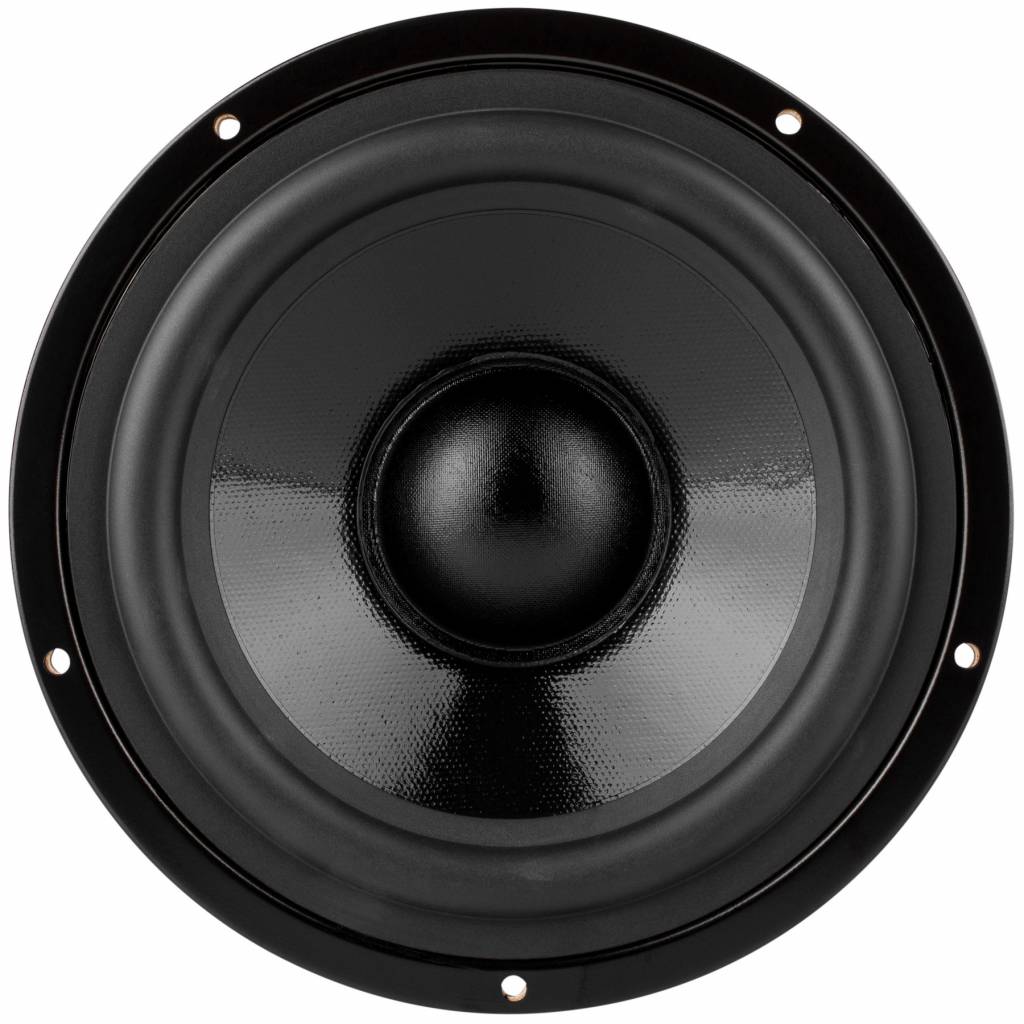

Dayton Audio DS175-PR 6-1/2" Passive Radiator

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DS175-PR
  • Vorrat: 7 Auf Lager

The Dayton Audio DS175-PR 6-1/2" passive radiator is excellent general-purpose radiator which allows lower tuning frequencies in smaller enclosures, suitable for replacement or for new construction.

€ 24,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €23,70 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio DS175-PR 6-1/2" Passive Radiator

The Dayton Audio DS175-PR 6-1/2" passive radiator is excellent general-purpose radiator which allows lower tuning frequencies in smaller enclosures, suitable for replacement or for new construction.



Highlights

  • Long-throw suspension system for clean excursion

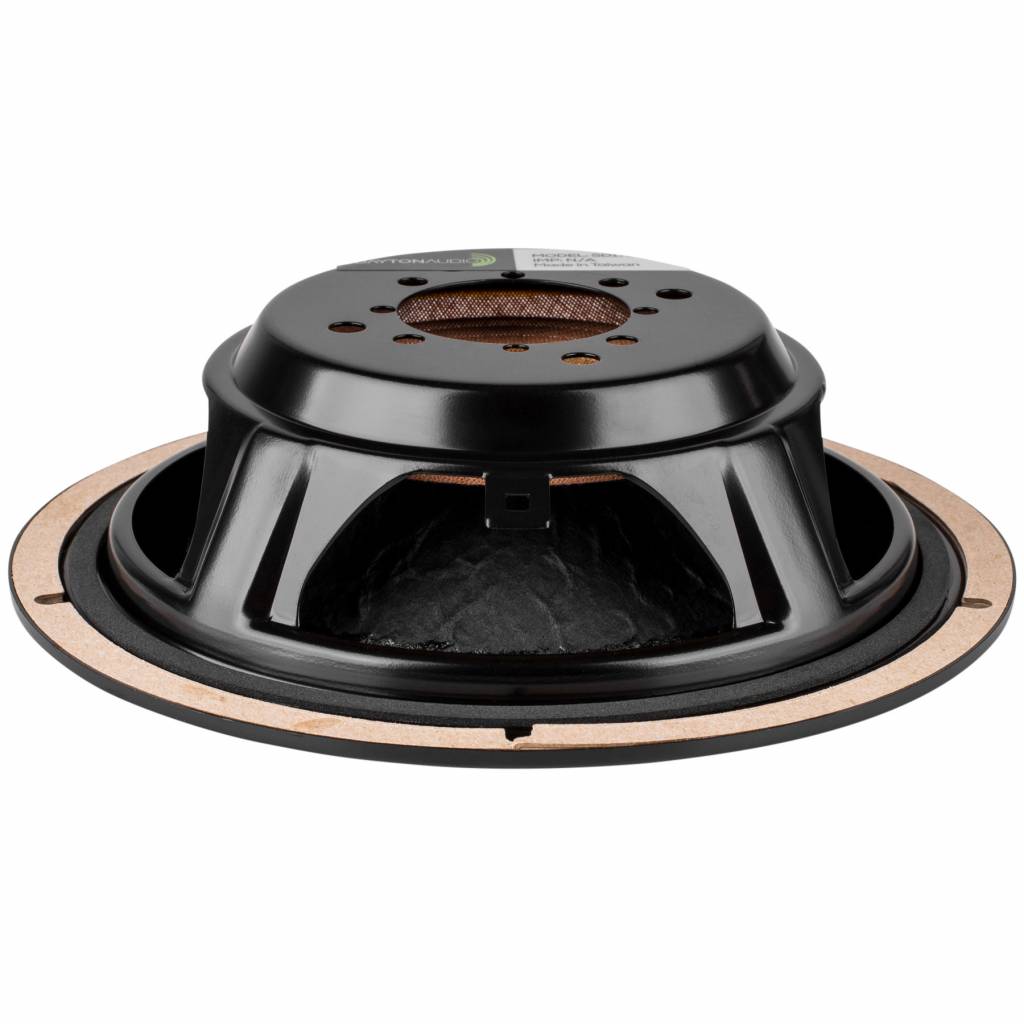

  • Rugged stamped frame design with rear spider for stability
  • Durable coated paper cone and rubber surround
  • M5 threaded hole simplifies adding mass for lower tuning frequency



Product details

Dayton Audio DS175-PR 6-1/2" Passive Radiator



The Dayton Audio DS175-PR 6-1/2" passive radiator is an excellent general-purpose radiator suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Designer Series line of drivers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.



Recommended for use in passive radiator enclosure alignments with active drivers from 3" to 6.5" in diameter. Dual passive radiators are recommended for use with 6.5" active drivers.



Specifications: • Fs: 30.2 Hz • Vas: 0.61 cu. ft. • Qms: 1.8 • Cms: 0.74 mm/N • Mms: 37.5 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 6.94", Cutout diameter: 5.63", Depth: 1.88"



Note: Adding mass to the passive radiator will decrease Fs and increase Qms.



Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 6-1/2" woofer/subwoofer that has 8 mm of X-max would require 2-6-1/2" passive radiators with 8 mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

Eigenschaften

Spezifikationen für: DS175-PR 6-1/2" Passive Radiator

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. DVC Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Passive Radiator
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 6.50"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square.
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt.
  • View all specifications
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 24.5 Hz
  • Mechanical Q (Qms) 5.57
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 36.6g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.15 mm/N
  • Surface Area of Cone (Sd) 128.7 cm²
  • Volume of Displacement (Vd) 103 cm³
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 27.1 liters
  • Maximum Linear Excursion (Xmax) 8 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 176.3 mm
  • Overall Depth 47.8 mm
  • Baffle Cutout Diameter 143 mm
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
